Craftsman
Garage Door Opener

Model # 139650530 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 139650530 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Chnnl Select 1A13
#54

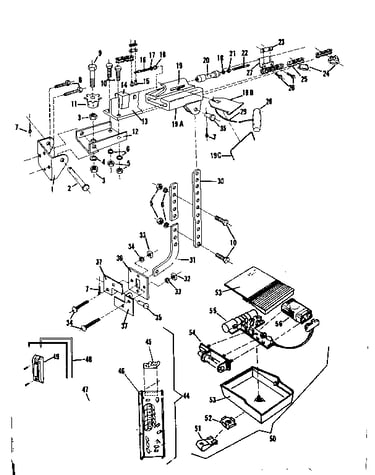

Rail assembly and radio controls diagram

Chnnl select

Part #1A13

The manufacturer no longer makes this part, and there's no substitute part

Transmitter 1A548
#55

Rail assembly and radio controls diagram

Transmitter

Part #1A548

The manufacturer no longer makes this part, and there's no substitute part

Transmitter G-3213
Transmitter

Part #G-3213

The manufacturer no longer makes this part, and there's no substitute part

Channel Sele 1A12
#45

Rail assembly and radio controls diagram

Channel sele

Part #1A12

The manufacturer no longer makes this part, and there's no substitute part

Washer 216A2
Washer

Part #216A2

The manufacturer no longer makes this part, and there's no substitute part

Light Socket Assembly 1A737
#21

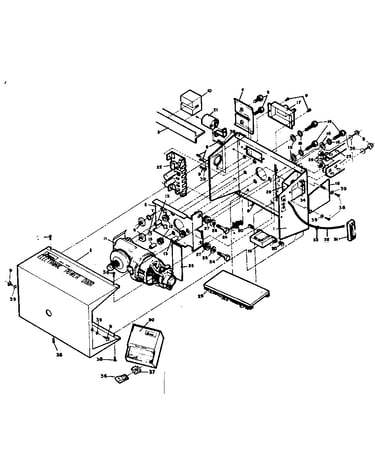

Chassis assembly diagram

Light socket assembly

Part #1A737

The manufacturer no longer makes this part, and there's no substitute part

Case Clip 29B27
Case clip

Part #29B27

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 133A29
#5

Rail assembly and radio controls diagram

Hex nut

Part #133A29

The manufacturer no longer makes this part, and there's no substitute part

Rail Mountng 28B24
#4

Chassis assembly diagram

Rail mountng

Part #28B24

The manufacturer no longer makes this part, and there's no substitute part

Brush Spring 4A67
#4

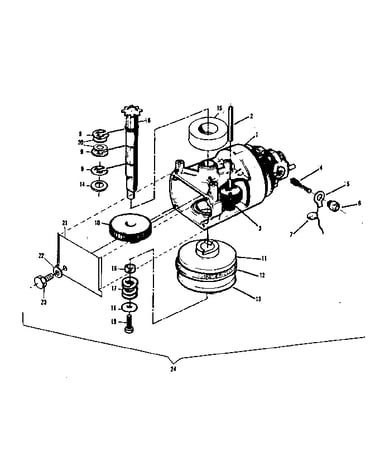

Motor drive assembly diagram

Brush spring

Part #4A67

The manufacturer no longer makes this part, and there's no substitute part
