Chipper/Shredder

Model # 987797810 Official Craftsman gas chipper/shredder vacuum

Here are the diagrams and repair parts for Official Craftsman 987797810 gas chipper/shredder vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

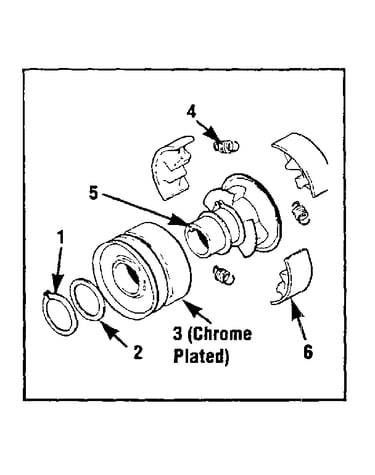

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Washer 1100255
#25

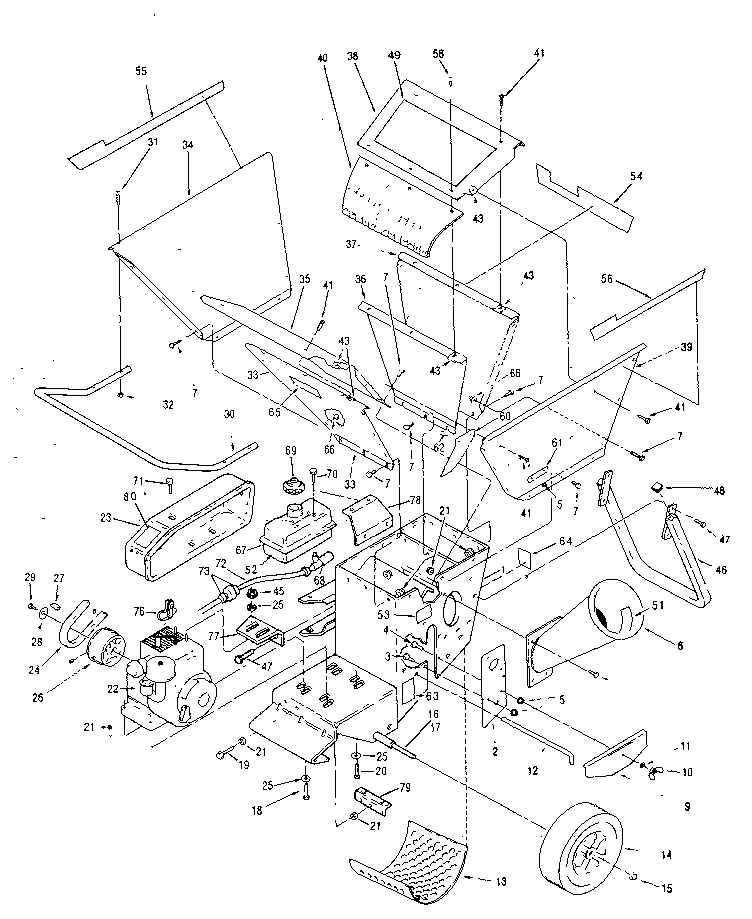

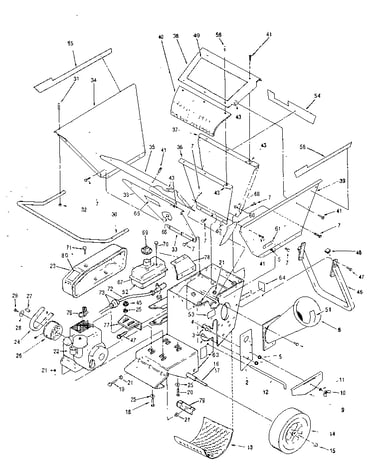

Main frame diagram

Washer

Part #1100255

Replaced by #736-0262

?
Manufacturer substitution
This part replaces 1100255. Substitute parts can look different from the original.
This item is not returnable
$5.11 |
16% OFF Phone Price : $6.11
In Stock
Screw 1100779
#20

Main frame diagram

Screw

Part #1100779

Replaced by #710-3180

?
Manufacturer substitution
This part replaces 1100779. Substitute parts can look different from the original.
This item is not returnable
$6.93 |
13% OFF Phone Price : $7.93
In Stock
Bolt 1186469
#62

Main frame diagram

Bolt

Part #1186469

The manufacturer no longer makes this part, and there's no substitute part

Screw 1111606
#18

Main frame diagram

Screw

Part #1111606

Replaced by #710-3103

?
Manufacturer substitution
This part replaces 1111606. Substitute parts can look different from the original.
This item is not returnable
$6.37
In Stock
Nut 1186391
#21

Main frame diagram

Nut

Part #1186391

Replaced by #712-04054

?
Manufacturer substitution
This part replaces 1186391. Substitute parts can look different from the original.
$7.83
In Stock
Cap Screw 1186309
Cap screw

Part #1186309

Replaced by #1186309

?
Manufacturer substitution
This part replaces 1186309. Substitute parts can look different from the original.
This item is not returnable
$3.63
In Stock
Nut 1186389
#66

Main frame diagram

Nut

Part #1186389

Replaced by #1186389

?
Manufacturer substitution
This part replaces 1186389. Substitute parts can look different from the original.
This item is not returnable
$4.86
In Stock
Screw 1100913
#15

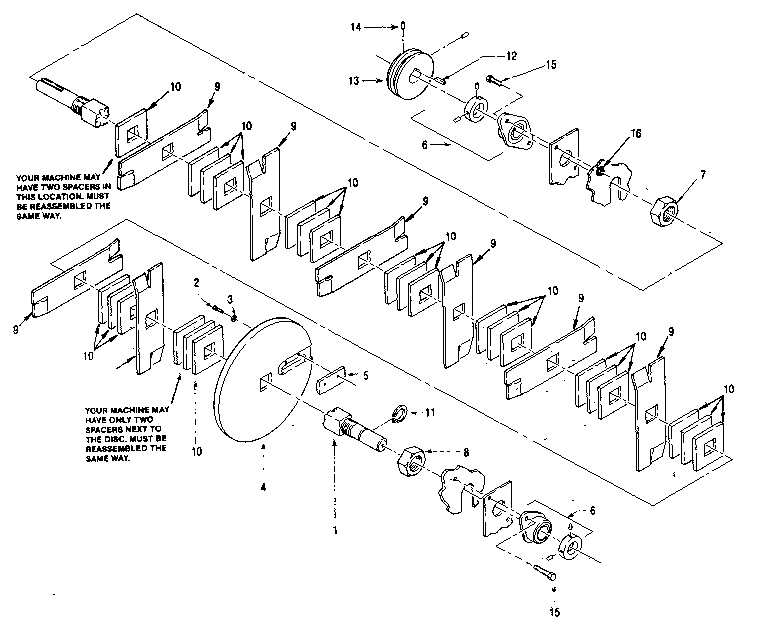

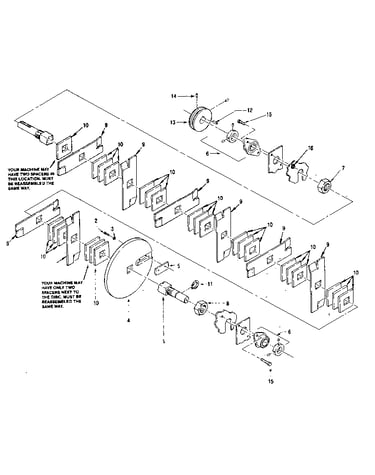

Cylinder shaft diagram

Screw

Part #1100913

Replaced by #710-3001

?
Manufacturer substitution
This part replaces 1100913. Substitute parts can look different from the original.
$12.29
In Stock
Nut 1186393
Nut

Part #1186393

Replaced by #1186393

?
Manufacturer substitution
This part replaces 1186393. Substitute parts can look different from the original.
This item is not returnable
$5.20
In Stock
Screw 1186329
#47

Main frame diagram

Screw

Part #1186329

Replaced by #710-04043

?
Manufacturer substitution
This part replaces 1186329. Substitute parts can look different from the original.
This item is not returnable
$6.29
In Stock
