Danby
Top-Mount Refrigerator

Model # DFF8803W Official Danby refrigerator

Here are the diagrams and repair parts for Official Danby DFF8803W refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Freezer Fl 186D2805P001
#190

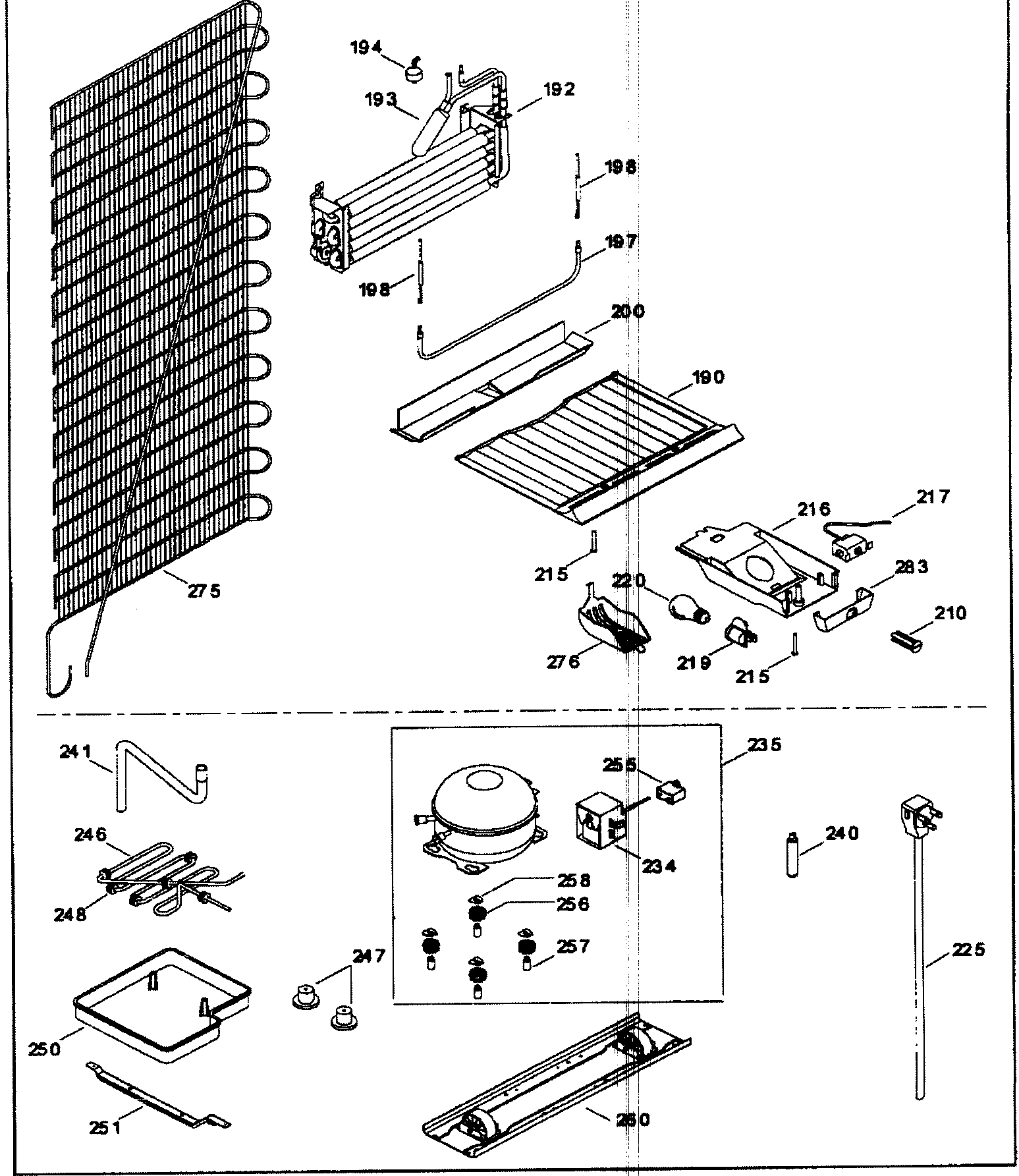

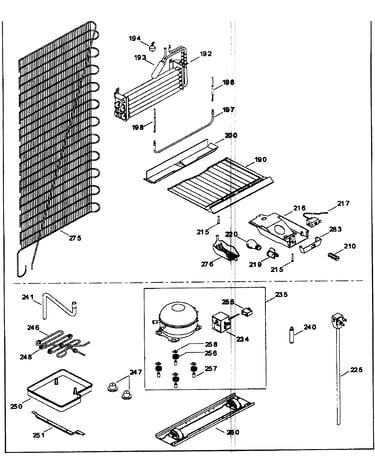

Motor assy diagram

Freezer fl

Part #186D2805P001

$10.34
In Stock
Refrigerator Light Shield 162D7022P001
#276

Motor assy diagram

Refrigerator light shield

Part #162D7022P001

This item is not returnable
$6.27
In Stock
Danby Danby Refrigerator Door Hinge Bushing 314B8506P004
#NI

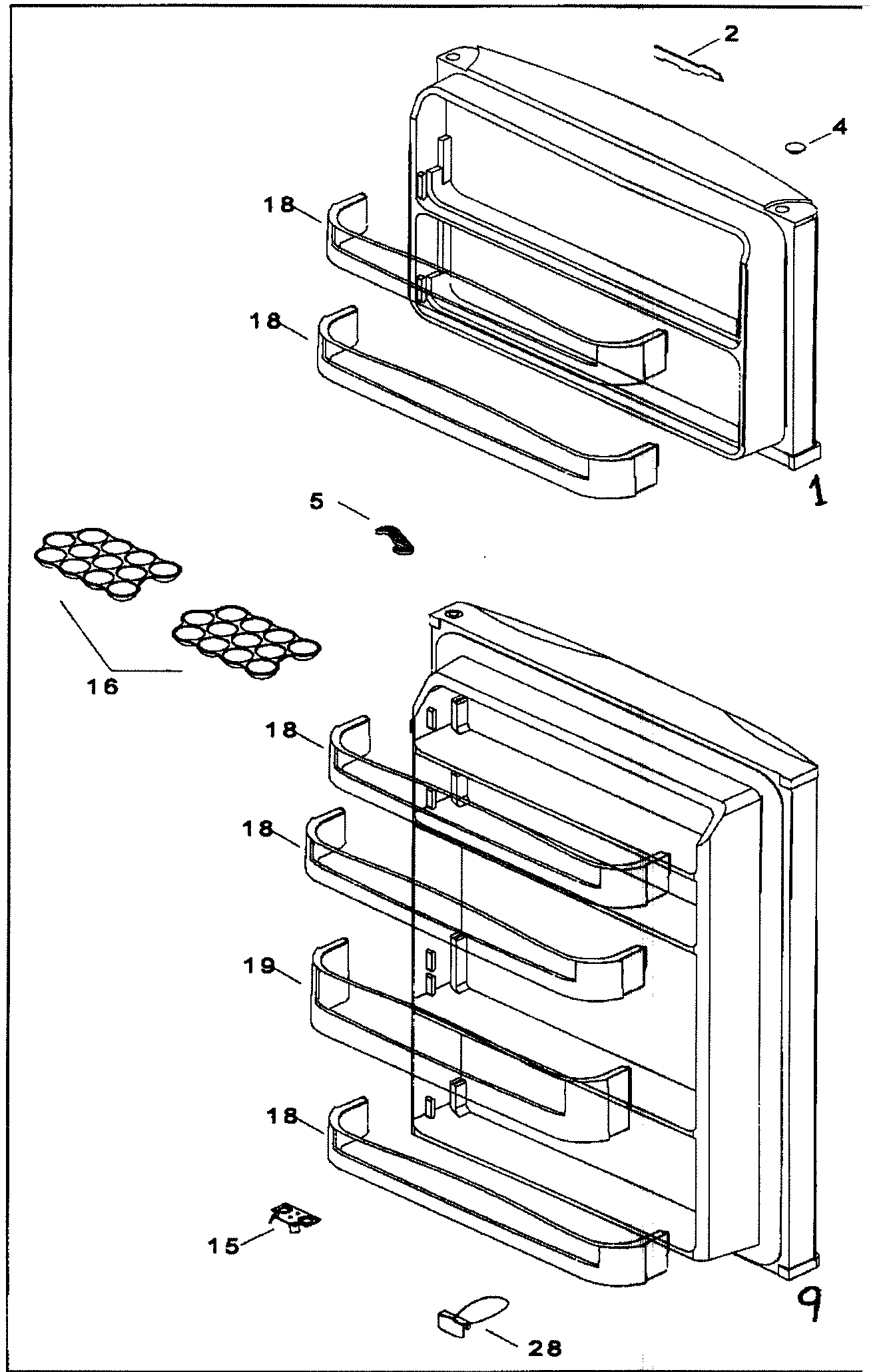

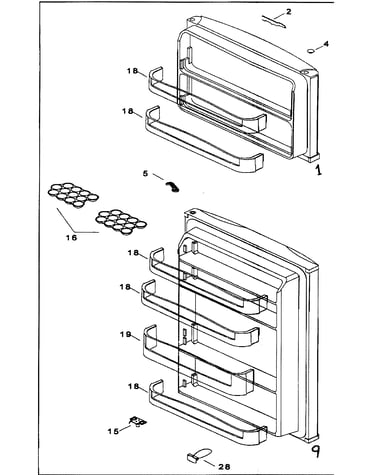

Door assy diagram

Danby danby refrigerator door hinge bushing

Part #314B8506P004

This item is not returnable
$2.56
In Stock
Danby Refrigerator Door Switch 314B8274P001
#211

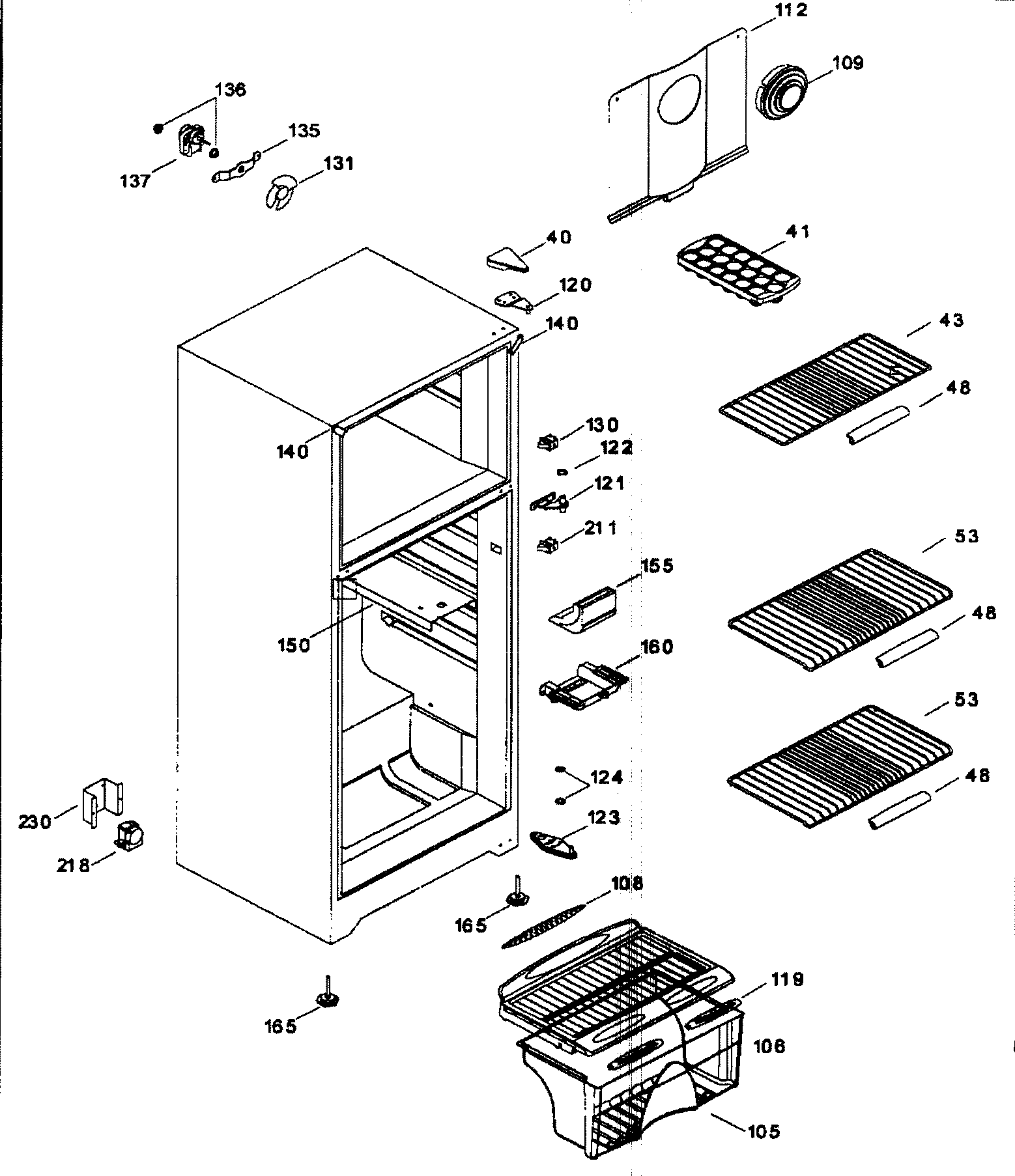

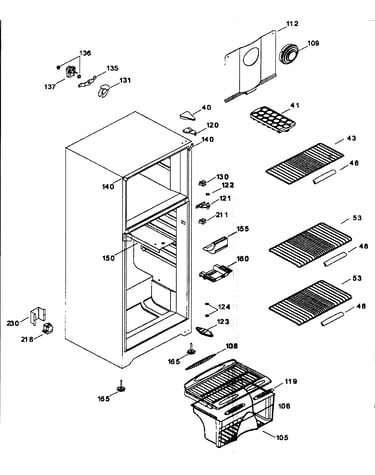

Cabinet parts diagram

Danby refrigerator door switch

Part #314B8274P001

$16.92
In Stock
Refrigerator Run Capacitor 238C2082P001
#255

Motor assy diagram

Refrigerator run capacitor

Part #238C2082P001

$12.46
In Stock
Danby Refrigerator Evaporator Fan Motor Grommet 221C5143P001
#136

Cabinet parts diagram

Danby refrigerator evaporator fan motor grommet

Part #221C5143P001

This item is not returnable
$2.16
In Stock
Danby Refrigerator Cabinet Corner 186D5264P001
#140

Cabinet parts diagram

Danby refrigerator cabinet corner

Part #186D5264P001

This item is not returnable
$2.16
In Stock
Refrigerator Thermostat 238C2208P002
#194

Motor assy diagram

Refrigerator thermostat

Part #238C2208P002

Replaced by #WR01F02355

?
Manufacturer substitution
This part replaces 238C2208P002. Substitute parts can look different from the original.
$14.34
In Stock
Refrigerator Glass Cover 200D4446P005
#106

Cabinet parts diagram

Refrigerator glass cover

Part #200D4446P005

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Spacer 221C5045P005
#NI

Door assy diagram

Refrigerator spacer

Part #221C5045P005

The manufacturer no longer makes this part, and there's no substitute part
