Model # WFG745H0FS0 Official Whirlpool gas freestanding range
Here are the diagrams and repair parts for Official Whirlpool WFG745H0FS0 gas freestanding range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

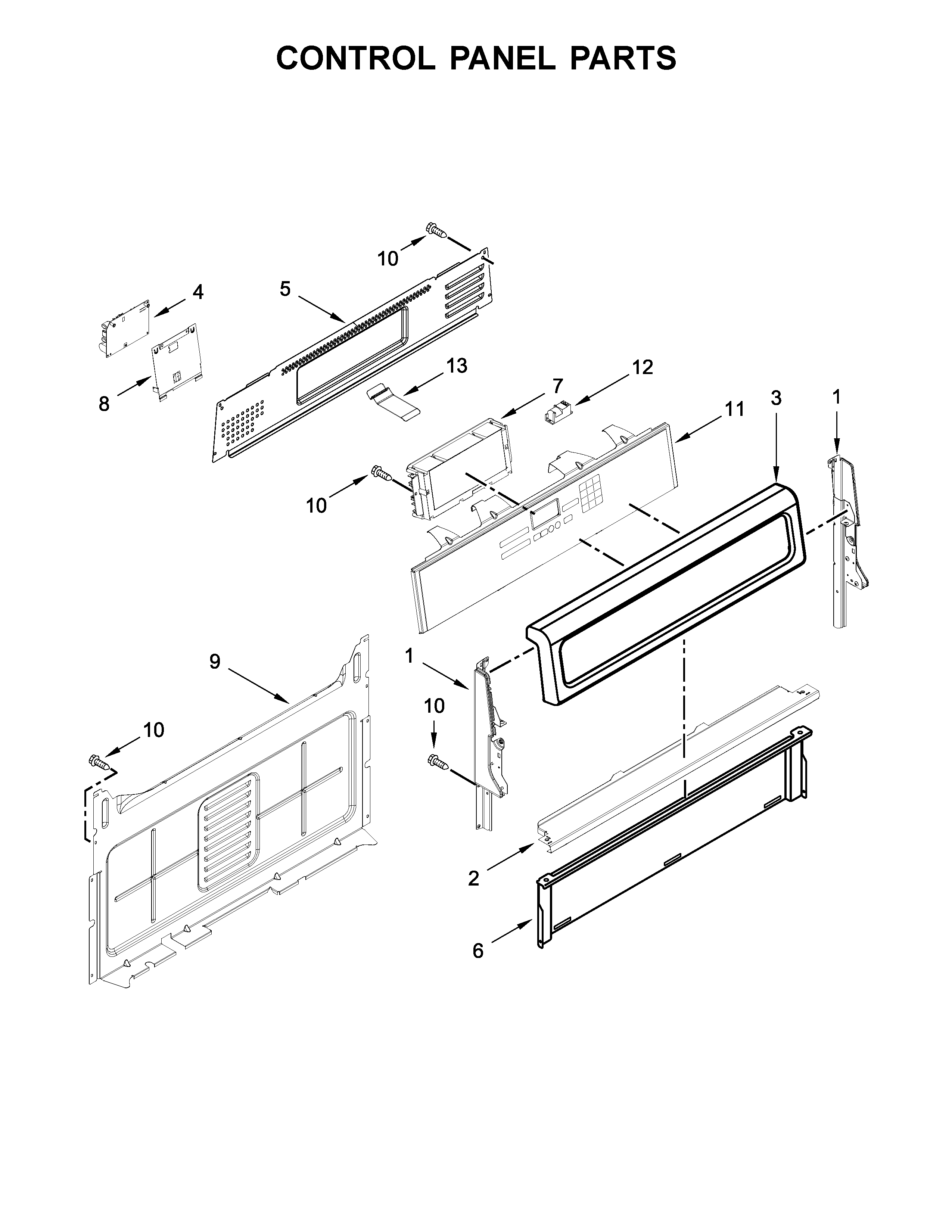

SELECT DIAGRAM
Browse Parts forWFG745H0FS0 Ranges
- #NI
Optional parts (not included) diagram
Affresh cooktop cleanerPart #W10355051
This item is not returnableGet free shipping with Automatic Reorder
$10.88 |16% OFF Phone Price : $12.88In Stock - #13

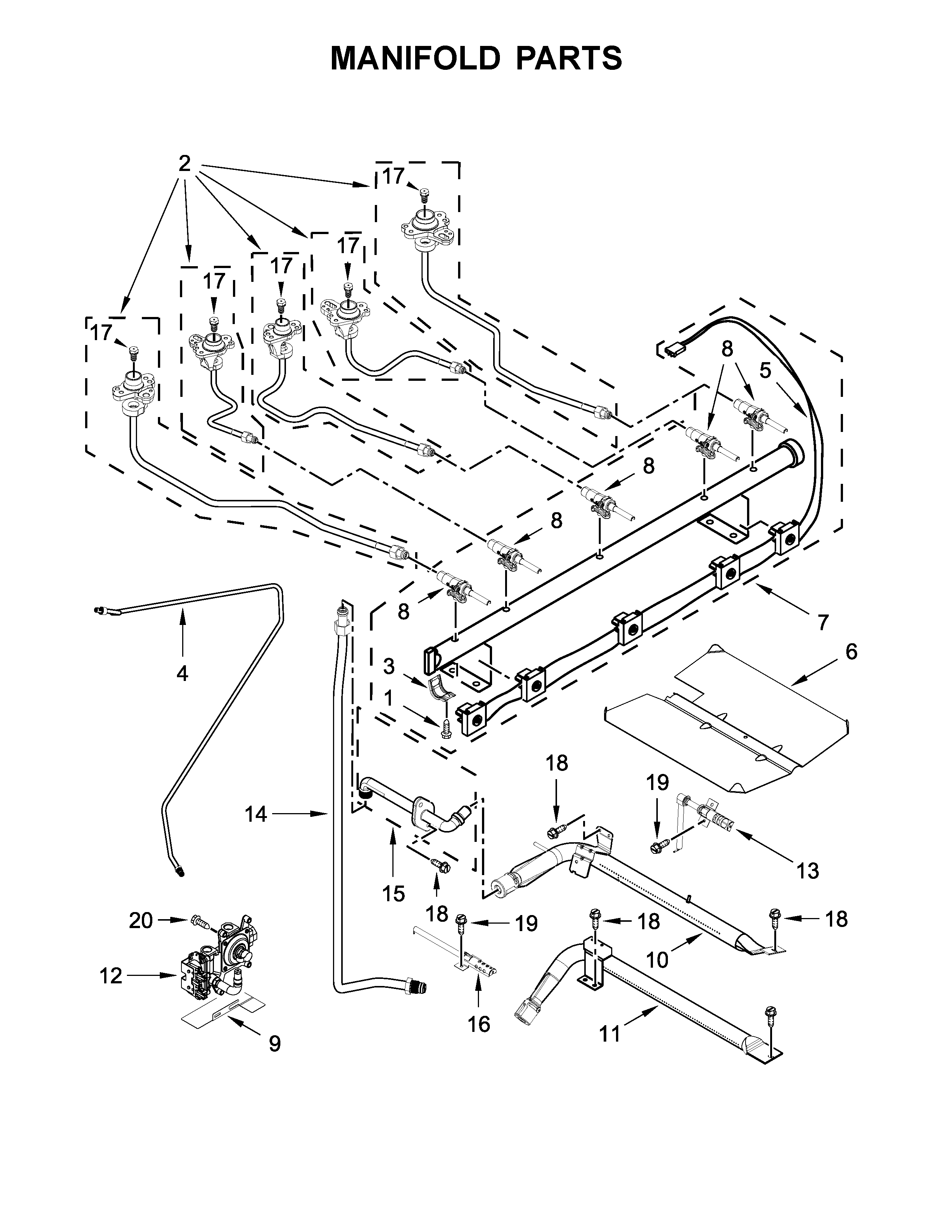

Manifold parts diagram
Range oven igniterPart #W10324262
Replaced by #WPW10324262
?Manufacturer substitutionThis part replaces W10324262. Substitute parts can look different from the original.$62.52 |9% OFF Phone Price : $68.52In Stock - #15

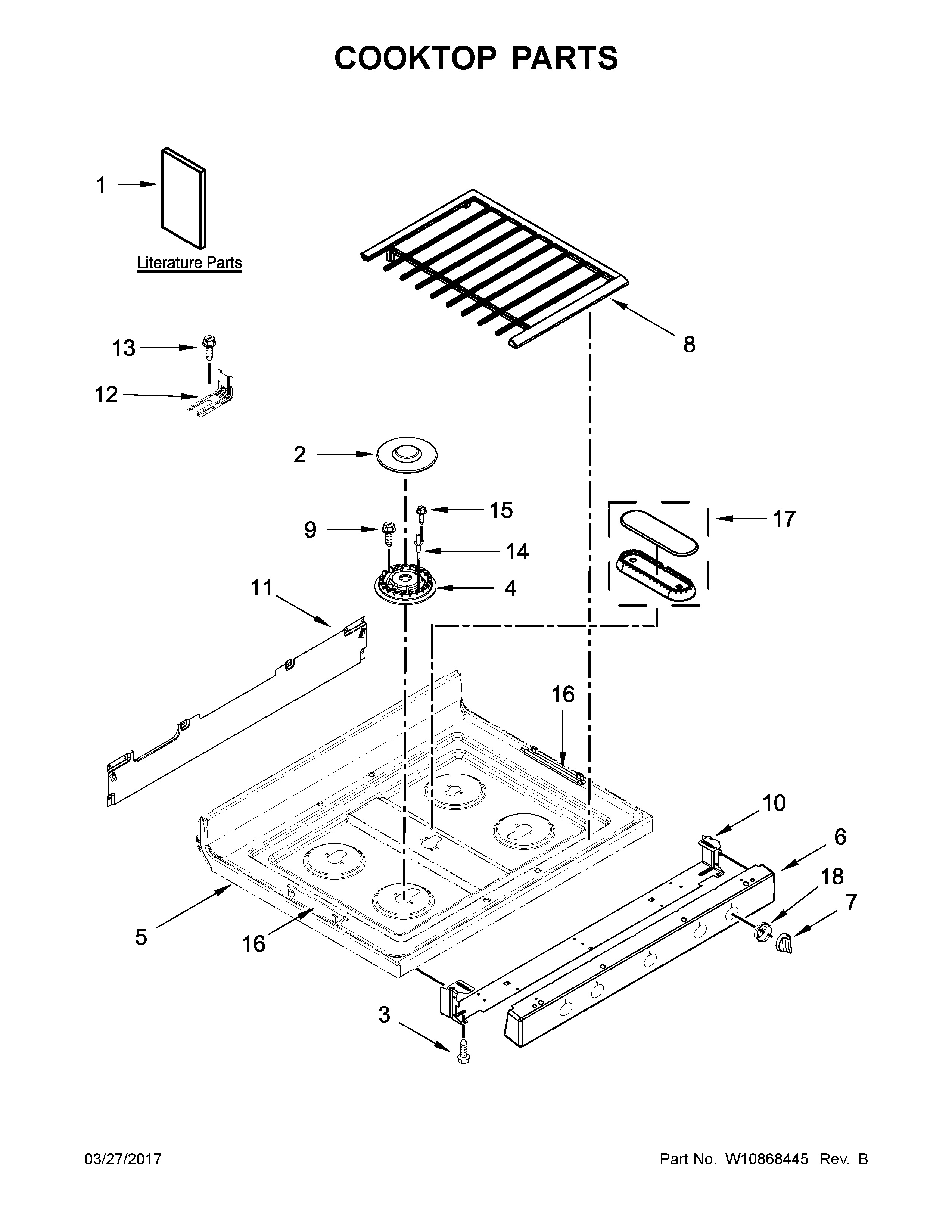

Cooktop parts diagram
Range screwPart #8273062
Replaced by #WP8273062
?Manufacturer substitutionThis part replaces 8273062. Substitute parts can look different from the original.This item is not returnable$3.58 |22% OFF Phone Price : $4.58In Stock - #16
Manifold parts diagram
Range oven burner igniterPart #W10333842
Replaced by #WPW10333842
?Manufacturer substitutionThis part replaces W10333842. Substitute parts can look different from the original.$72.33 |8% OFF Phone Price : $78.33In Stock - #4
Cooktop parts diagram
Range surface burner head, frontPart #W10515455
Replaced by #WPW10515455
?Manufacturer substitutionThis part replaces W10515455. Substitute parts can look different from the original.$60.89 |9% OFF Phone Price : $66.89In Stock - #NI
Optional parts (not included) diagram
Cooktop scraperPart #WA906B
This item is not returnableGet free shipping with Automatic Reorder
$6.29 |14% OFF Phone Price : $7.29In Stock - #2

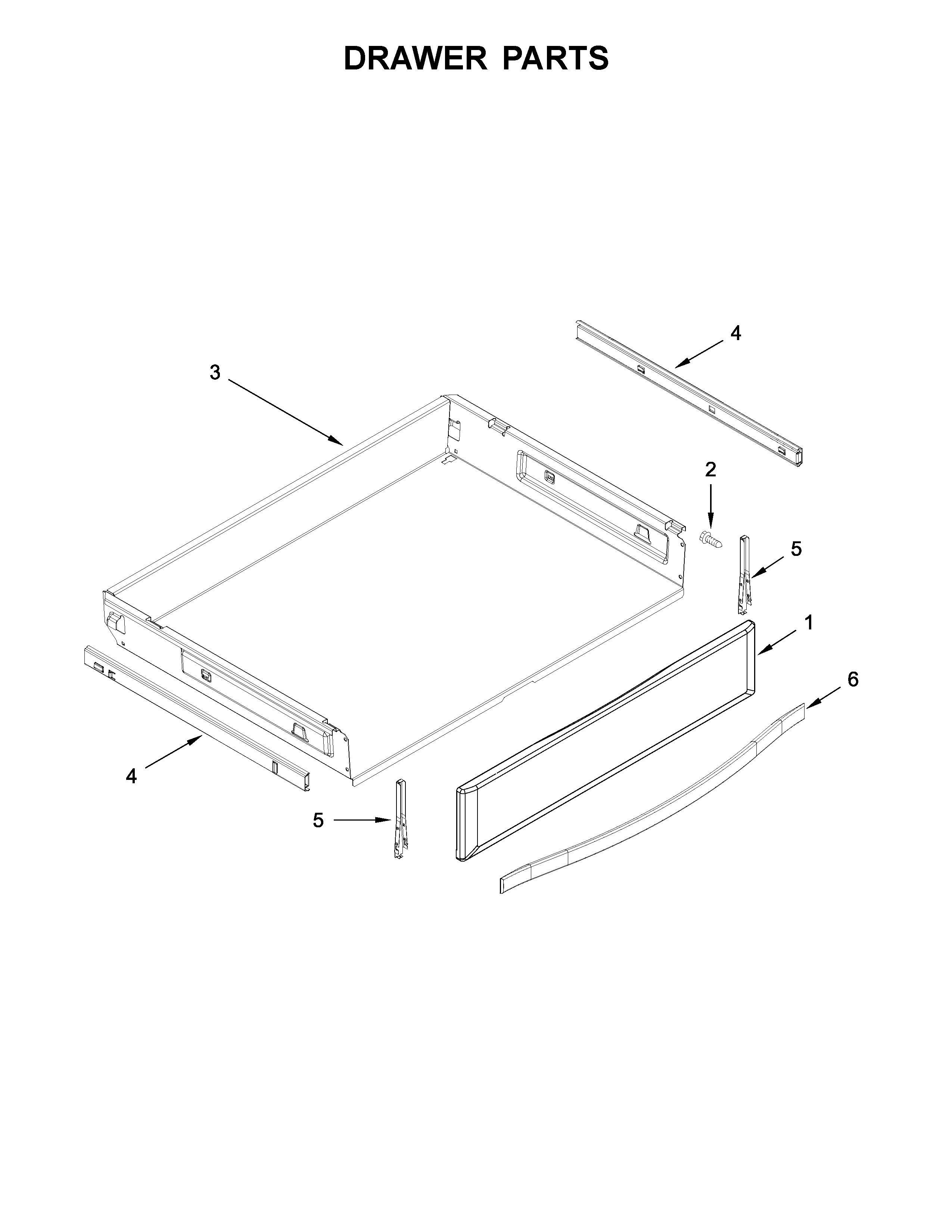

Drawer parts diagram
Range screwPart #3400882
Replaced by #WP3400882
?Manufacturer substitutionThis part replaces 3400882. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock - #14
Cooktop parts diagram
ElectrodePart #W10515459
Replaced by #WPW10515459
?Manufacturer substitutionThis part replaces W10515459. Substitute parts can look different from the original.This item is not returnable$34.16 |15% OFF Phone Price : $40.16In Stock - #29

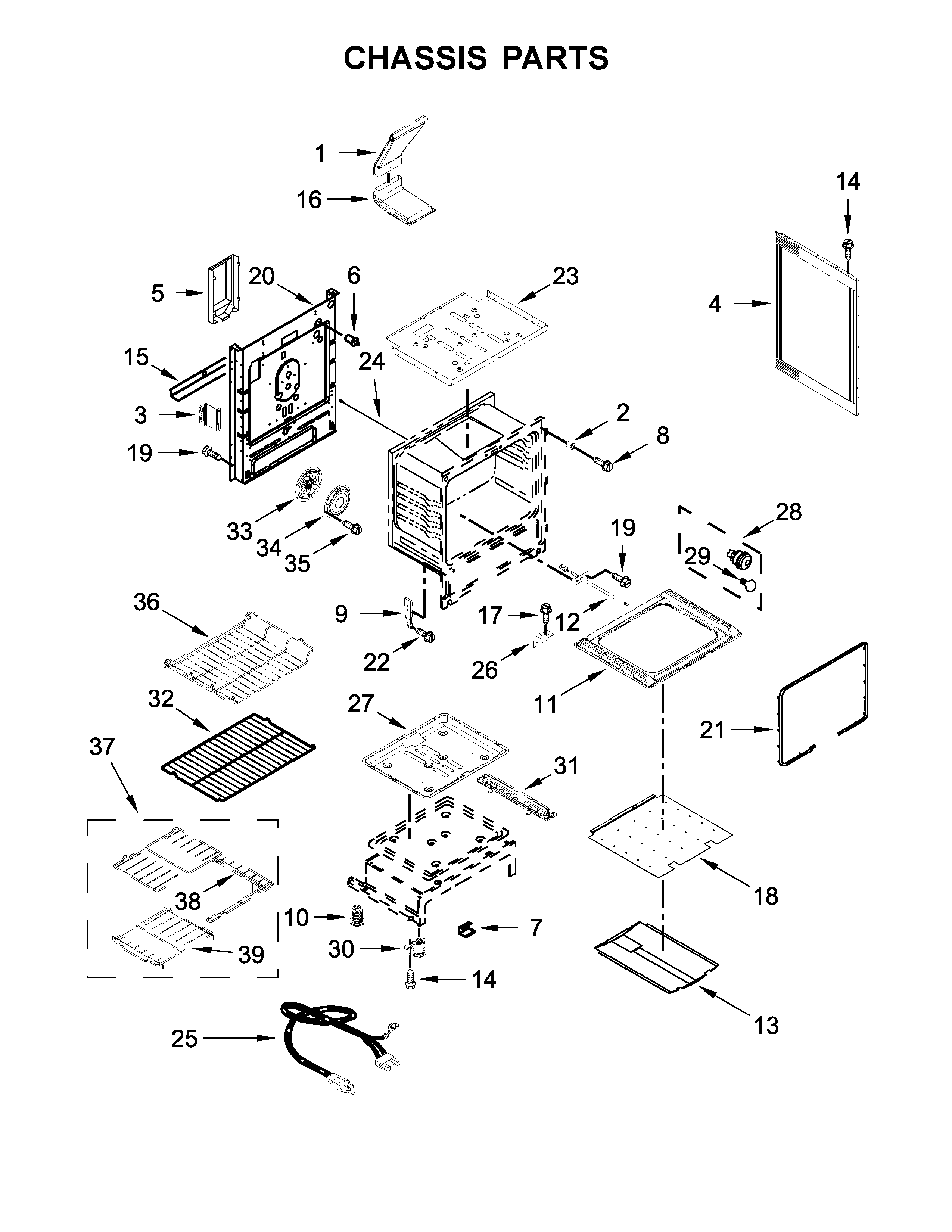

Chassis parts diagram
Light bulbPart #311255
Replaced by #8009
?Manufacturer substitutionThis part replaces 311255. Substitute parts can look different from the original.This item is not returnable$12.57 |14% OFF Phone Price : $14.57In Stock - #10

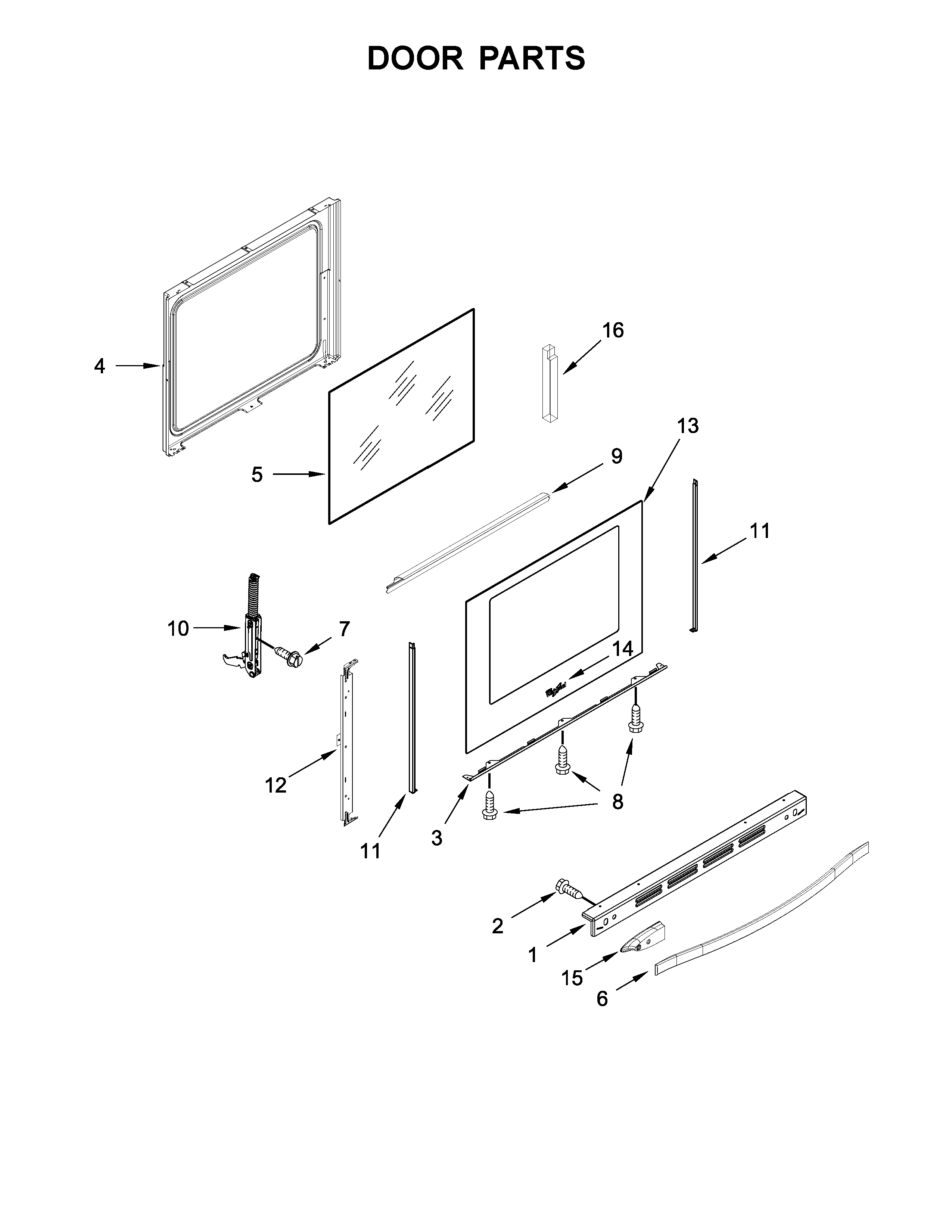

Door parts diagram
Door hingePart #W10440013
Replaced by #WPW10440013
?Manufacturer substitutionThis part replaces W10440013. Substitute parts can look different from the original.$38.01 |14% OFF Phone Price : $44.01In Stock
