Kenmore
Sewing Machine

Model # 1581792184 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 1581792184 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

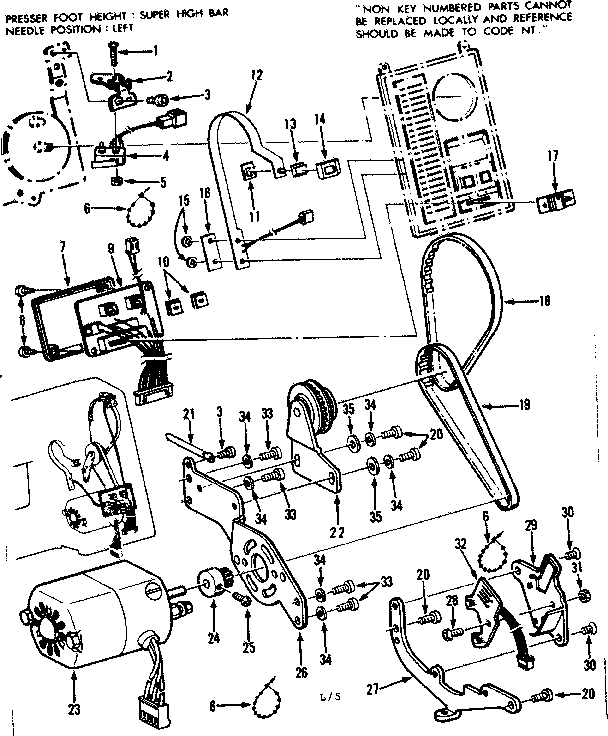

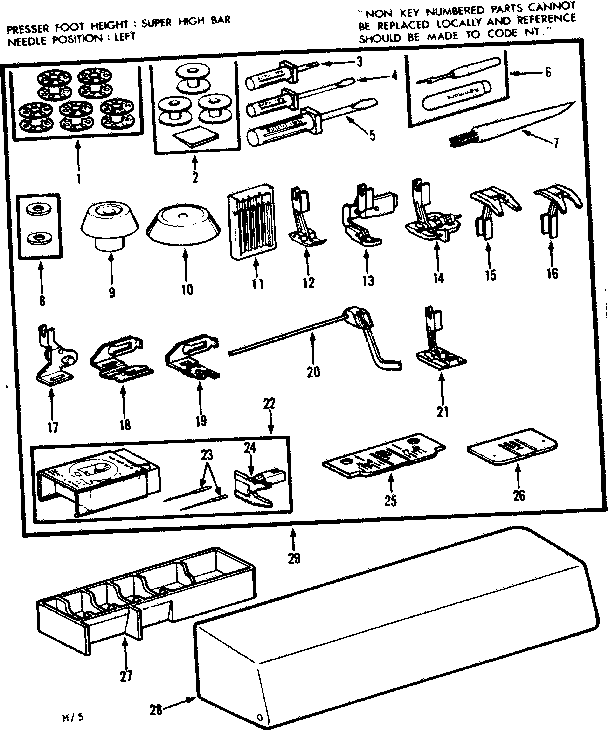

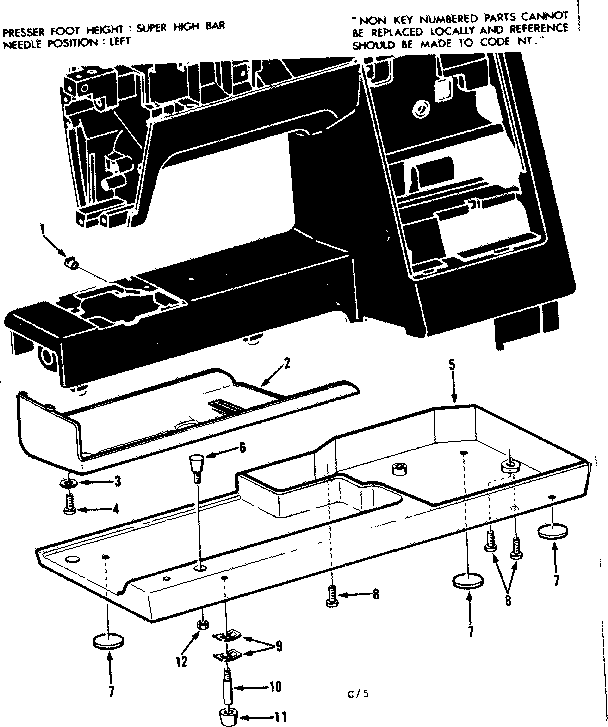

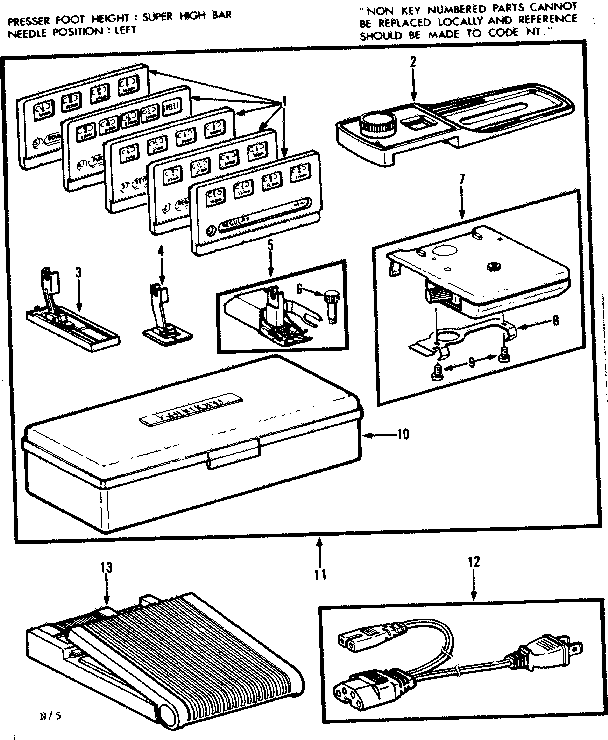

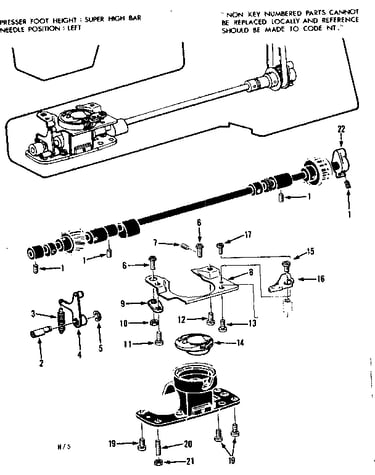

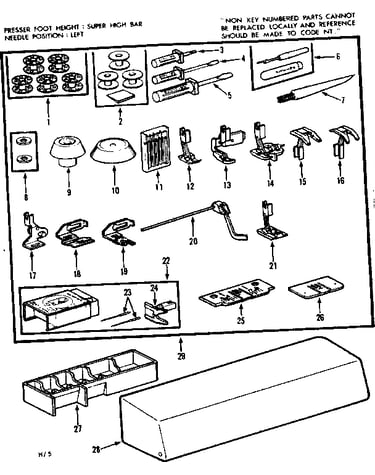

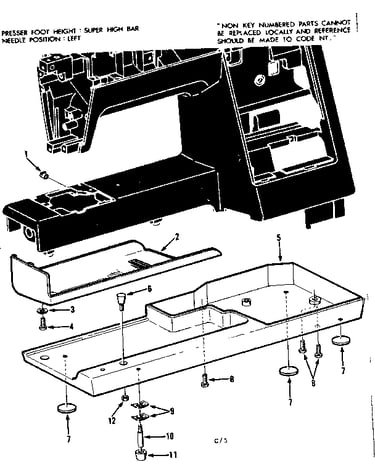

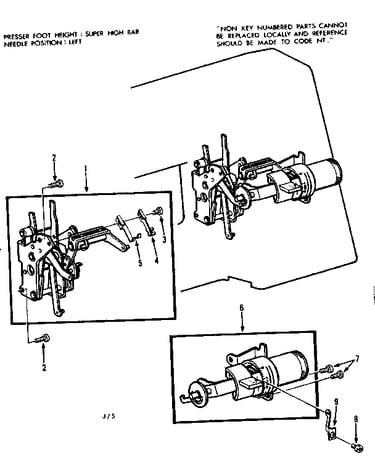

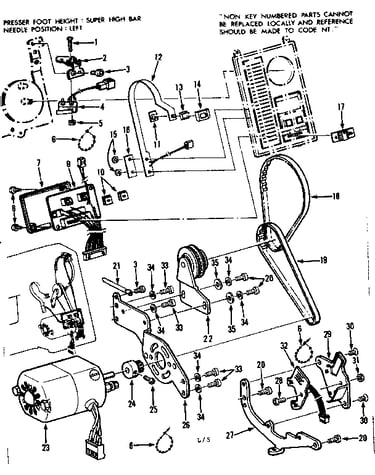

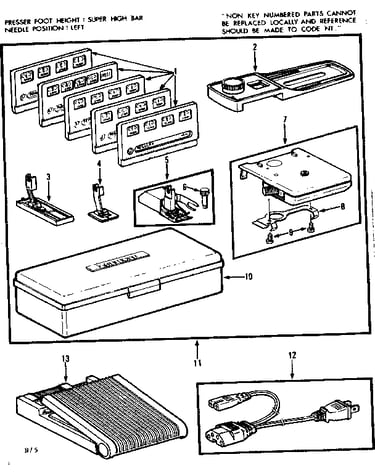

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 283 parts  |
Mc Case 57530
#15

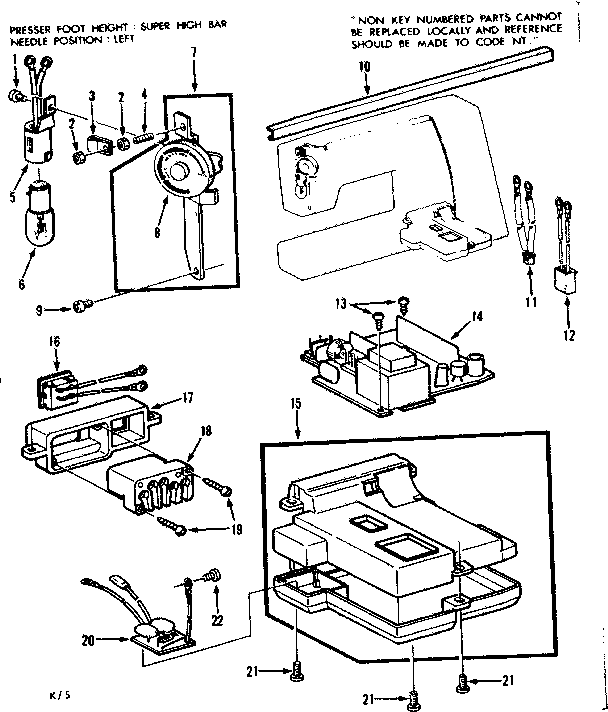

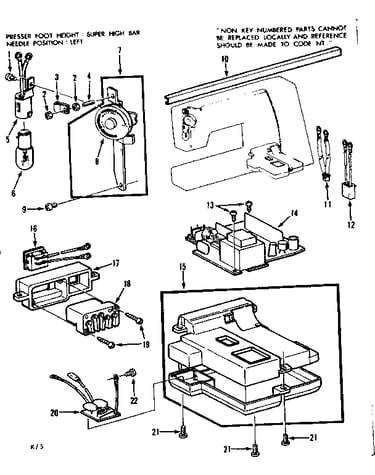

Main control assembly diagram

Mc case

Part #57530

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 57746
#19

Main control assembly diagram

Set screw

Part #57746

The manufacturer no longer makes this part, and there's no substitute part

Rocker Shaft 57656
#6

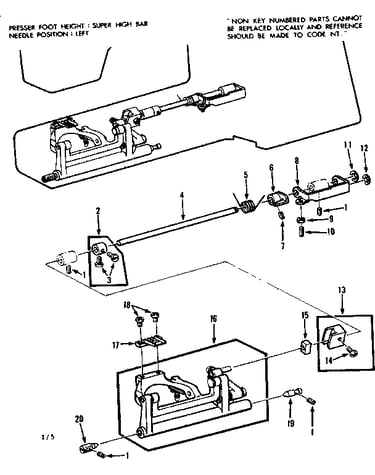

Feed regulator assembly diagram

Rocker shaft

Part #57656

The manufacturer no longer makes this part, and there's no substitute part

Presser Bar 57576
#12

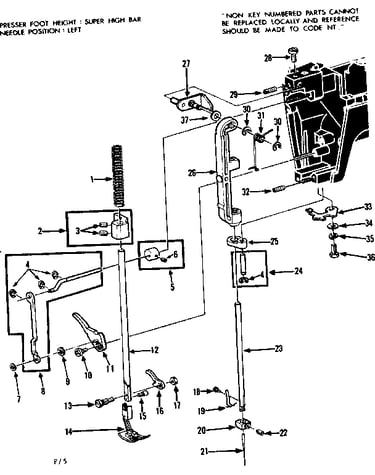

Presser bar assembly diagram

Presser bar

Part #57576

The manufacturer no longer makes this part, and there's no substitute part

Securng Plat 55331
#9

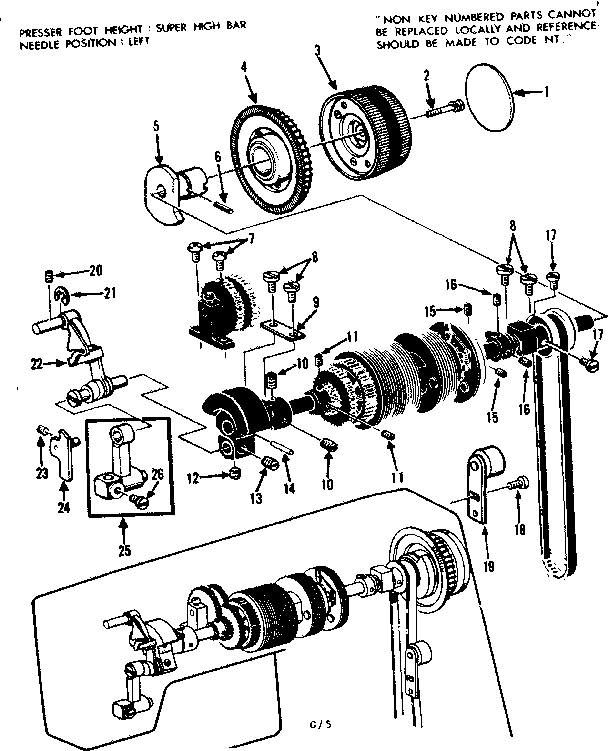

Clutch wheel assembly diagram

Securng plat

Part #55331

The manufacturer no longer makes this part, and there's no substitute part

Shaft 57574
#17

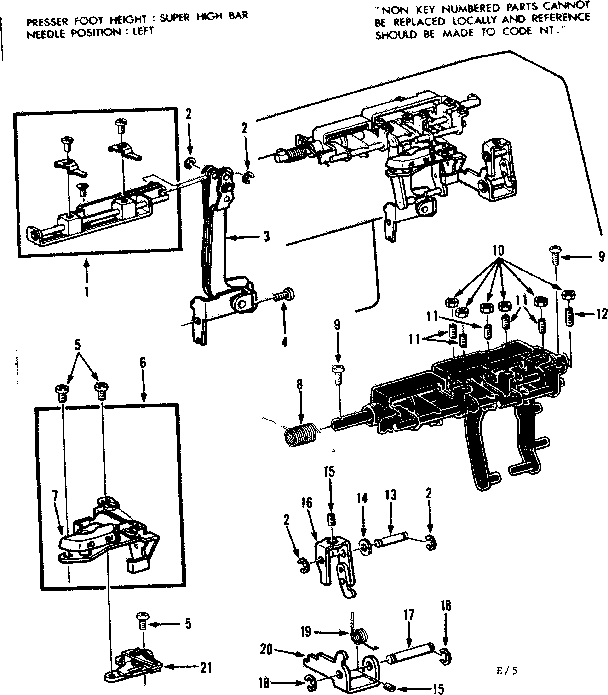

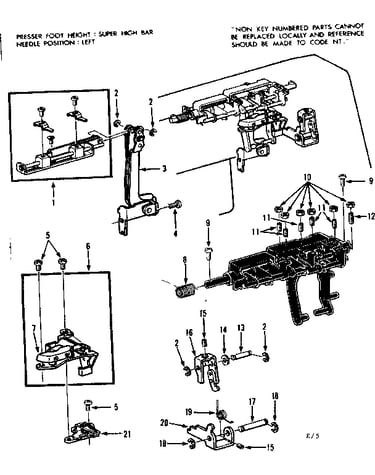

Buttonhole control assembly diagram

Shaft

Part #57574

The manufacturer no longer makes this part, and there's no substitute part

Rocker Shaft 57655
#8

Feed regulator assembly diagram

Rocker shaft

Part #57655

The manufacturer no longer makes this part, and there's no substitute part

Slider 57643
#19

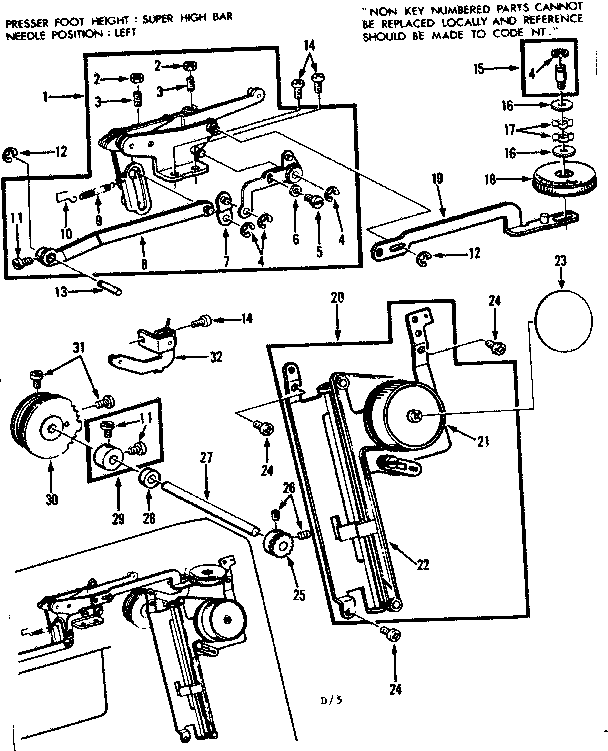

Zigzag guide assembly diagram

Slider

Part #57643

The manufacturer no longer makes this part, and there's no substitute part

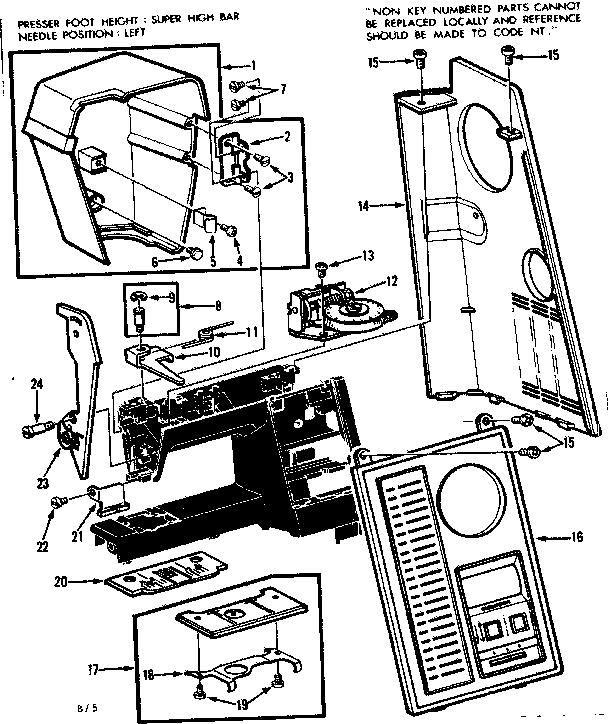

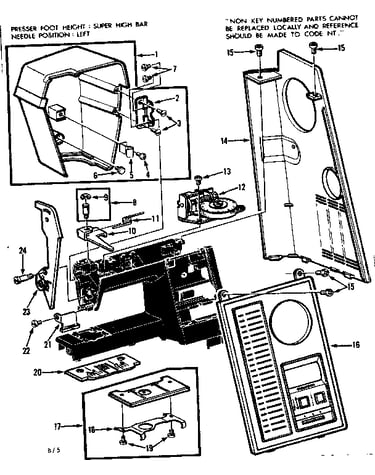

Control Panel 57711
#13

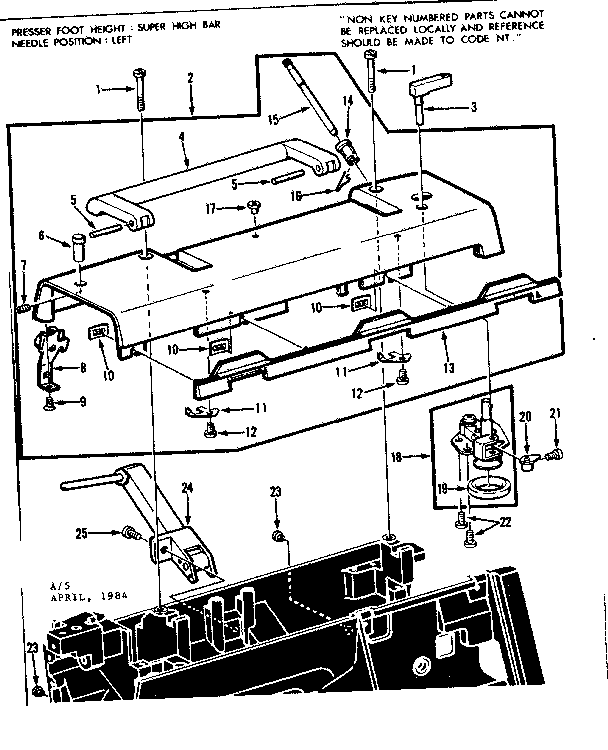

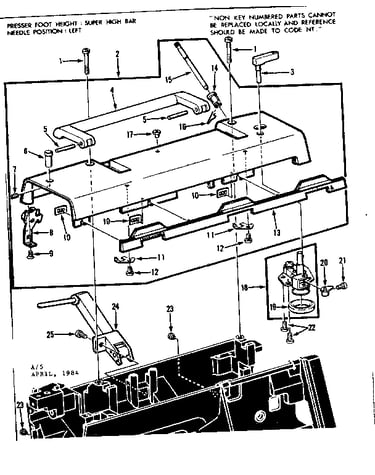

Bobbin winder and top cover diagram

Control panel

Part #57711

The manufacturer no longer makes this part, and there's no substitute part

Cord Guide 57532
#10

Main control assembly diagram

Cord guide

Part #57532

The manufacturer no longer makes this part, and there's no substitute part
