Model # NIT5665UC/01 Official Bosch cooktop

Here are the diagrams and repair parts for Official Bosch NIT5665UC-01 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |

Pcb 671006
#228

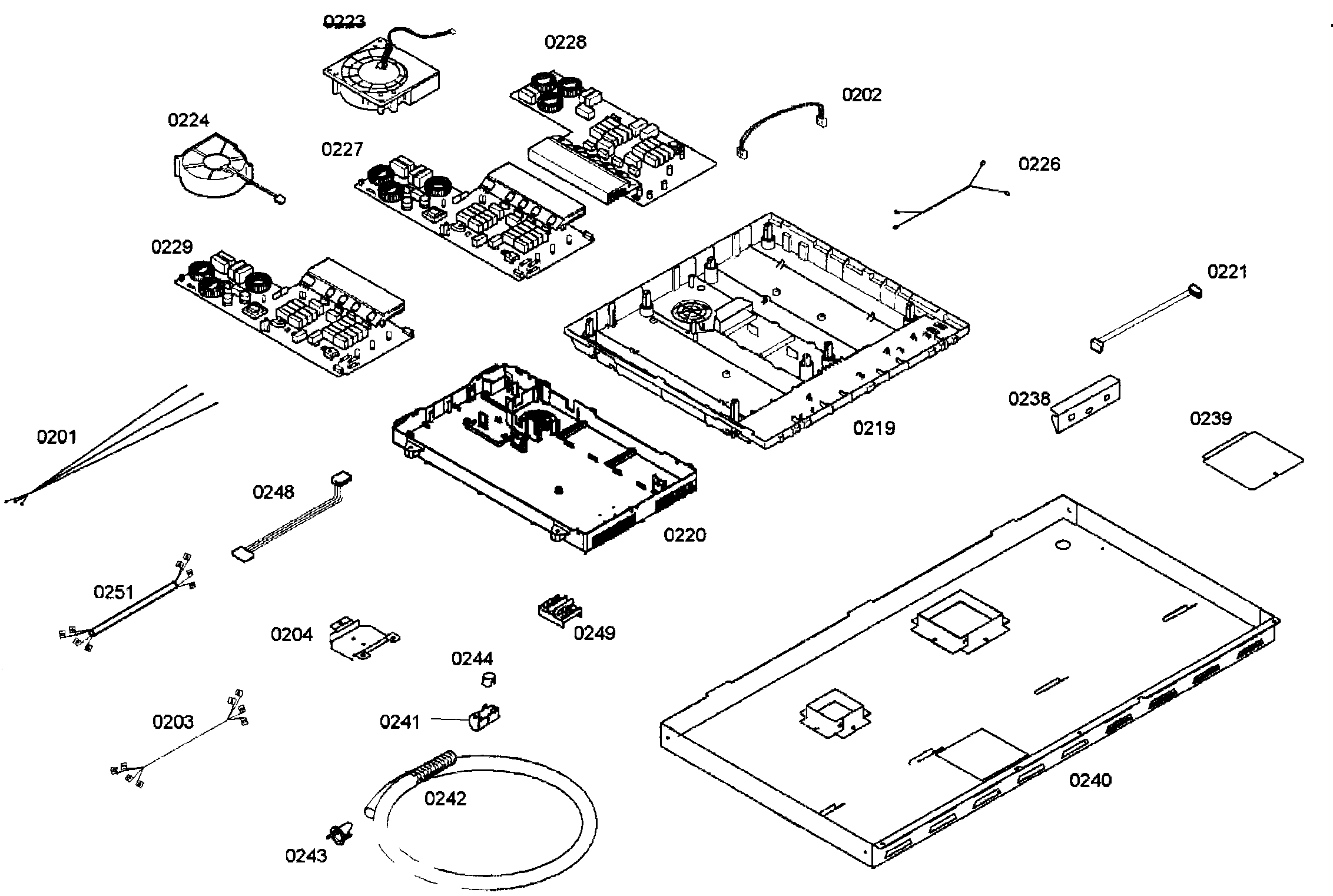

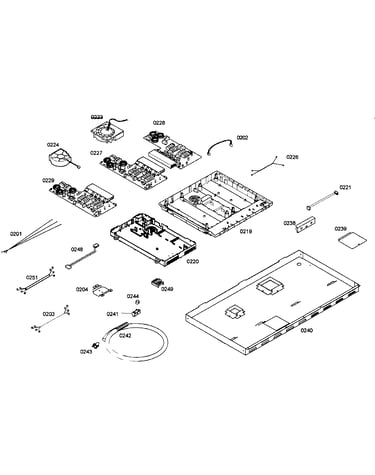

Cabinet assy diagram

Pcb

Part #671006

Replaced by #00748578

?
Manufacturer substitution
This part replaces 671006. Substitute parts can look different from the original.
$348.19
$12.00 OFF Phone Price : $360.19
In Stock
Seal Strip 613888
#199

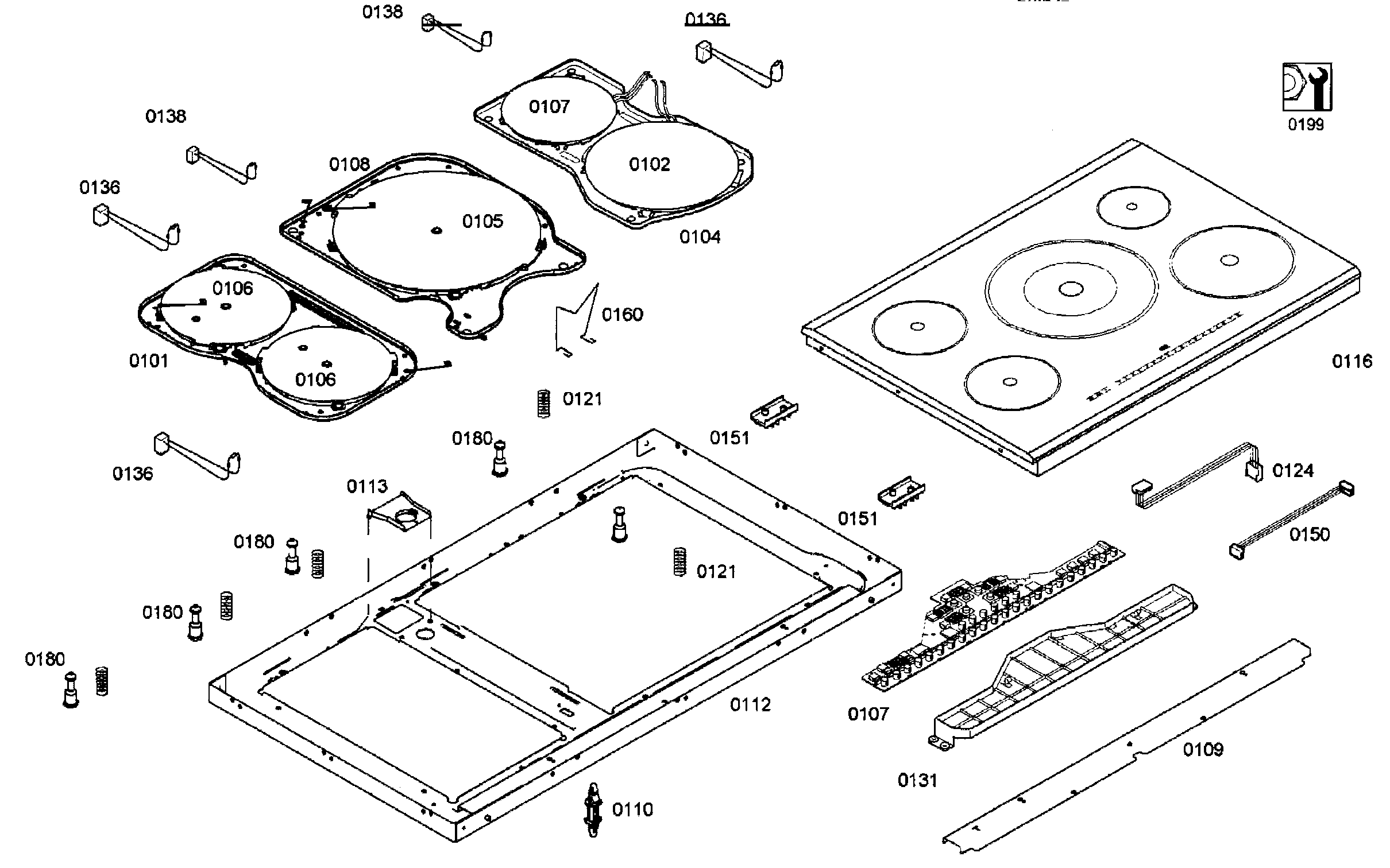

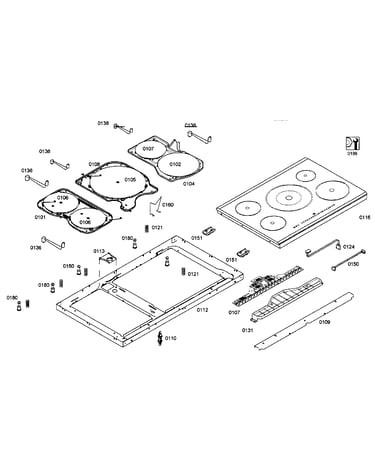

Panel assy diagram

Seal strip

Part #613888

Replaced by #00613888

?
Manufacturer substitution
This part replaces 613888. Substitute parts can look different from the original.
$24.69
20% OFF Phone Price : $30.69
In Stock
Connection 414692
#241

Cabinet assy diagram

Connection

Part #414692

Replaced by #00414692

?
Manufacturer substitution
This part replaces 414692. Substitute parts can look different from the original.
In Stock
Pcb 678499
#228A

Cabinet assy diagram

Pcb

Part #678499

Replaced by #00748578

?
Manufacturer substitution
This part replaces 678499. Substitute parts can look different from the original.
$348.19
$12.00 OFF Phone Price : $360.19
In Stock
Hobtop,gls 682656
#116

Panel assy diagram

Hobtop,gls

Part #682656

Replaced by #00682656

?
Manufacturer substitution
This part replaces 682656. Substitute parts can look different from the original.
$1098.32
$12.00 OFF Phone Price : $1110.32
In Stock
Pcb 671007
#227

Cabinet assy diagram

Pcb

Part #671007

Replaced by #00745770

?
Manufacturer substitution
This part replaces 671007. Substitute parts can look different from the original.
In Stock
Connection 604944
#124

Panel assy diagram

Connection

Part #604944

The manufacturer no longer makes this part, and there's no substitute part

Fan 612942
#223

Cabinet assy diagram

Fan

Part #612942

The manufacturer no longer makes this part, and there's no substitute part

Hot Plate 673501
#101

Panel assy diagram

Hot plate

Part #673501

The manufacturer no longer makes this part, and there's no substitute part

Bolt 615608
#180

Panel assy diagram

Bolt

Part #615608

The manufacturer no longer makes this part, and there's no substitute part
