Craftsman
Front-Engine Lawn Tractor

Model # 247288853 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 247288853 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

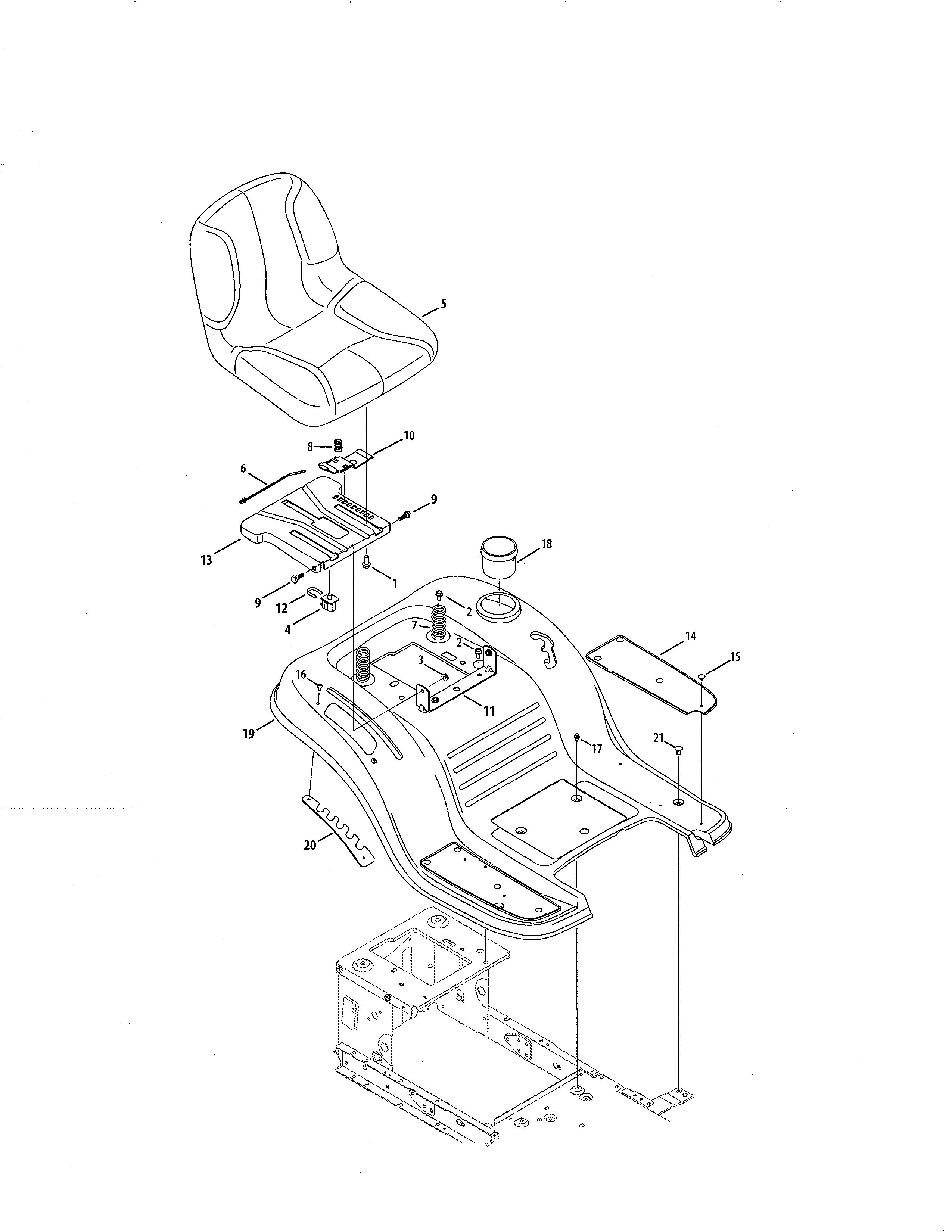

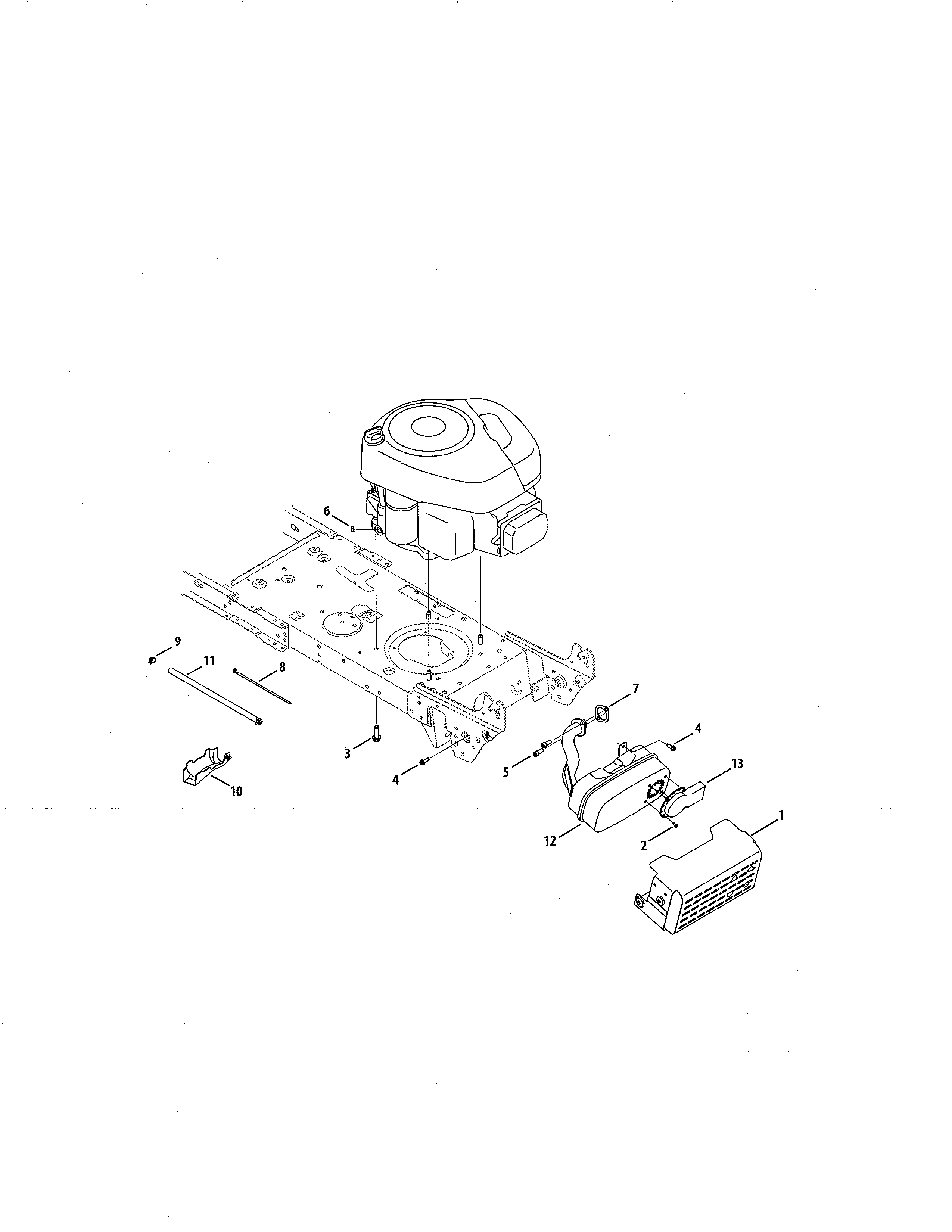

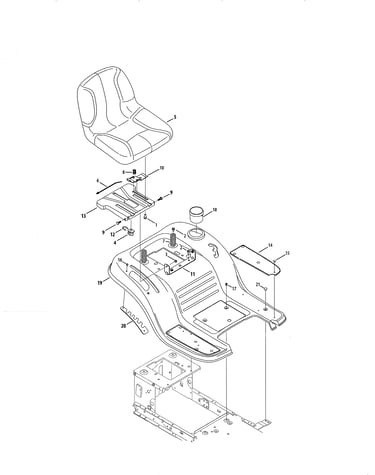

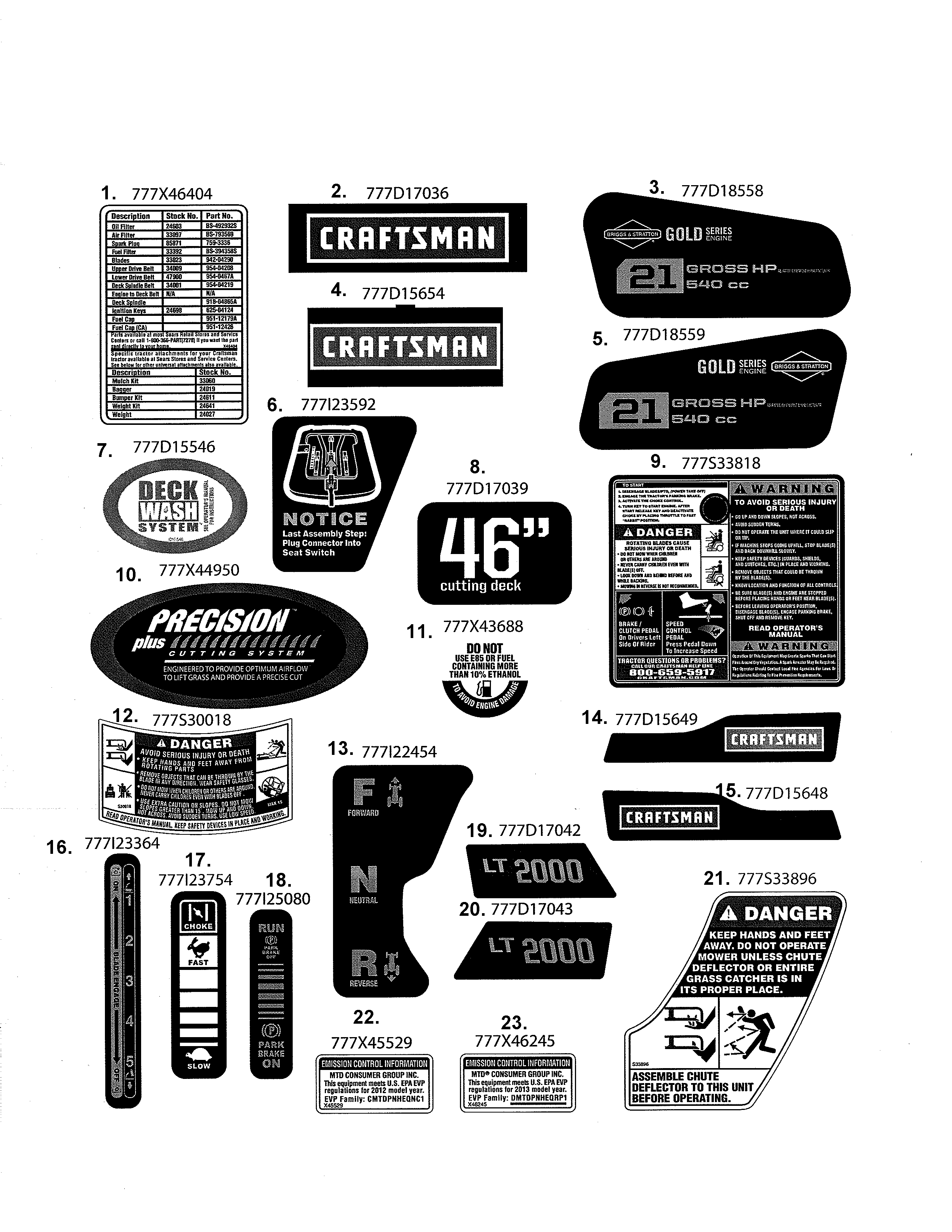

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 490 parts  |
Lawn Tractor Blade Drive Belt, 1/2 X 103-1/16-in 954-04219
#55

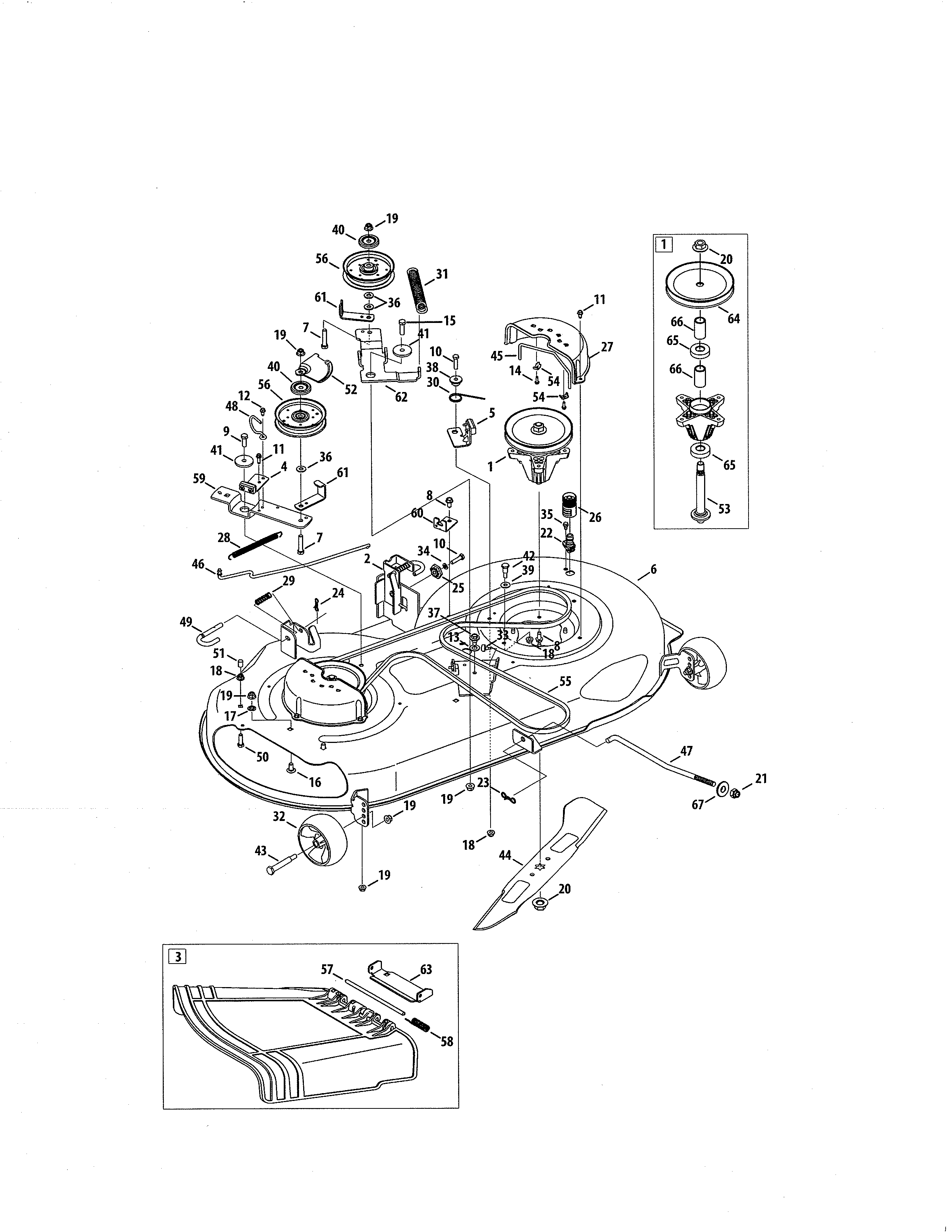

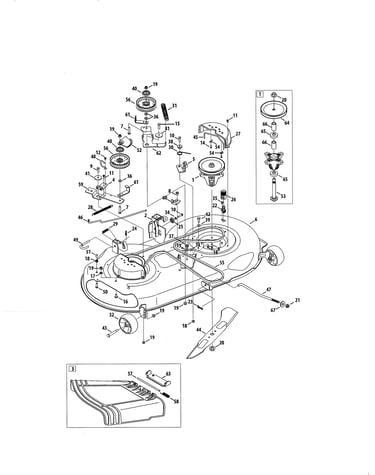

Mower deck/spindle pulley diagram

Lawn tractor blade drive belt, 1/2 x 103-1/16-in

Part #954-04219

Replaced by #490-501-M009

?
Manufacturer substitution
This part replaces 954-04219. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$33.81 |
15% OFF Phone Price : $39.81
In Stock
Lawn & Garden Equipment Cotter Pin, 1/4- To 5/16-in 714-04040
Lawn & garden equipment cotter pin, 1/4- to 5/16-in

Part #714-04040

BEST SELLER
This item is not returnable
$3.00 |
25% OFF Phone Price : $4.00
In Stock
Lawn Tractor 46-in Deck 2-in-1 Blade 942-04290
#44

Mower deck/spindle pulley diagram

Lawn tractor 46-in deck 2-in-1 blade

Part #942-04290

Replaced by #942-04290A

?
Manufacturer substitution
This part replaces 942-04290. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.79 |
21% OFF Phone Price : $28.79
In Stock
Lawn Tractor Ground Drive Belt, 2/3 X 90-4/5-in (replaces 754-0467a, 954-0467) 954-0467A
#61

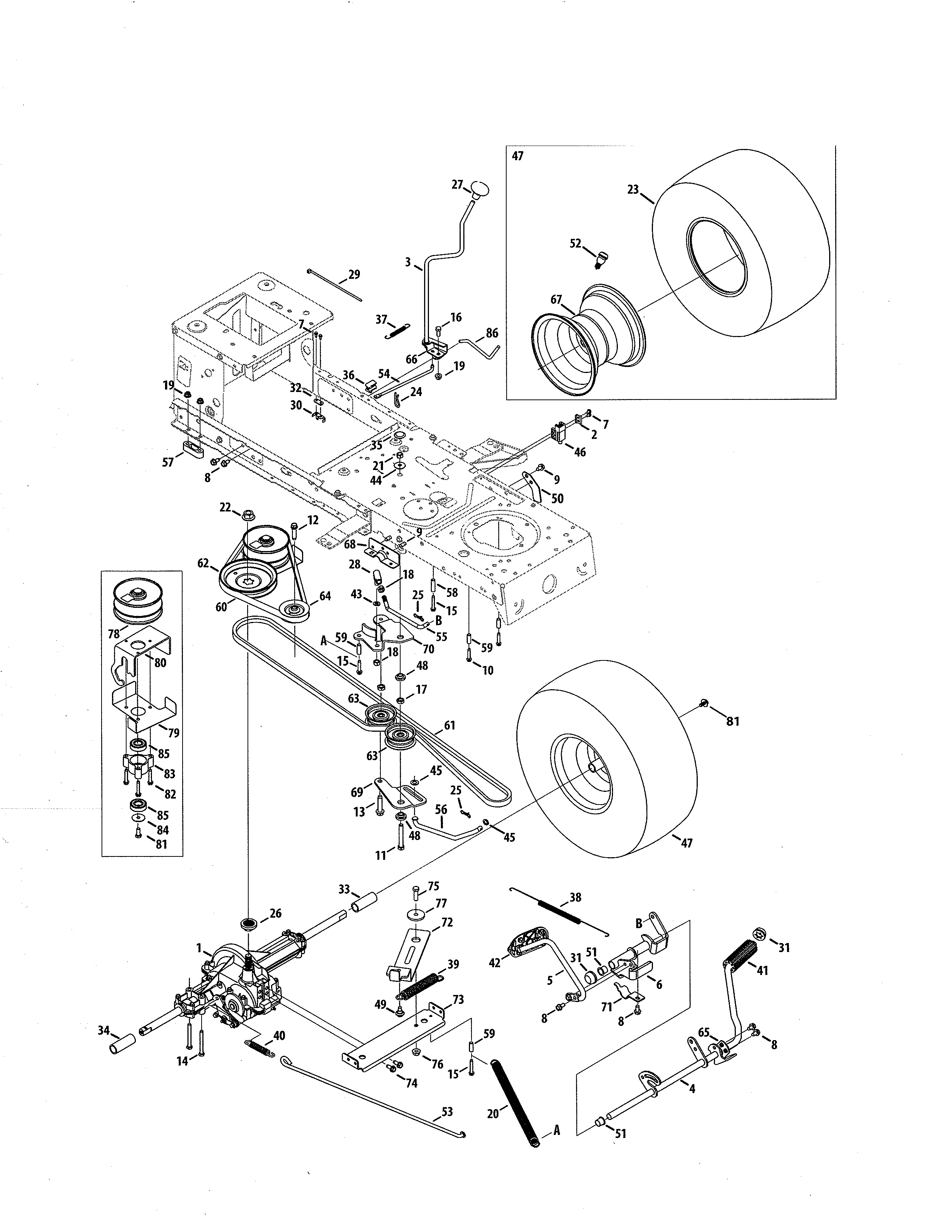

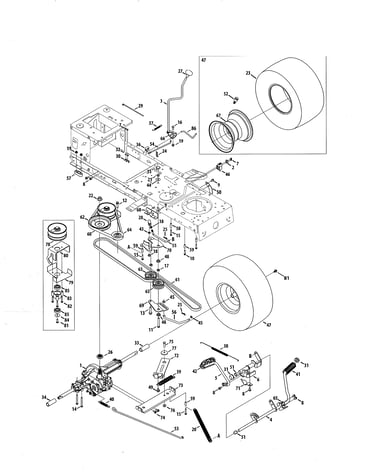

Transmission diagram

Lawn tractor ground drive belt, 2/3 x 90-4/5-in (replaces 754-0467a, 954-0467)

Part #954-0467A

Replaced by #490-501-Y035

?
Manufacturer substitution
This part replaces 954-0467A. Substitute parts can look different from the original.
BEST SELLER
$45.99 |
12% OFF Phone Price : $51.99
Back Order
Lawn Tractor Blade Engagement Cable (replaces 746-04173e, 946-04173d) 946-04173E
#22

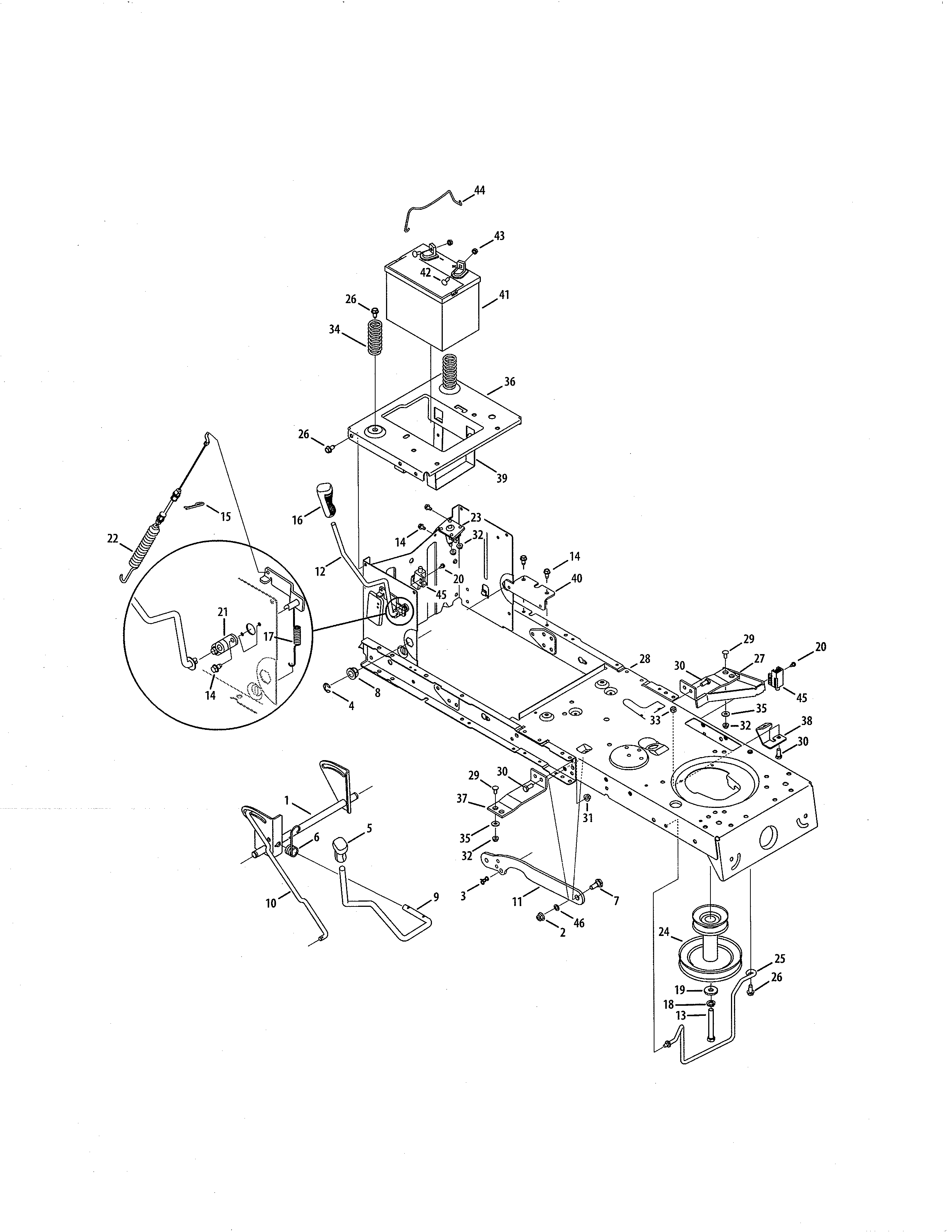

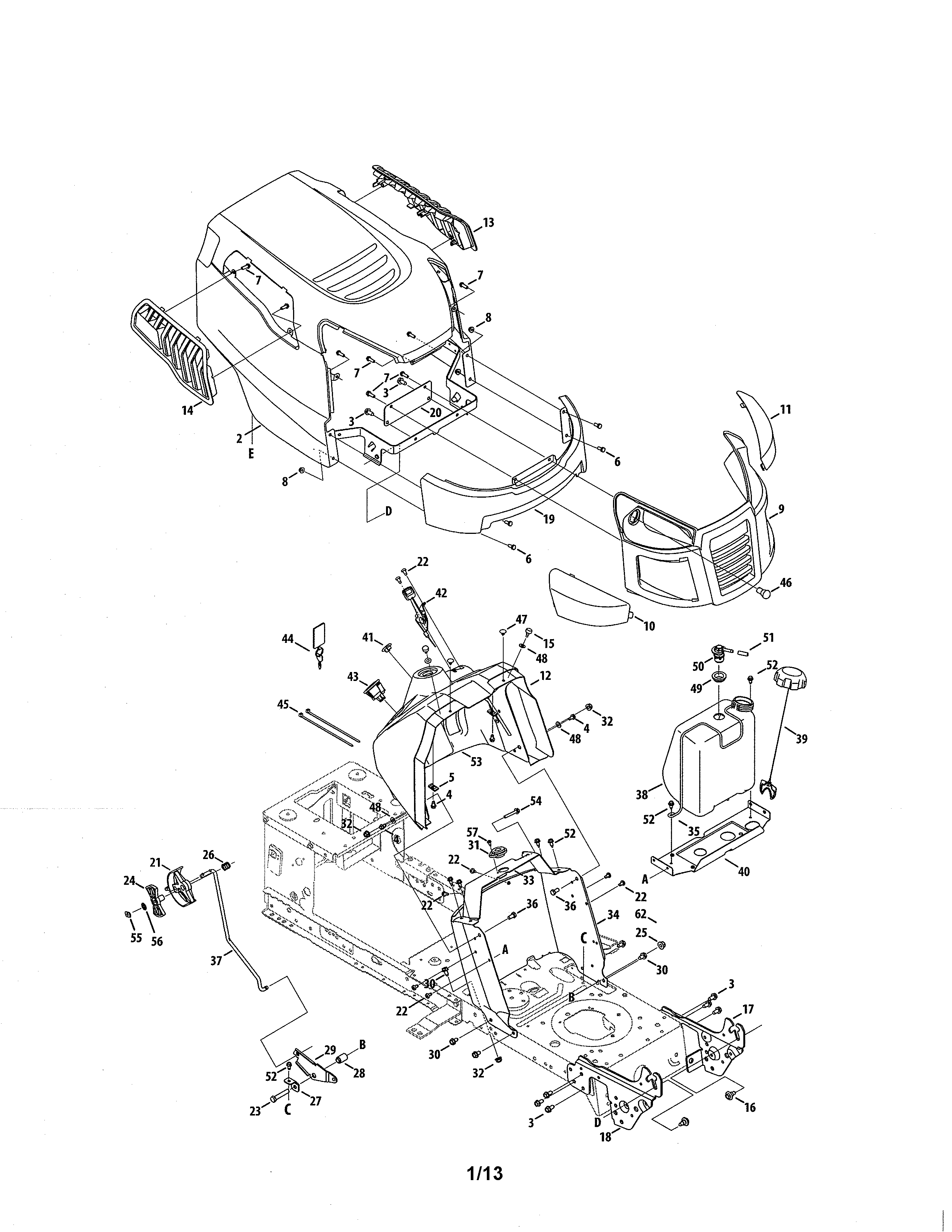

Battery/frame diagram

Lawn tractor blade engagement cable (replaces 746-04173e, 946-04173d)

Part #946-04173E

BEST SELLER
$50.95 |
11% OFF Phone Price : $56.95
In Stock
Lawn & Garden Equipment Hex Flange Nut (replaces 753-05549, 912-0417a) 712-0417A
#20

Mower deck/spindle pulley diagram

Lawn & garden equipment hex flange nut (replaces 753-05549, 912-0417a)

Part #712-0417A

BEST SELLER
$8.24 |
11% OFF Phone Price : $9.24
In Stock
Yard Machines Lawn & Garden Equipment Nut 712-04064
Yard machines lawn & garden equipment nut

Part #712-04064

BEST SELLER
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
In Stock
Yard Machines Lawn Tractor Flange Nut (replaces 00012173, Wd-129-103) 712-04065
Yard machines lawn tractor flange nut (replaces 00012173, wd-129-103)

Part #712-04065

BEST SELLER
This item is not returnable
$5.27 |
16% OFF Phone Price : $6.27
In Stock
Lawn Mower Idler Pulley 753-08068
#56

Mower deck/spindle pulley diagram

Lawn mower idler pulley

Part #753-08068

Replaced by #753-08171

?
Manufacturer substitution
This part replaces 753-08068. Substitute parts can look different from the original.
BEST SELLER
$33.29 |
15% OFF Phone Price : $39.29
In Stock
Lawn Tractor Steering Sector Gear 617-04094
#1

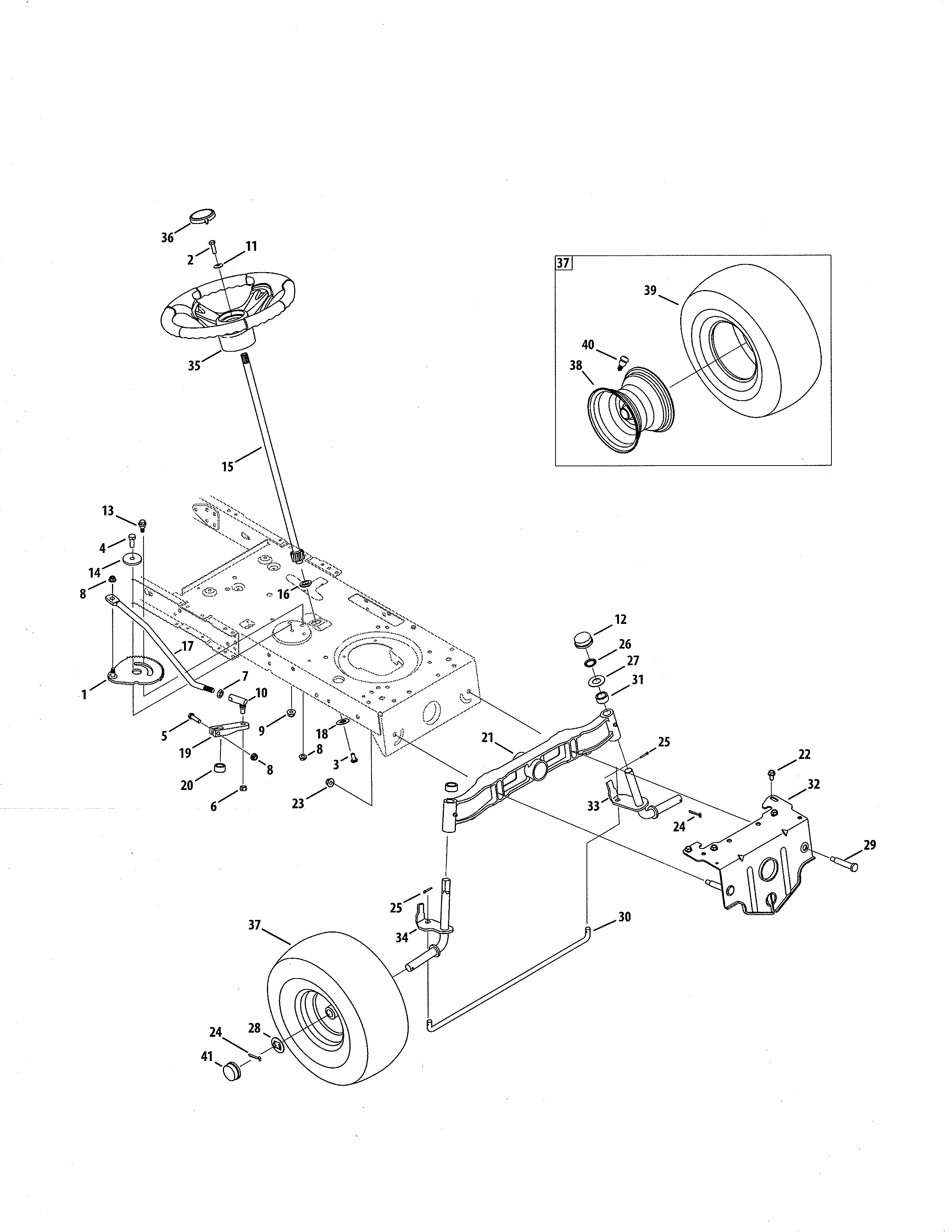

Steering diagram

Lawn tractor steering sector gear

Part #617-04094

BEST SELLER
$31.30 |
16% OFF Phone Price : $37.30
In Stock
