Singer
Electronic Sewing Machine

Model # 9940 Official Singer sewing machine

Here are the diagrams and repair parts for Official Singer 9940 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

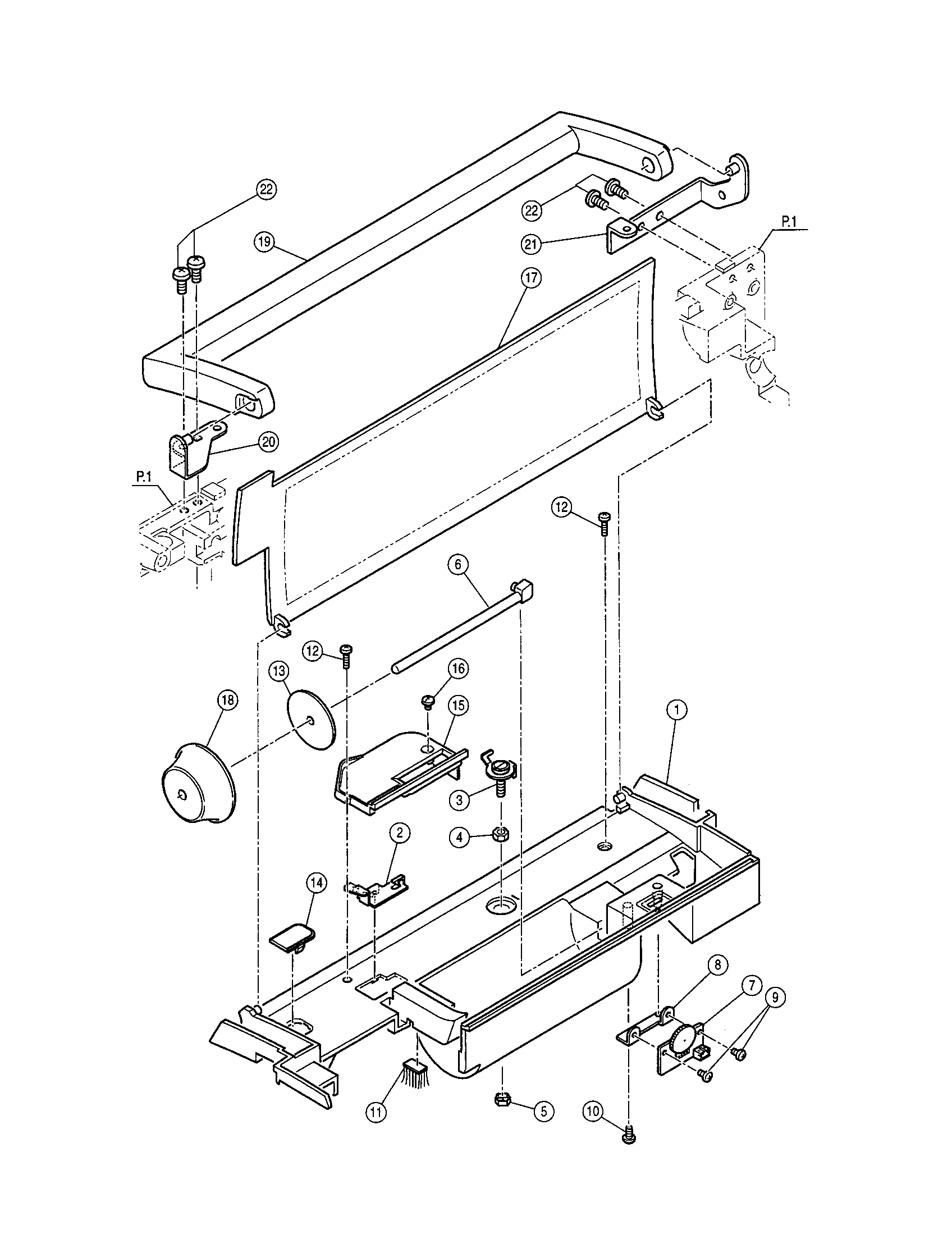

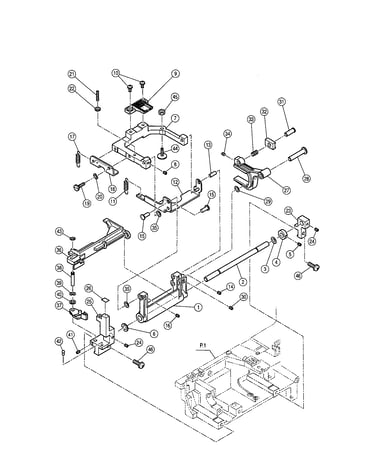

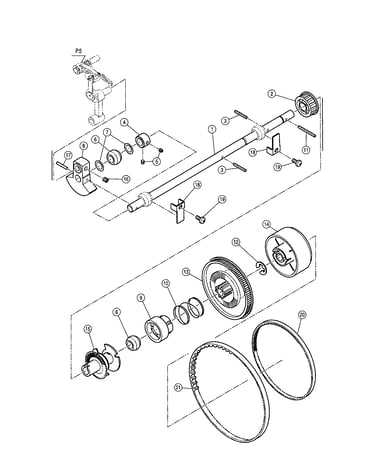

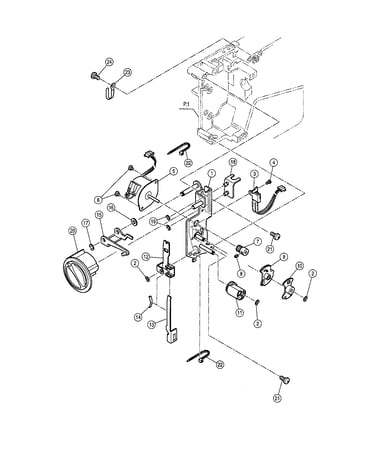

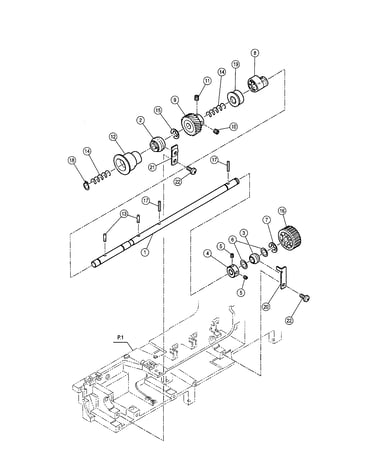

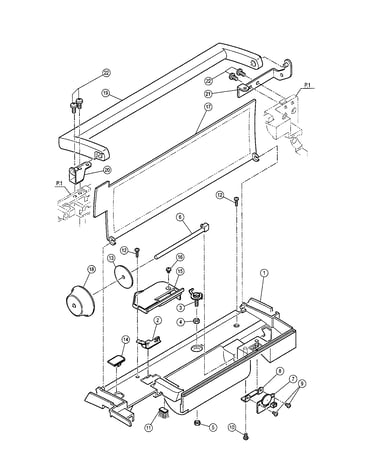

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 355 parts  |
Singer Accessory Set HP33081
#0

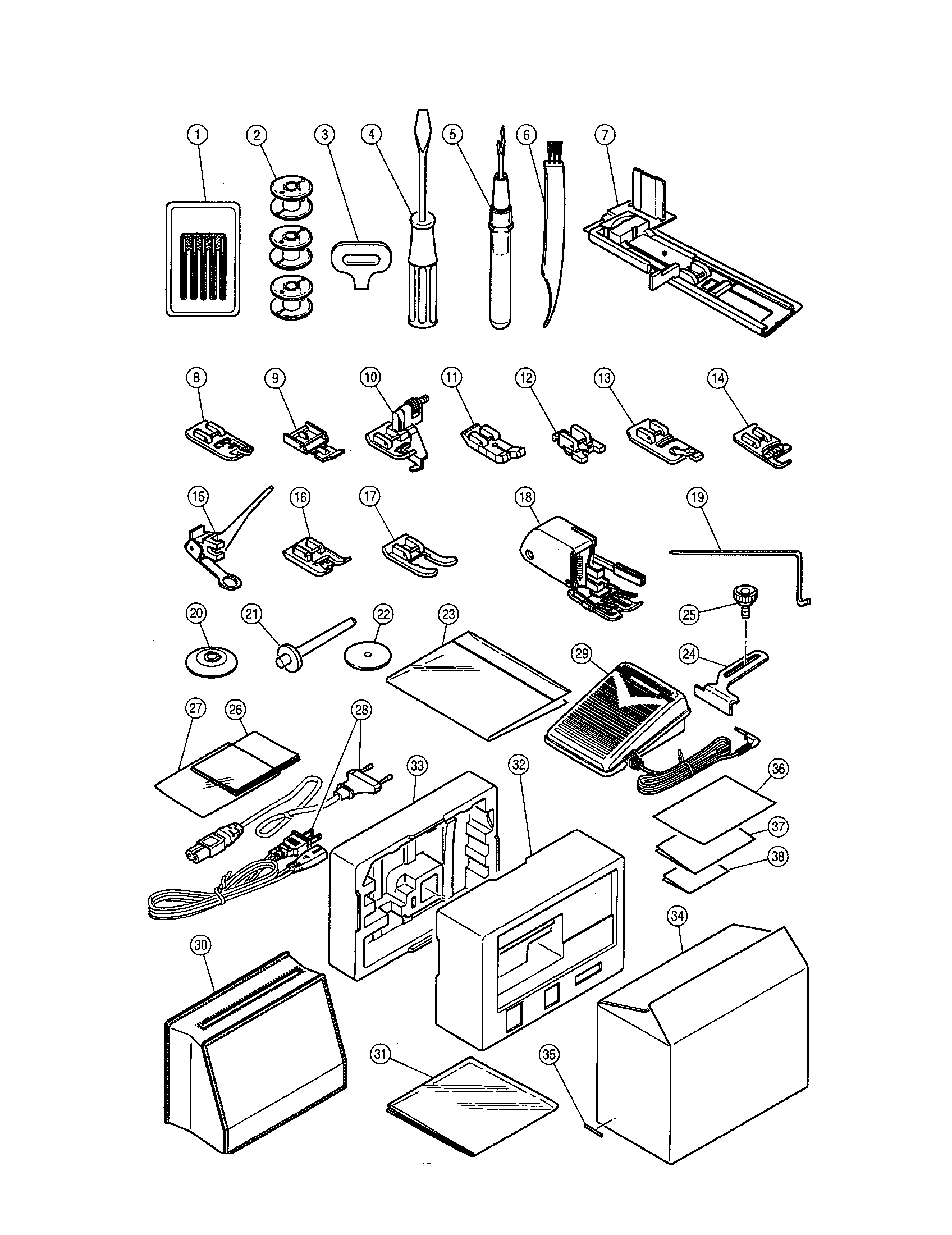

Accessory set diagram

Singer accessory set

Part #HP33081

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Foot Control HP31098-2
#29

Accessory set diagram

Sewing machine foot control

Part #HP31098-2

The manufacturer no longer makes this part, and there's no substitute part

Bobbn Hldr HP30457
#31

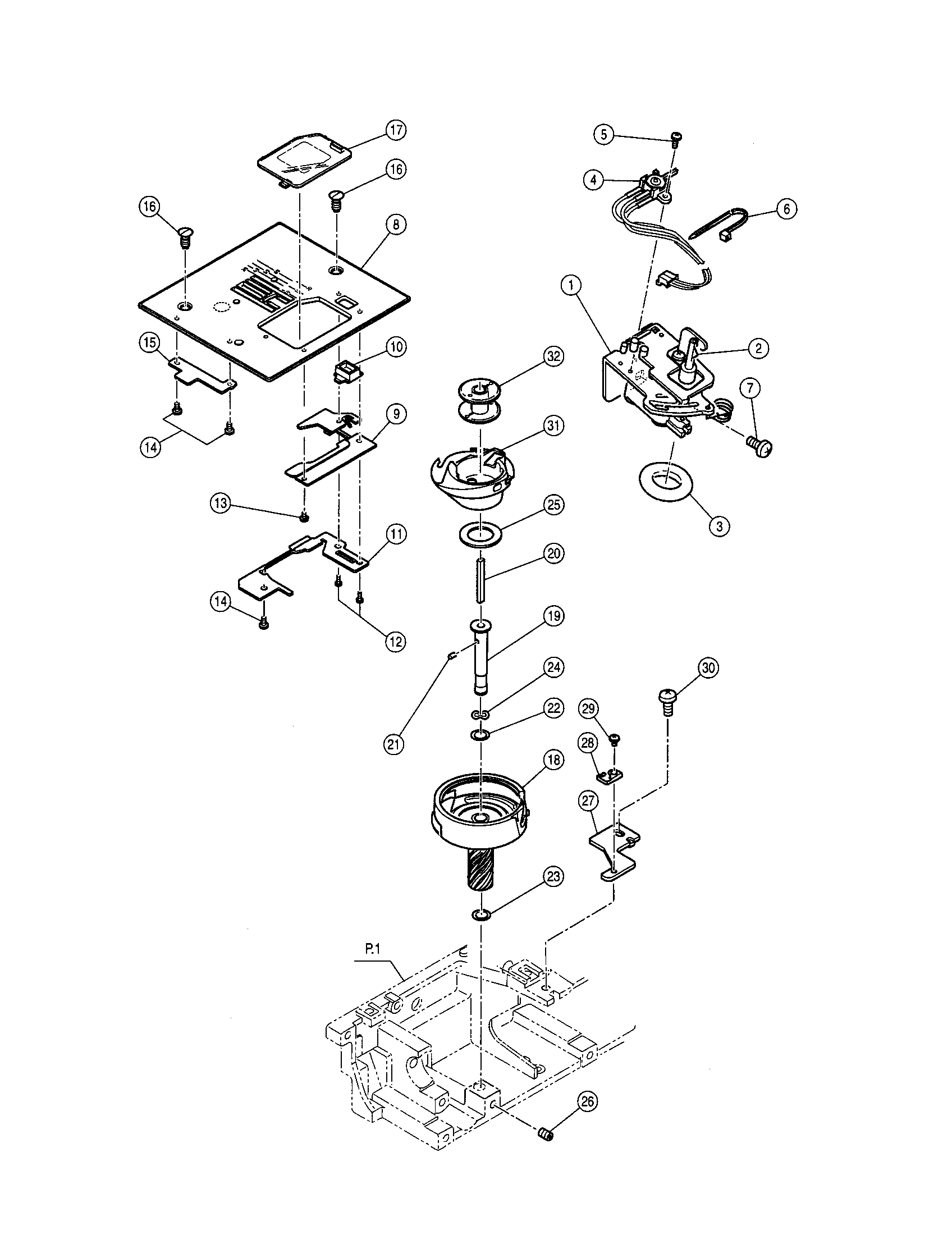

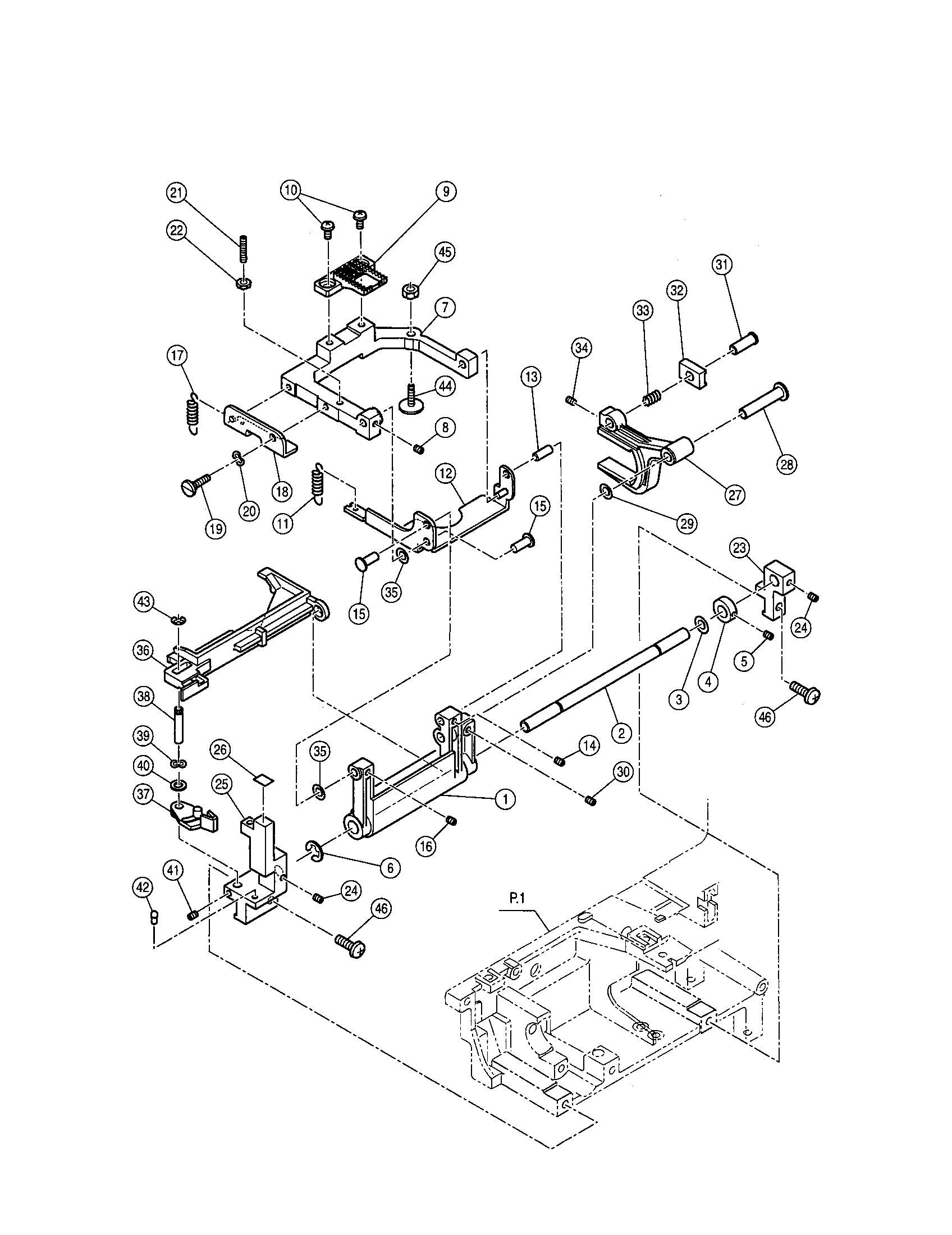

Needle plate/hook race diagram

Bobbn hldr

Part #HP30457

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Needle Plate HP32843
#0

Needle plate/hook race diagram

Sewing machine needle plate

Part #HP32843

The manufacturer no longer makes this part, and there's no substitute part

Terminal Box HP33083
#9A

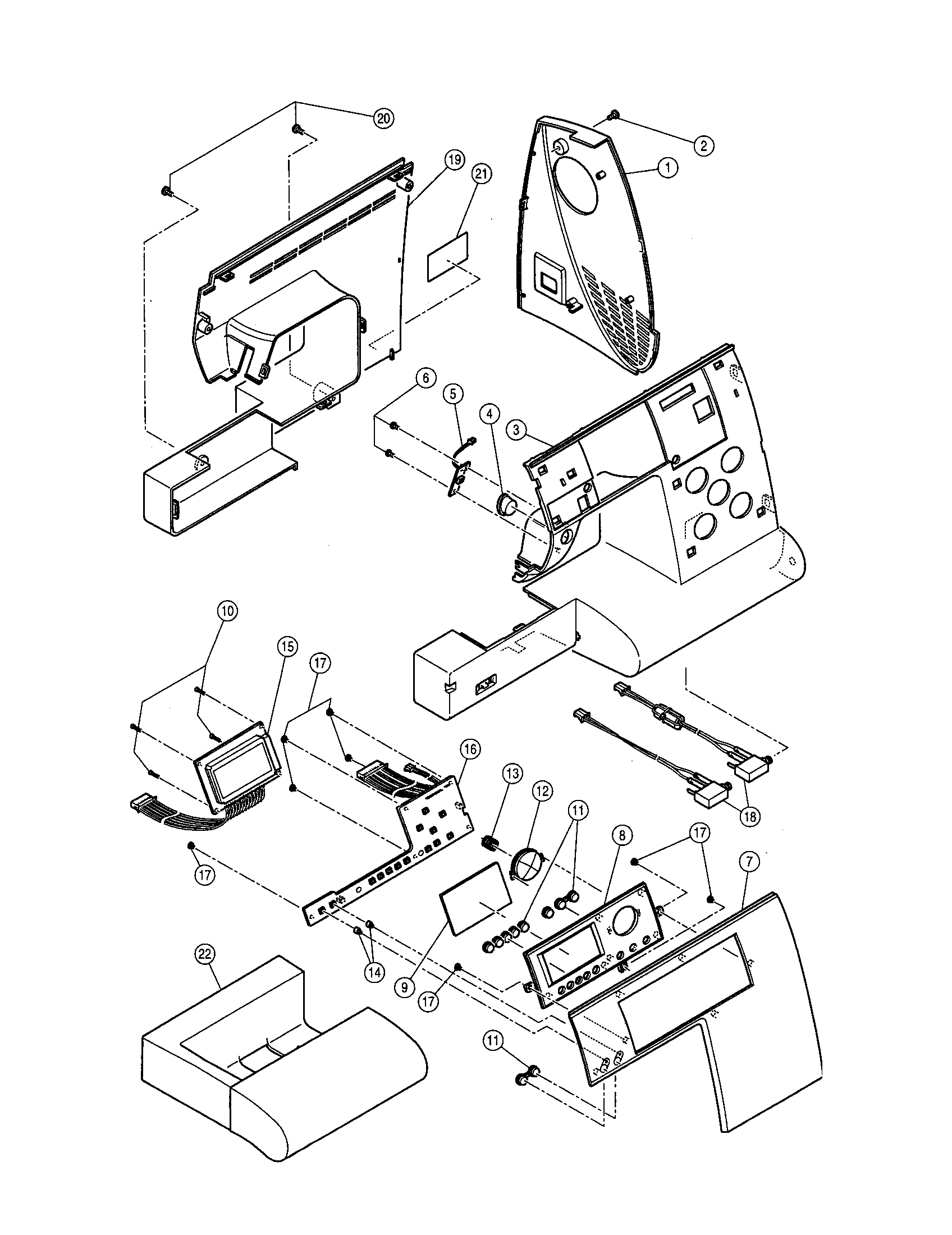

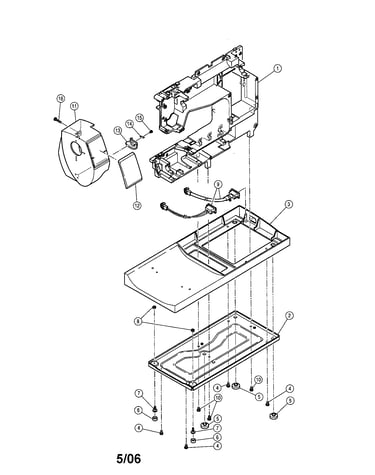

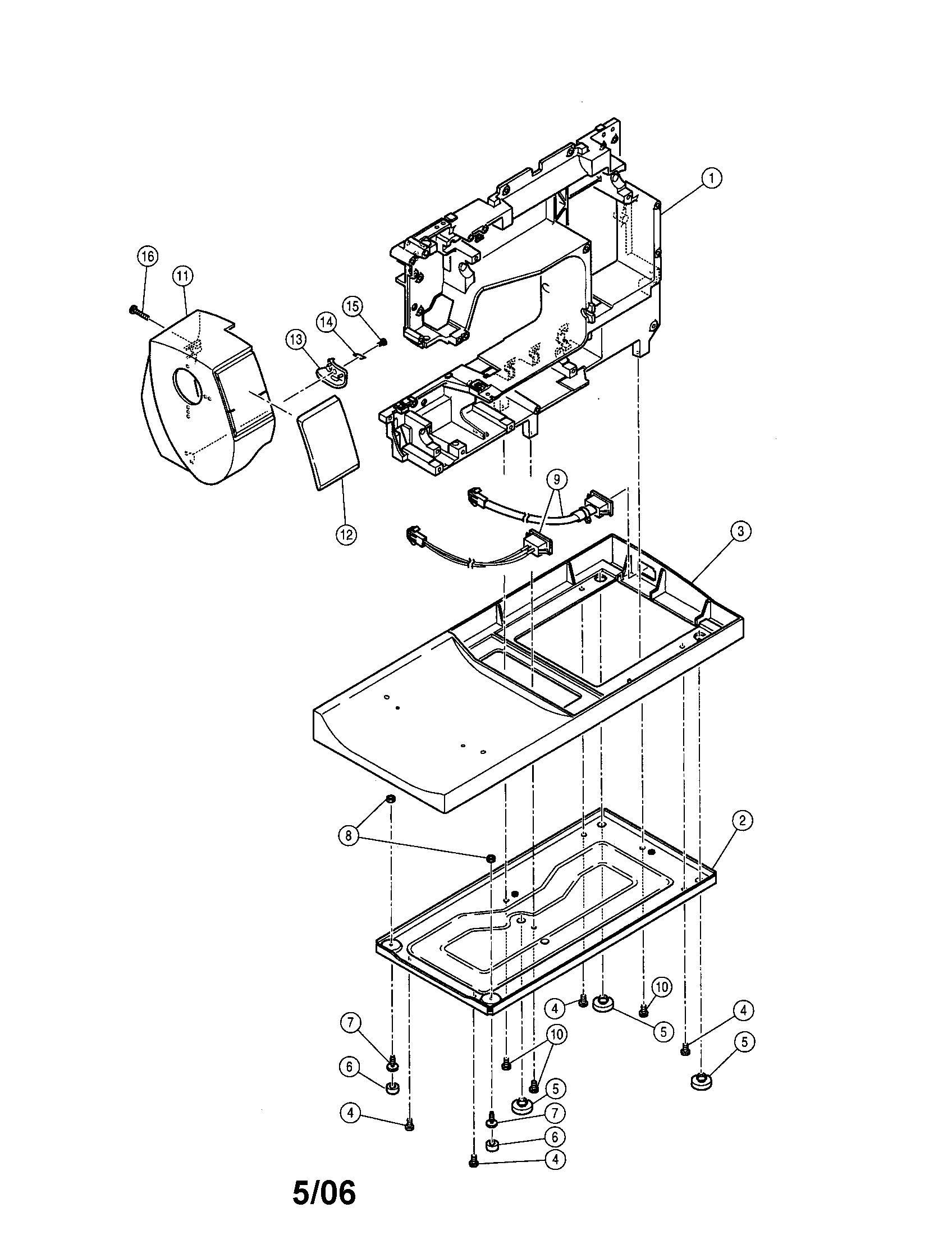

Base/head/face plate diagram

Terminal box

Part #HP33083

The manufacturer no longer makes this part, and there's no substitute part

Zigzag Foot HP32969
#56

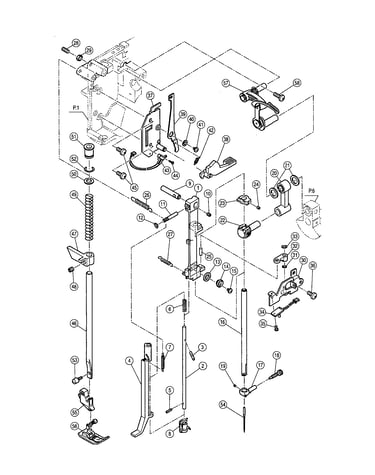

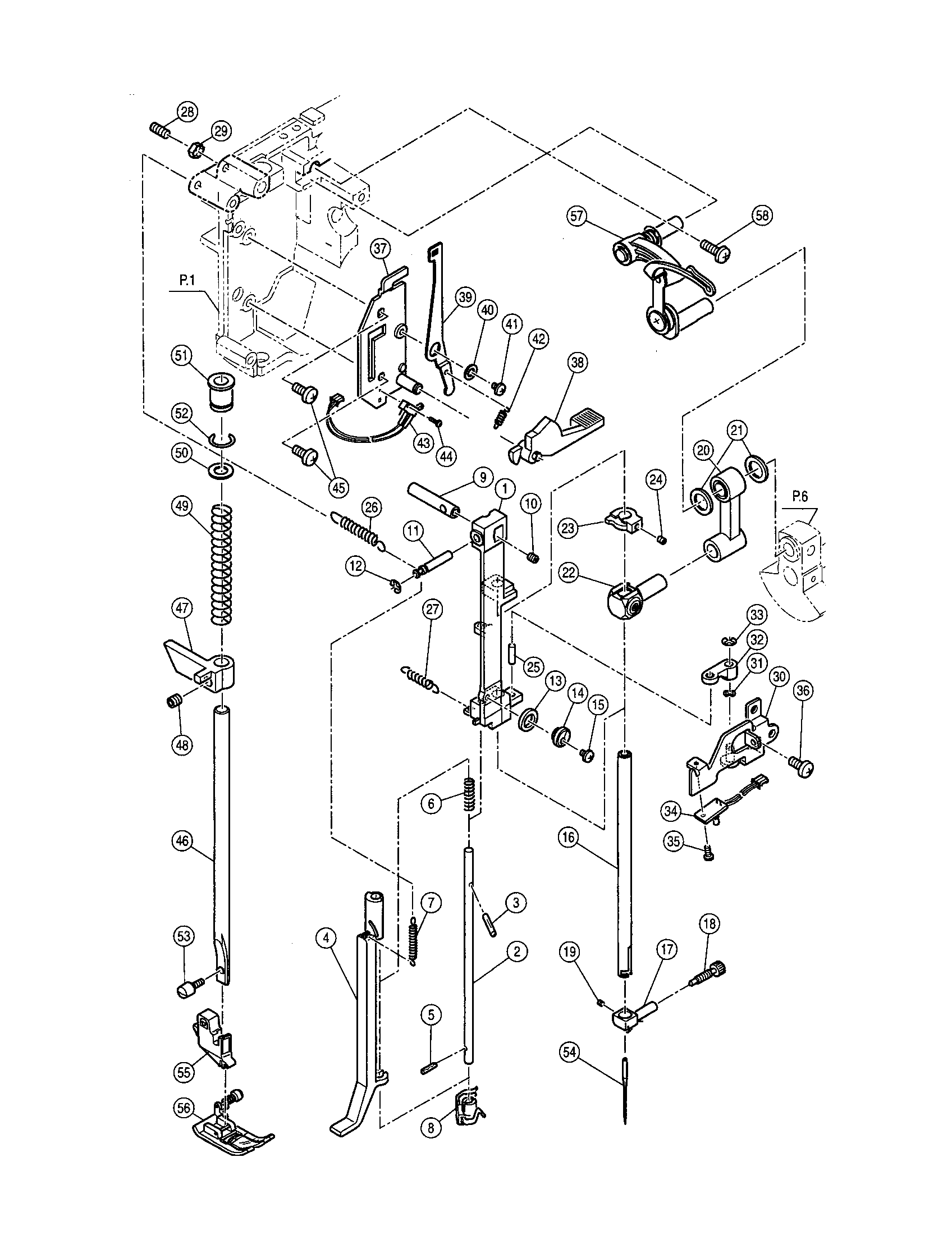

Needle bar guide/z link bracket diagram

Zigzag foot

Part #HP32969

The manufacturer no longer makes this part, and there's no substitute part

Set Screw HP32743
#16

Needle plate/hook race diagram

Set screw

Part #HP32743

The manufacturer no longer makes this part, and there's no substitute part

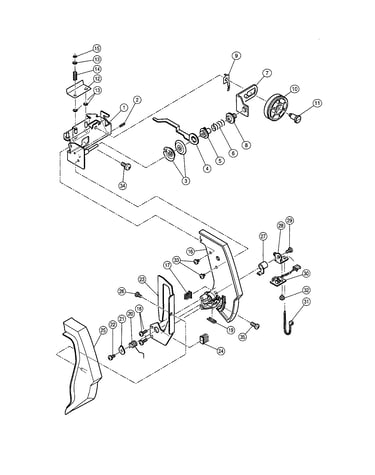

Tension Ay HP32820
#0

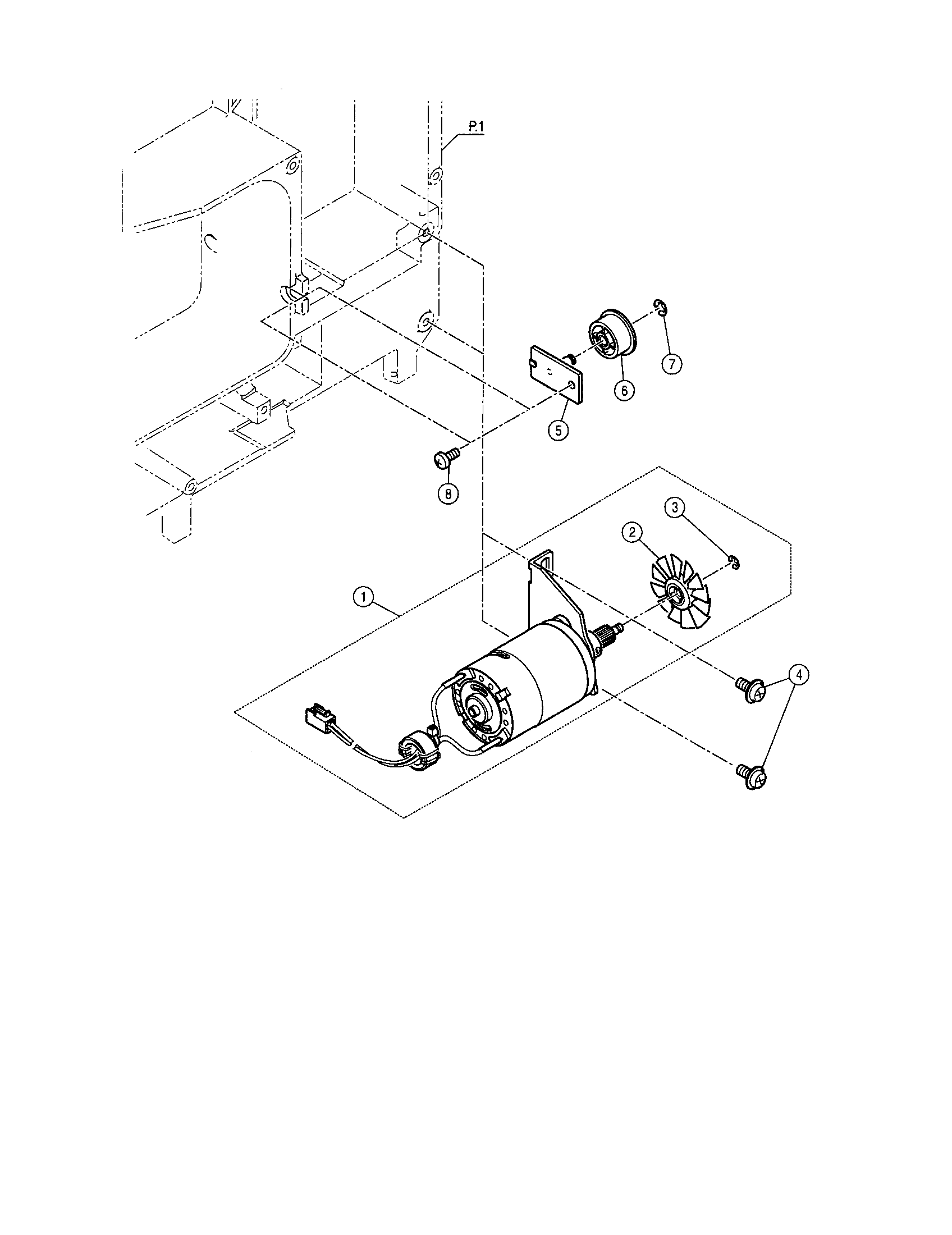

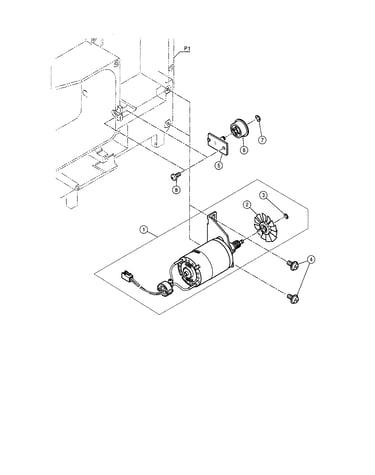

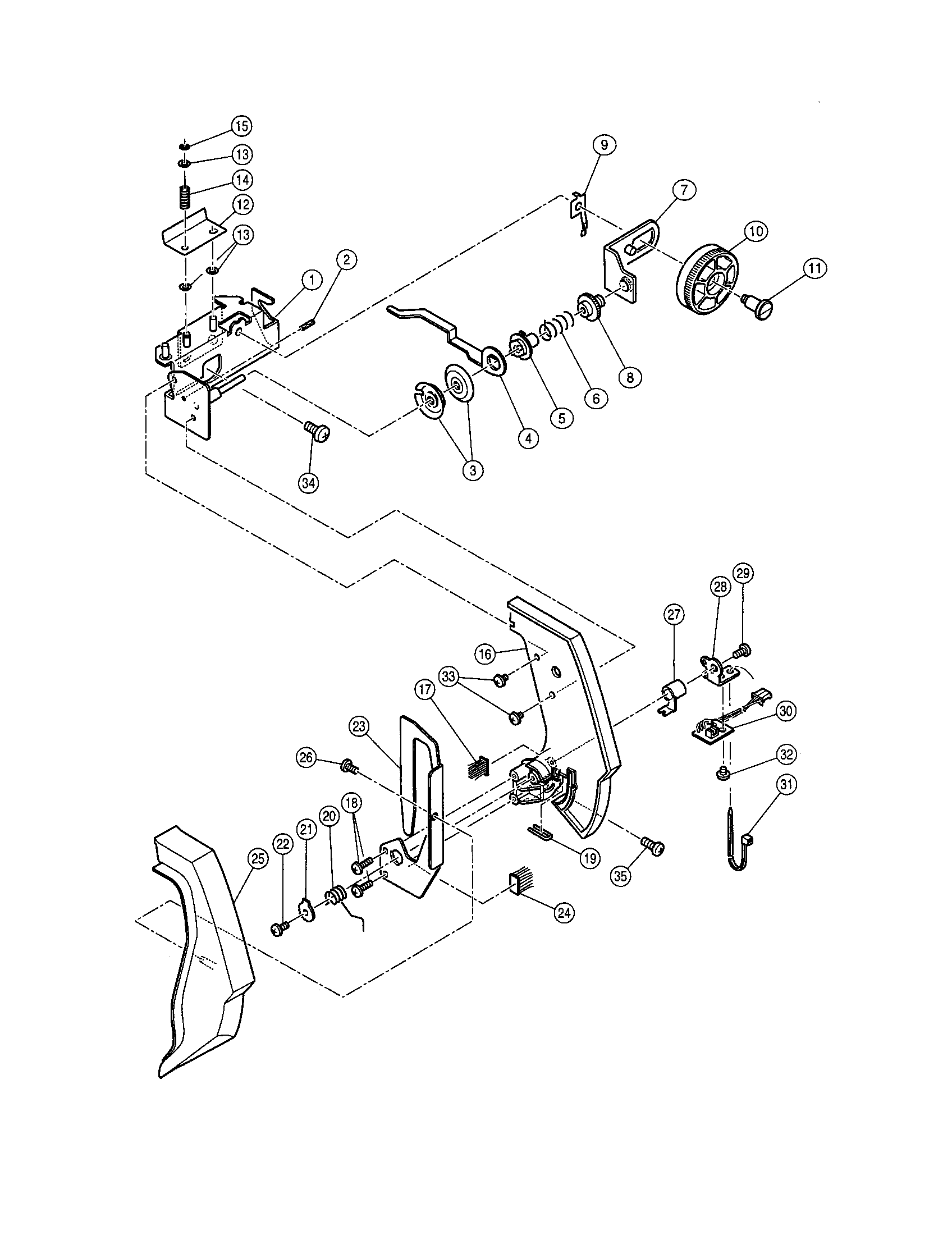

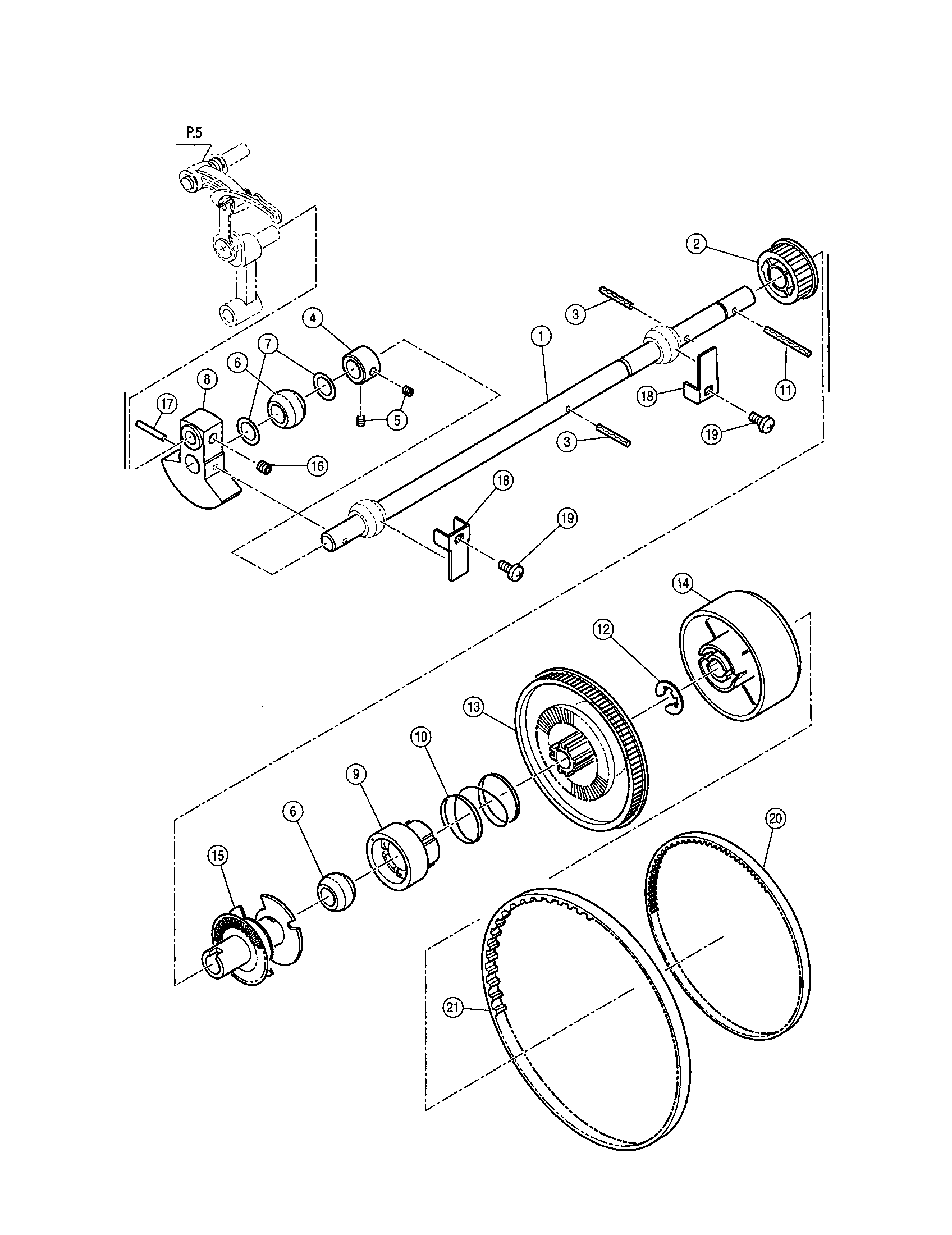

Motor/belt tension diagram

Tension ay

Part #HP32820

The manufacturer no longer makes this part, and there's no substitute part

Presser Foot HP30217-2
#16

Accessory set diagram

Presser foot

Part #HP30217-2

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Vacuum Power Switch HP33128
#2

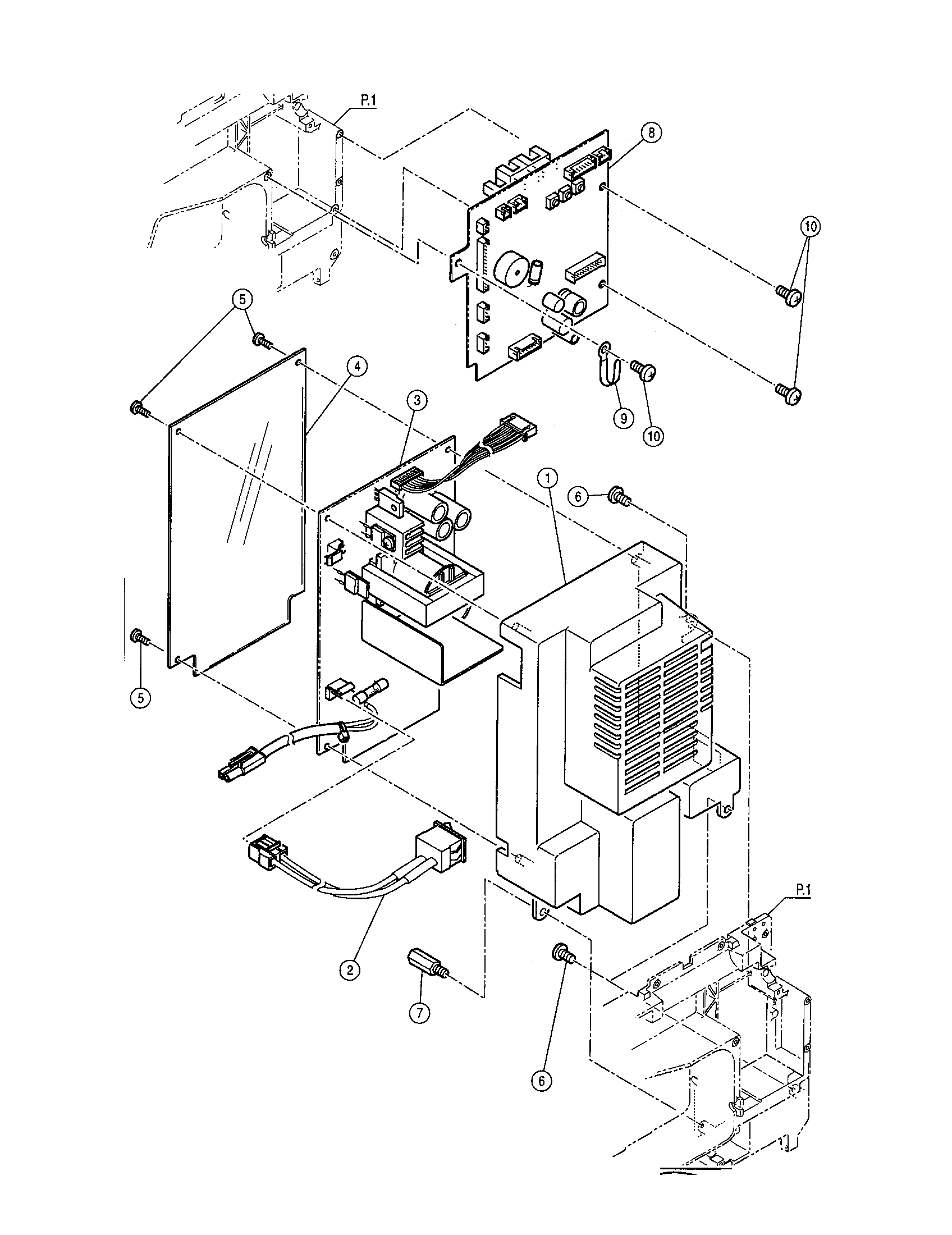

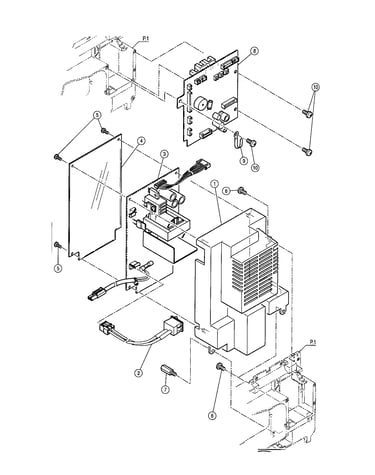

Power circuit diagram

Sewing machine vacuum power switch

Part #HP33128

The manufacturer no longer makes this part, and there's no substitute part
