Model # DS603FC-88450-B Official Fisher & Paykel dishwasher dish drawer

Here are the diagrams and repair parts for Official Fisher & Paykel DS603FC-88450-B dishwasher dish drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

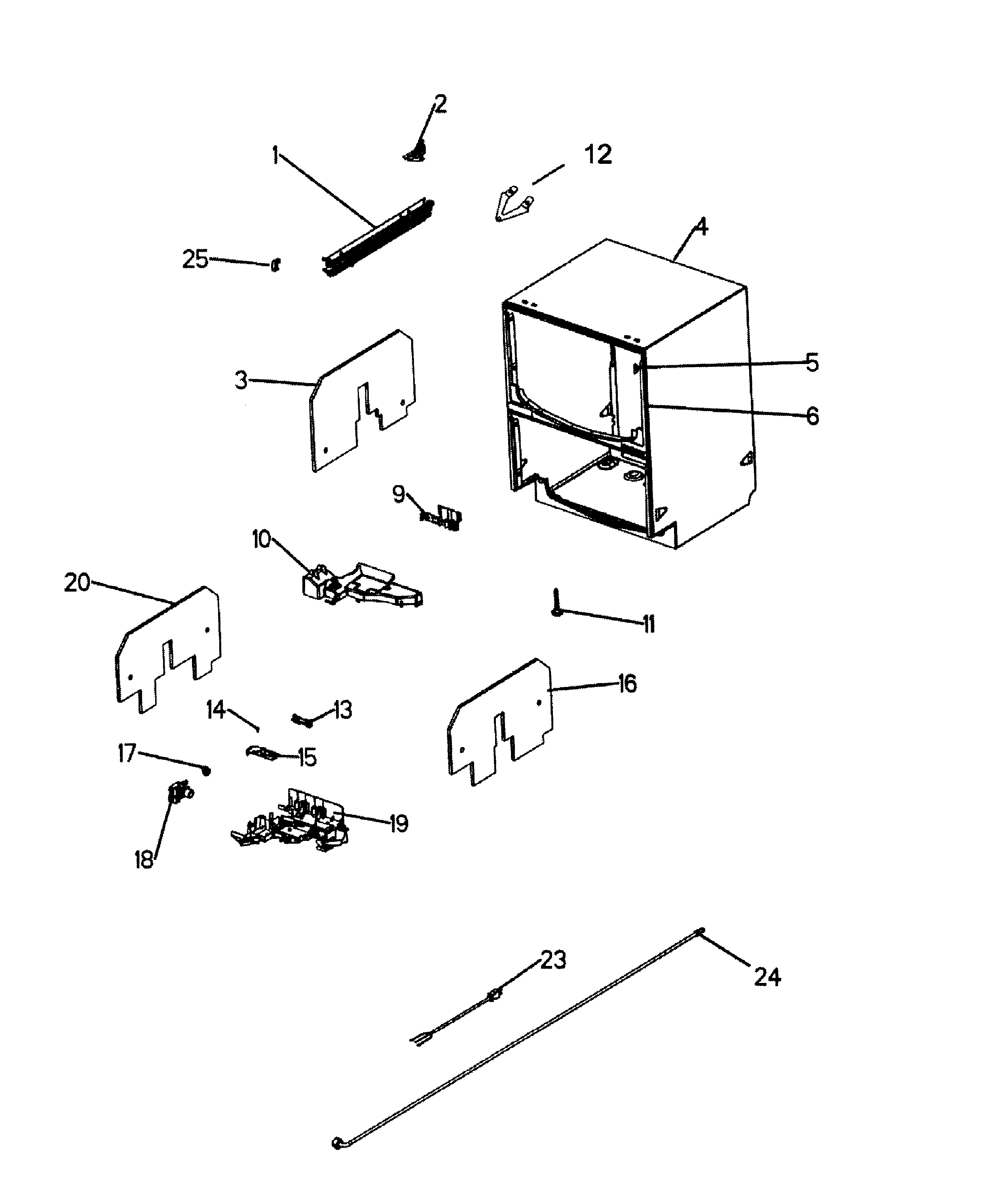

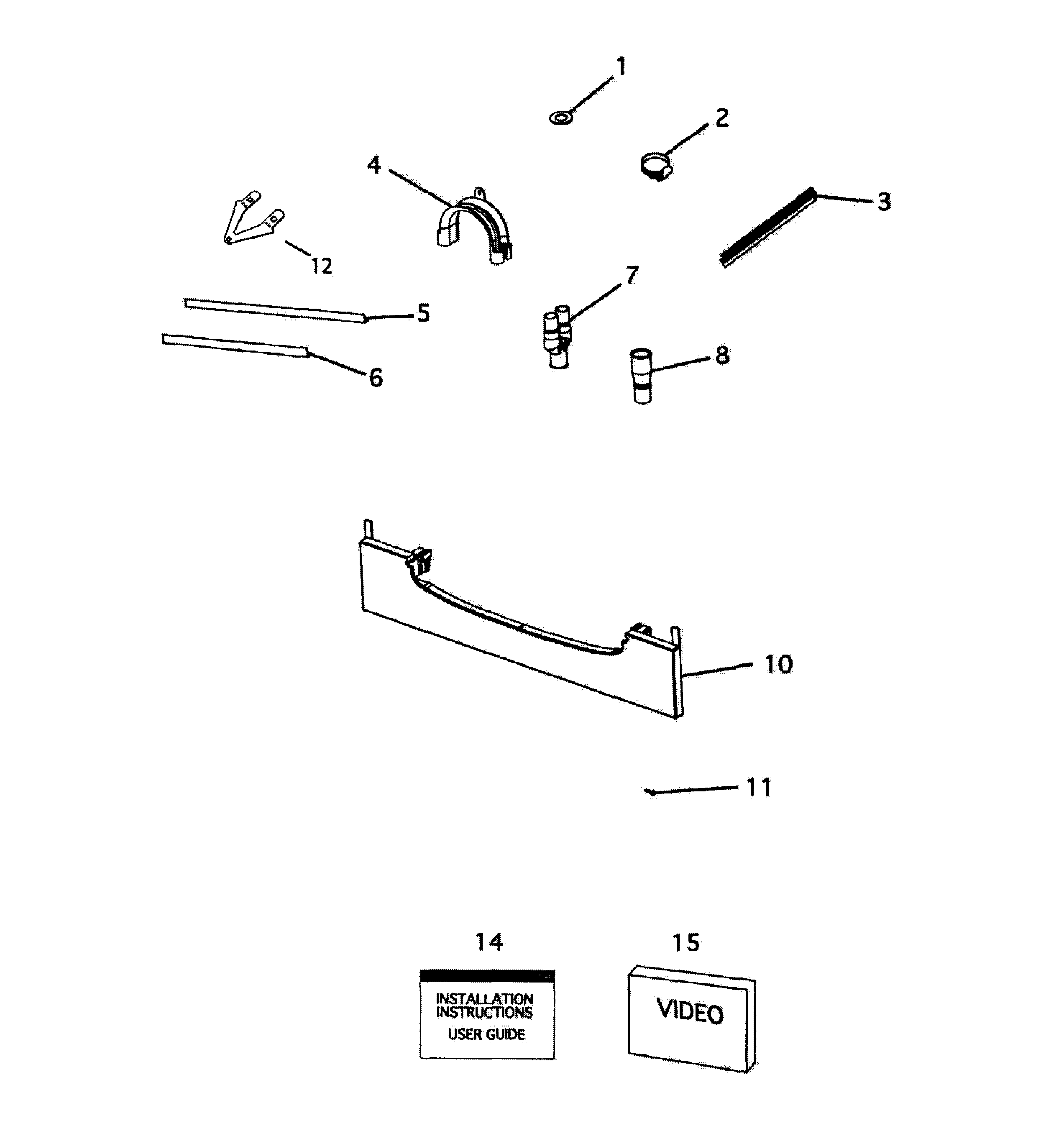

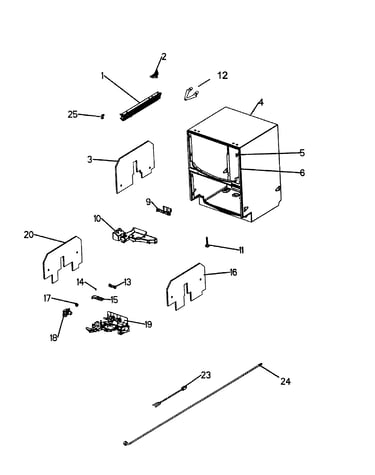

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Fisher & Paykel Dishwasher Installation Bracket 526797
#NI

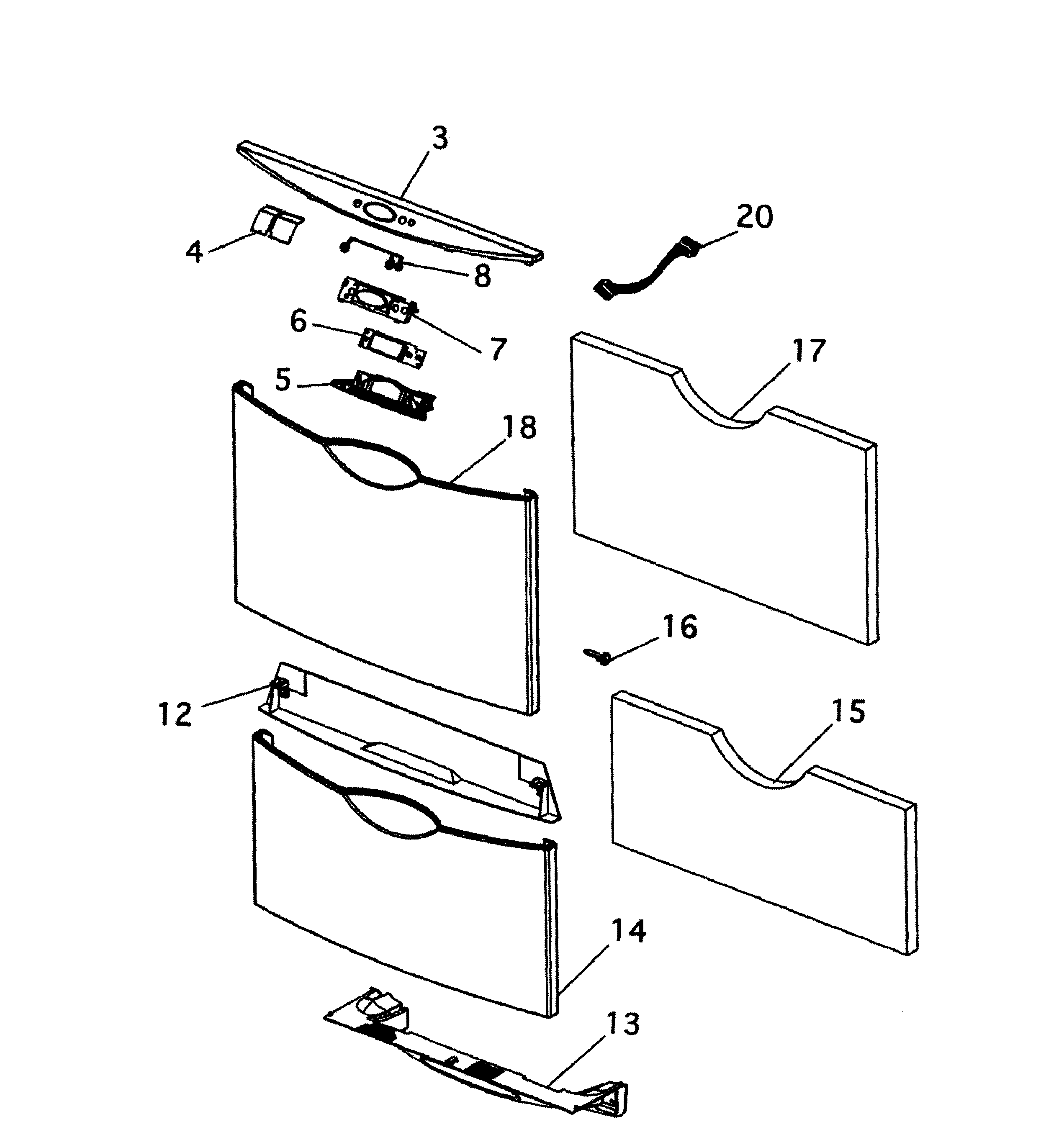

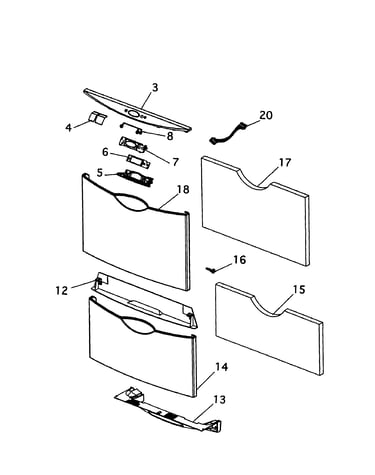

Front panels 1 diagram

Fisher & paykel dishwasher installation bracket

Part #526797

This item is not returnable
$12.09 |
14% OFF Phone Price : $14.09
In Stock
Fisher & Paykel Dishwasher Drain Filter Seal 527547
#2

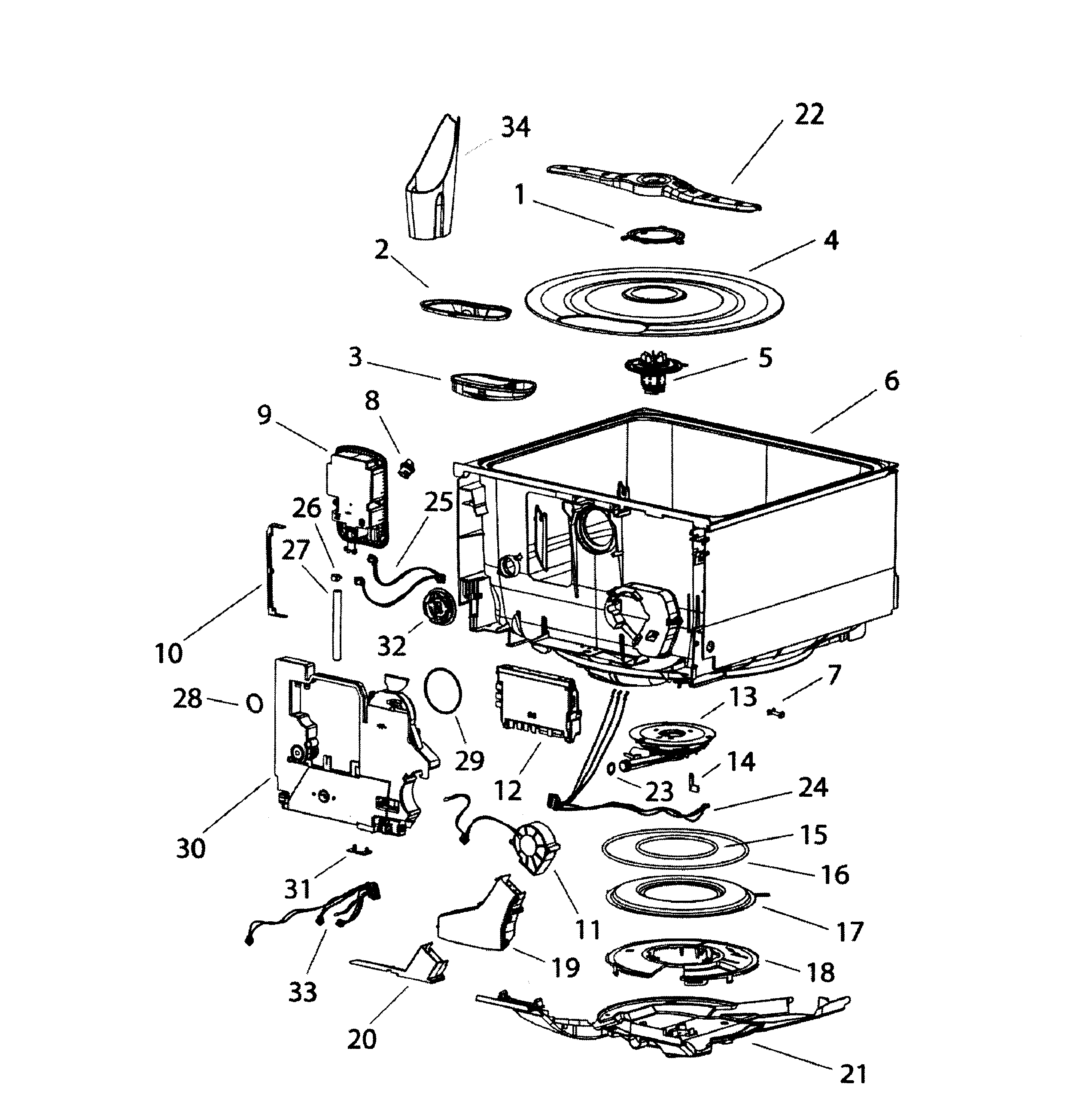

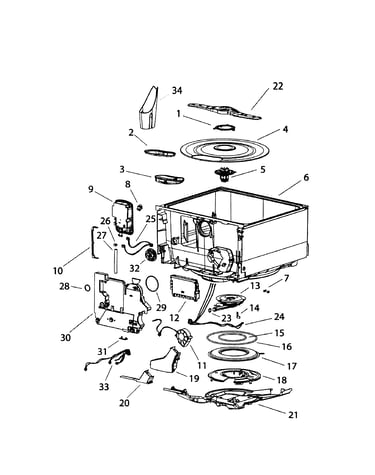

Tub asy diagram

Fisher & paykel dishwasher drain filter seal

Part #527547

$29.82 |
17% OFF Phone Price : $35.82
Back Order
Fisher & Paykel Dishwasher Drawer Drain Filter Access Door 526345
#9

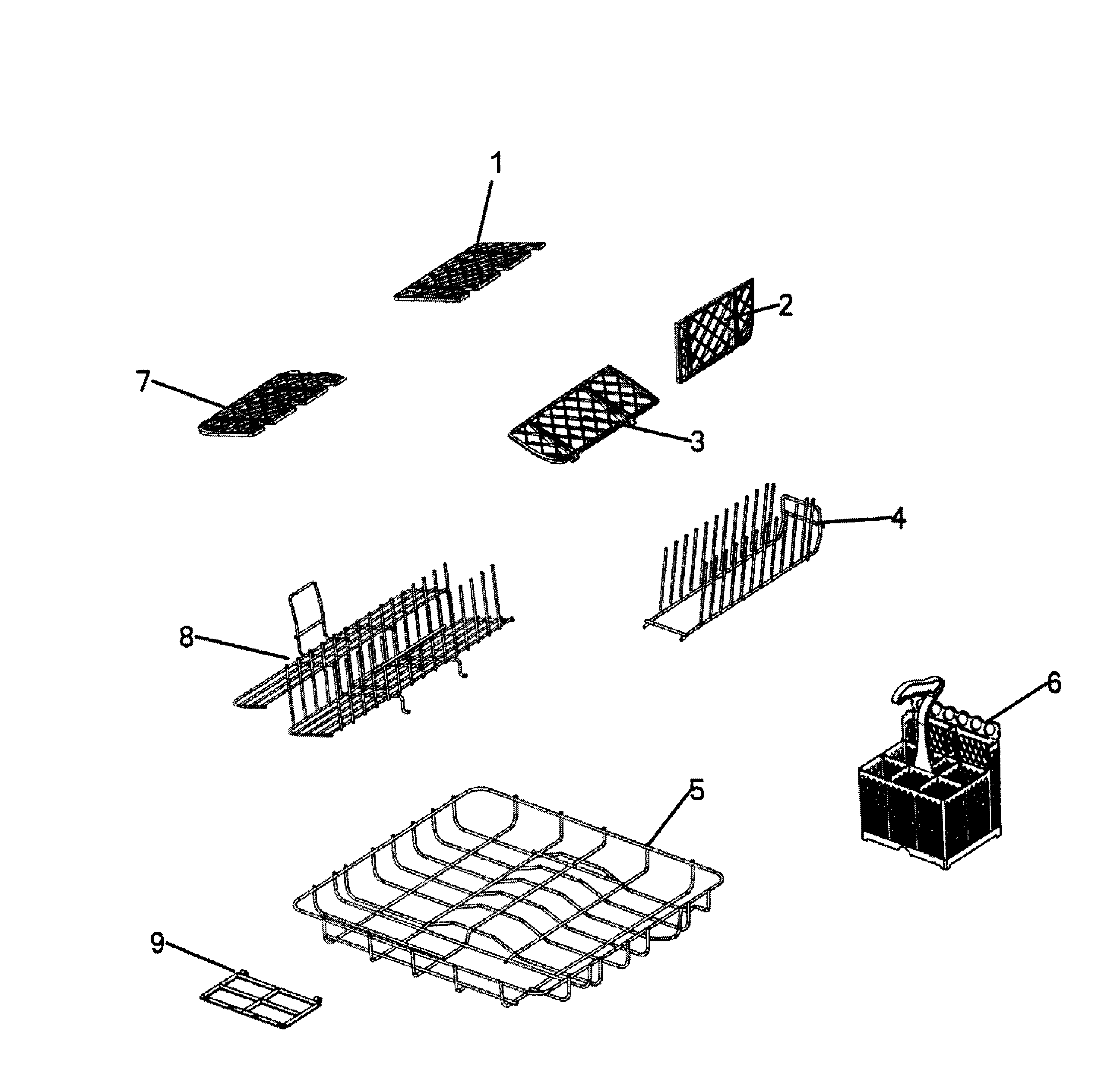

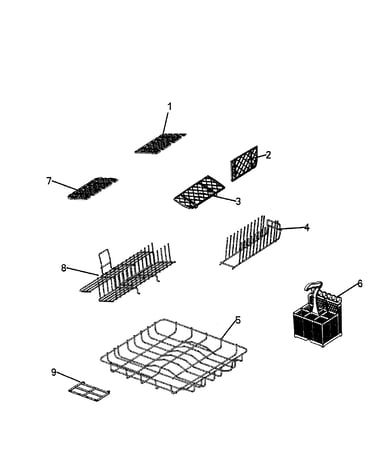

Baskets/racks diagram

Fisher & paykel dishwasher drawer drain filter access door

Part #526345

$41.17 |
13% OFF Phone Price : $47.17
Back Order
Fisher & Paykel Dishwasher Cycle Status Indicator Light Board 528762P
Fisher & paykel dishwasher cycle status indicator light board

Part #528762P

$97.73 |
11% OFF Phone Price : $109.73
In Stock
Fisher & Paykel Dishwasher Drawer Front Panel Pin 525010
Fisher & paykel dishwasher drawer front panel pin

Part #525010

$12.09 |
14% OFF Phone Price : $14.09
In Stock
Fisher & Paykel Dishwasher Drain Hose Support 525477
Fisher & paykel dishwasher drain hose support

Part #525477

This item is not returnable
$12.09 |
14% OFF Phone Price : $14.09
In Stock
Fisher & Paykel Dishwasher Drain Hose Extension Kit 525798
#5B

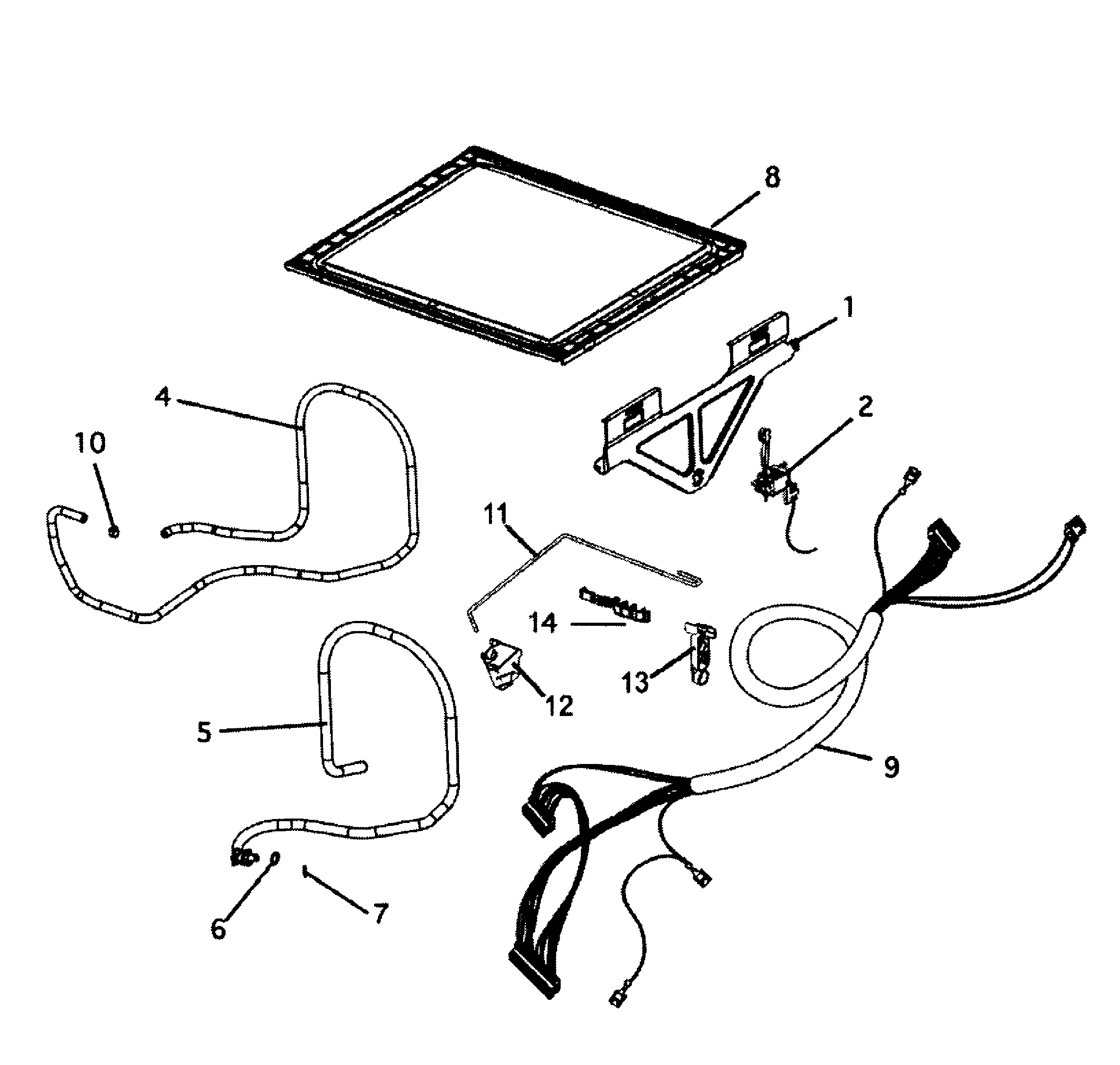

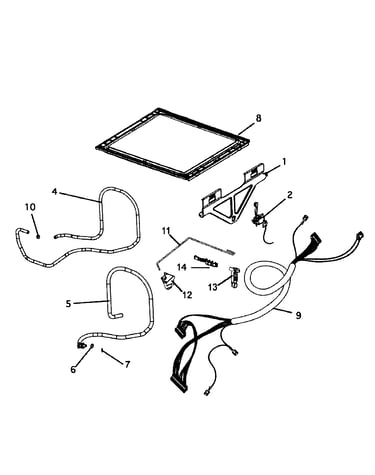

Lid/link assy diagram

Fisher & paykel dishwasher drain hose extension kit

Part #525798

$99.37 |
11% OFF Phone Price : $111.37
In Stock
Fisher & Paykel Dishwasher Drain Hose Connector And Clamp Assembly (replaces 525780) 527394
#5E

Lid/link assy diagram

Fisher & paykel dishwasher drain hose connector and clamp assembly (replaces 525780)

Part #527394

$47.10 |
11% OFF Phone Price : $53.10
In Stock
Fisher & Paykel Dishwasher Electronic Control Board 527785NP
#20

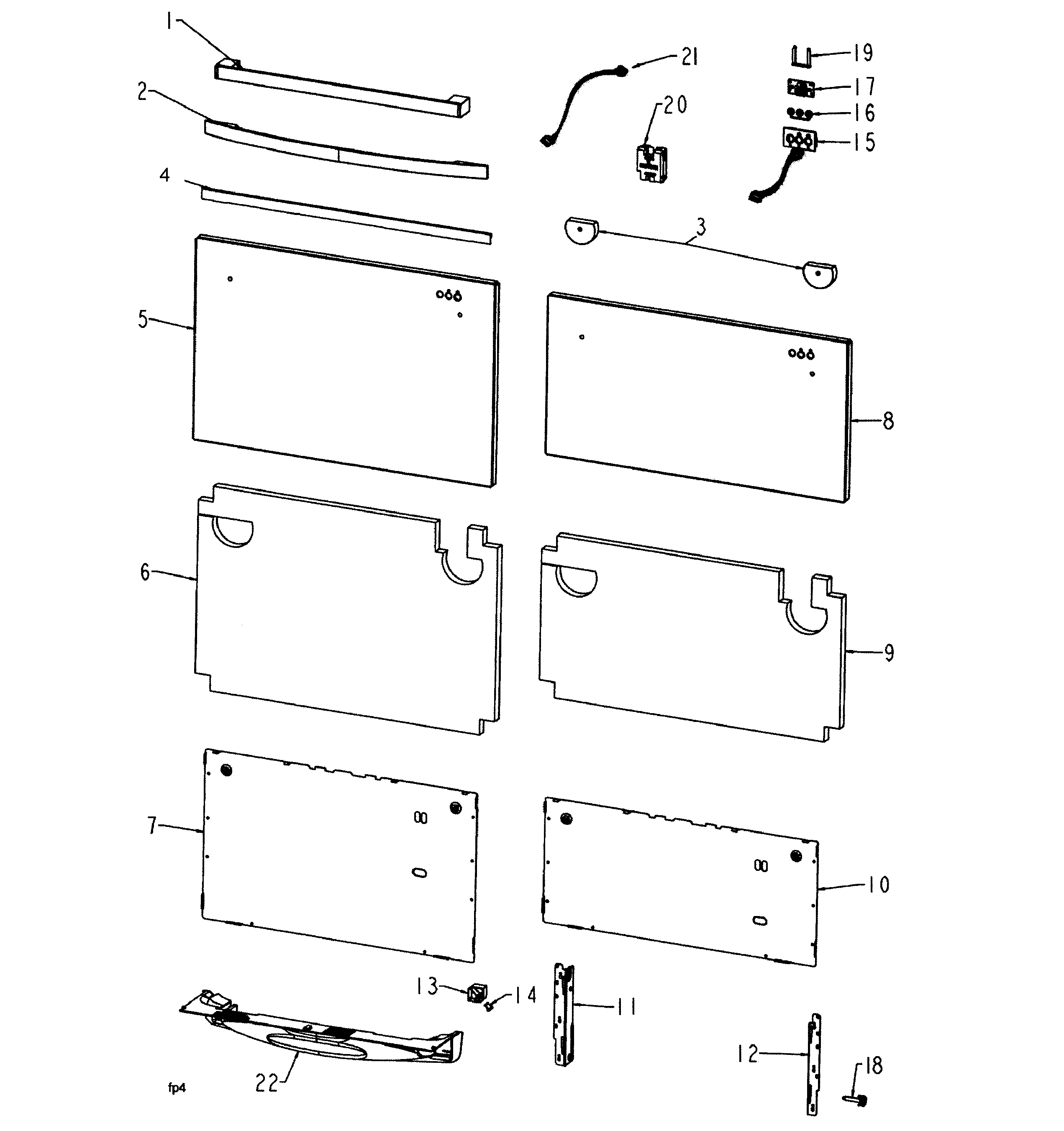

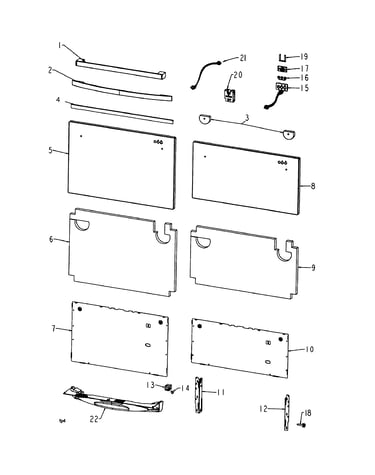

Front panels 2 diagram

Fisher & paykel dishwasher electronic control board

Part #527785NP

$57.68 |
9% OFF Phone Price : $63.68
In Stock
Fisher & Paykel Dishwasher Lid Link Support Clip 528162
#13

Lid/link assy diagram

Fisher & paykel dishwasher lid link support clip

Part #528162

$12.09 |
14% OFF Phone Price : $14.09
In Stock
