Kenmore
Sewing Machine

Model # 15814510 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 15814510 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

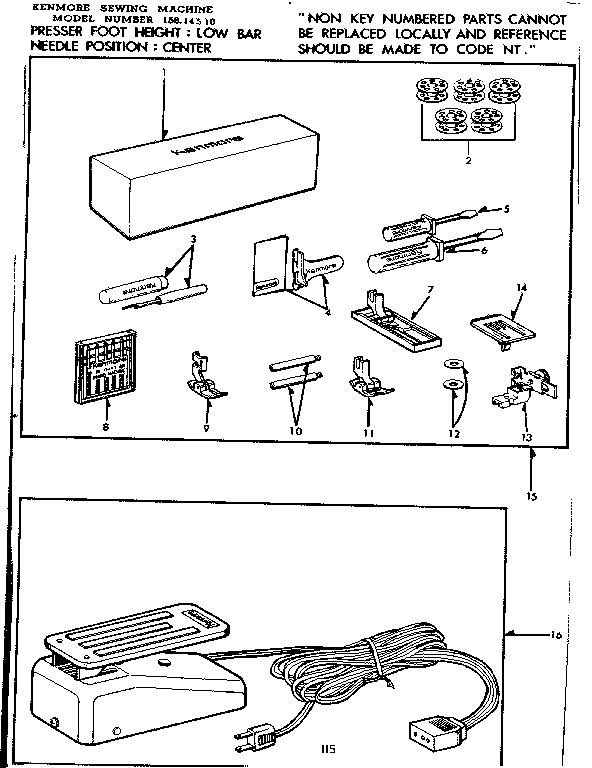

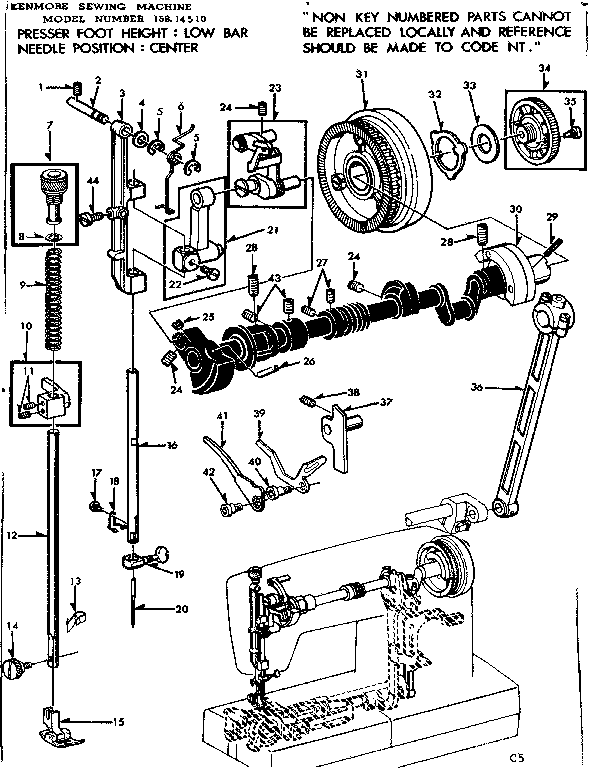

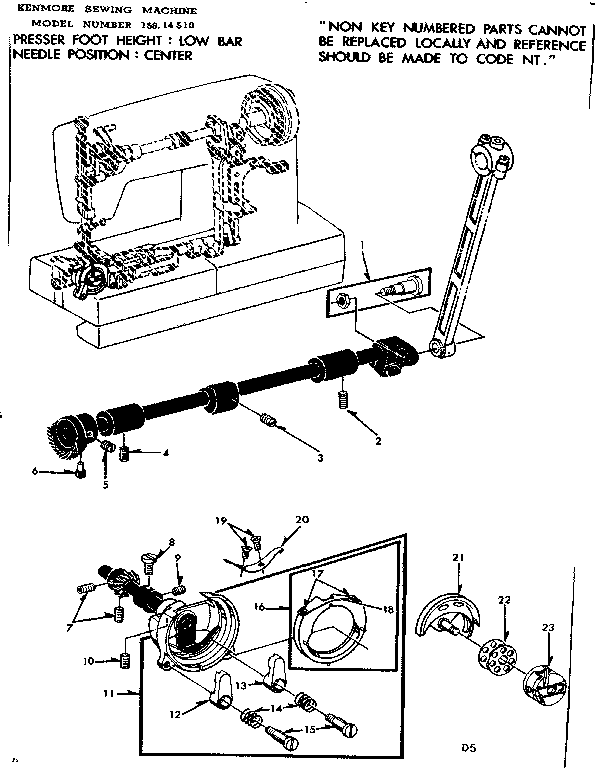

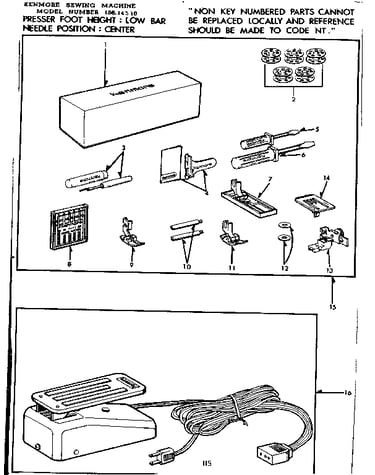

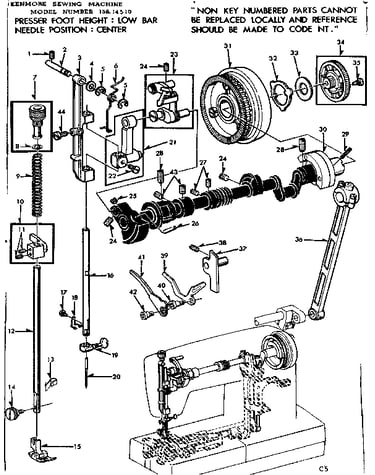

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 243 parts  |
Sewing Machine Belt 47489
#10

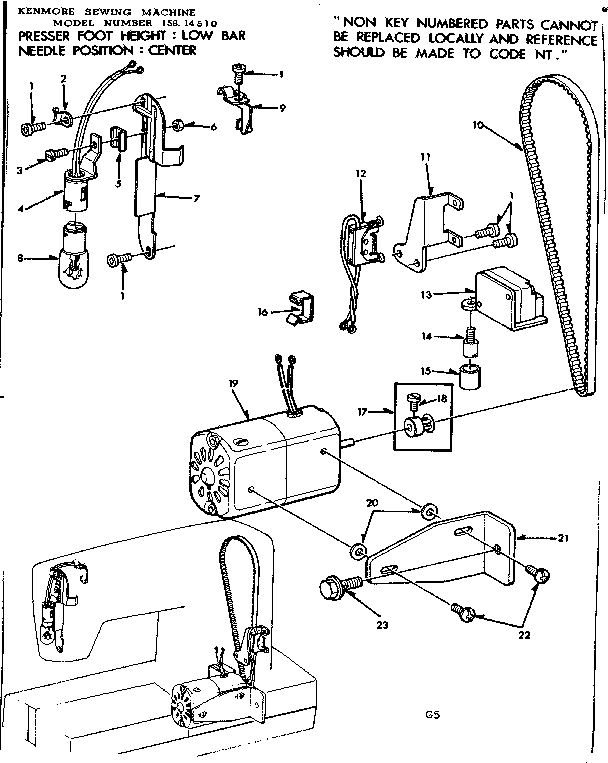

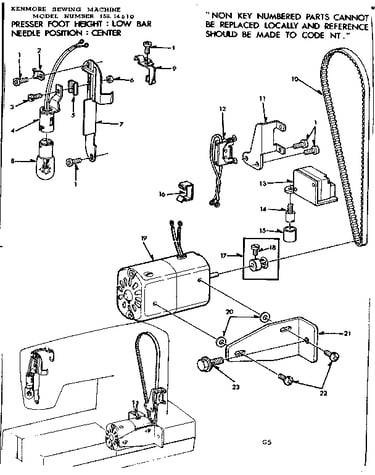

Motor assembly diagram

Sewing machine belt

Part #47489

The manufacturer no longer makes this part, and there's no substitute part

Eccentric Pin 47510
#46

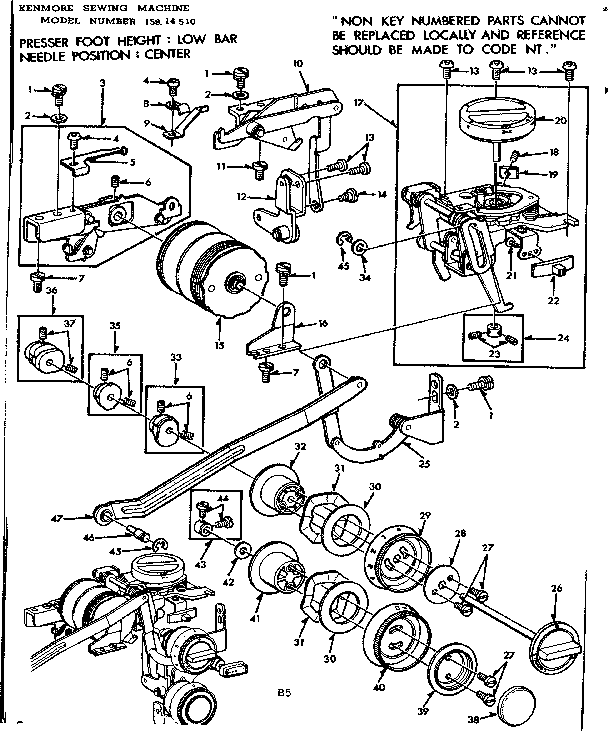

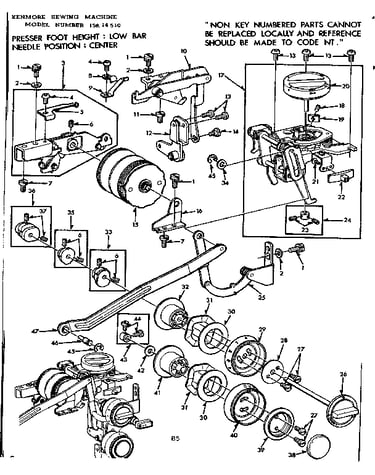

Geared cam assembly diagram

Eccentric pin

Part #47510

The manufacturer no longer makes this part, and there's no substitute part

Arm Cap 47462
#35

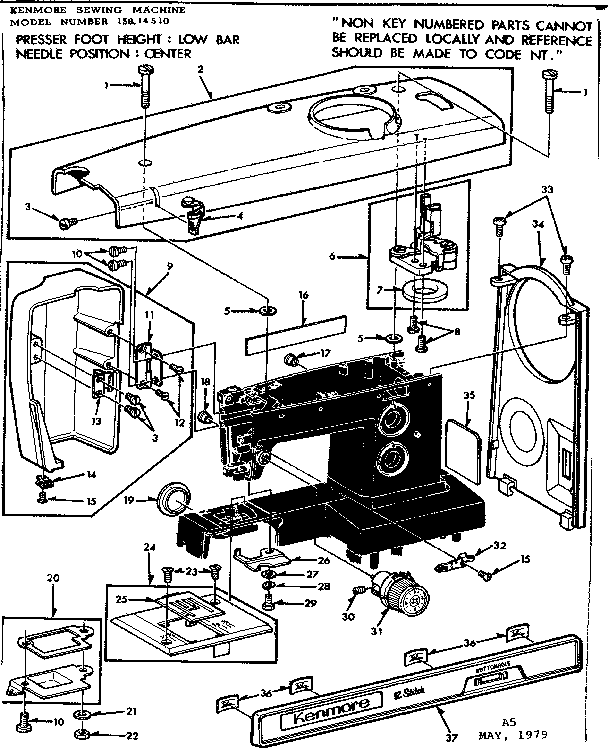

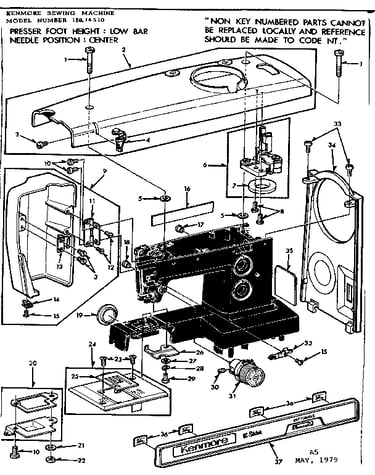

Base assembly diagram

Arm cap

Part #47462

The manufacturer no longer makes this part, and there's no substitute part

Magnet 47467
#3

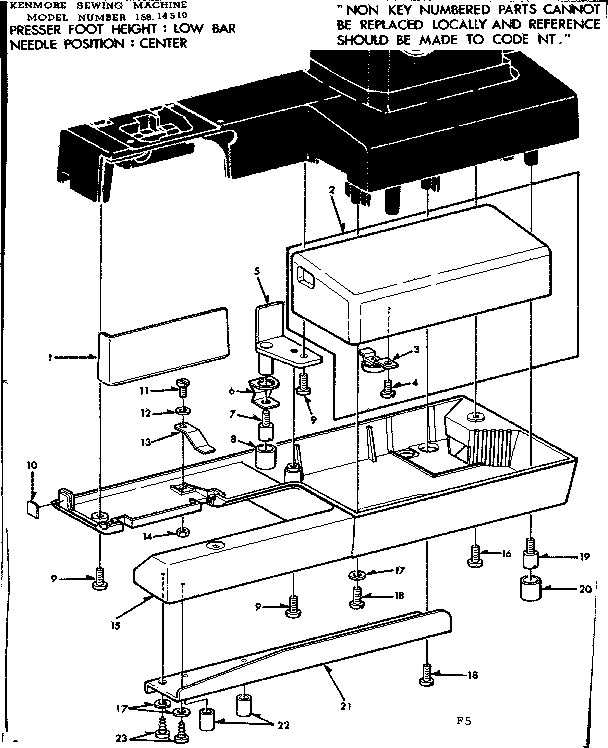

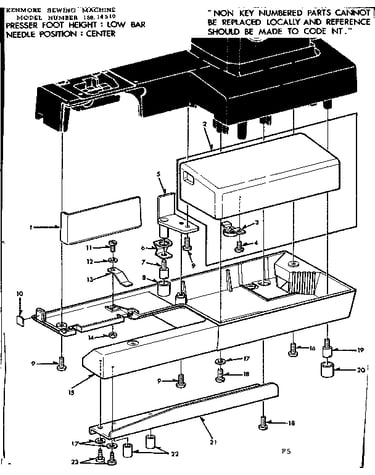

Shuttle cover and base unit diagram

Magnet

Part #47467

The manufacturer no longer makes this part, and there's no substitute part

Slider 49091
#46

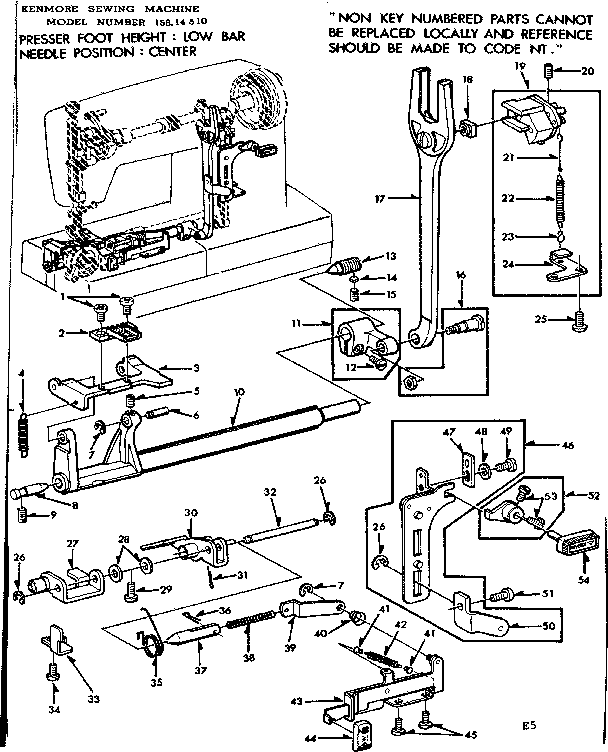

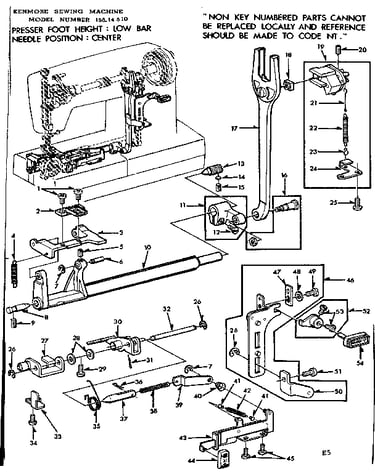

Feed regulator assembly diagram

Slider

Part #49091

The manufacturer no longer makes this part, and there's no substitute part

Spring 46520
#35

Feed regulator assembly diagram

Spring

Part #46520

The manufacturer no longer makes this part, and there's no substitute part

Spring Plate 47371
#9

Geared cam assembly diagram

Spring plate

Part #47371

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Special Dial 47497
#20

Geared cam assembly diagram

Kenmore special dial

Part #47497

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 44266
#18

Motor assembly diagram

Set screw

Part #44266

The manufacturer no longer makes this part, and there's no substitute part

Washer 45618
#30

Geared cam assembly diagram

Washer

Part #45618

The manufacturer no longer makes this part, and there's no substitute part
