LG
Bottom-Mount Refrigerator

Model # LFXS29766S/01 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LFXS29766S-01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 245 parts  |
Refrigerator Air Filter ADQ73214404
#631C

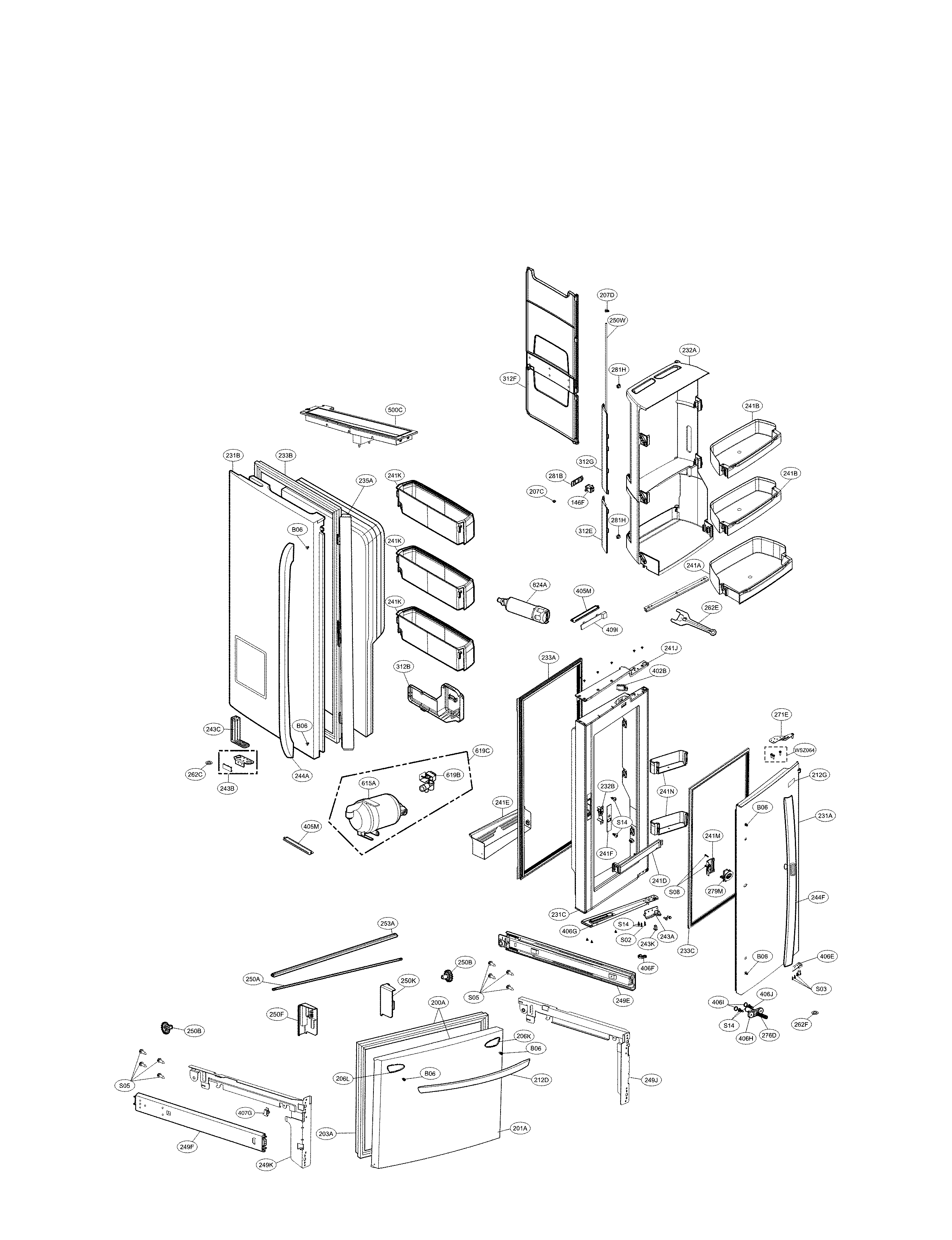

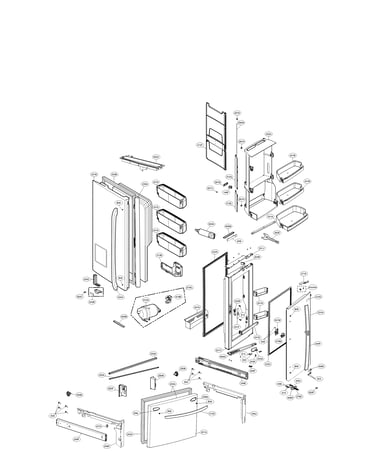

Door parts diagram

Refrigerator air filter

Part #ADQ73214404

Replaced by #ADQ73214408

?
Manufacturer substitution
This part replaces ADQ73214404. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$31.91 |
16% OFF Phone Price : $37.91
In Stock
Ice Maker Assembly (aeq72909602) - Refrigerator Ice Maker Part By Lg (replaces Aeq72909601) AEQ72909602
#600F

Door parts diagram

Ice maker assembly (aeq72909602) - refrigerator ice maker part by lg (replaces aeq72909601)

Part #AEQ72909602

BEST SELLER
$91.54 |
6% OFF Phone Price : $97.54
In Stock
Kenmore Lg Lt700p Refrigerator Water Filter (replaces Adq36006113) ADQ36006101
#624A

Door parts diagram

Kenmore lg lt700p refrigerator water filter (replaces adq36006113)

Part #ADQ36006101

BEST SELLER

Get free shipping with Automatic Reorder

$68.99
In Stock
Refrigerator Ice Maker And Auger Motor Assembly EAU62563503
#612A

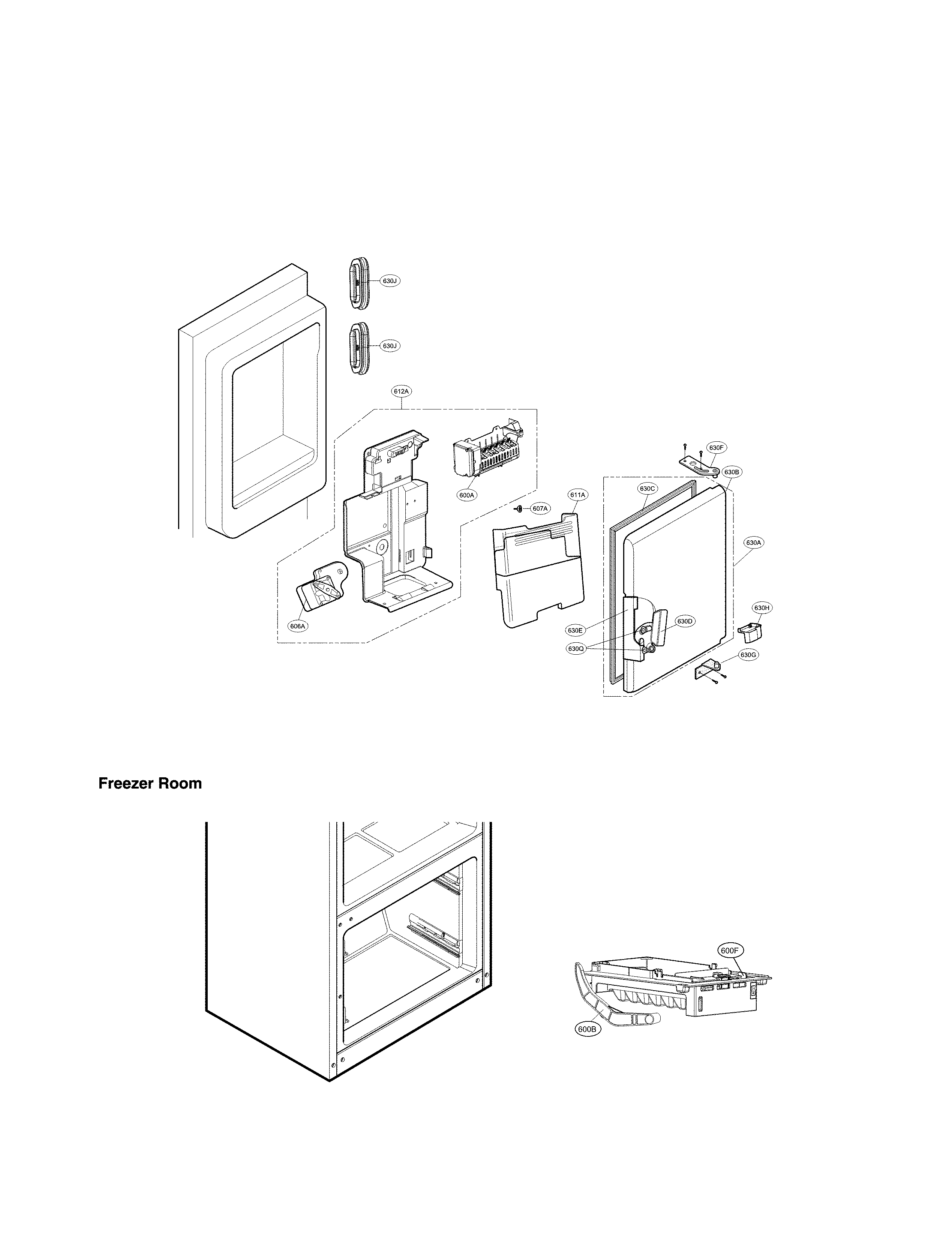

Ice maker parts diagram

Refrigerator ice maker and auger motor assembly

Part #EAU62563503

BEST SELLER
$212.96 |
5% OFF Phone Price : $224.96
In Stock
Refrigerator Ice Maker AEQ73130004
#600A

Door parts diagram

Refrigerator ice maker

Part #AEQ73130004

BEST SELLER
$147.66 |
8% OFF Phone Price : $159.66
In Stock
Refrigerator Gasket Assembly ADX72930453
#233A

Door parts diagram

Refrigerator gasket assembly

Part #ADX72930453

Replaced by #ADX72930461

?
Manufacturer substitution
This part replaces ADX72930453. Substitute parts can look different from the original.
BEST SELLER
$76.80 |
7% OFF Phone Price : $82.80
In Stock
Refrigerator Condenser Coil ACG73645002
#301A

Door parts diagram

Refrigerator condenser coil

Part #ACG73645002

Replaced by #ACG73645004

?
Manufacturer substitution
This part replaces ACG73645002. Substitute parts can look different from the original.
BEST SELLER
$112.29 |
10% OFF Phone Price : $124.29
In Stock
Refrigerator Water Inlet Valve (replaces Aju72992610) AJU72992603
#619A

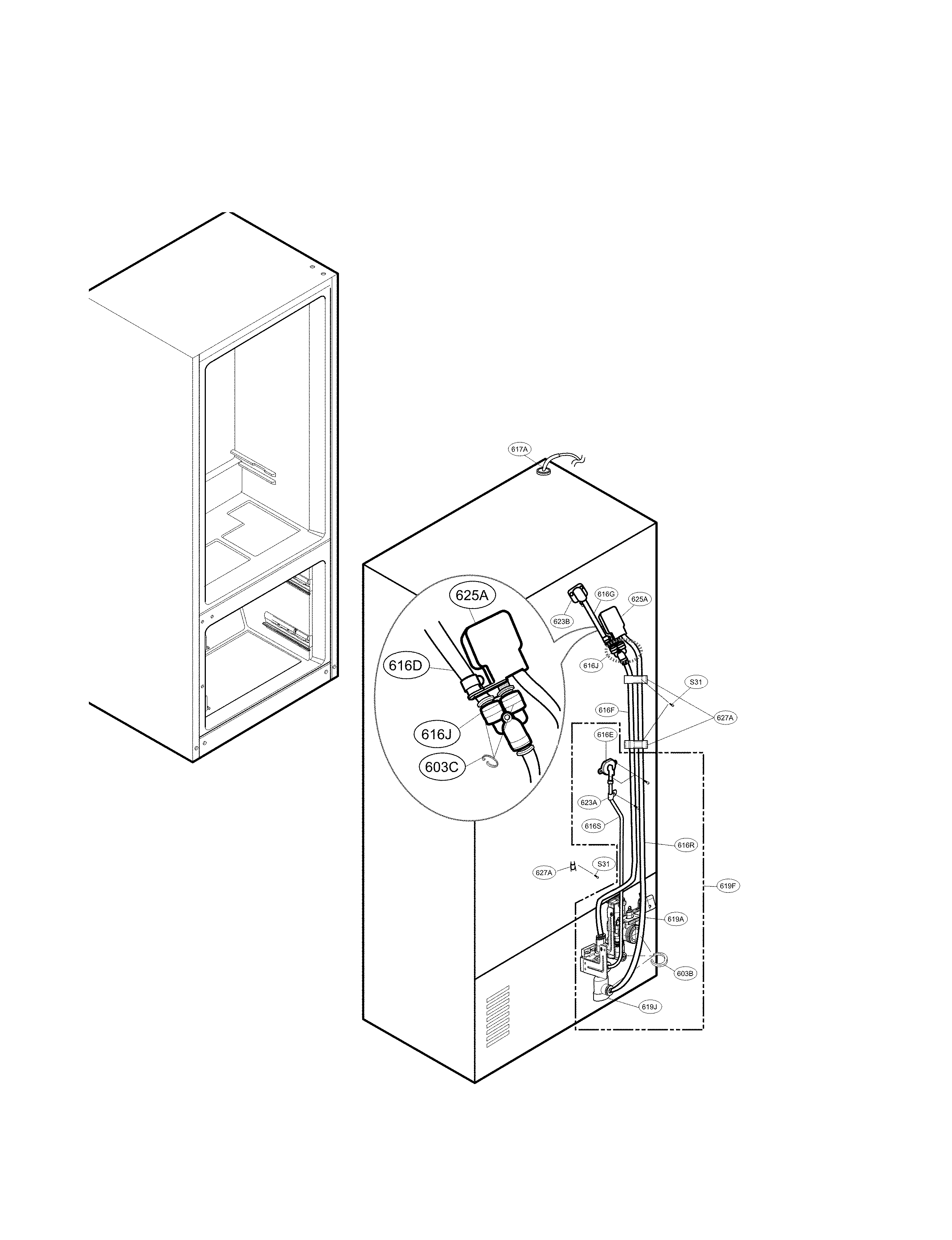

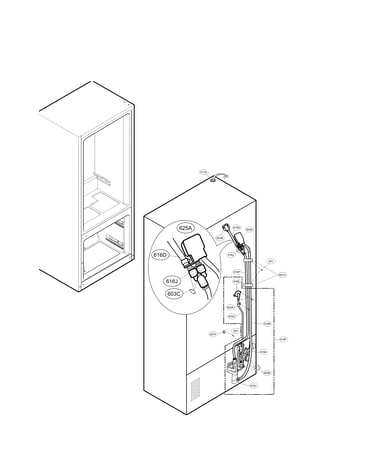

Water and valve parts diagram

Refrigerator water inlet valve (replaces aju72992610)

Part #AJU72992603

BEST SELLER
$85.98 |
7% OFF Phone Price : $91.98
In Stock
Refrigerator Door Basket Assembly AAP73252306
#241K

Door parts diagram

Refrigerator door basket assembly

Part #AAP73252306

Replaced by #AAP73252302

?
Manufacturer substitution
This part replaces AAP73252306. Substitute parts can look different from the original.
BEST SELLER
$42.65 |
12% OFF Phone Price : $48.65
In Stock
Refrigerator Auger Motor EAU59551207
#405A

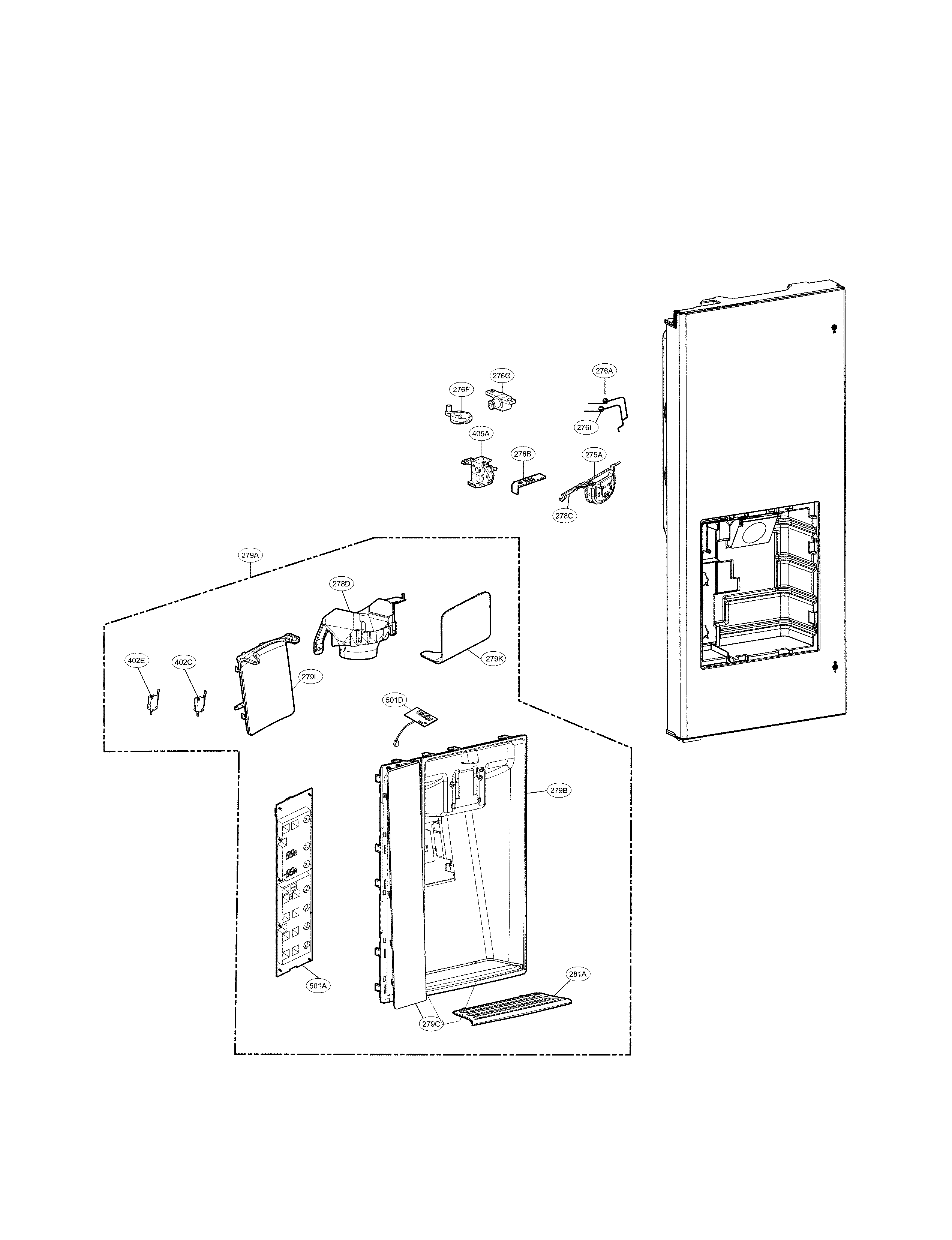

Dispenser parts diagram

Refrigerator auger motor

Part #EAU59551207

Replaced by #EAU59551204

?
Manufacturer substitution
This part replaces EAU59551207. Substitute parts can look different from the original.
BEST SELLER
$52.52 |
10% OFF Phone Price : $58.52
In Stock
