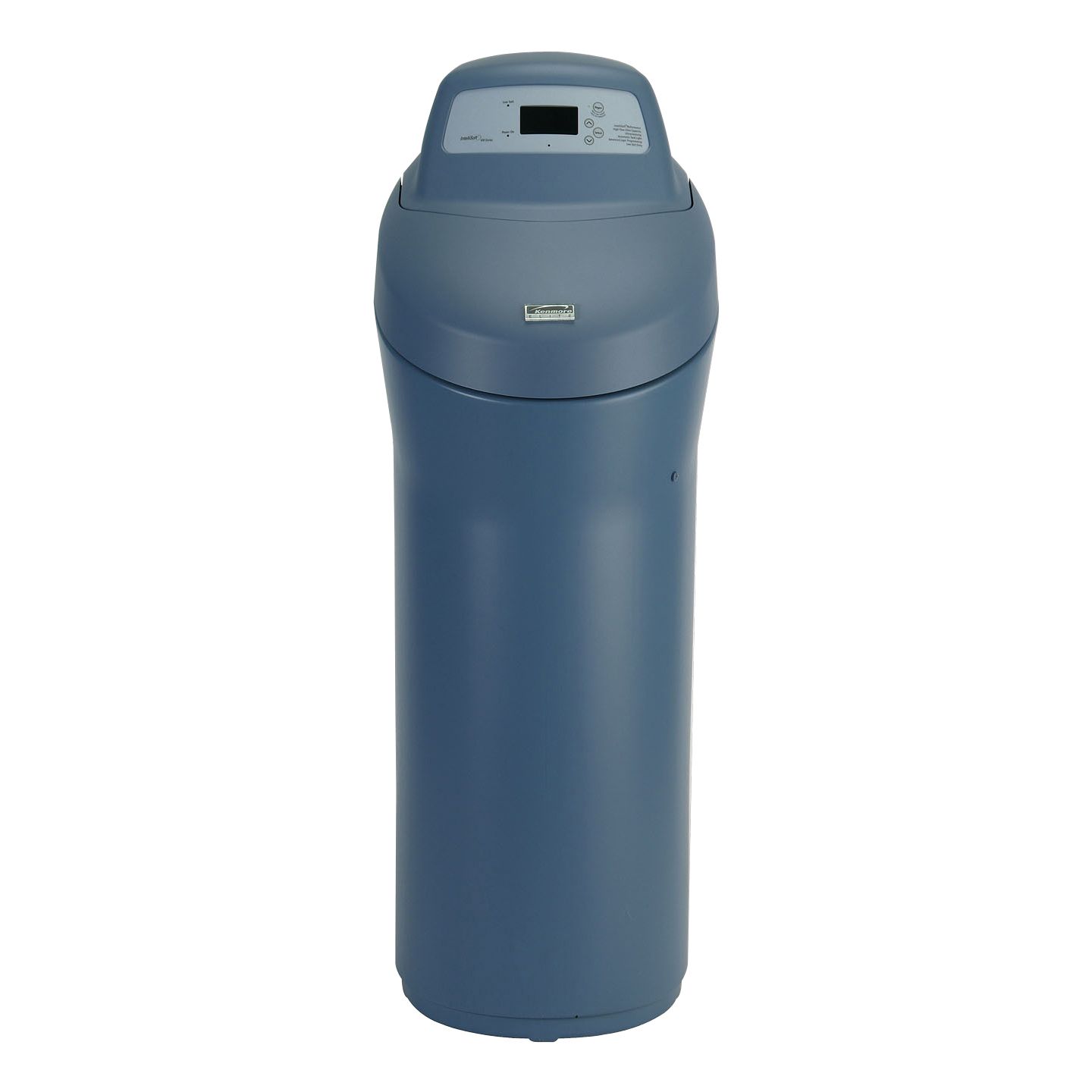

Kenmore Elite water softeners use advanced control systems and precision components to remove hard salts from your home's supply water. Kenmore Elite offers water softeners in various sizes so you can choose the model that matches your water usage. When your Kenmore Elite water softener isn't working right, Sears PartsDirect has the parts and troubleshooting tips you need to fix the problem.
Top Kenmore Elite water softener parts that sometimes need to be replaced
Electronic control. The electronic control monitors water flow and manages the operation of the water softener. The electronic control positions the rotor valve to direct water flow for softening and regeneration.
Bypass valve. The bypass valve diverts the water supply directly to the water softener’s outlet pipe to completely bypass the water softener. The house is supplied with unsoftened tap water when the bypass valve is in the bypass position.
Venturi. The venturi draws the brine solution from the salt tank to the resin tank during the regeneration cycle.
Valve motor. The valve motor rotates the rotor valve to perform the various water softener operations such as regeneration and water softening.
Water flow meter. The water flow meter measures the amount of water passing through the softener and sends information to the electronic control.
How to troubleshoot your Kenmore Elite water softener when you're not getting soft water
An empty salt tank, salt bridge inside the salt tank, depleted resin, clogged or damaged venturi, broken rotor position switch or failed timer can prevent the water softener from producing soft water.
If your skin doesn’t feel slick after taking a shower, that’s a sign you don’t have soft water. You can check water hardness using the method shown in our How to Check Water Hardness video.
If your water is hard, check the salt tank first. Fill the tank with salt if it’s empty. If the tank has salt, but the salt level hasn’t changed in several months, the salt pellets may have caked up and formed a salt bridge inside the tank. An empty space forms under the salt bridge, preventing brine production. Without brine, the resin filter won’t regenerate and water won’t get softened. If you find a salt bridge in the salt tank, carefully use a broom handle to break up the salt bridge. The salt from the bridge will fall to the bottom of the tank and mix with the tank water to make brine and regenerate the resin beads, so you’ll start getting soft water again.
Resin lasts about 10 to 15 year before it eventually loses its ability to attract hard salt ions. If the regeneration cycle works but output water is still hard and your resin is older than 10 years, then you’ll likely need to replace the resin.
The venturi sends brine from the salt tank to the resin filter tank to regenerate the resin beads. A clogged or damaged venturi can cause hard water because the venturi can’t move the brine water into the resin filter tank. Clean or replace the venturi if brine water level in the salt tank doesn’t go down during regeneration.
A failed rotor position switch or bad timer can also cause hard water output from the water softener. If the rotor position switch fails, the timer will display an error code and won’t initiate the regeneration cycle. Check the rotor position switch using the diagnostic test cycle described in your owner’s manual. Replace the rotor position switch if it doesn’t work. If the timer fails to respond when you initiate the diagnostic test cycle, you’ll likely need to replace the timer.
