Model # IS850-2M Official Genie garage door opener

Here are the diagrams and repair parts for Official Genie IS850-2M garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 57 parts |

#11

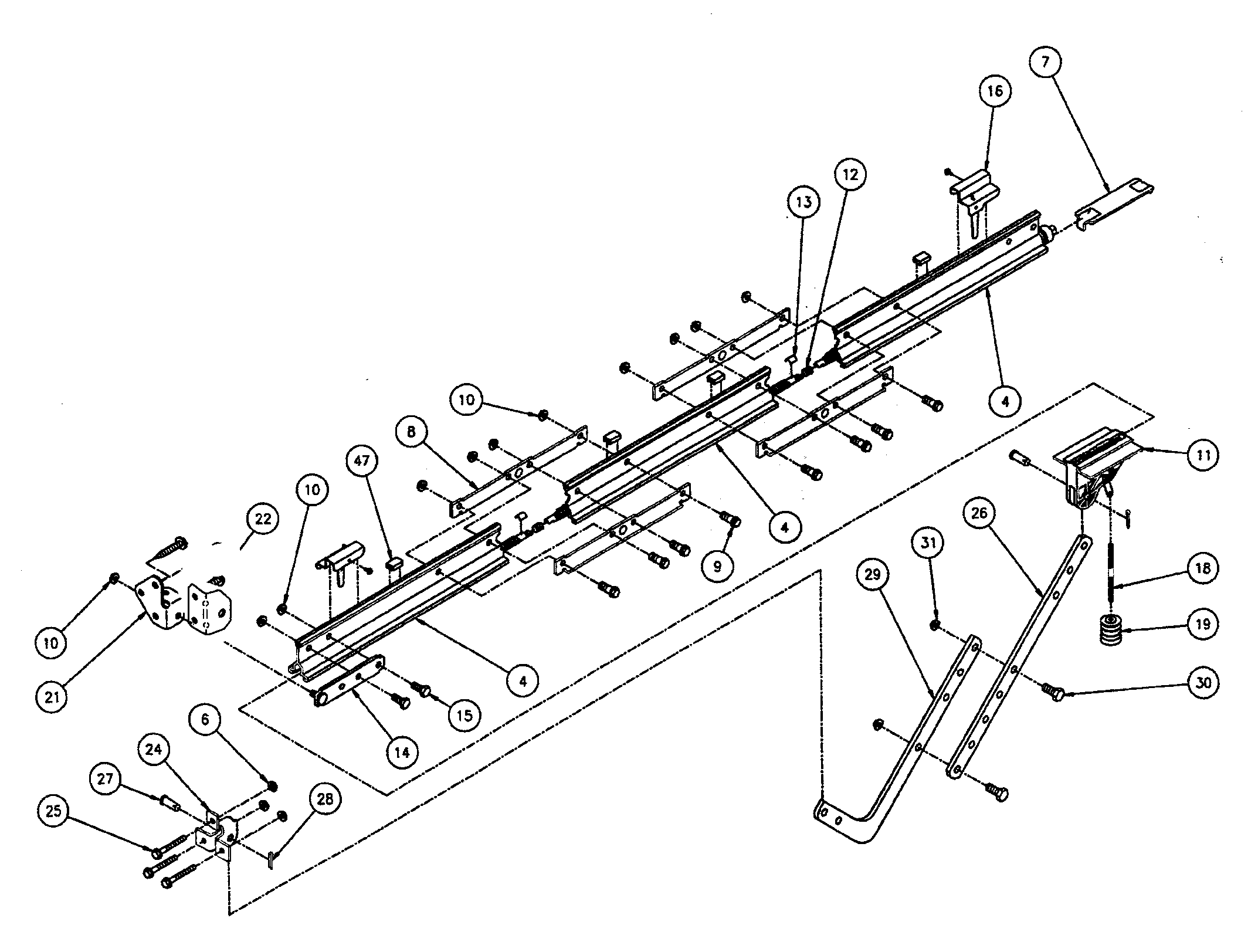

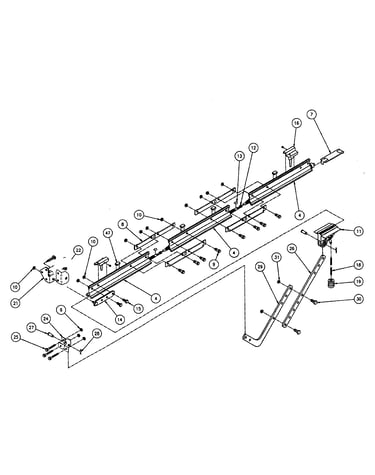

Rail assy diagram

Carriage

Part #36179R

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Ac Transformer 35426A

#16

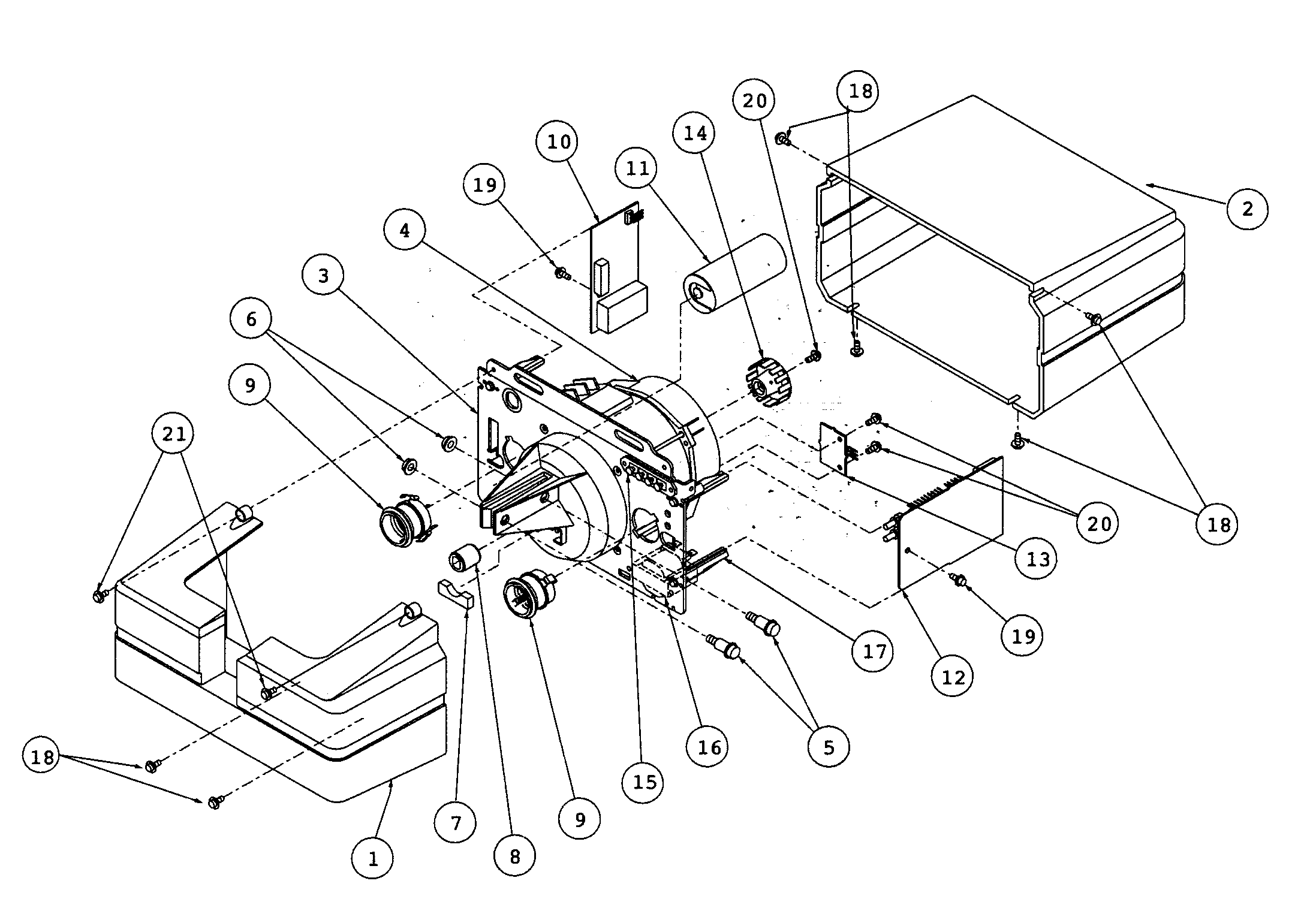

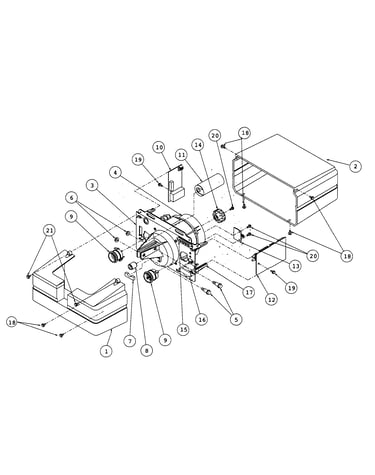

Motor assy diagram

Garage door opener ac transformer

Part #35426A

The manufacturer no longer makes this part, and there's no substitute part

#NI

Motor assy diagram

Garage door opener power cord

Part #32928C

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Interrupter Cup 35226A

#14A

Motor assy diagram

Garage door opener interrupter cup

Part #35226A

The manufacturer no longer makes this part, and there's no substitute part

#25

Rail assy diagram

Garage door opener bolt

Part #3359Q06

The manufacturer no longer makes this part, and there's no substitute part

#NI

Motor assy diagram

Clamp

Part #25731A

The manufacturer no longer makes this part, and there's no substitute part

#15

Rail assy diagram

Garage door opener bolt

Part #080105.0506

The manufacturer no longer makes this part, and there's no substitute part

#NI

Motor assy diagram

Strain relief

Part #25585A

The manufacturer no longer makes this part, and there's no substitute part

#30

Rail assy diagram

Garage door opener screw

Part #5973Q04

The manufacturer no longer makes this part, and there's no substitute part

#27

Rail assy diagram

Garage door opener clevis pin

Part #5987F04

The manufacturer no longer makes this part, and there's no substitute part
