Kobalt (Coleman)
Air Compressor

Model # 215921 Official Kobalt (Coleman) electric air compressor

Here are the diagrams and repair parts for Official Kobalt (Coleman) 215921 electric air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Crankshaft 053-0101
#25

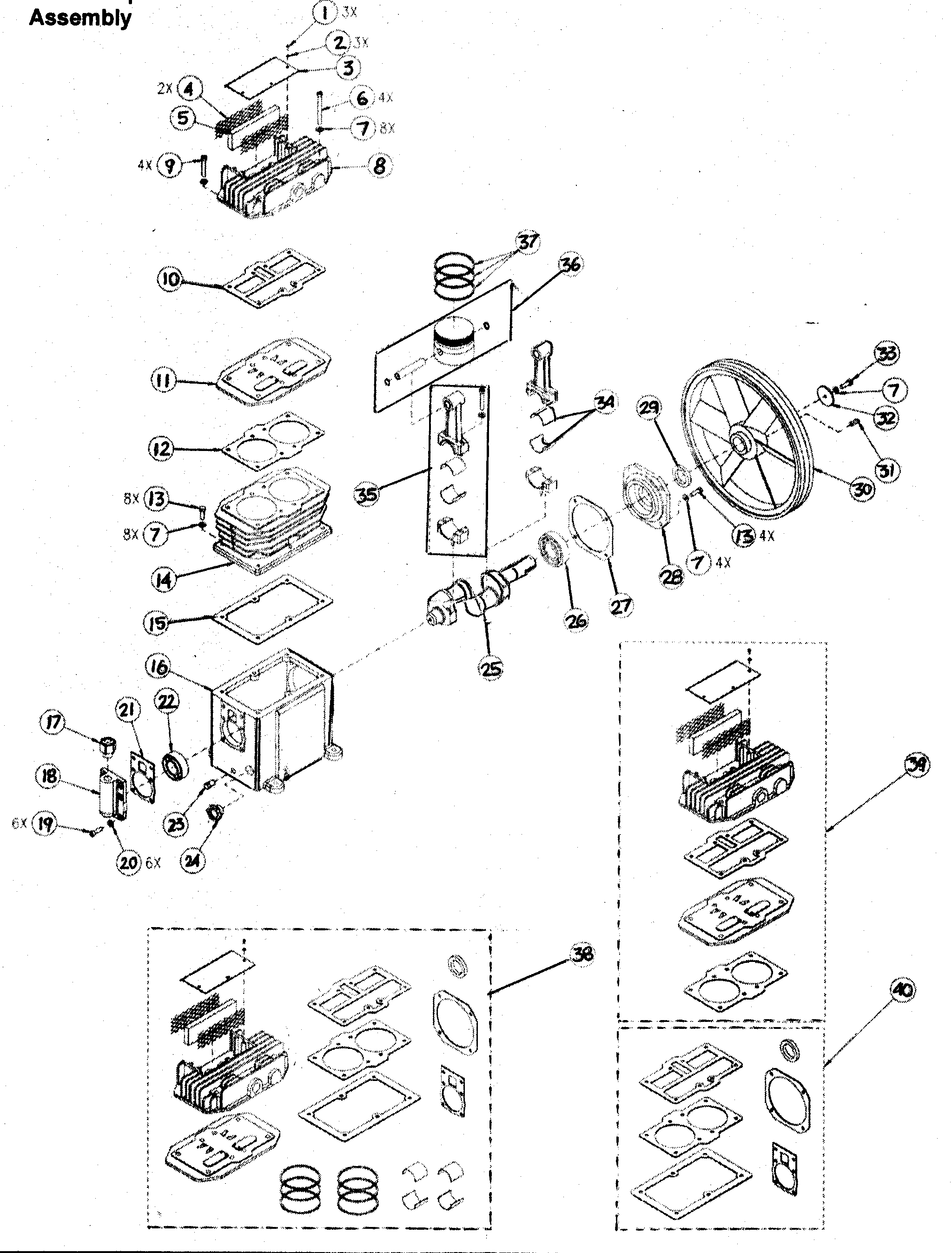

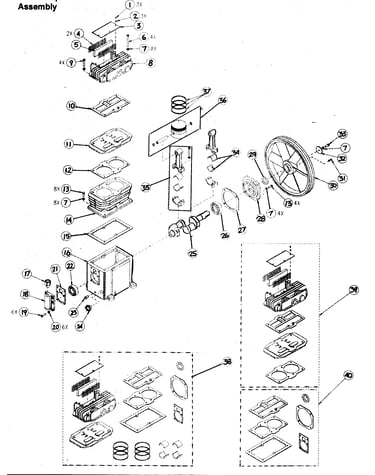

Manifold diagram

Crankshaft

Part #053-0101

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Motor 160-0264
#16

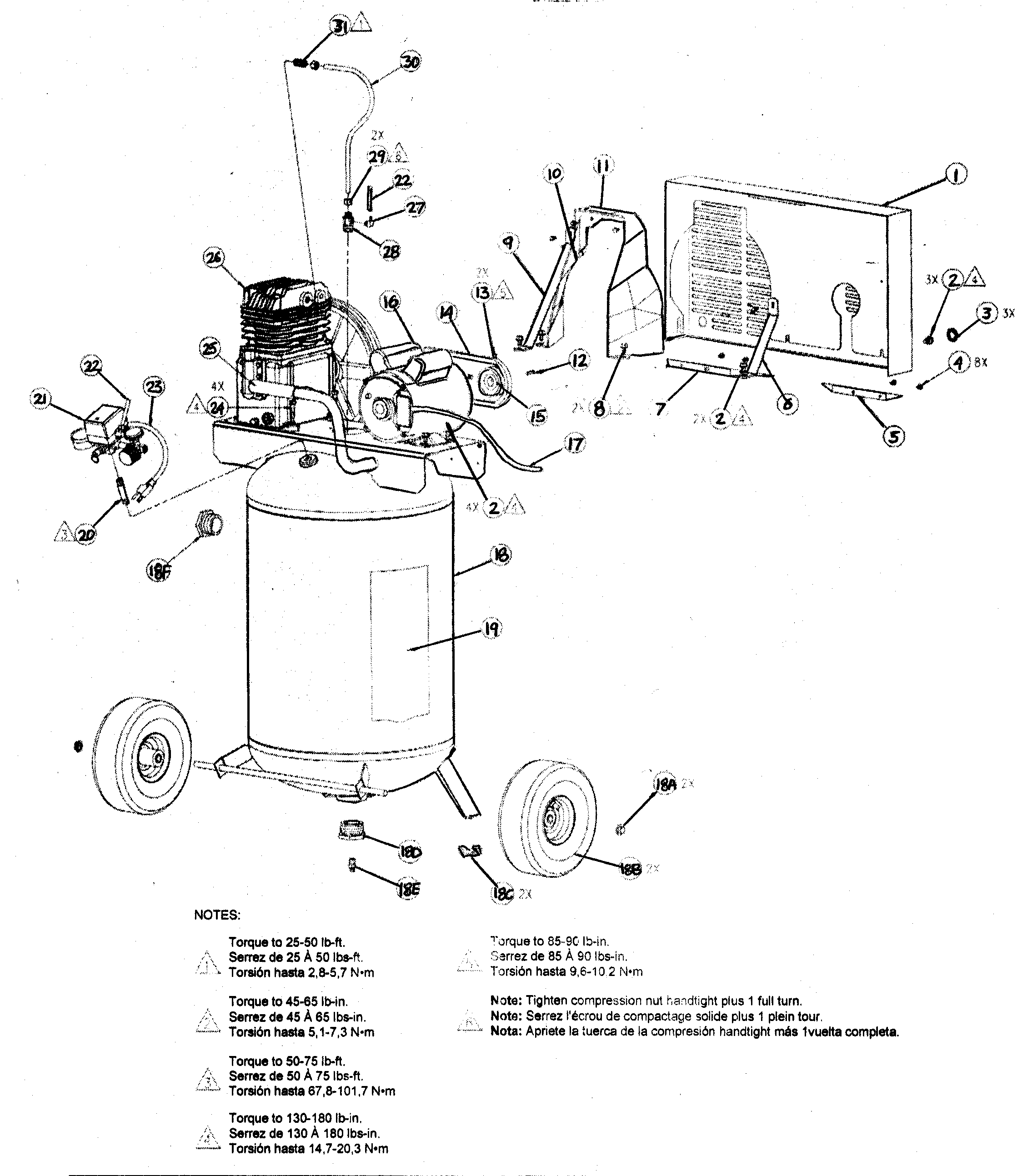

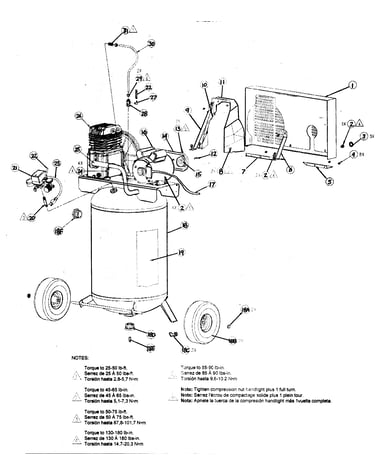

Compressor assy diagram

Air compressor motor

Part #160-0264

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Compression Nut 058-0017
#10

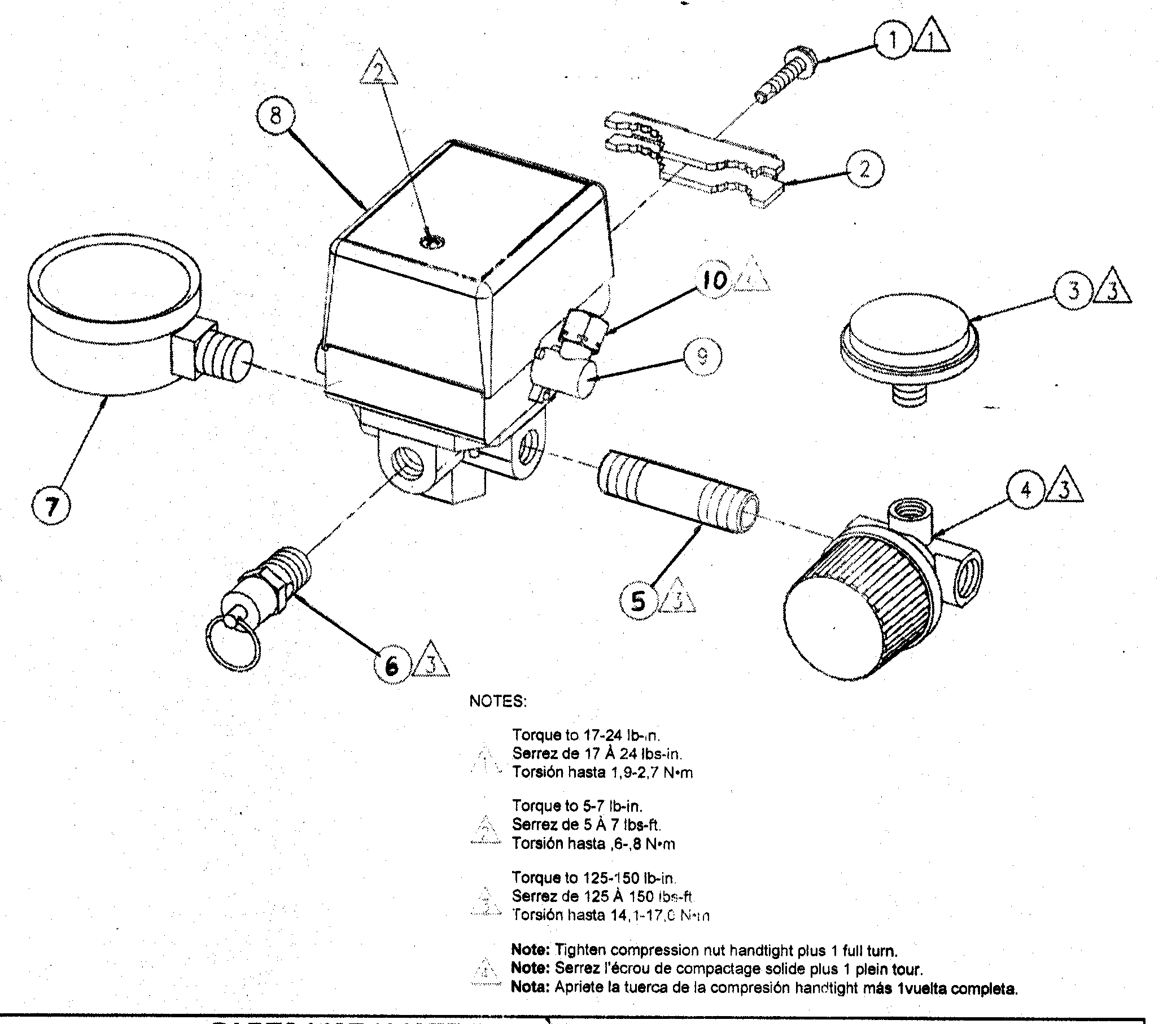

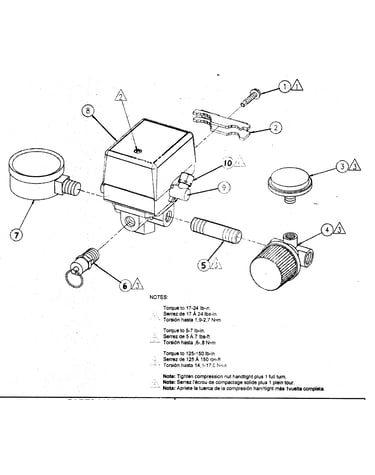

Motor assy diagram

Air compressor compression nut

Part #058-0017

The manufacturer no longer makes this part, and there's no substitute part

Insert Brg 051-0098
#34

Manifold diagram

Insert brg

Part #051-0098

The manufacturer no longer makes this part, and there's no substitute part

Valve 072-0001
#18E

Compressor assy diagram

Valve

Part #072-0001

The manufacturer no longer makes this part, and there's no substitute part

Bolt N/A
Bolt

Part #N/A

The manufacturer no longer makes this part, and there's no substitute part

Key 146-0026
#31

Manifold diagram

Key

Part #146-0026

The manufacturer no longer makes this part, and there's no substitute part

Flywheel 044-0064
#30

Manifold diagram

Flywheel

Part #044-0064

The manufacturer no longer makes this part, and there's no substitute part

Gasket,cyl 046-0282
#12

Manifold diagram

Gasket,cyl

Part #046-0282

The manufacturer no longer makes this part, and there's no substitute part

Gasket 046-0281
#15

Manifold diagram

Gasket

Part #046-0281

The manufacturer no longer makes this part, and there's no substitute part
