Weber
Gas Grill

Model # GENESIS 1000 Official Weber outdoor grill

Here are the diagrams and repair parts for Official Weber GENESIS-1000 outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Gas Grill Switch Bracket 92515
#46A

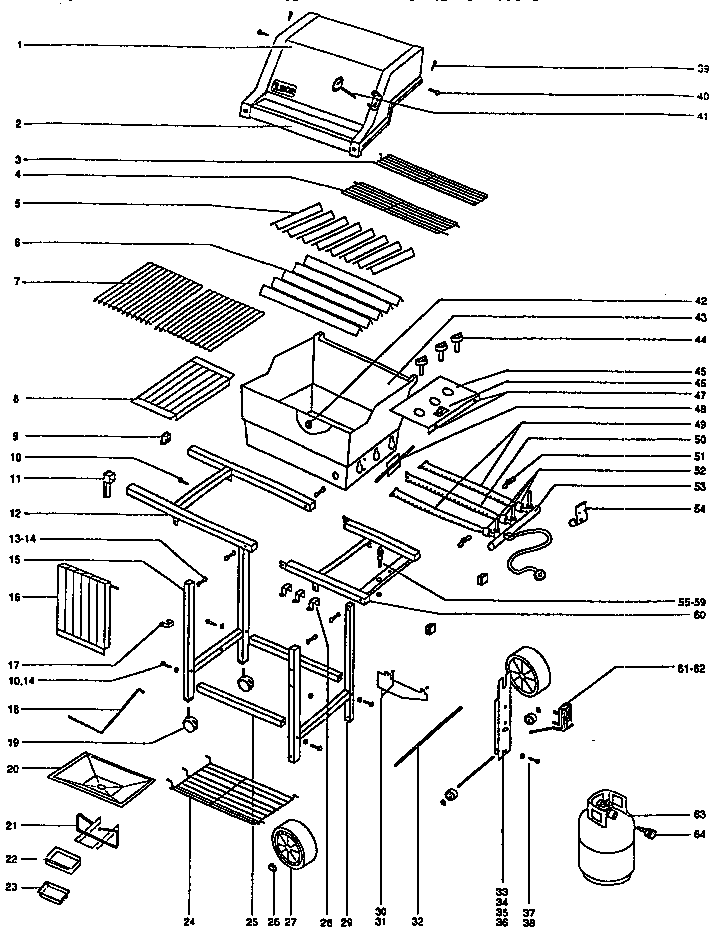

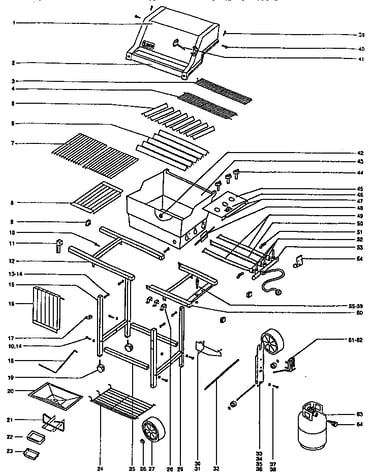

Replacement parts diagram

Gas grill switch bracket

Part #92515

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Switch 92510
#46

Replacement parts diagram

Gas grill switch

Part #92510

The manufacturer no longer makes this part, and there's no substitute part

Burner Tube 40822206
#49

Replacement parts diagram

Burner tube

Part #40822206

The manufacturer no longer makes this part, and there's no substitute part

Burner Tube 40822207
#50

Replacement parts diagram

Burner tube

Part #40822207

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Frame Connector, Lower 4189526
#25

Replacement parts diagram

Gas grill frame connector, lower

Part #4189526

The manufacturer no longer makes this part, and there's no substitute part

Label 4038590
#29

Replacement parts diagram

Label

Part #4038590

The manufacturer no longer makes this part, and there's no substitute part

Washer 87603
#2B

Replacement parts diagram

Washer

Part #87603

The manufacturer no longer makes this part, and there's no substitute part

Lid Assy G 10333
#1C

Replacement parts diagram

Lid assy g

Part #10333

The manufacturer no longer makes this part, and there's no substitute part

Adapter 48830205
#64

Replacement parts diagram

Adapter

Part #48830205

The manufacturer no longer makes this part, and there's no substitute part

Shroud Blu 40968005
#1H

Replacement parts diagram

Shroud blu

Part #40968005

The manufacturer no longer makes this part, and there's no substitute part
