Model # YWHD5090GW0 Official Whirlpool dryer

Here are the diagrams and repair parts for Official Whirlpool YWHD5090GW0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Dryer Repair Kit 80047
#NI

Optional parts (not included) diagram

Dryer repair kit

Part #80047

Replaced by #4392067

?
Manufacturer substitution
This part replaces 80047. Substitute parts can look different from the original.
BEST SELLER
$49.32 |
11% OFF Phone Price : $55.32
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Appliance Spray Paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) 350930
#NI

Optional parts (not included) diagram

Appliance spray paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, a0050702, f94566-010, y057937, y350930)

Part #350930

BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Rfi-filter T 461970255241
#29

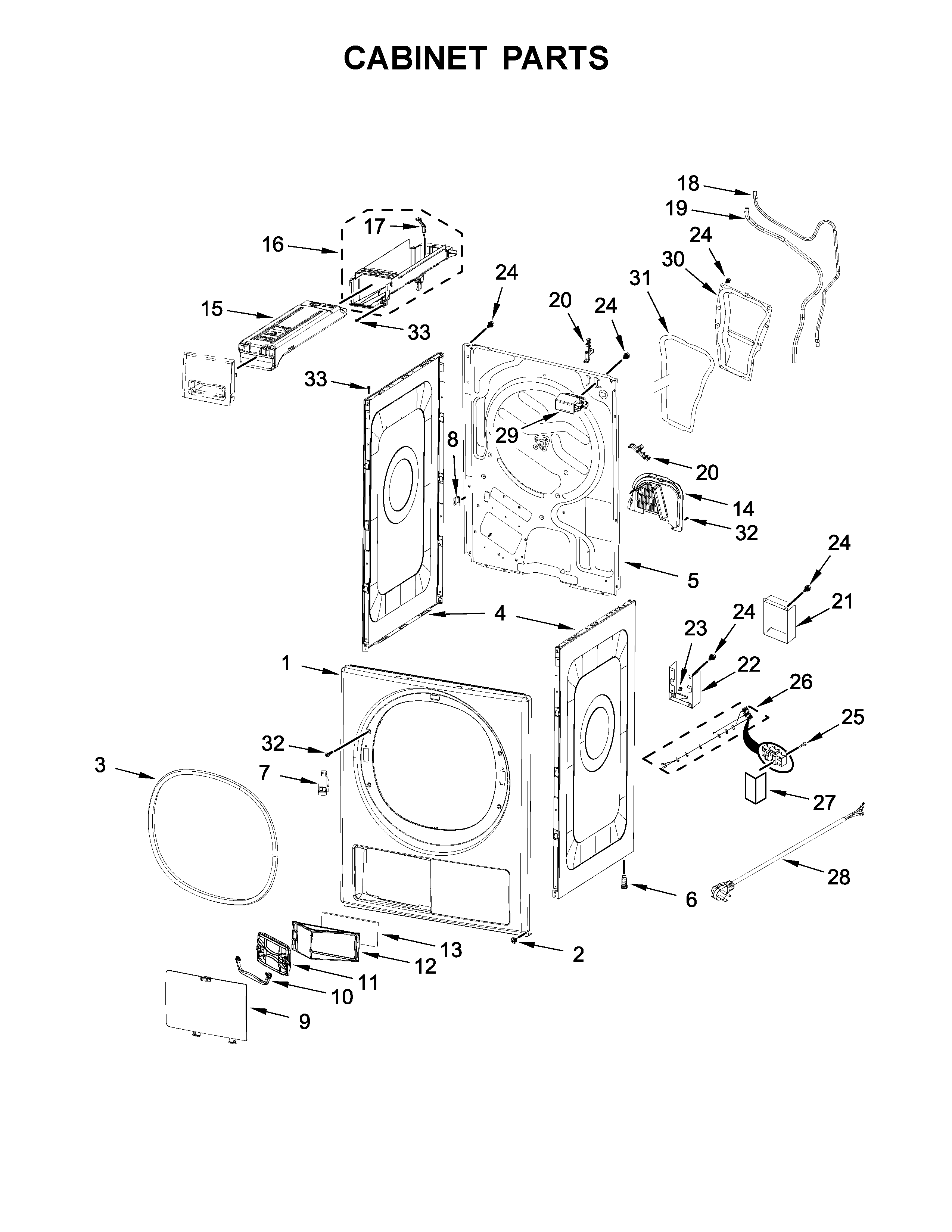

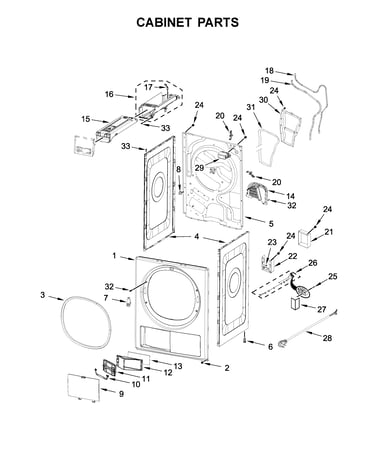

Cabinet parts diagram

Rfi-filter t

Part #461970255241

Replaced by #WPW10367632

?
Manufacturer substitution
This part replaces 461970255241. Substitute parts can look different from the original.
$45.14 |
12% OFF Phone Price : $51.14
In Stock
Central Control Unit (ccu) W10879807
#9

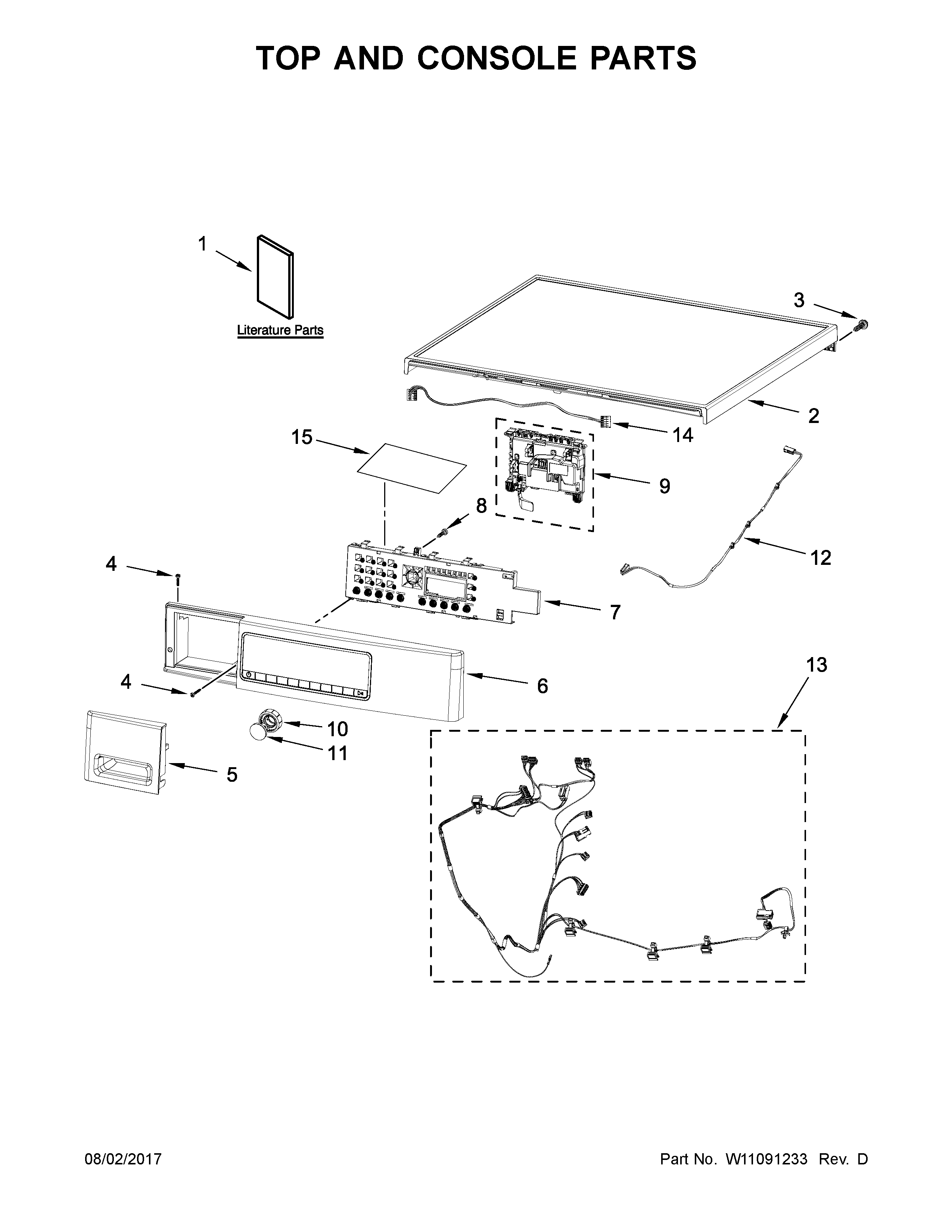

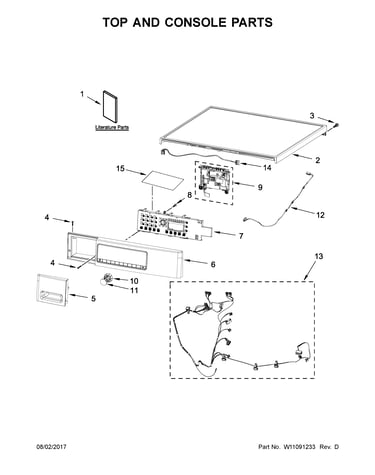

Top and console parts diagram

Central control unit (ccu)

Part #W10879807

Replaced by #W11239098

?
Manufacturer substitution
This part replaces W10879807. Substitute parts can look different from the original.
$211.99 |
5% OFF Phone Price : $223.99
In Stock
Appliance Spray Paint (gray Primer) (replaces 10955, 350338) 350938
#NI

Optional parts (not included) diagram

Appliance spray paint (gray primer) (replaces 10955, 350338)

Part #350938

$31.19 |
16% OFF Phone Price : $37.19
In Stock
Pump Assy-60 W10876878
#8

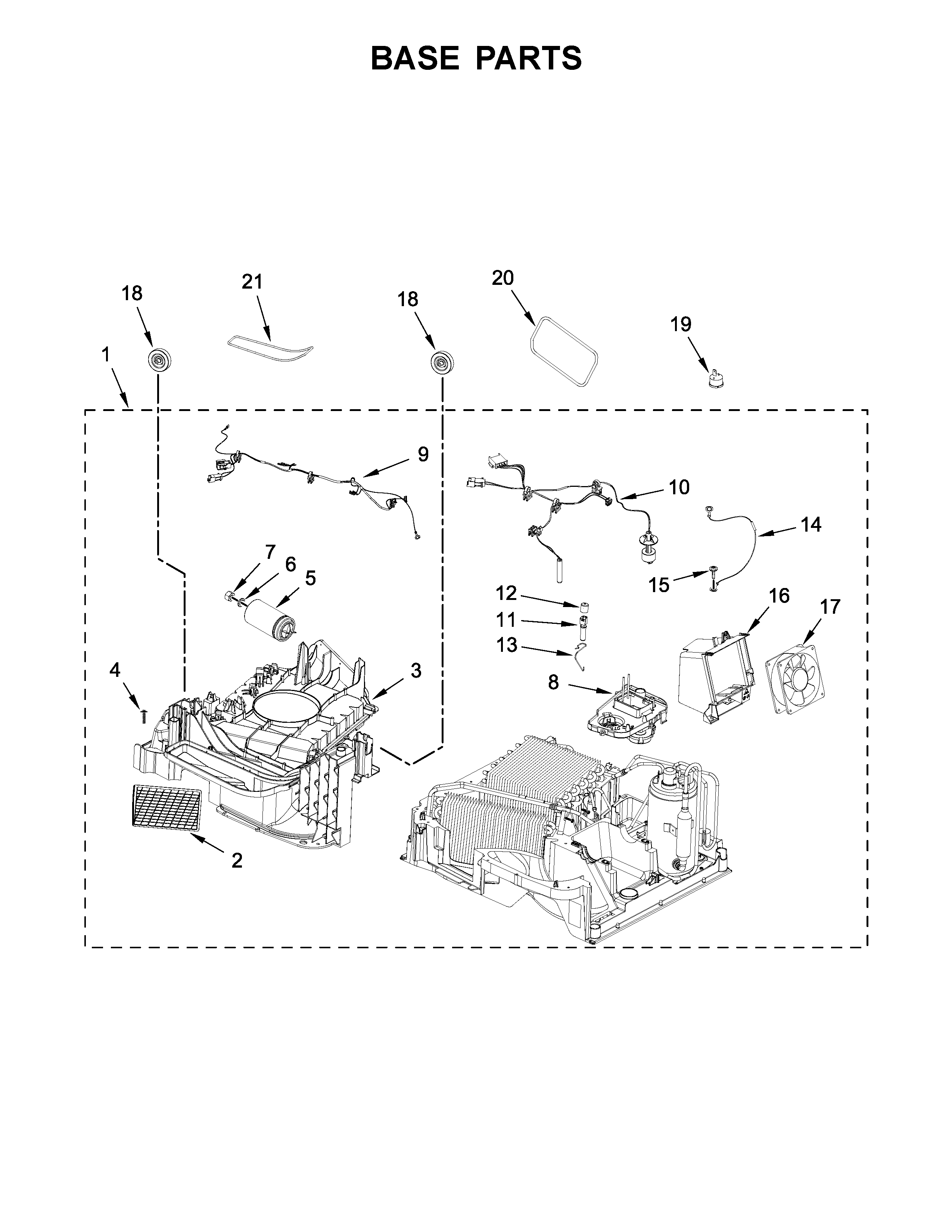

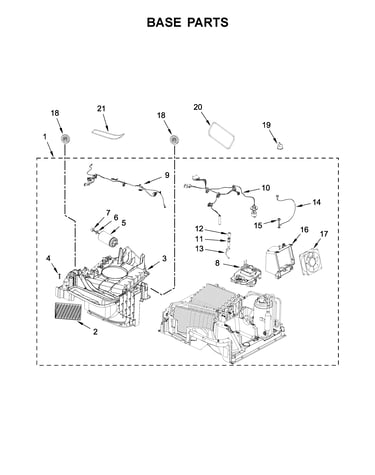

Base parts diagram

Pump assy-60

Part #W10876878

Replaced by #W11086537

?
Manufacturer substitution
This part replaces W10876878. Substitute parts can look different from the original.
$137.58
In Stock
Belt 2010 H7 461970110511
#7

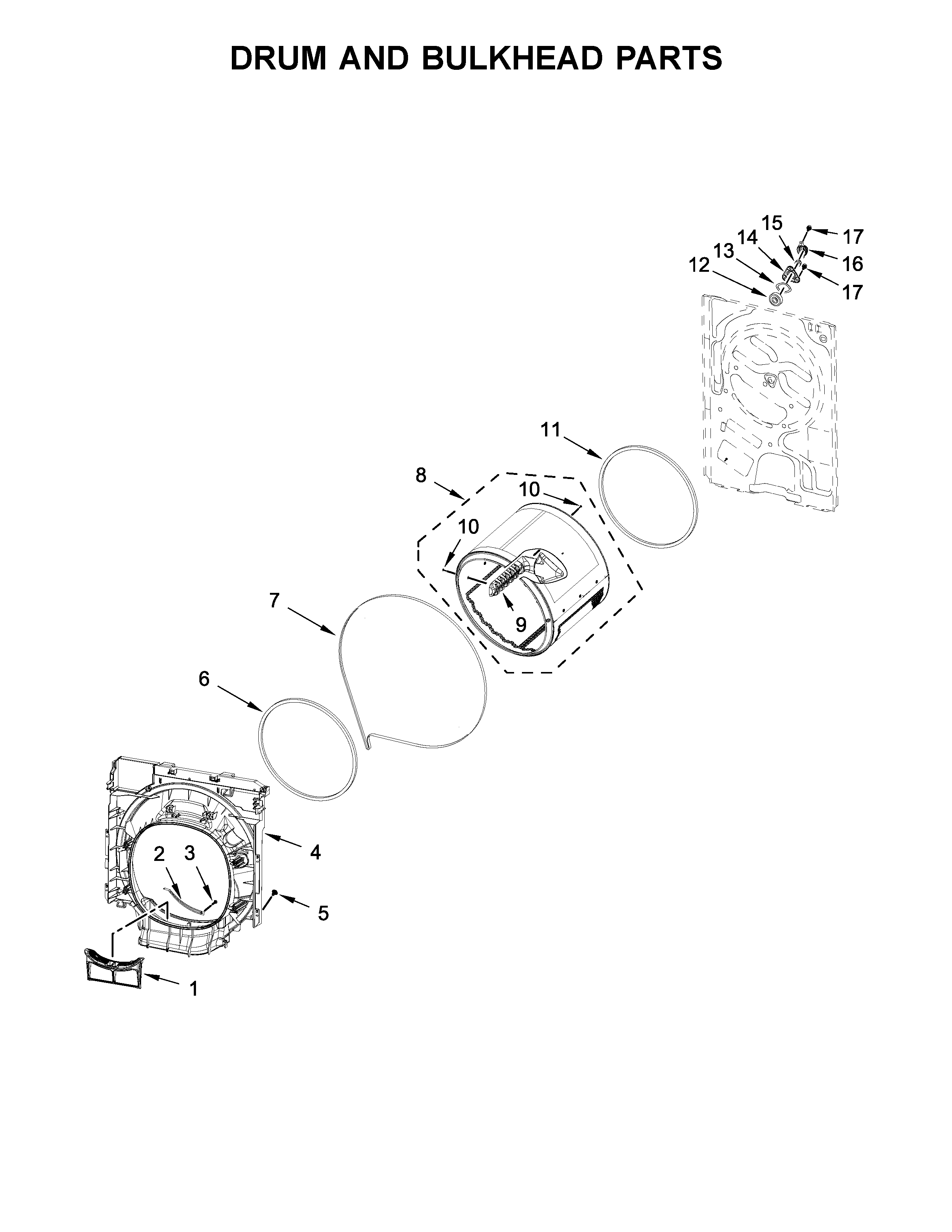

Drum and bulkhead parts diagram

Belt 2010 h7

Part #461970110511

Replaced by #W11661103

?
Manufacturer substitution
This part replaces 461970110511. Substitute parts can look different from the original.
$20.60
In Stock
Washer W10629389
#2

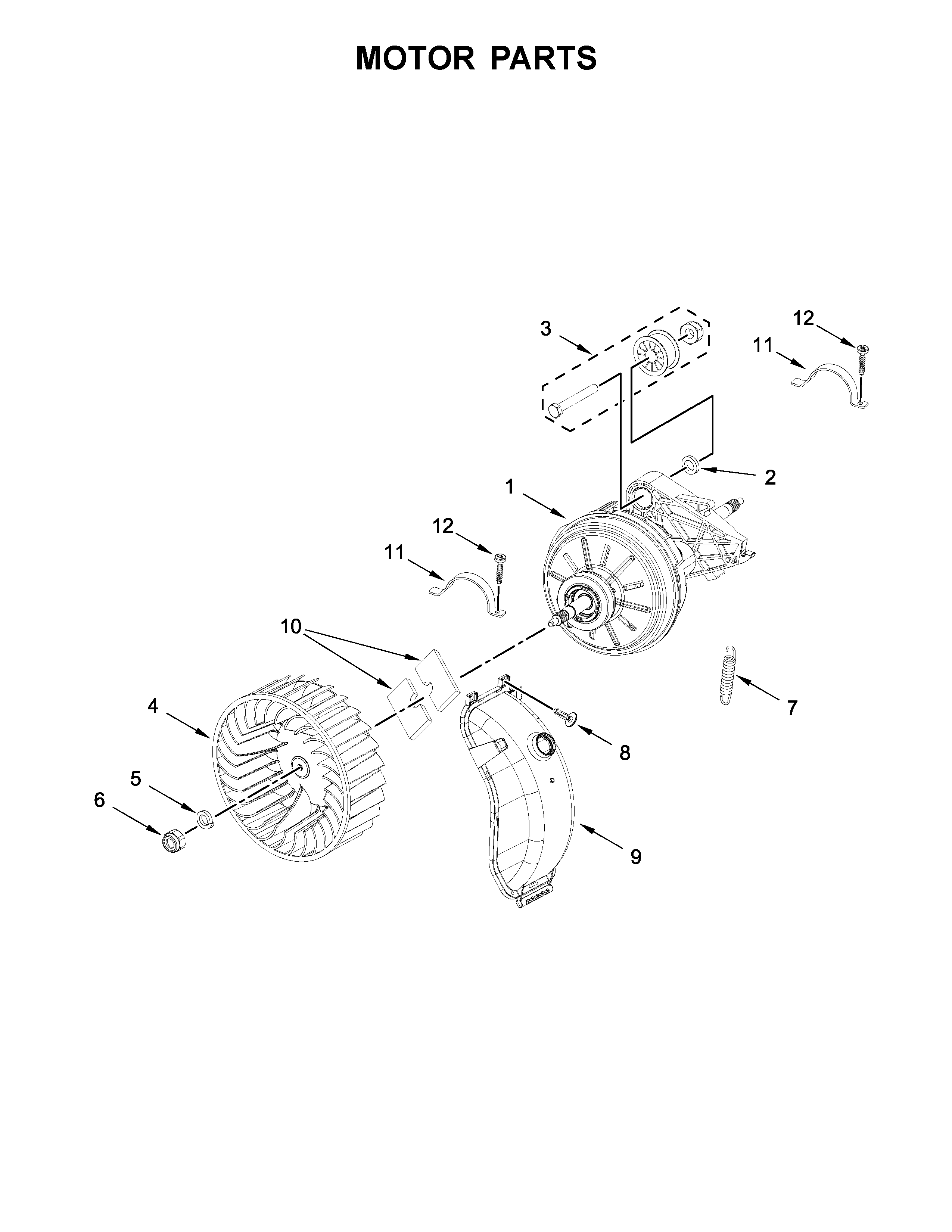

Motor parts diagram

Washer

Part #W10629389

$34.24
In Stock
Hose Holder W10877423
#20

Cabinet parts diagram

Hose holder

Part #W10877423

$11.53
In Stock
