Kenmore
Mechanical Sewing Machine

Model # 14811010 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 14811010 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

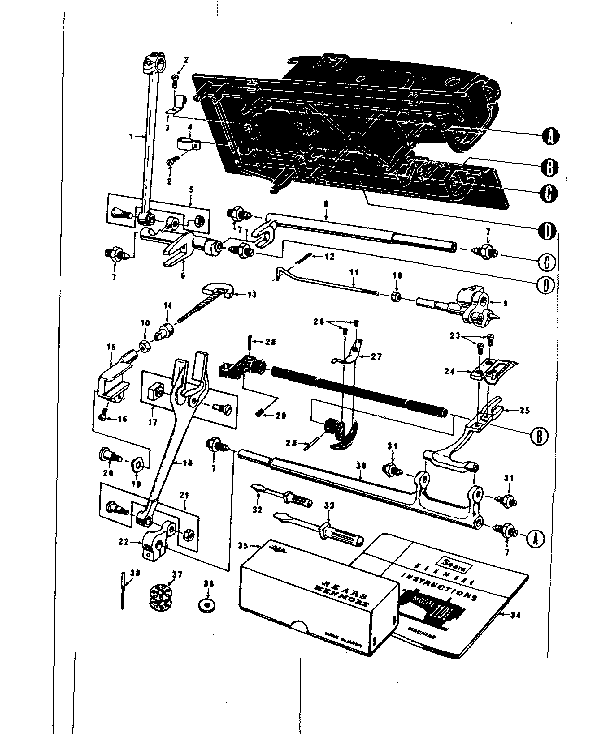

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Sewing Machine Screw And Nut 220019
#9

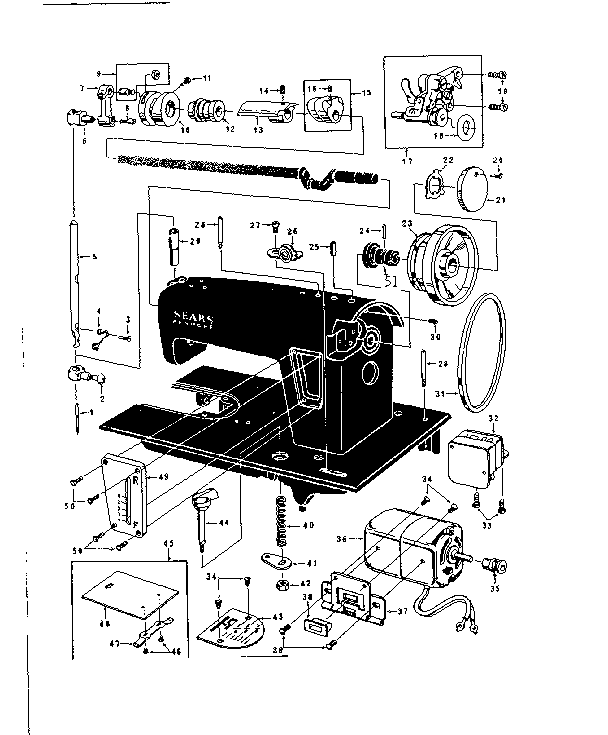

Motor assembly diagram

Sewing machine screw and nut

Part #220019

The manufacturer no longer makes this part, and there's no substitute part

Bracket 250966
#21

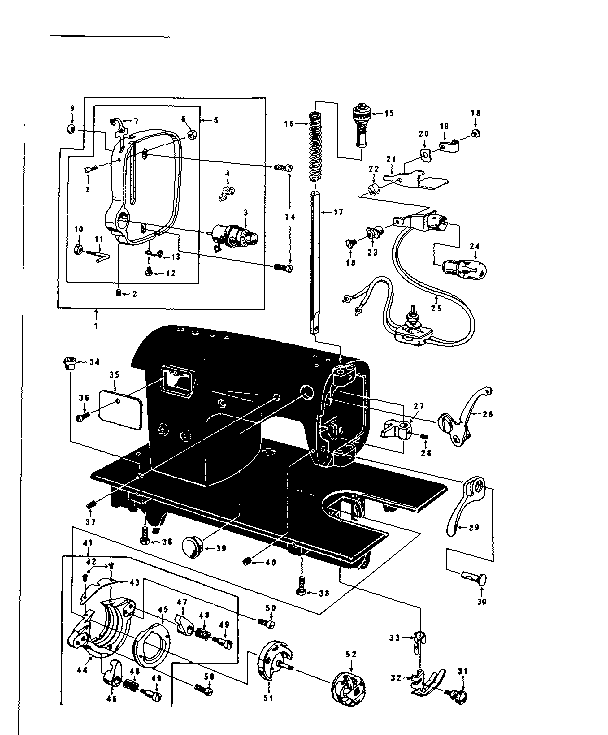

Tension and shuttle assembly diagram

Bracket

Part #250966

The manufacturer no longer makes this part, and there's no substitute part

Check Spring 251071
#4A

Tension and shuttle assembly diagram

Check spring

Part #251071

The manufacturer no longer makes this part, and there's no substitute part

Collar 250965
#22

Tension and shuttle assembly diagram

Collar

Part #250965

The manufacturer no longer makes this part, and there's no substitute part

Screw 251075
#12A

Tension and shuttle assembly diagram

Screw

Part #251075

The manufacturer no longer makes this part, and there's no substitute part

Washer 250007
#9

Tension and shuttle assembly diagram

Washer

Part #250007

The manufacturer no longer makes this part, and there's no substitute part

Hand Wheel 251062
#23

Motor assembly diagram

Hand wheel

Part #251062

The manufacturer no longer makes this part, and there's no substitute part

Spindle Set 250419
#23

Tension and shuttle assembly diagram

Spindle set

Part #250419

The manufacturer no longer makes this part, and there's no substitute part

Screw 251345
#39

Motor assembly diagram

Screw

Part #251345

The manufacturer no longer makes this part, and there's no substitute part

Knob 250924
#44

Motor assembly diagram

Knob

Part #250924

The manufacturer no longer makes this part, and there's no substitute part
