Model # FFU09K0AW0 Official Frigidaire freezer
Here are the diagrams and repair parts for Official Frigidaire FFU09K0AW0 freezer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forFFU09K0AW0 Freestanding Freezers
- #4

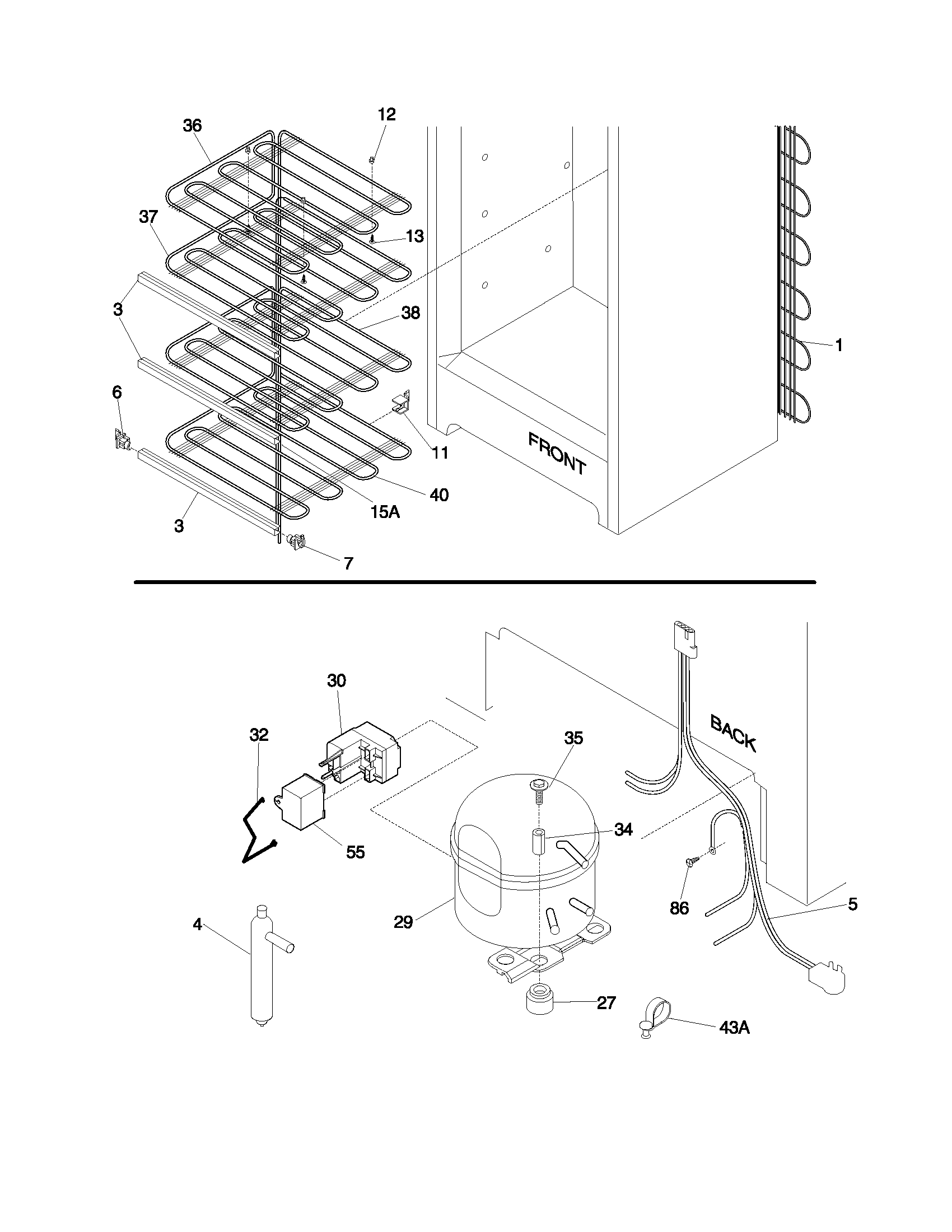

System diagram
Filter drierPart #216634500
Replaced by #5303305677
?Manufacturer substitutionThis part replaces 216634500. Substitute parts can look different from the original.$23.67 |20% OFF Phone Price : $29.67In Stock - #5

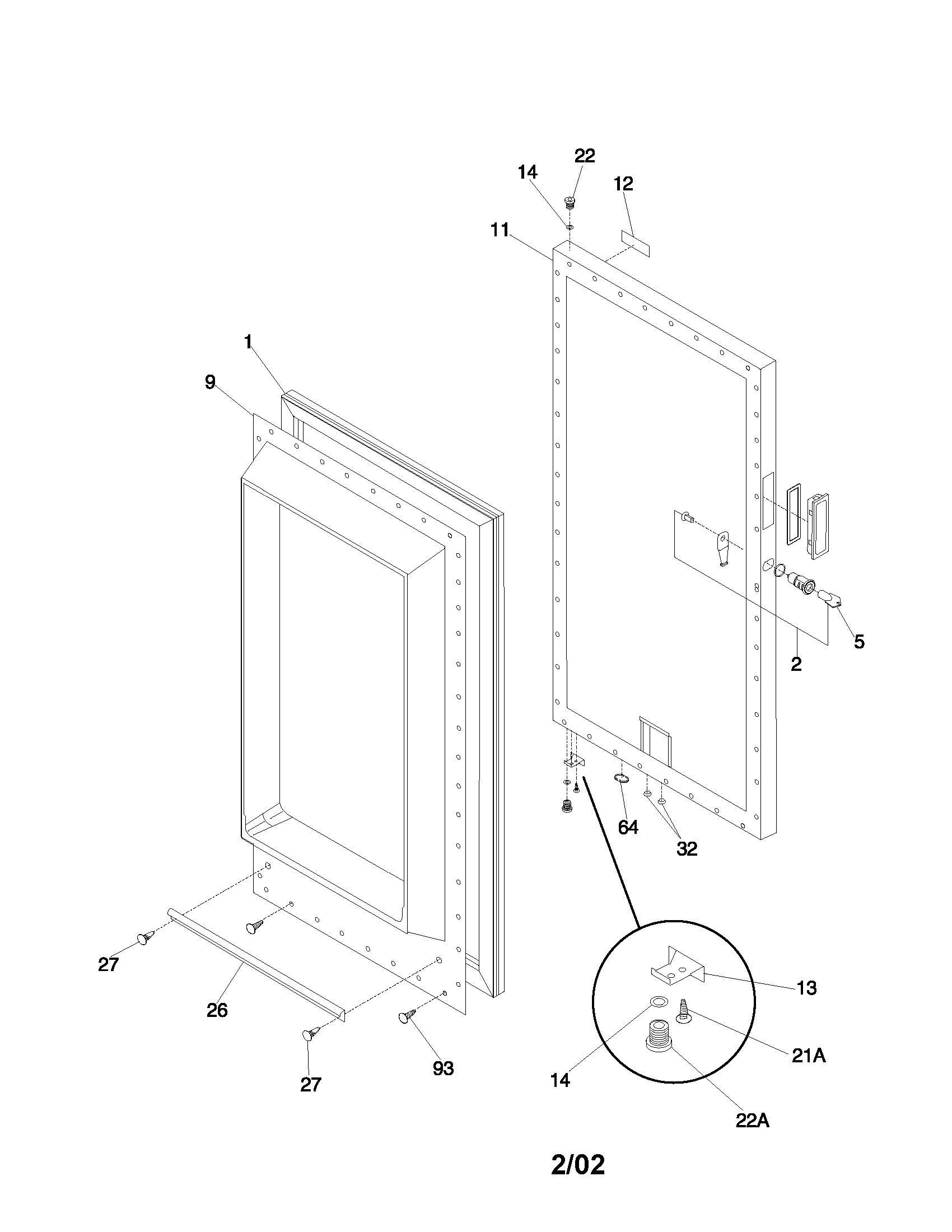

Door diagram
Freezer door keyPart #216702900
Replaced by #297147700
?Manufacturer substitutionThis part replaces 216702900. Substitute parts can look different from the original.$8.48 |11% OFF Phone Price : $9.48In Stock - #29

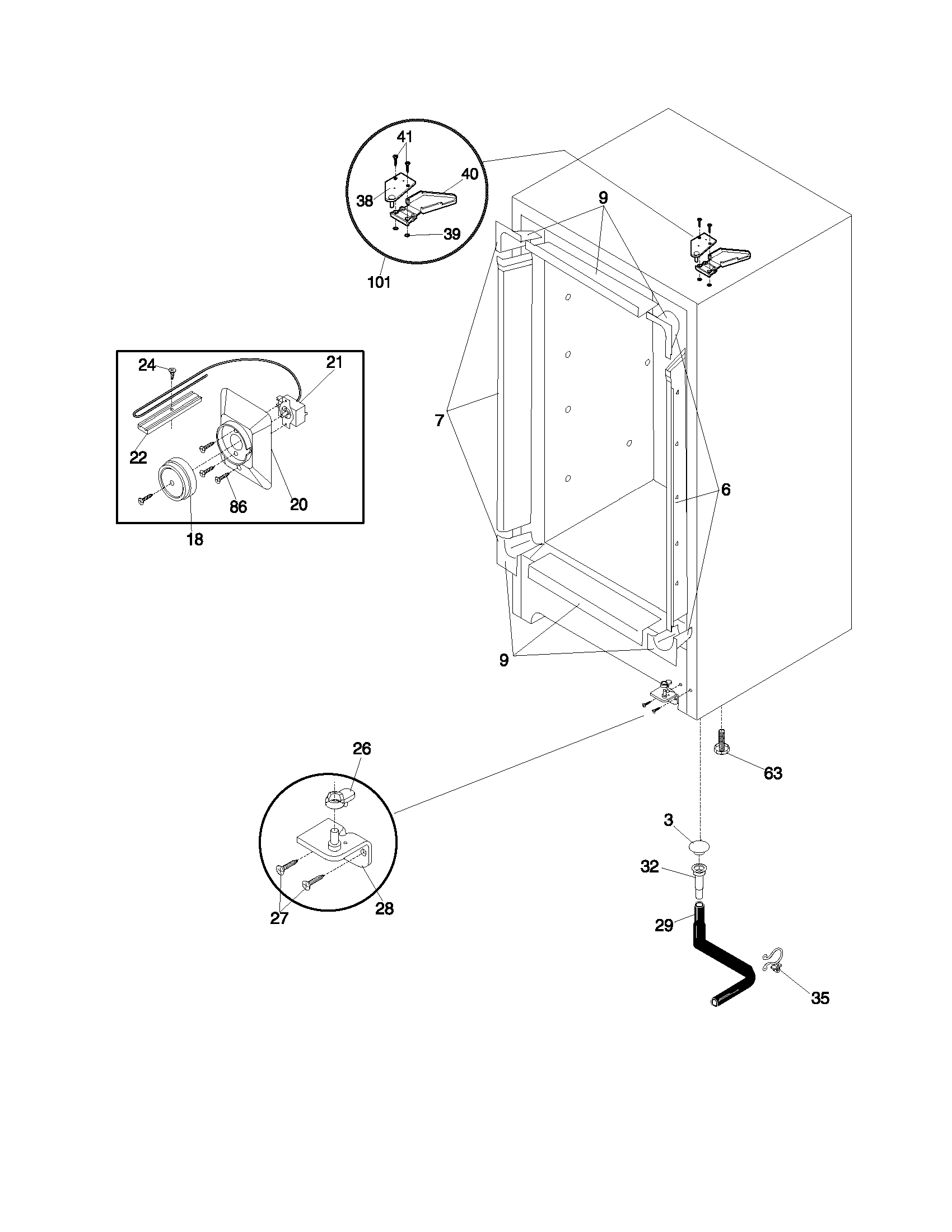

Cabinet diagram
Drain hosePart #216313503
Replaced by #5304512272
?Manufacturer substitutionThis part replaces 216313503. Substitute parts can look different from the original.This item is not returnable$16.36 |11% OFF Phone Price : $18.36In Stock - #1
Door diagram
Freezer door gasketPart #216522300
Replaced by #5304507203
?Manufacturer substitutionThis part replaces 216522300. Substitute parts can look different from the original.$111.30 |10% OFF Phone Price : $123.30In Stock - #7
System diagram
SupportPart #08037928
Replaced by #297001500
?Manufacturer substitutionThis part replaces 08037928. Substitute parts can look different from the original.This item is not returnable$18.41 |10% OFF Phone Price : $20.41In Stock - #27
Door diagram
Freezer inner door panel rivetPart #5303212828
$18.88 |10% OFF Phone Price : $20.88In Stock - #21
Cabinet diagram
Temperature controlPart #216788100
Replaced by #297216004
?Manufacturer substitutionThis part replaces 216788100. Substitute parts can look different from the original.$47.55 |11% OFF Phone Price : $53.55In Stock - #40
Cabinet diagram
Hinge coverPart #216809000
Replaced by #297164400
?Manufacturer substitutionThis part replaces 216809000. Substitute parts can look different from the original.$12.59 |14% OFF Phone Price : $14.59In Stock - #41
Cabinet diagram
ScrewPart #5303001479
Replaced by #241710601
?Manufacturer substitutionThis part replaces 5303001479. Substitute parts can look different from the original.This item is not returnable$13.78 |13% OFF Phone Price : $15.78In Stock - #NI
System diagram
Refrigerator suction line sleevePart #216502500
$26.57In Stock
