Kenmore
Bottom-Mount Refrigerator

Model # 79570323310 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79570323310 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

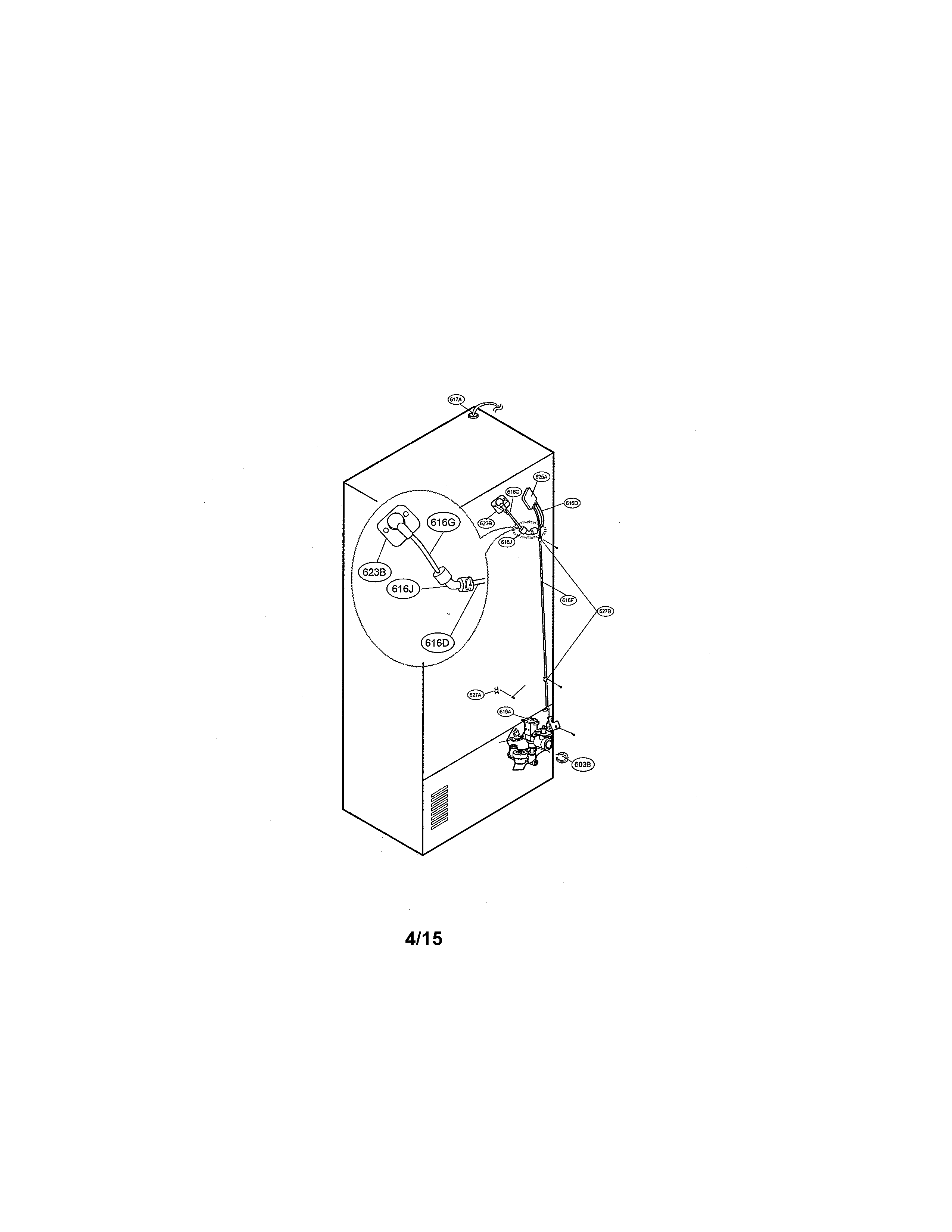

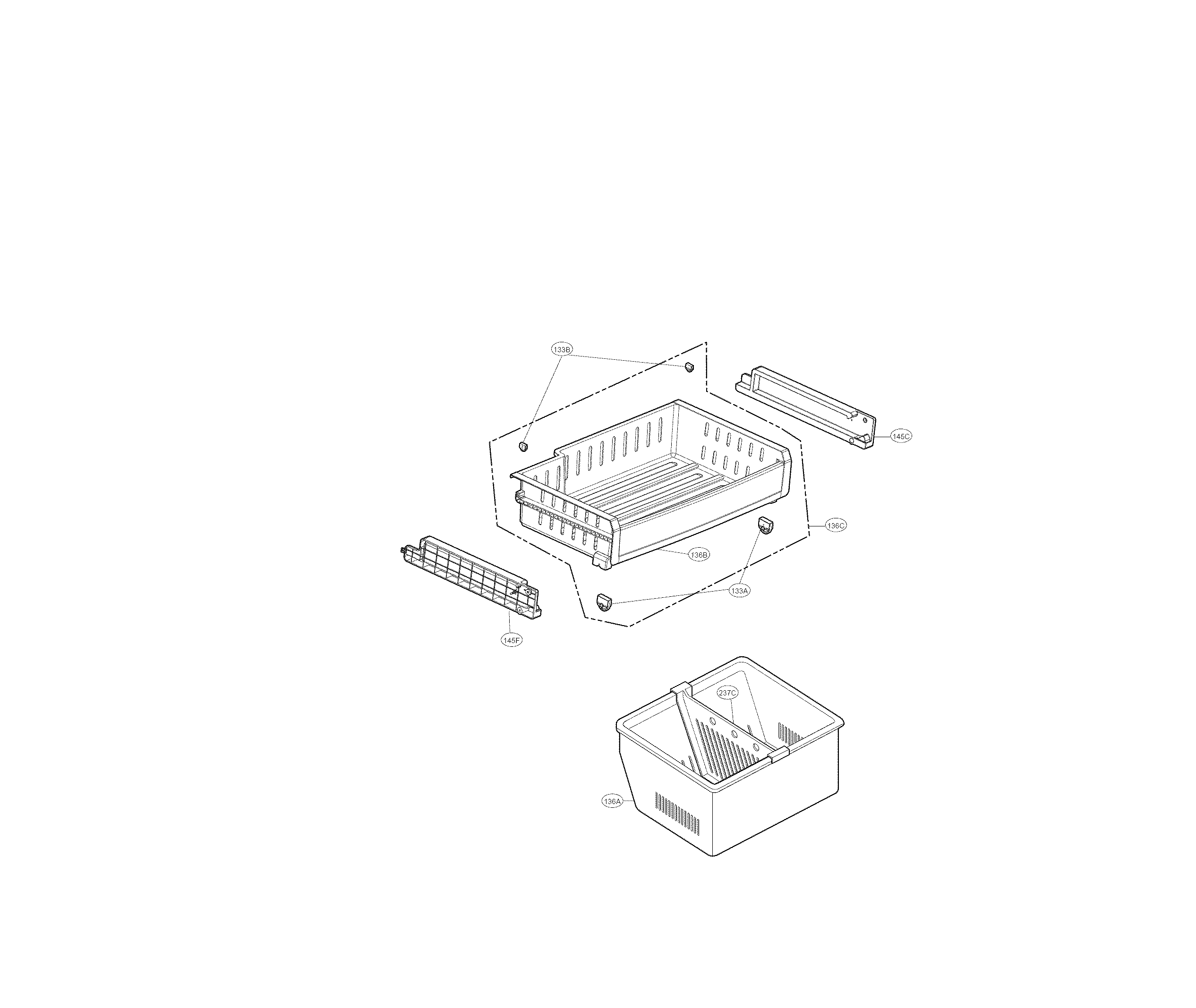

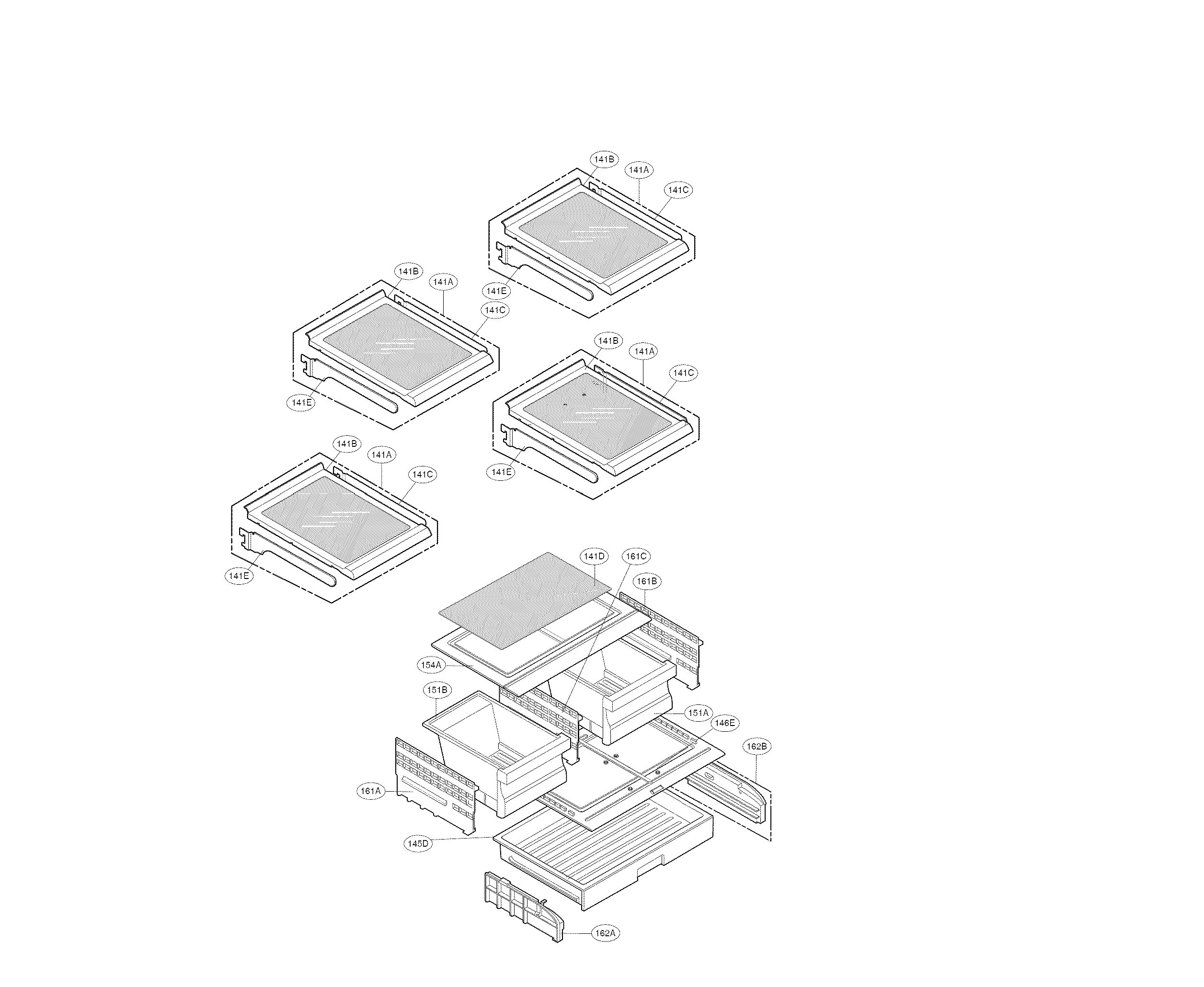

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Refrigerator Filter Dryer ADH69749103
#317A

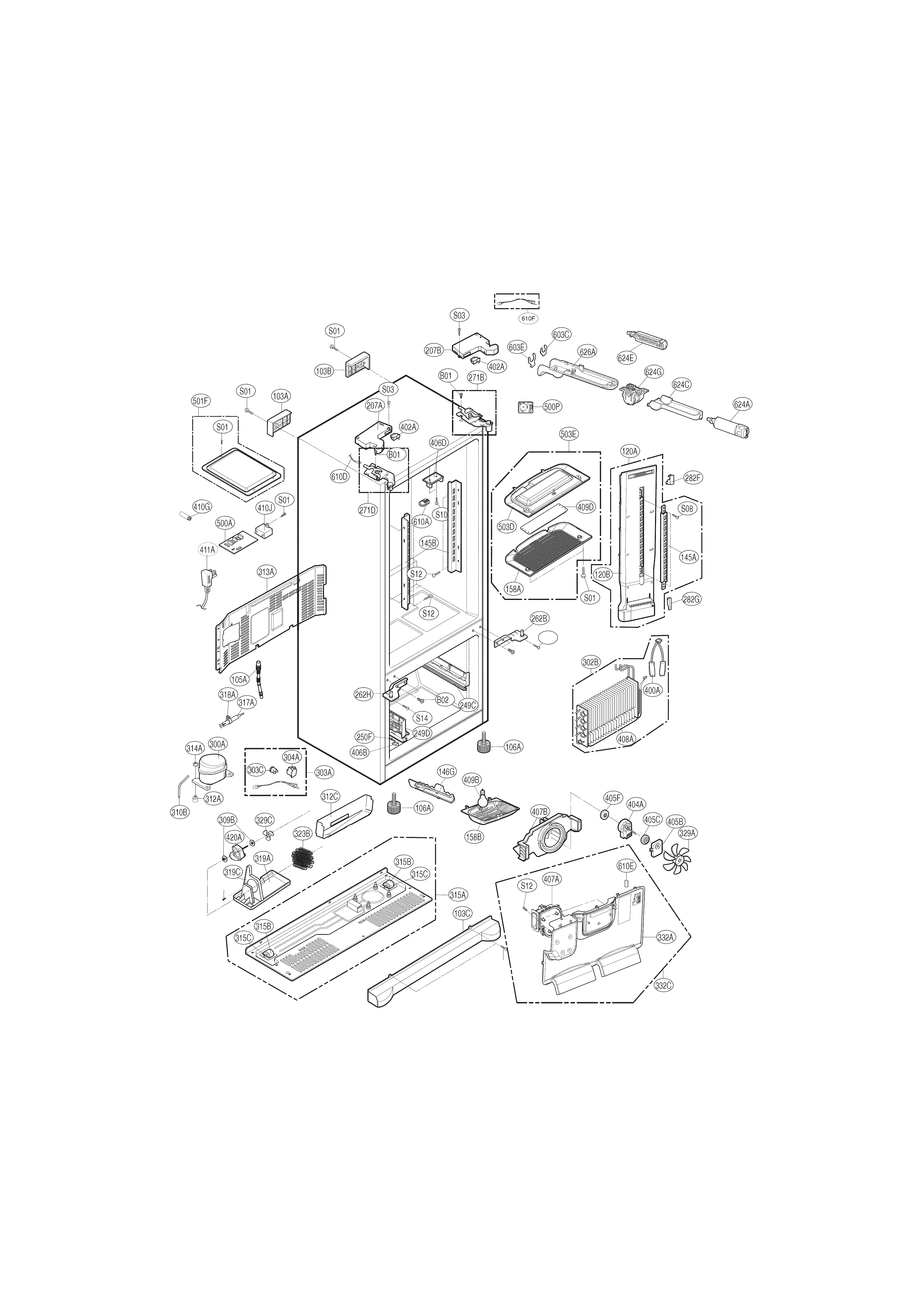

Case parts diagram

Refrigerator filter dryer

Part #ADH69749103

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces ADH69749103. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Genuine Kenmore Refrigerator Water Filter 9690 ADQ36006102
#624A

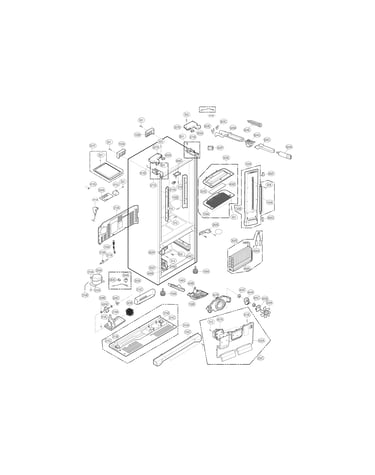

Case parts diagram

Genuine kenmore refrigerator water filter 9690

Part #ADQ36006102

Replaced by #ADQ36006114

?
Manufacturer substitution
This part replaces ADQ36006102. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$67.95
In Stock
Refrigerator Flipper Assembly AGU74110901
#235A

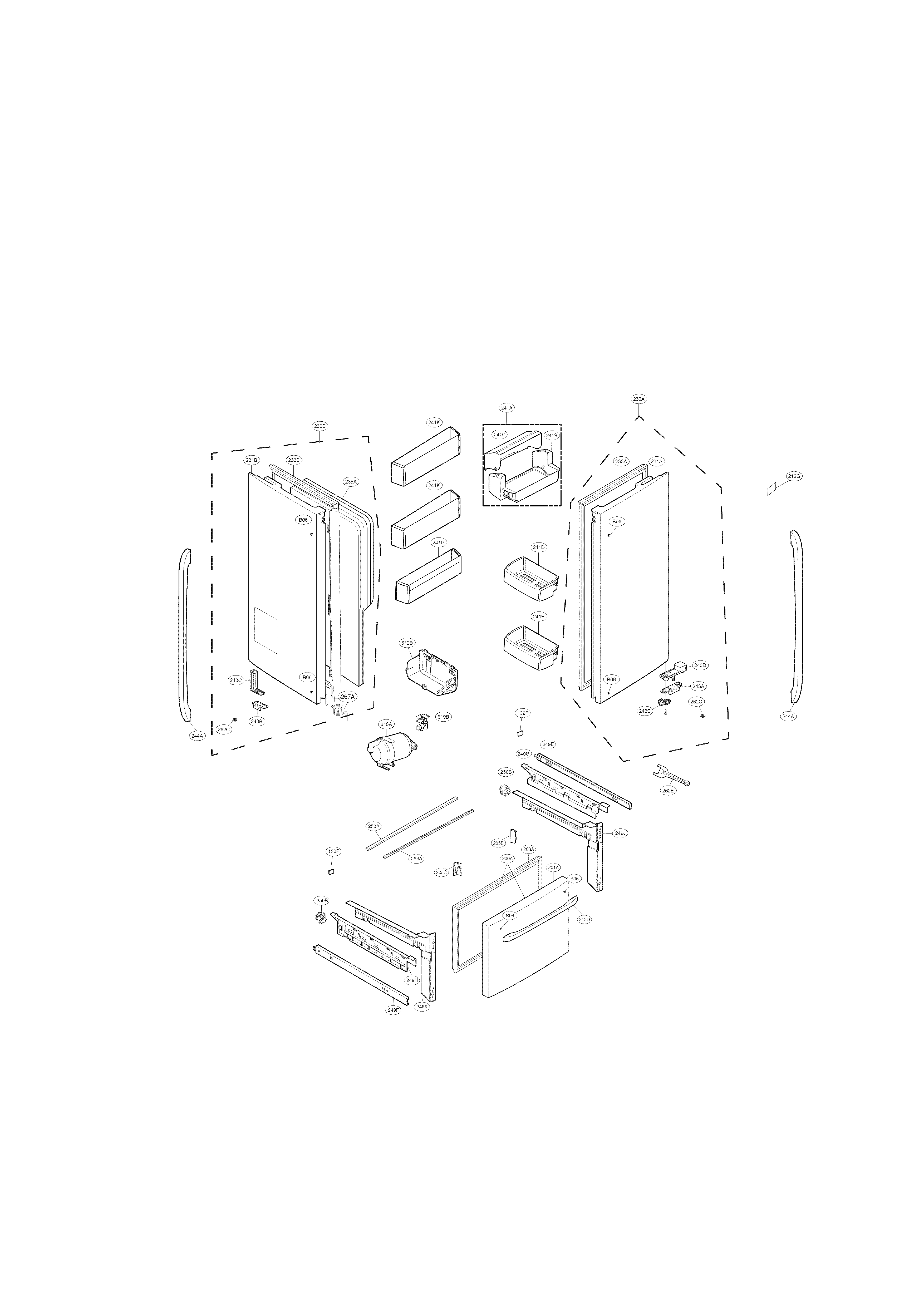

Door parts diagram

Refrigerator flipper assembly

Part #AGU74110901

Replaced by #AGU75188619

?
Manufacturer substitution
This part replaces AGU74110901. Substitute parts can look different from the original.
BEST SELLER
$120.82 |
9% OFF Phone Price : $132.82
In Stock
Refrigerator Flipper Assembly AGU73530705
#235A

Door parts diagram

Refrigerator flipper assembly

Part #AGU73530705

Replaced by #AGU75188619

?
Manufacturer substitution
This part replaces AGU73530705. Substitute parts can look different from the original.
BEST SELLER
$120.82 |
9% OFF Phone Price : $132.82
In Stock
Refrigerator Door Switch 6600JB1010K
#406B

Case parts diagram

Refrigerator door switch

Part #6600JB1010K

Replaced by #6600JB1010A

?
Manufacturer substitution
This part replaces 6600JB1010K. Substitute parts can look different from the original.
BEST SELLER
$21.71 |
22% OFF Phone Price : $27.71
In Stock
Refrigerator Door Gasket, Right (replaces Adx72930405, Adx72930424) ADX73550624
#233A

Door parts diagram

Refrigerator door gasket, right (replaces adx72930405, adx72930424)

Part #ADX73550624

BEST SELLER
$41.50 |
13% OFF Phone Price : $47.50
In Stock
Refrigerator Door Gasket, Right ADX72930424
#233A

Door parts diagram

Refrigerator door gasket, right

Part #ADX72930424

Replaced by #ADX73550624

?
Manufacturer substitution
This part replaces ADX72930424. Substitute parts can look different from the original.
BEST SELLER
$41.50 |
13% OFF Phone Price : $47.50
In Stock
Refrigerator Ice Maker Assembly AEQ73110208
#600A

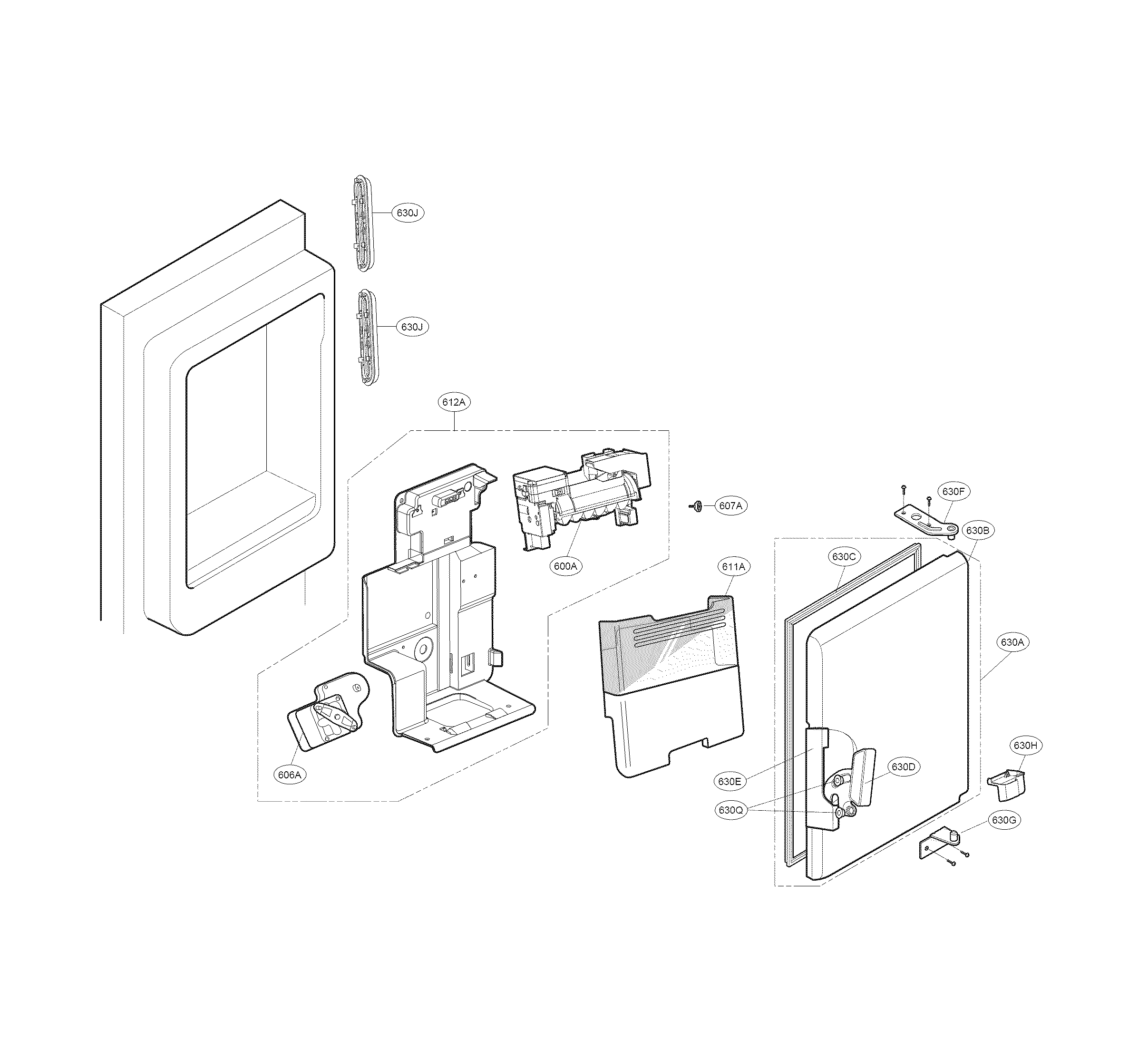

Ice maker parts diagram

Refrigerator ice maker assembly

Part #AEQ73110208

Replaced by #AEQ73110210

?
Manufacturer substitution
This part replaces AEQ73110208. Substitute parts can look different from the original.
BEST SELLER
$166.25 |
7% OFF Phone Price : $178.25
In Stock
Refrigerator Dispenser Switch (replaces 6600jb3001b, 6600jb3001h) 6600JB3001C
#402C

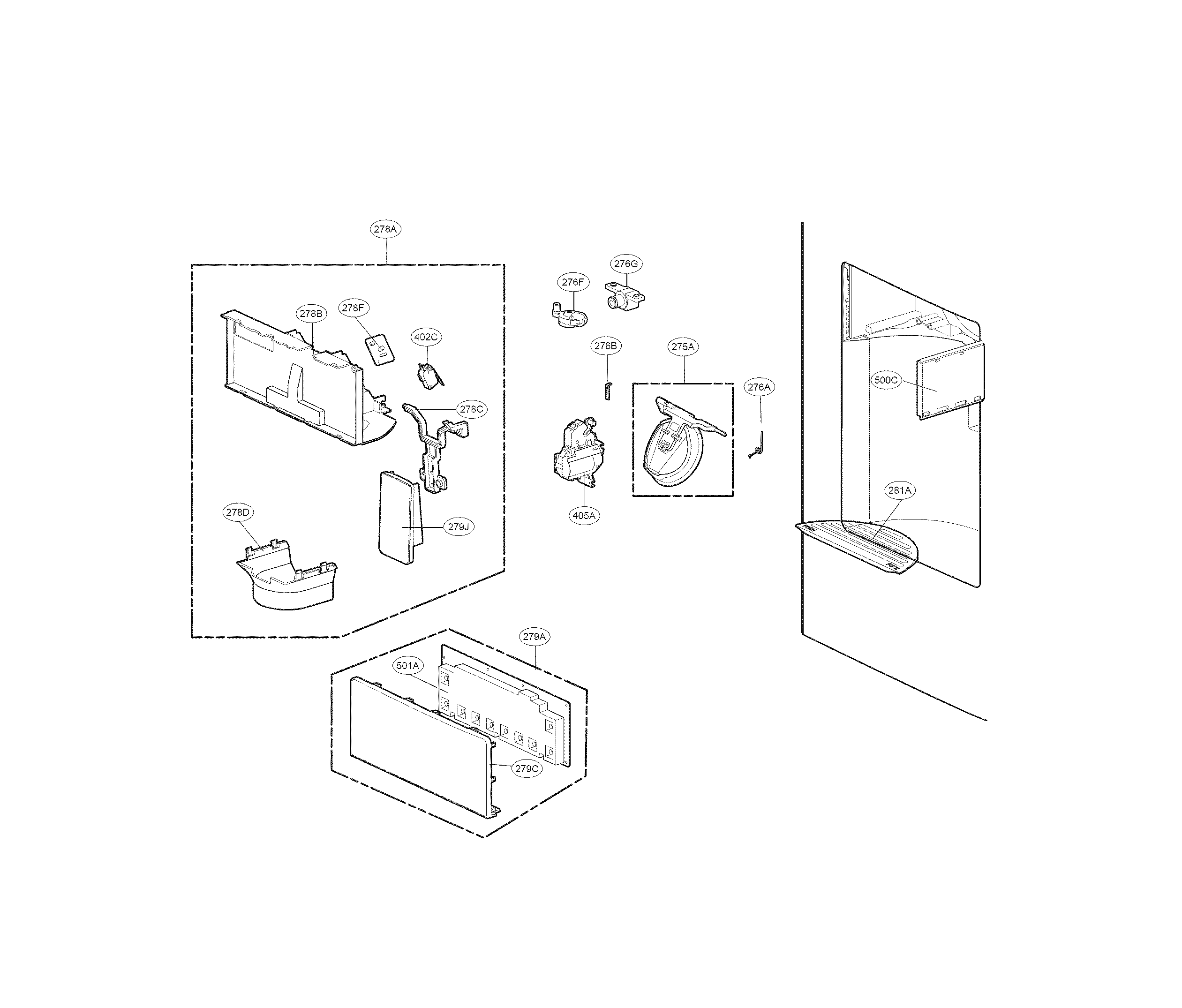

Dispenser parts diagram

Refrigerator dispenser switch (replaces 6600jb3001b, 6600jb3001h)

Part #6600JB3001C

BEST SELLER
$34.88 |
15% OFF Phone Price : $40.88
In Stock
Refrigerator Dispenser Ice Chute Door Motor (replaces Eau59551201, Eau59551202, Eau59551203, Eau59551205, Eau59551207) EAU59551204
#405A

Dispenser parts diagram

Refrigerator dispenser ice chute door motor (replaces eau59551201, eau59551202, eau59551203, eau59551205, eau59551207)

Part #EAU59551204

BEST SELLER
$52.52 |
10% OFF Phone Price : $58.52
In Stock
