Model # KSM7990NP0 Official KitchenAid 7-quart commercial stand mixer

Here are the diagrams and repair parts for Official KitchenAid KSM7990NP0 7-quart commercial stand mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

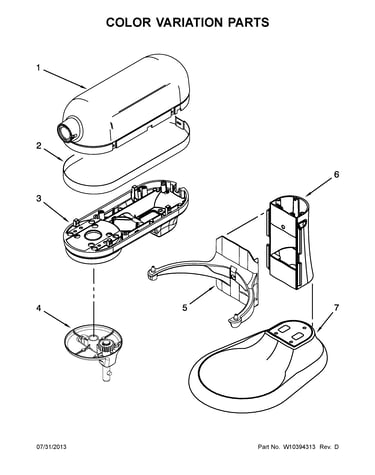

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Pin-bowl 240185
#4

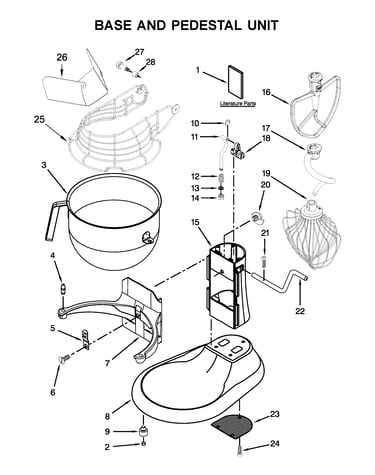

Base and pedestal unit diagram

Pin-bowl

Part #240185

Replaced by #WP240185

?
Manufacturer substitution
This part replaces 240185. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw 3400814
#9

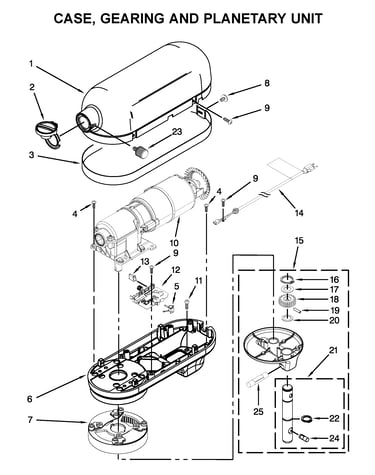

Case, gearing and planetary unit diagram

Screw

Part #3400814

Replaced by #WP3400814

?
Manufacturer substitution
This part replaces 3400814. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
Back Order
Screw 3400863
#21

Base and pedestal unit diagram

Screw

Part #3400863

Replaced by #WP3400814

?
Manufacturer substitution
This part replaces 3400863. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
Back Order
Pin-dowel 9707223
#19

Case, gearing and planetary unit diagram

Pin-dowel

Part #9707223

Replaced by #WP9707223

?
Manufacturer substitution
This part replaces 9707223. Substitute parts can look different from the original.
This item is not returnable
$4.58 |
18% OFF Phone Price : $5.58
In Stock
Motor W10517938
#10

Case, gearing and planetary unit diagram

Motor

Part #W10517938

Replaced by #WPW10517938

?
Manufacturer substitution
This part replaces W10517938. Substitute parts can look different from the original.
$140.93 |
8% OFF Phone Price : $152.93
In Stock
Lift Arm 9706885
#18

Base and pedestal unit diagram

Lift arm

Part #9706885

Replaced by #WP9706885

?
Manufacturer substitution
This part replaces 9706885. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Pin-groove W10234531
#25

Case, gearing and planetary unit diagram

Pin-groove

Part #W10234531

Replaced by #WPW10234531

?
Manufacturer substitution
This part replaces W10234531. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Clip W10504114
#5

Base and pedestal unit diagram

Clip

Part #W10504114

Replaced by #WPW10504114

?
Manufacturer substitution
This part replaces W10504114. Substitute parts can look different from the original.
This item is not returnable
$3.79
In Stock
Speed Control W10200720
#12

Case, gearing and planetary unit diagram

Speed control

Part #W10200720

Replaced by #WPW10487697

?
Manufacturer substitution
This part replaces W10200720. Substitute parts can look different from the original.
$96.20 |
11% OFF Phone Price : $108.20
In Stock
Spring 9237
#12

Base and pedestal unit diagram

Spring

Part #9237

Replaced by #4159622

?
Manufacturer substitution
This part replaces 9237. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
