Tappan
Electric Range

Model # 31-2377-23-01 Official Tappan range - lt32087320

Here are the diagrams and repair parts for Official Tappan 31-2377-23-01 range - lt32087320, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

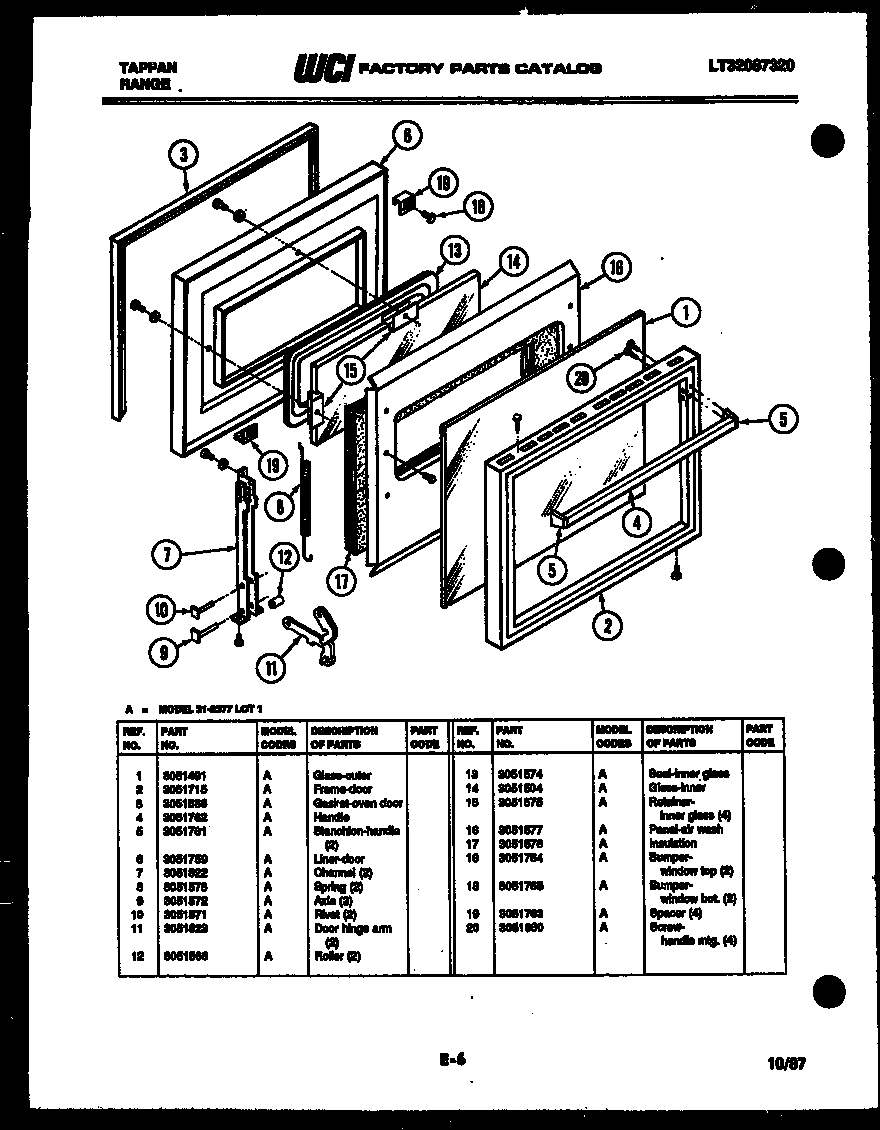

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Element 3051519
#5

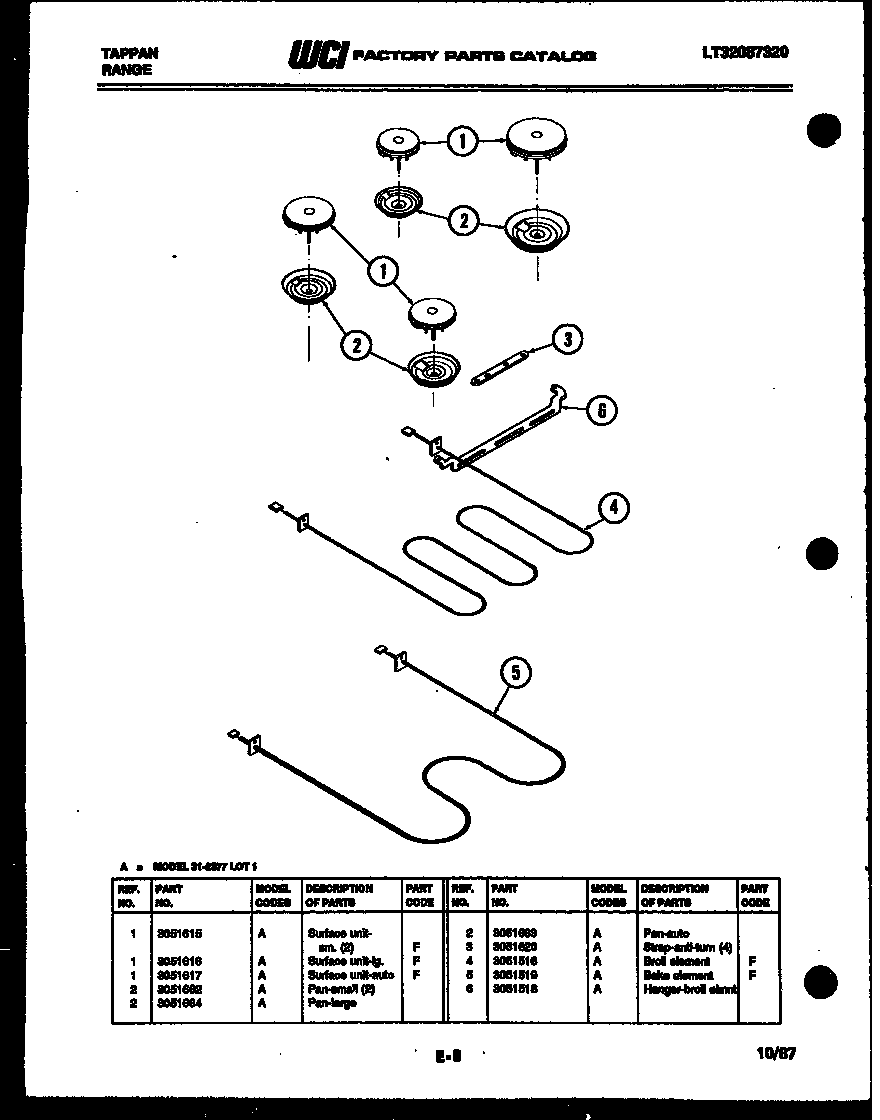

Broiler parts diagram

Element

Part #3051519

Replaced by #5303051519

?
Manufacturer substitution
This part replaces 3051519. Substitute parts can look different from the original.
BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Light Socket 3051512
#10

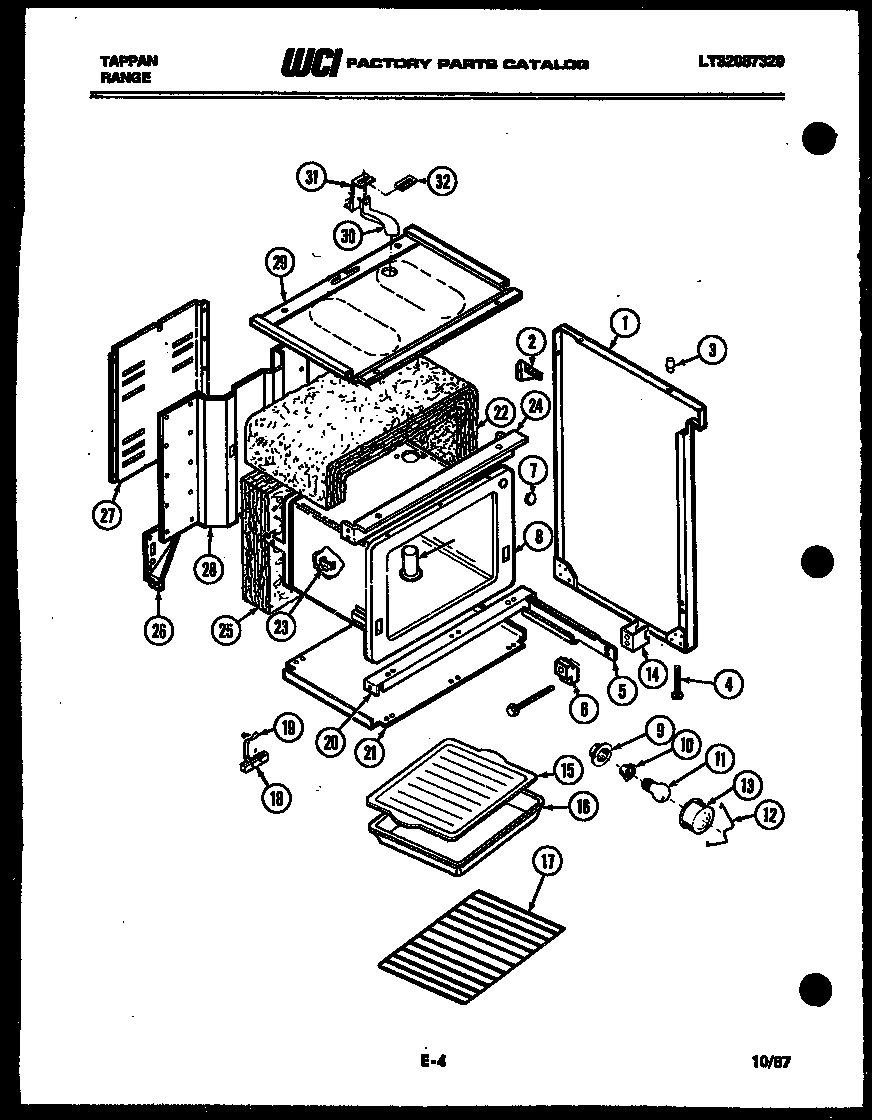

Body parts diagram

Light socket

Part #3051512

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3051512. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Lamp Lens 3051514
#13

Body parts diagram

Lamp lens

Part #3051514

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 3051514. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Switch-6" El 3051680
#2

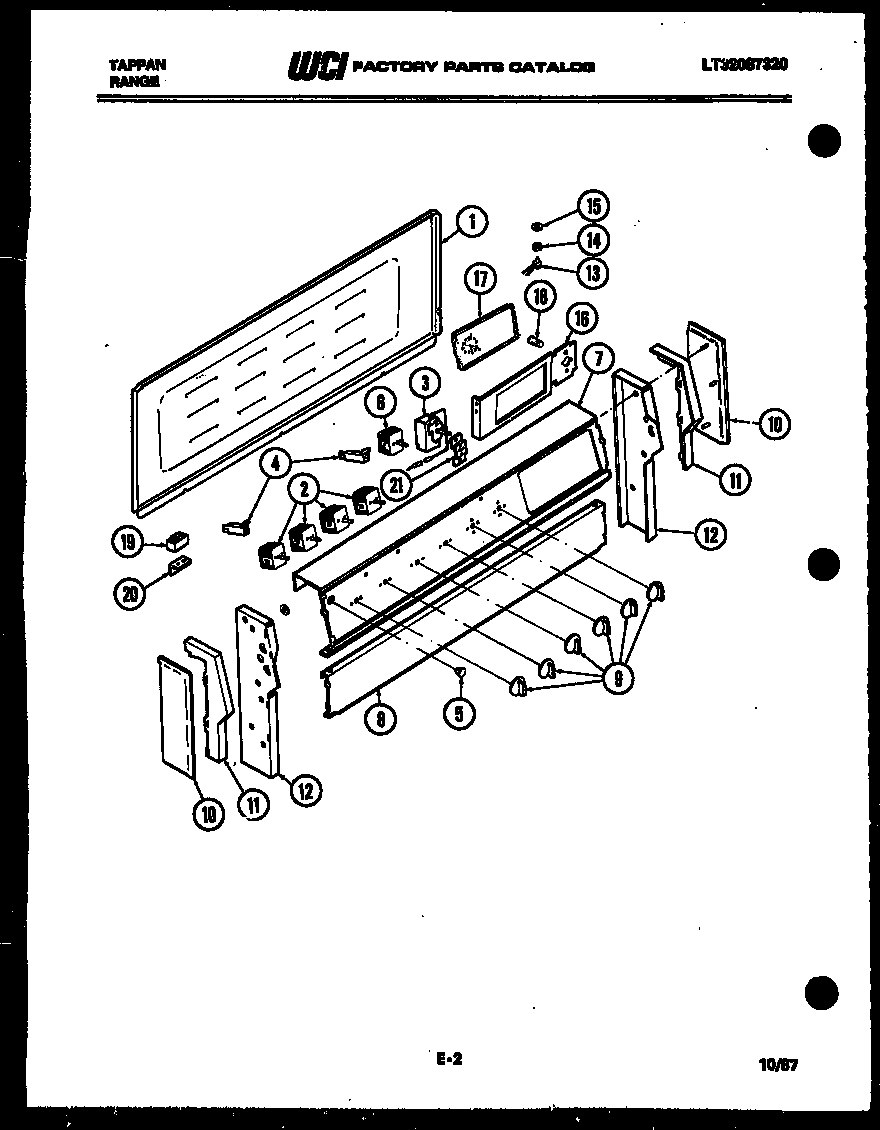

Backguard diagram

Switch-6" el

Part #3051680

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 3051680. Substitute parts can look different from the original.
$41.02 |
13% OFF Phone Price : $47.02
In Stock
Switch-8" El 3051681
#2

Backguard diagram

Switch-8" el

Part #3051681

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 3051681. Substitute parts can look different from the original.
$41.02 |
13% OFF Phone Price : $47.02
In Stock
Element 3051516
#4

Broiler parts diagram

Element

Part #3051516

Replaced by #5303051516

?
Manufacturer substitution
This part replaces 3051516. Substitute parts can look different from the original.
$138.69 |
8% OFF Phone Price : $150.69
In Stock
Broiler Pan 3051563
#16

Body parts diagram

Broiler pan

Part #3051563

Replaced by #5304442087

?
Manufacturer substitution
This part replaces 3051563. Substitute parts can look different from the original.
$77.99 |
7% OFF Phone Price : $83.99
In Stock
Range Grille 3051562
#15

Body parts diagram

Range grille

Part #3051562

Replaced by #5304442087

?
Manufacturer substitution
This part replaces 3051562. Substitute parts can look different from the original.
$77.99 |
7% OFF Phone Price : $83.99
In Stock
Thermostat 3051748
#3

Backguard diagram

Thermostat

Part #3051748

$84.99
In Stock
Guide 3051654
#6

Body parts diagram

Guide

Part #3051654

Replaced by #318161600

?
Manufacturer substitution
This part replaces 3051654. Substitute parts can look different from the original.
$67.36
In Stock
