Model # FGEF306TPFA Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FGEF306TPFA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

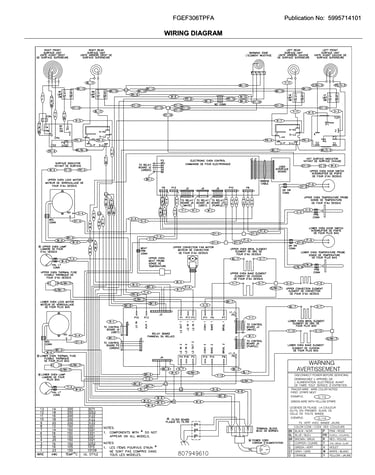

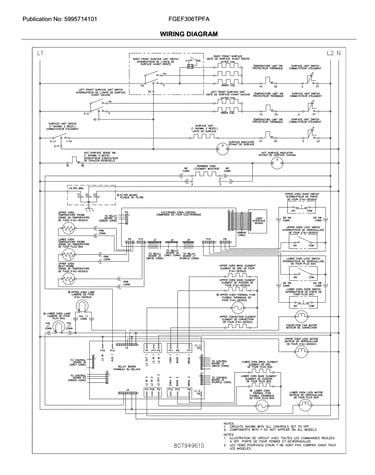

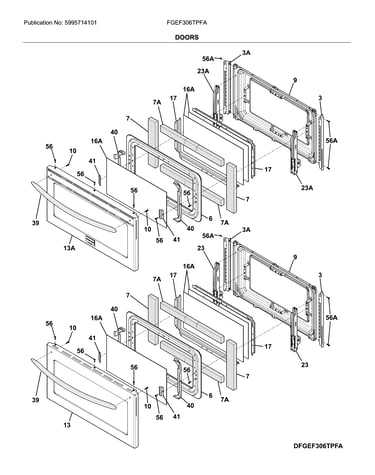

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Universal/multiflex (frigidaire) Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

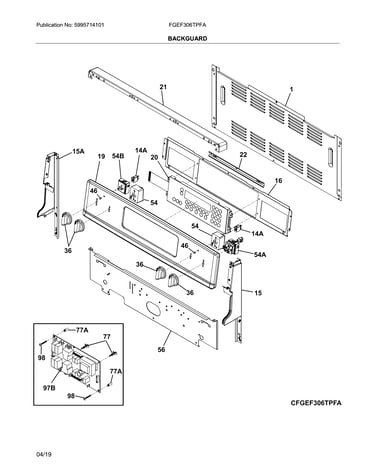

Backguard diagram

Universal/multiflex (frigidaire) range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$55.76 |
10% OFF Phone Price : $61.76
In Stock
Range Oven Temperature Sensor 318562500
#37

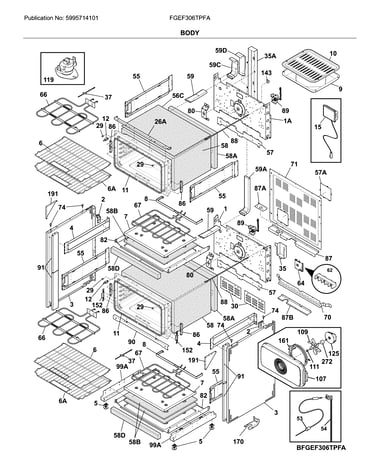

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$31.56 |
16% OFF Phone Price : $37.56
In Stock
Range Surface Element Control Switch (replaces 316238200) 316238201
#54B

Backguard diagram

Range surface element control switch (replaces 316238200)

Part #316238201

BEST SELLER
$75.89 |
7% OFF Phone Price : $81.89
In Stock
Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

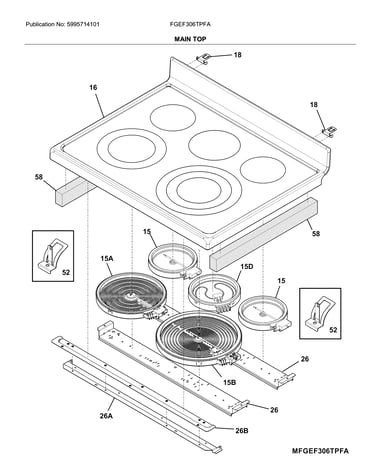

Main top diagram

Range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$138.09 |
8% OFF Phone Price : $150.09
In Stock
Tappan Range Dual Radiant Surface Element (replaces 316465002) 316282000
#15A

Main top diagram

Tappan range dual radiant surface element (replaces 316465002)

Part #316282000

BEST SELLER
$125.58 |
9% OFF Phone Price : $137.58
In Stock
Range Indicator Light Lens (replaces 316437800) 316557300
#46

Backguard diagram

Range indicator light lens (replaces 316437800)

Part #316557300

BEST SELLER
$12.86 |
13% OFF Phone Price : $14.86
In Stock
Range Indicator Light 316022500
#14A

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
Blade 139009100
#109

Body diagram

Blade

Part #139009100

Replaced by #318398302

?
Manufacturer substitution
This part replaces 139009100. Substitute parts can look different from the original.
BEST SELLER
$23.89 |
20% OFF Phone Price : $29.89
In Stock
Universal/multiflex (frigidaire) Range Oven Door Switch (replaces 316407100, 316445507, 7316445500) 316445500
#12

Body diagram

Universal/multiflex (frigidaire) range oven door switch (replaces 316407100, 316445507, 7316445500)

Part #316445500

BEST SELLER
$47.51 |
11% OFF Phone Price : $53.51
In Stock
Range Triple Radiant Surface Element (replaces 318297809) 318297810
#15B

Main top diagram

Range triple radiant surface element (replaces 318297809)

Part #318297810

BEST SELLER
$245.54 |
5% OFF Phone Price : $257.54
In Stock
