Kenmore
Canister Vacuum

Model # 11626212690 Official Kenmore canister vacuum

Here are the diagrams and repair parts for Official Kenmore 11626212690 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Vacuum Grip Handle 4155620
#44

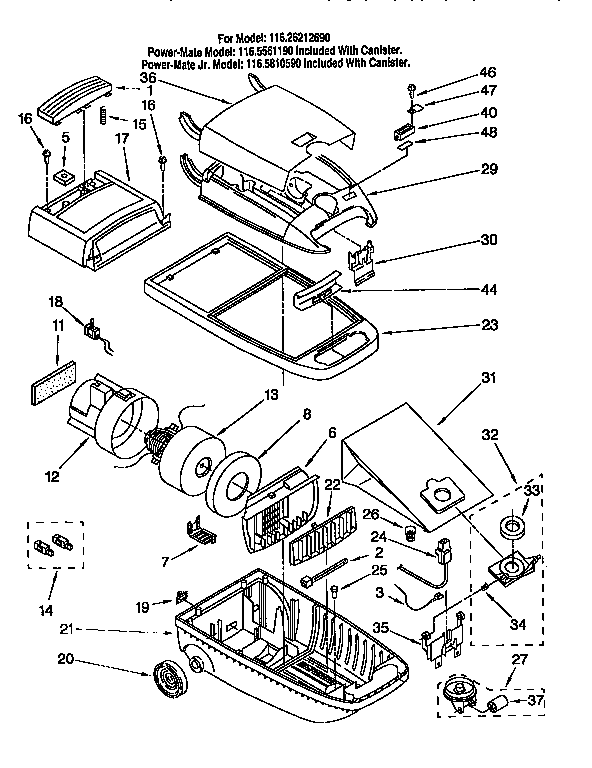

Vacuum cleaner diagram

Vacuum grip handle

Part #4155620

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Bag, 2-pack 50557
#31A

Vacuum cleaner diagram

Vacuum bag, 2-pack

Part #50557

The manufacturer no longer makes this part, and there's no substitute part

Bracket 4152380
#1

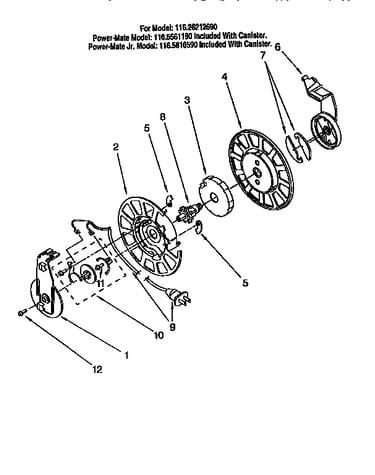

Power cord reel diagram

Bracket

Part #4152380

The manufacturer no longer makes this part, and there's no substitute part

Strike (gray) 4147967
#35

Vacuum cleaner diagram

Strike (gray)

Part #4147967

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 747151
#15

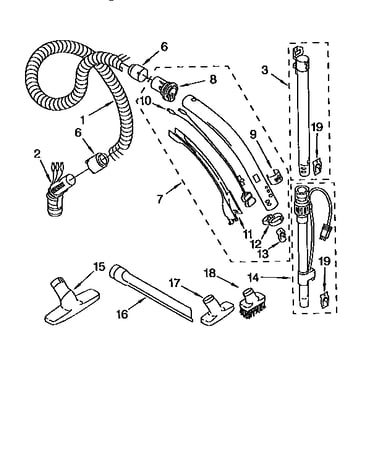

Hose and attachments diagram

Vacuum beater bar

Part #747151

The manufacturer no longer makes this part, and there's no substitute part

Parts List LIT4370043

#NI

All parts diagram

Parts list

Part #LIT4370043

The manufacturer no longer makes this part, and there's no substitute part

Canister Hood 4369410
#29

Vacuum cleaner diagram

Canister hood

Part #4369410

The manufacturer no longer makes this part, and there's no substitute part

Filtr-sfty 4152969
#22

Vacuum cleaner diagram

Filtr-sfty

Part #4152969

The manufacturer no longer makes this part, and there's no substitute part

Swivel Assembly 4369258
#2

Hose and attachments diagram

Swivel assembly

Part #4369258

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 780343
#12

Power cord reel diagram

Vacuum screw

Part #780343

The manufacturer no longer makes this part, and there's no substitute part
