Samsung
Gas Range

Model # NX58J7750SG/AA-00 Official Samsung gas freestanding range

Here are the diagrams and repair parts for Official Samsung NX58J7750SG-AA-00 gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 195 parts  |
Samsung Range Oven Burner Igniter DG94-00520A
#39-4

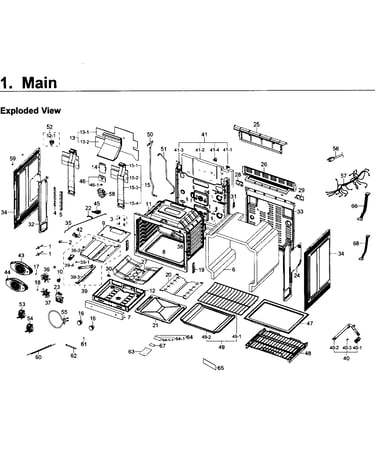

Main asy diagram

Samsung range oven burner igniter

Part #DG94-00520A

BEST SELLER
$189.45 |
6% OFF Phone Price : $201.45
Back Order
Range Bake Igniter DG94-01012A
#40-3

Main asy diagram

Range bake igniter

Part #DG94-01012A

BEST SELLER
$152.53 |
7% OFF Phone Price : $164.53
In Stock
Range Bake Burner DG62-00066A
#40-2

Main asy diagram

Range bake burner

Part #DG62-00066A

BEST SELLER
$113.12 |
10% OFF Phone Price : $125.12
In Stock
Range Oven Temperature Sensor DG32-00004C
#1

Main asy diagram

Range oven temperature sensor

Part #DG32-00004C

BEST SELLER
$107.87 |
10% OFF Phone Price : $119.87
In Stock
Samsung Range Surface Burner Valve, Left Rear DG94-00934A
#1-47

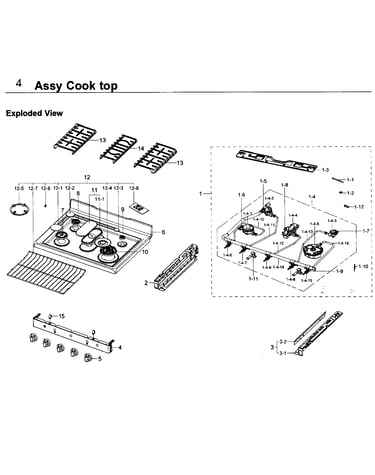

Cooktop diagram

Samsung range surface burner valve, left rear

Part #DG94-00934A

BEST SELLER
$76.58 |
7% OFF Phone Price : $82.58
In Stock
Range Oven Bottom Liner DG61-00570A
#21

Main asy diagram

Range oven bottom liner

Part #DG61-00570A

BEST SELLER
$131.24 |
8% OFF Phone Price : $143.24
In Stock
Range Surface Burner Igniter DG94-00541A
#1-7

Cooktop diagram

Range surface burner igniter

Part #DG94-00541A

BEST SELLER
$40.00 |
13% OFF Phone Price : $46.00
In Stock
Range Convection Fan Blade, Upper DG67-00001B
#36

Main asy diagram

Range convection fan blade, upper

Part #DG67-00001B

BEST SELLER
$13.18 |
13% OFF Phone Price : $15.18
In Stock
Range Surface Burner Igniter DG94-00540A
#1-6

Cooktop diagram

Range surface burner igniter

Part #DG94-00540A

BEST SELLER
This item is not returnable
$37.35 |
14% OFF Phone Price : $43.35
In Stock
Range Convection Fan Blade Nut 6021-001211
#18

Main asy diagram

Range convection fan blade nut

Part #6021-001211

BEST SELLER
$8.93 |
10% OFF Phone Price : $9.93
In Stock
