KitchenAid
Electric Cooktop

Model # KICU508SBL1 Official KitchenAid 30" induction cooktop

Here are the diagrams and repair parts for Official KitchenAid KICU508SBL1 30" induction cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Display W10122341
#18

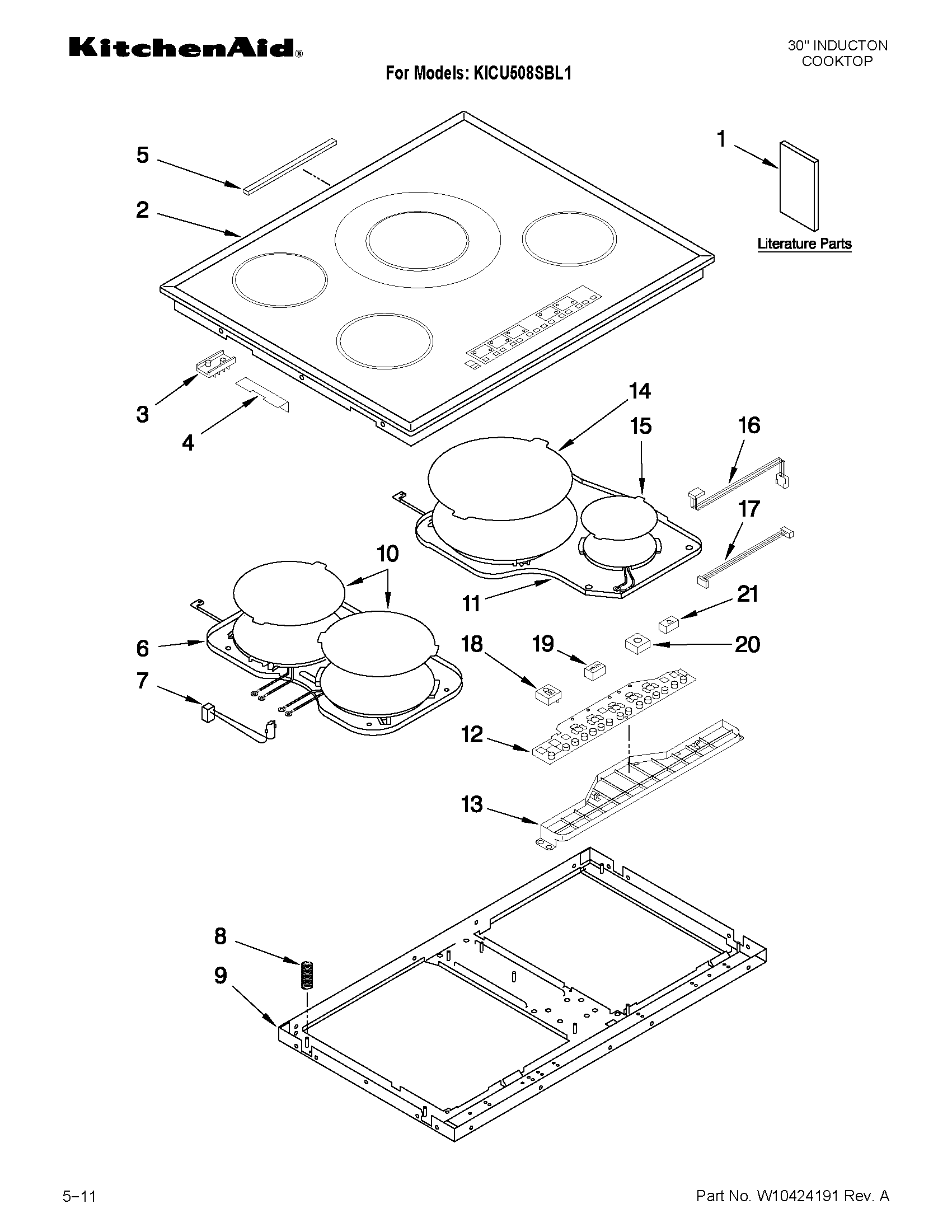

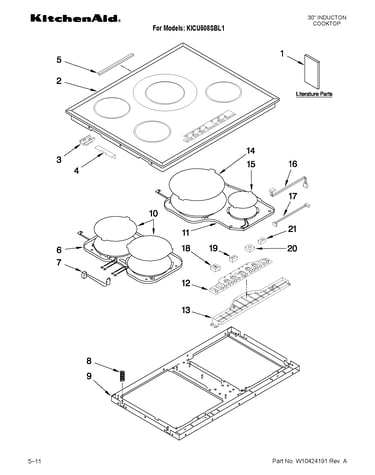

Cooktop parts diagram

Display

Part #W10122341

$10.79
In Stock
Terminal Block W10122379
#12

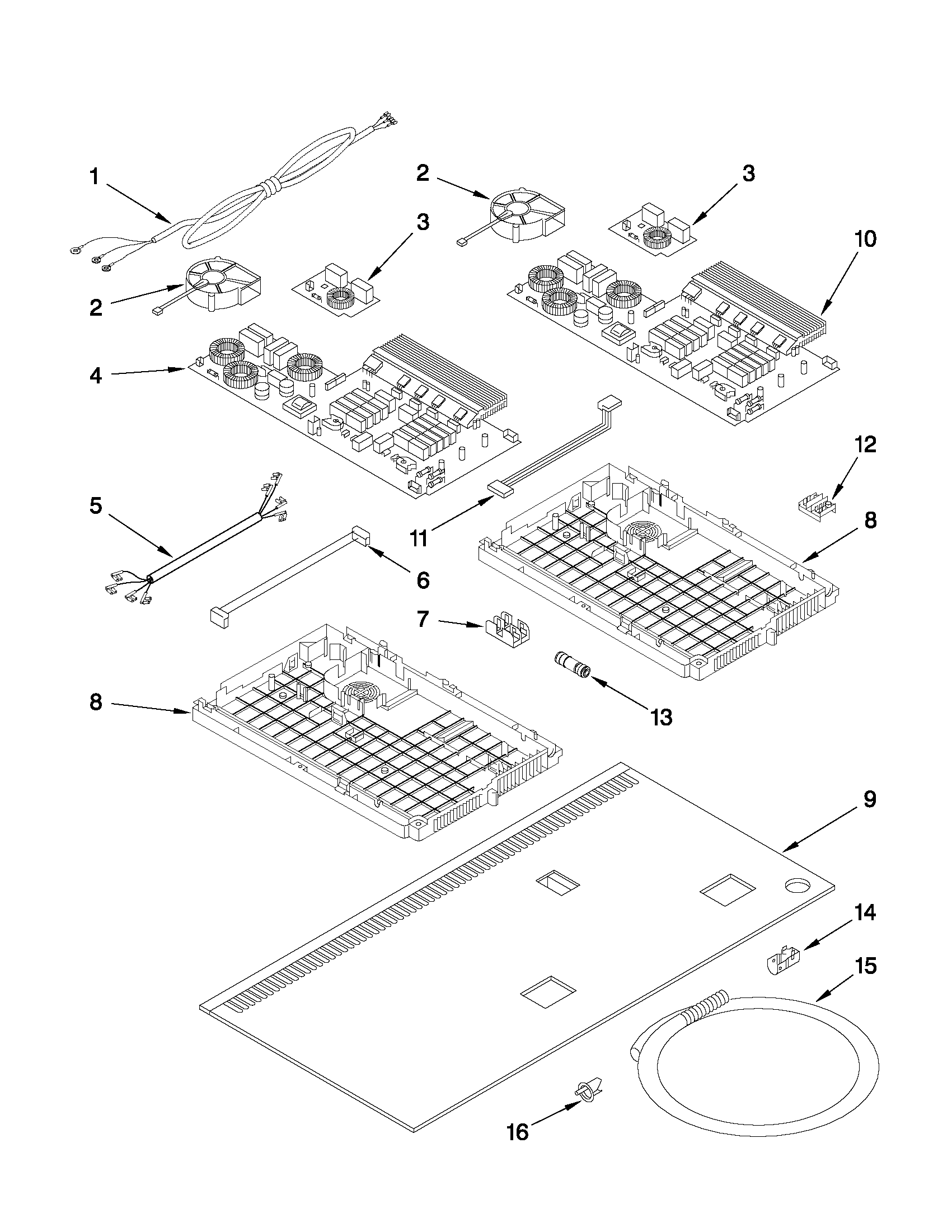

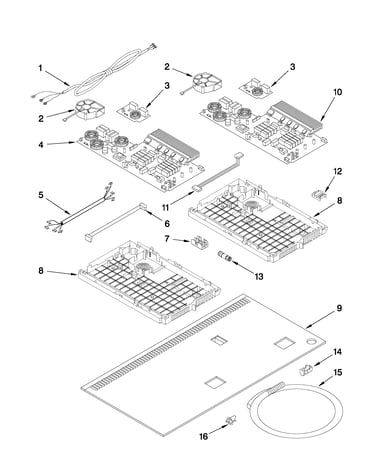

Interior parts diagram

Terminal block

Part #W10122379

$85.33
In Stock
Wire Harness W10122354
#17

Cooktop parts diagram

Wire harness

Part #W10122354

$35.51
In Stock
Display W10122344
#19

Cooktop parts diagram

Display

Part #W10122344

$10.79
In Stock
Display W10122343
#20

Cooktop parts diagram

Display

Part #W10122343

$12.00
In Stock
Power Cord W10122357
#1

Interior parts diagram

Power cord

Part #W10122357

Replaced by #W10192958

?
Manufacturer substitution
This part replaces W10122357. Substitute parts can look different from the original.
$104.69
In Stock
Mounting Bracket W10122370
#14

Interior parts diagram

Mounting bracket

Part #W10122370

The manufacturer no longer makes this part, and there's no substitute part

Display W10122339
#12

Cooktop parts diagram

Display

Part #W10122339

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness W10122380
#5

Interior parts diagram

Wire harness

Part #W10122380

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness W10122377
#11

Interior parts diagram

Wire harness

Part #W10122377

The manufacturer no longer makes this part, and there's no substitute part
