Craftsman
Garage Door Opener

Model # 139663820 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 139663820 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Transmitter 6634
#5A

Radio controls diagram

Transmitter

Part #6634

The manufacturer no longer makes this part, and there's no substitute part

Chassis Assembly 4A1258
#9

Chassis assembly diagram

Chassis assembly

Part #4A1258

The manufacturer no longer makes this part, and there's no substitute part

Door Arm 178B22
#26

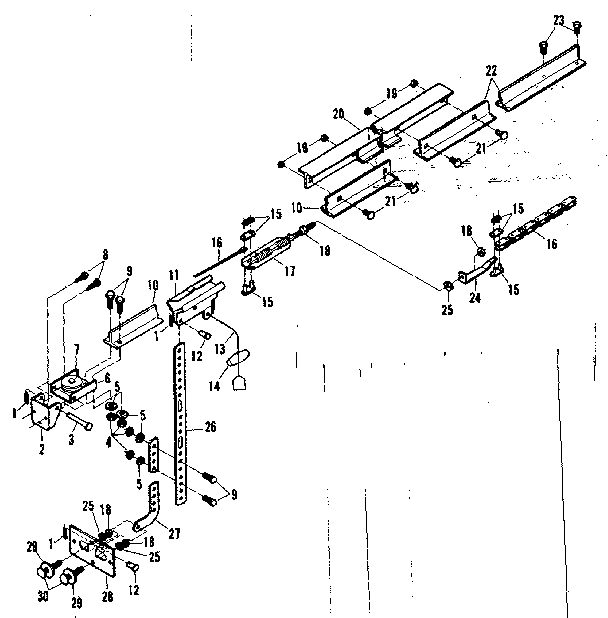

Rail assembly diagram

Door arm

Part #178B22

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Header End Rail 183B35
#10

Rail assembly diagram

Garage door opener header end rail

Part #183B35

The manufacturer no longer makes this part, and there's no substitute part

Trans Case 4A1205
#1

Radio controls diagram

Trans case

Part #4A1205

The manufacturer no longer makes this part, and there's no substitute part

Cable Pulley 144A12
#7

Rail assembly diagram

Cable pulley

Part #144A12

The manufacturer no longer makes this part, and there's no substitute part

Shaft Plate 142A103
#5

Chassis assembly diagram

Shaft plate

Part #142A103

The manufacturer no longer makes this part, and there's no substitute part

Pin STD560607
#1

Rail assembly diagram

Pin

Part #STD560607

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 146A53
#40

Chassis assembly diagram

Roll pin

Part #146A53

The manufacturer no longer makes this part, and there's no substitute part

Gear 81B11
#18

Chassis assembly diagram

Gear

Part #81B11

The manufacturer no longer makes this part, and there's no substitute part
