Janome
Mechanical Sewing Machine

Model # 11702 Official Janome sewing machine

Here are the diagrams and repair parts for Official Janome 11702 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Kenmore Elite Sewing Machine Bobbin Winder Stopper 735016307
#210

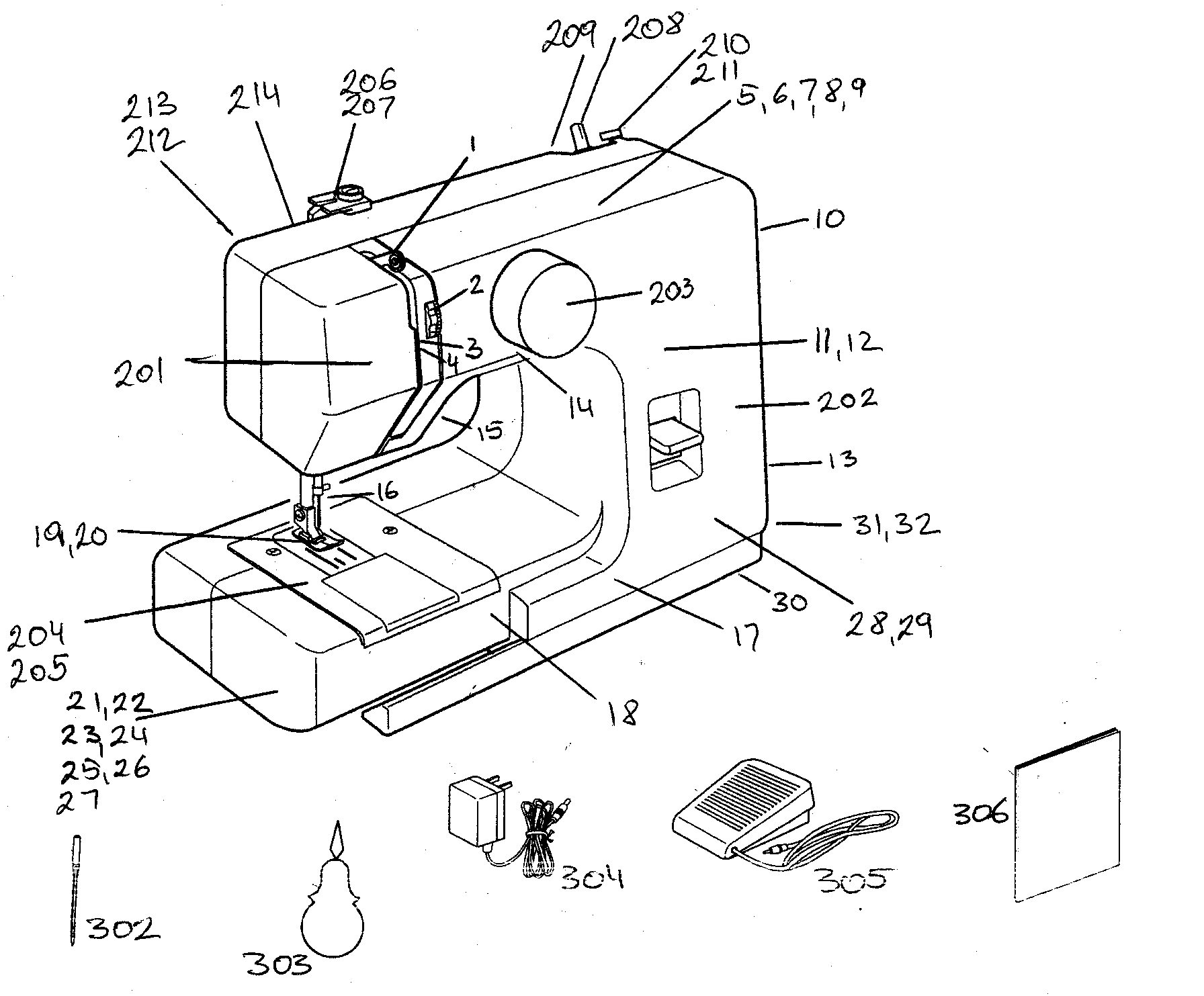

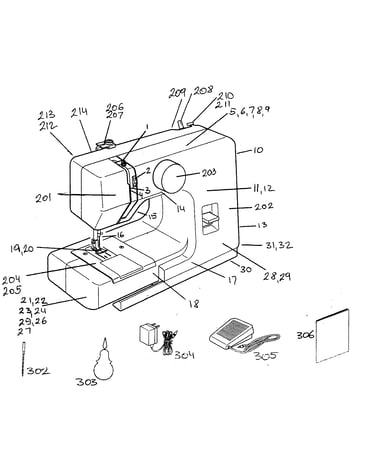

Cabinet parts diagram

Kenmore elite sewing machine bobbin winder stopper

Part #735016307

The manufacturer no longer makes this part, and there's no substitute part

Janome Tension Pt 525502009
#2

Cabinet parts diagram

Janome tension pt

Part #525502009

The manufacturer no longer makes this part, and there's no substitute part

Janome Sewing Machine Owner's Manual 525800033
#306

Cabinet parts diagram

Janome sewing machine owner's manual

Part #525800033

The manufacturer no longer makes this part, and there's no substitute part

Janome Bearing 525046000
#23

Cabinet parts diagram

Janome bearing

Part #525046000

The manufacturer no longer makes this part, and there's no substitute part

Janome Lever Unit 525608006
#1

Cabinet parts diagram

Janome lever unit

Part #525608006

The manufacturer no longer makes this part, and there's no substitute part

Janome Cover 525601102
#214

Cabinet parts diagram

Janome cover

Part #525601102

The manufacturer no longer makes this part, and there's no substitute part

Janome Hand Wheel 525035006
#10

Cabinet parts diagram

Janome hand wheel

Part #525035006

The manufacturer no longer makes this part, and there's no substitute part

Janome Hook Unit 525612003
#21

Cabinet parts diagram

Janome hook unit

Part #525612003

The manufacturer no longer makes this part, and there's no substitute part

Janome Face Cover 525084206
#201

Cabinet parts diagram

Janome face cover

Part #525084206

The manufacturer no longer makes this part, and there's no substitute part

Janome Sewing Machine Power Adapter 525808008
#304

Cabinet parts diagram

Janome sewing machine power adapter

Part #525808008

The manufacturer no longer makes this part, and there's no substitute part
