Kenmore
Sewing Machine

Model # 158750 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 158750 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

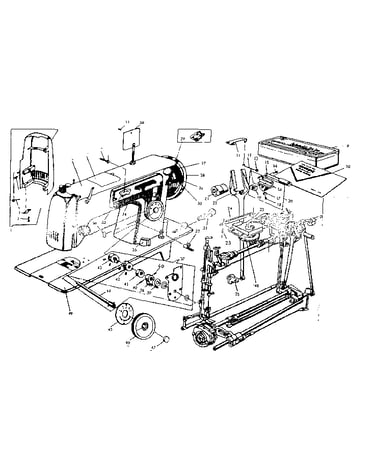

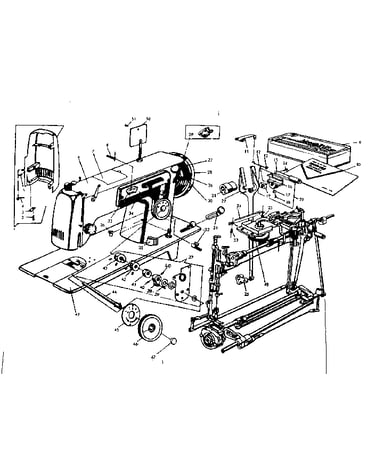

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 385 parts  |
Set Screw 2022
#98

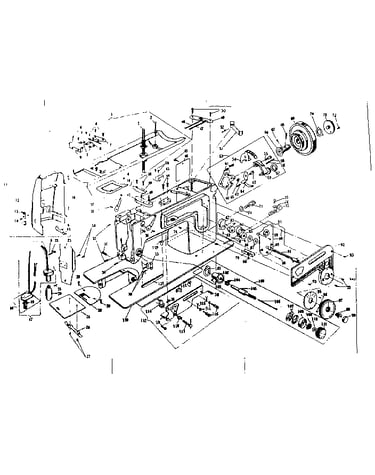

Base assembly diagram

Set screw

Part #2022

The manufacturer no longer makes this part, and there's no substitute part

Bracket 2570
#43

Base assembly diagram

Bracket

Part #2570

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Set Screw 674
#159

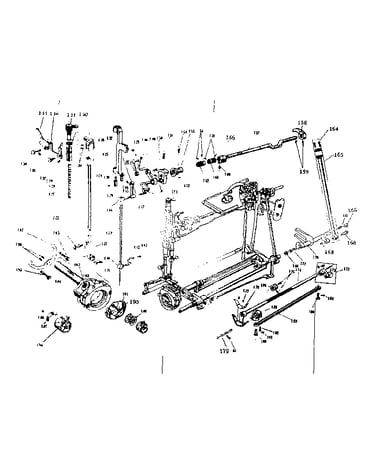

Presser bar and shuttle assembly diagram

Sewing machine set screw

Part #674

The manufacturer no longer makes this part, and there's no substitute part

Bracket 2060
#126

Presser bar and shuttle assembly diagram

Bracket

Part #2060

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon 2539
Escutcheon

Part #2539

The manufacturer no longer makes this part, and there's no substitute part

Bar Block 79
#235

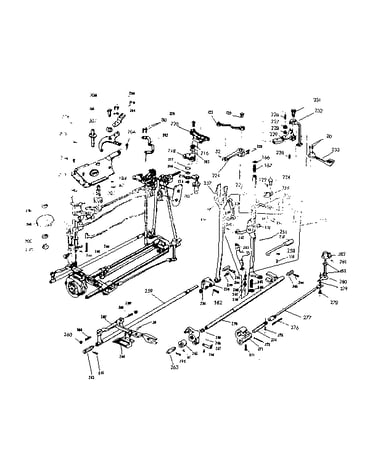

Feed regulator assembly diagram

Bar block

Part #79

The manufacturer no longer makes this part, and there's no substitute part

Weight 673
#158

Presser bar and shuttle assembly diagram

Weight

Part #673

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon 2505
#92

Base assembly diagram

Escutcheon

Part #2505

The manufacturer no longer makes this part, and there's no substitute part

Set Of Cams 3200

#NI

All parts diagram

Set of cams

Part #3200

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 2599
#96

Base assembly diagram

Set screw

Part #2599

The manufacturer no longer makes this part, and there's no substitute part
