Brother
Electronic Sewing Machine

Model # PE-400D Official Brother sewing machine

Here are the diagrams and repair parts for Official Brother PE-400D sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

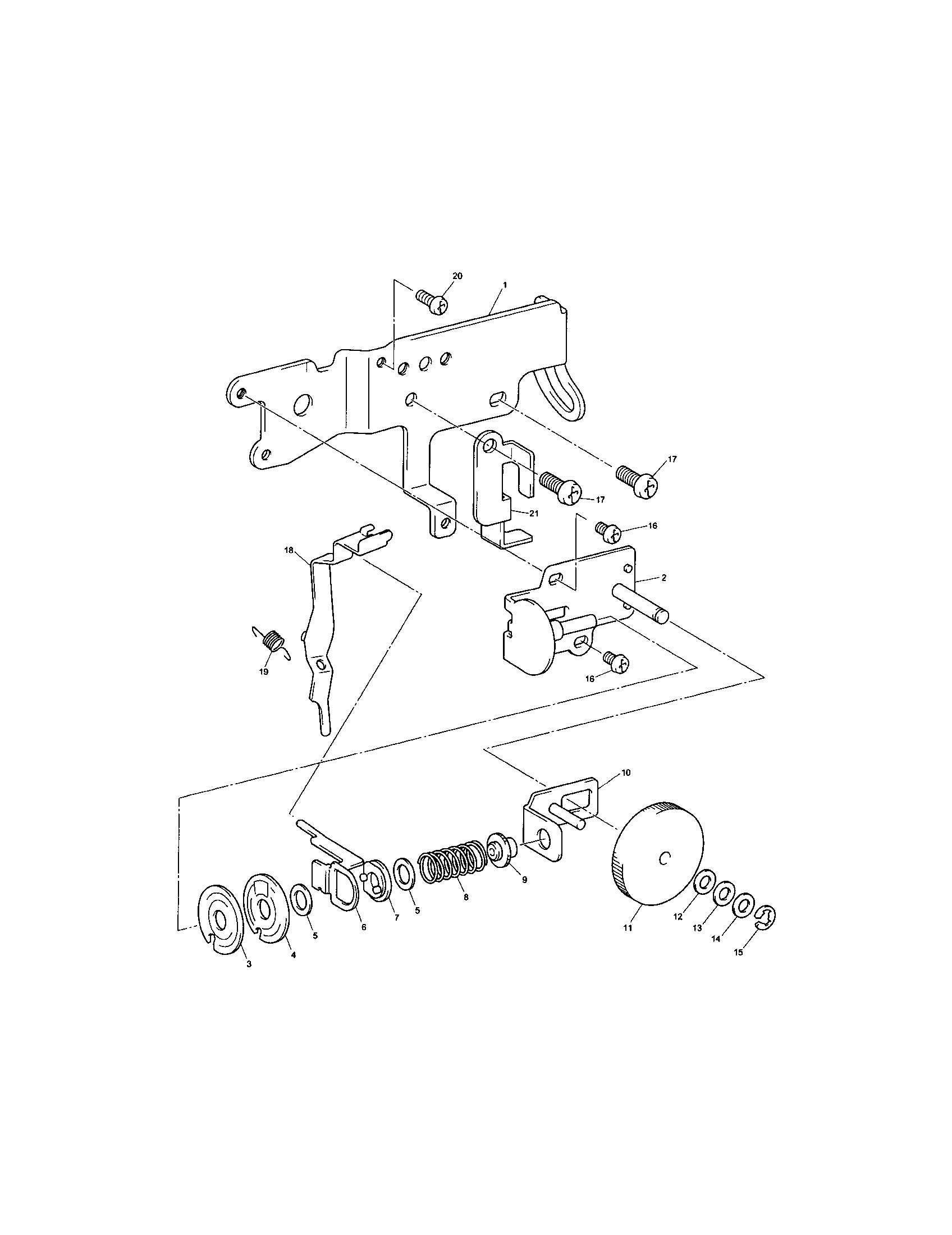

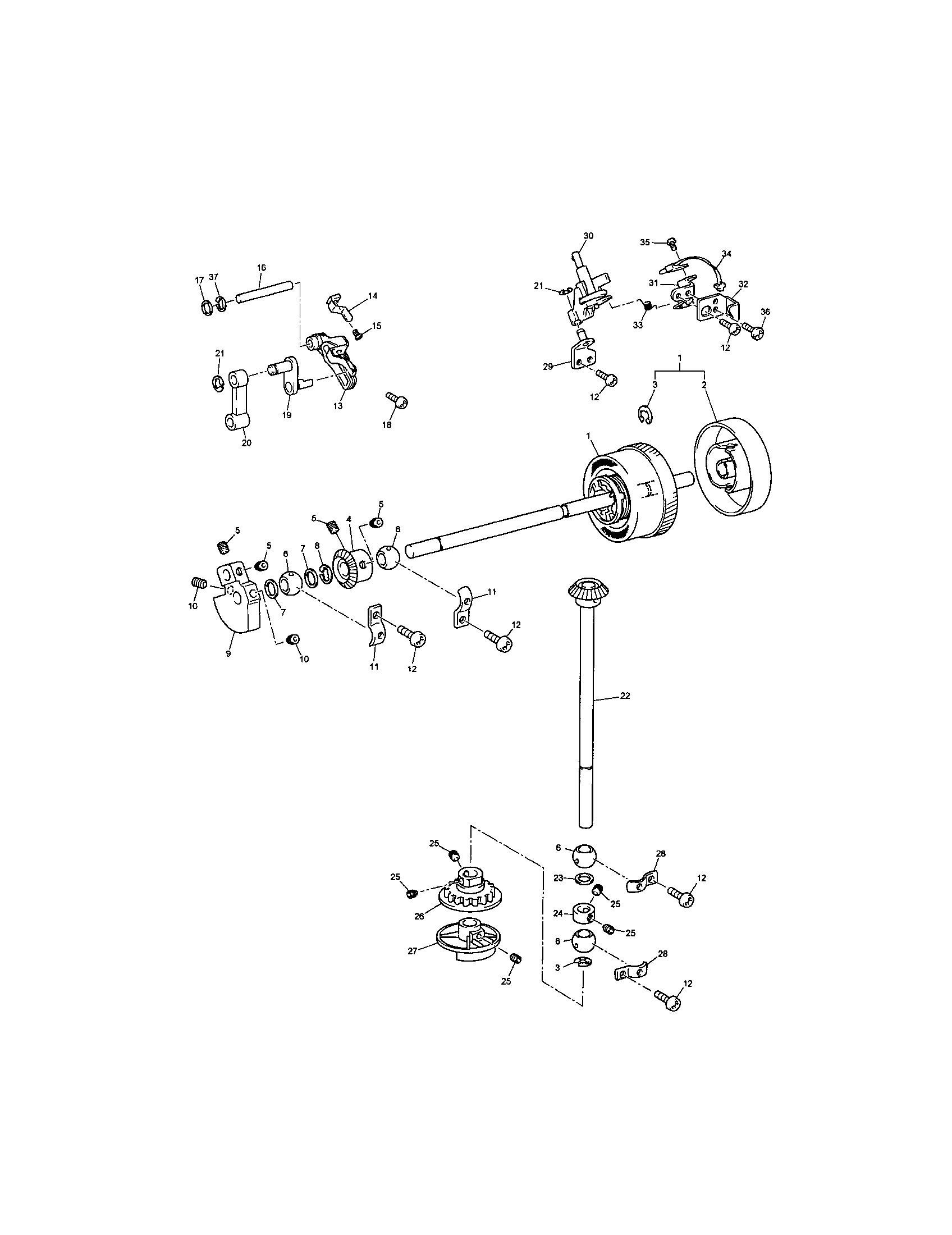

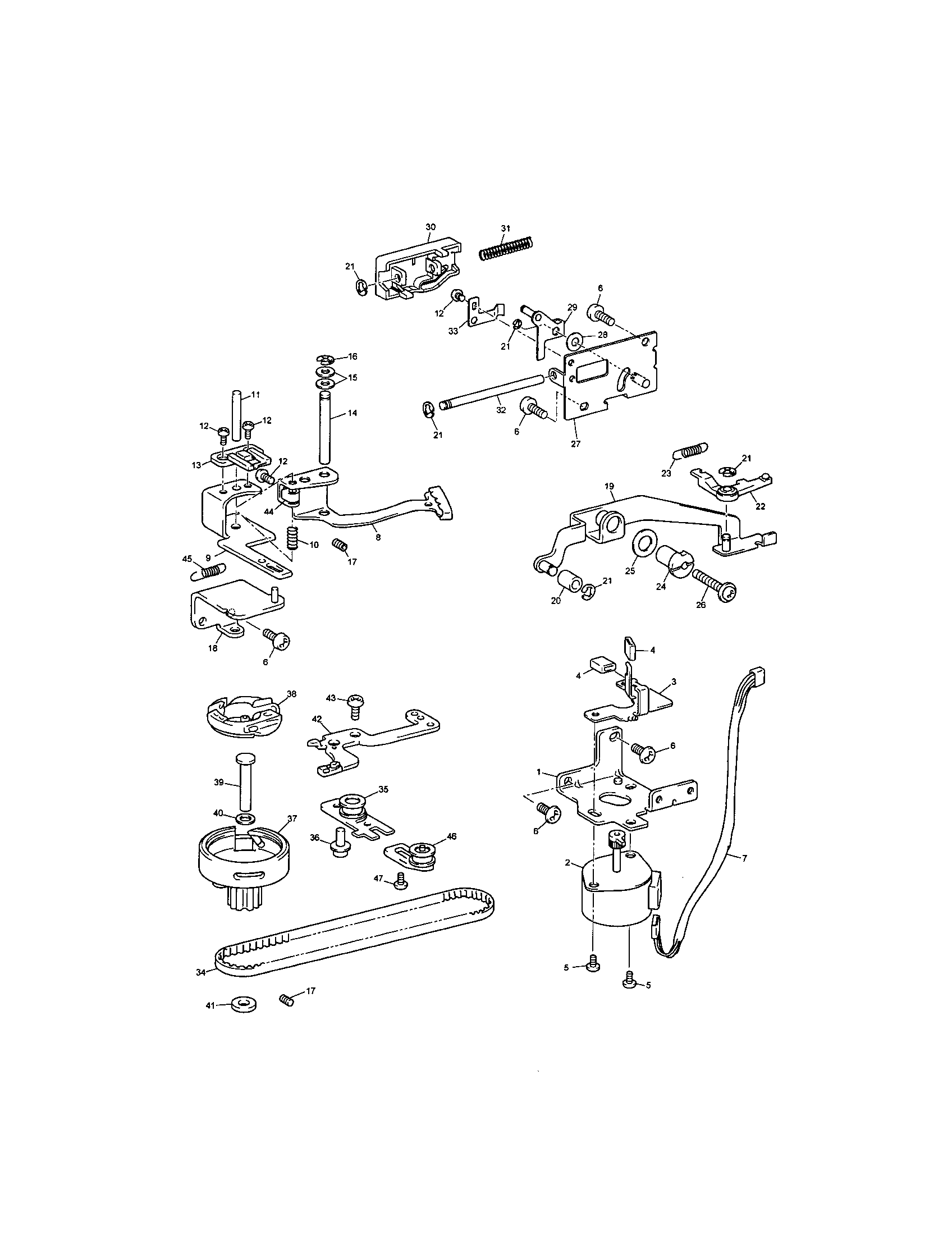

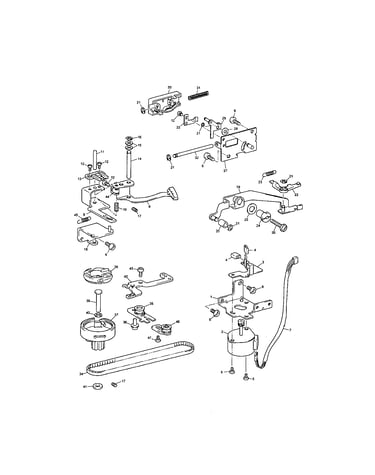

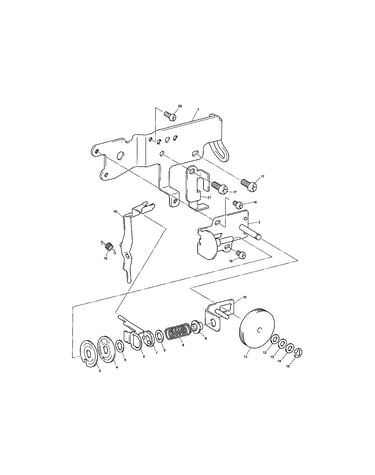

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 301 parts  |
Screw 3x6 060300616
Screw 3x6

Part #060300616

The manufacturer no longer makes this part, and there's no substitute part

Brother Ss Vr Assy XC0392051
#34

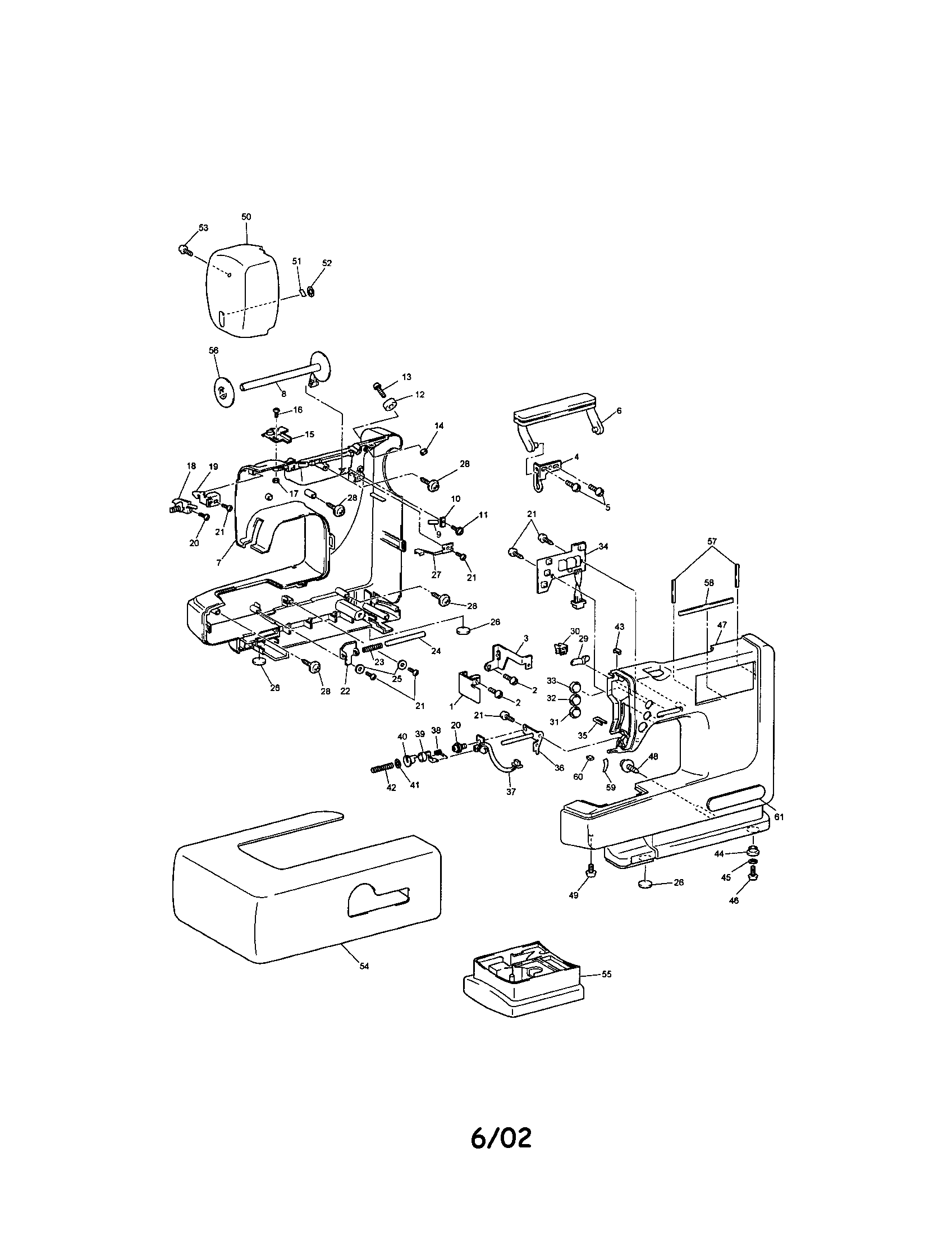

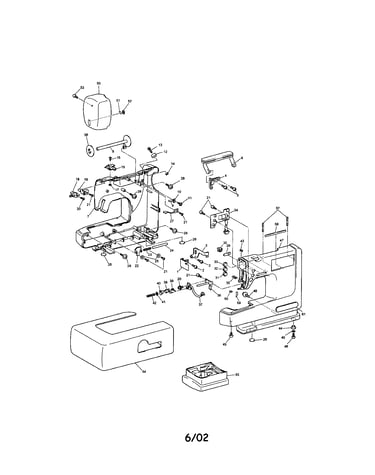

Cover/handle/presser plate diagram

Brother ss vr assy

Part #XC0392051

The manufacturer no longer makes this part, and there's no substitute part

Brother Owner's Manual 194147060
#26B

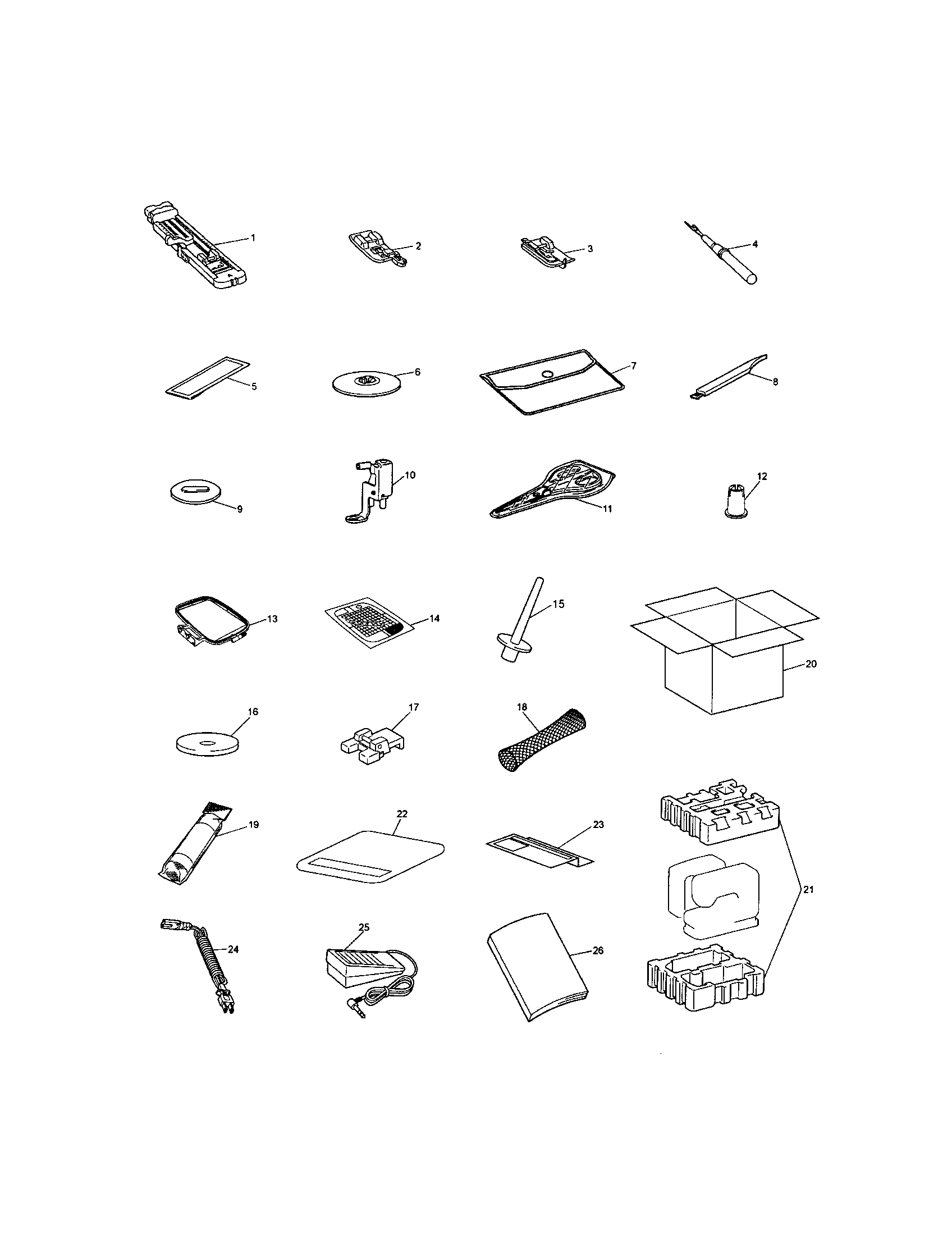

Accessory bag/packing materials diagram

Brother owner's manual

Part #194147060

The manufacturer no longer makes this part, and there's no substitute part

Carton X61252057
Carton

Part #X61252057

The manufacturer no longer makes this part, and there's no substitute part

Brother Carriage XA5324101
#23

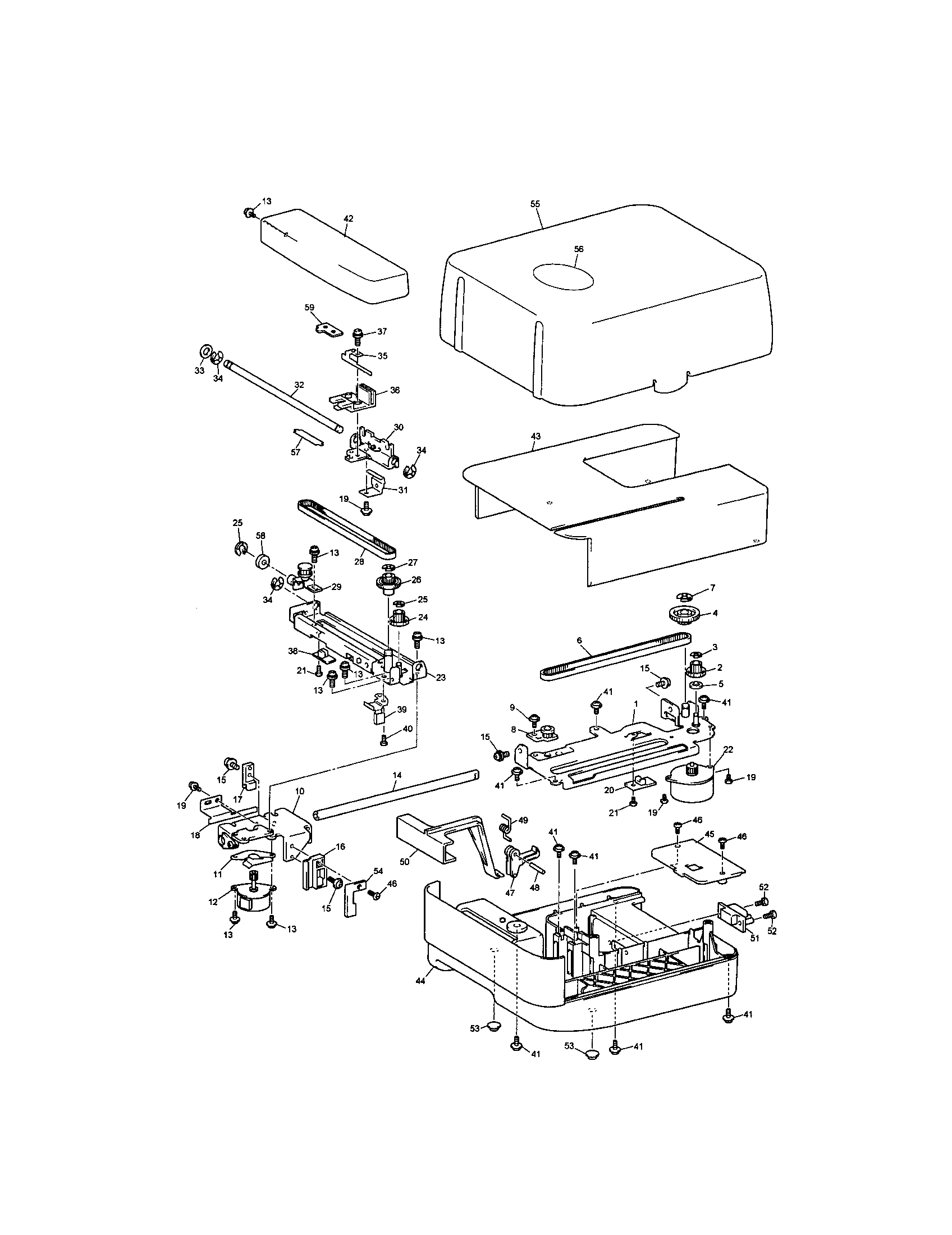

Es unit cover/embroidery unit diagram

Brother carriage

Part #XA5324101

The manufacturer no longer makes this part, and there's no substitute part

Brother Motor Holder XA5296151
#26

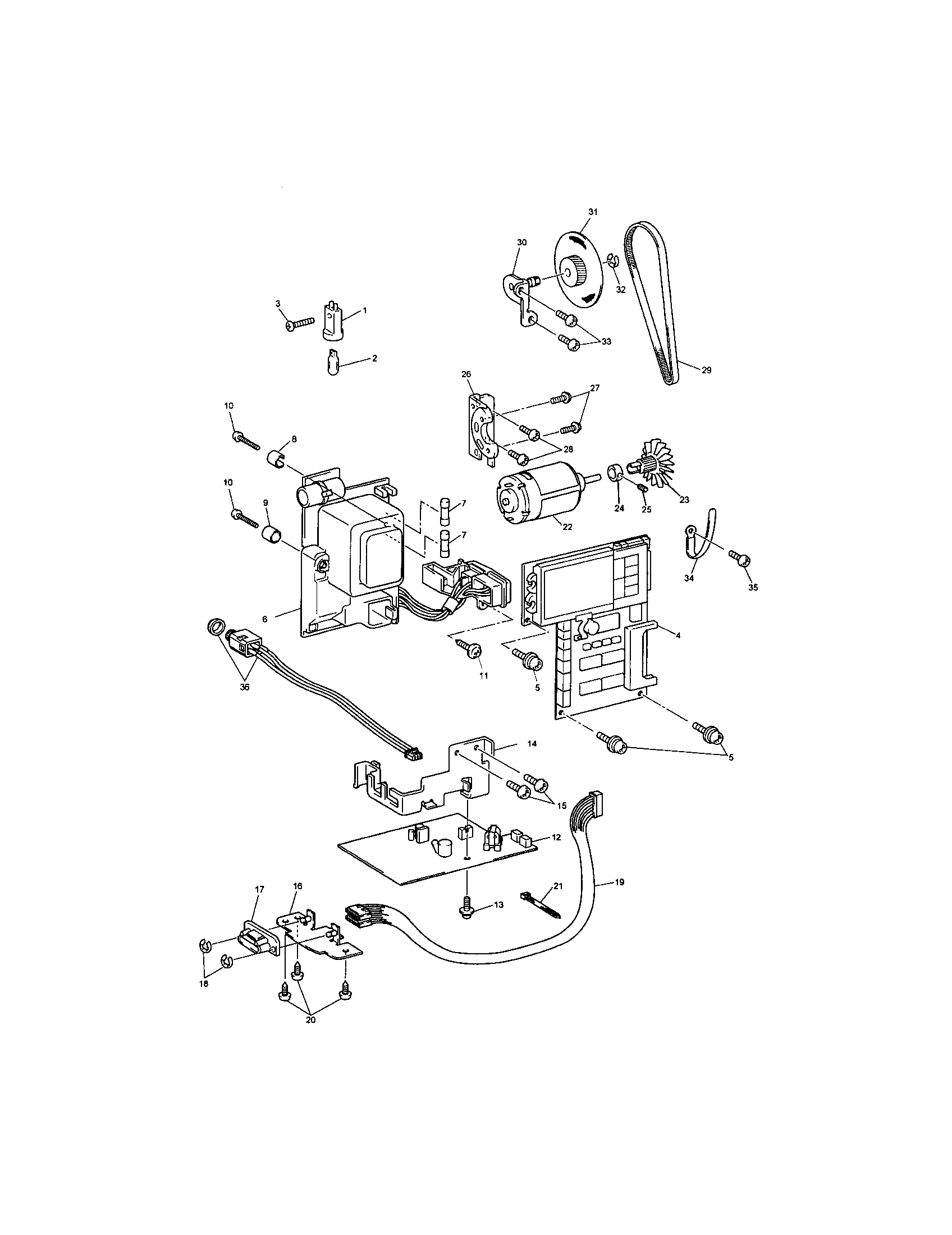

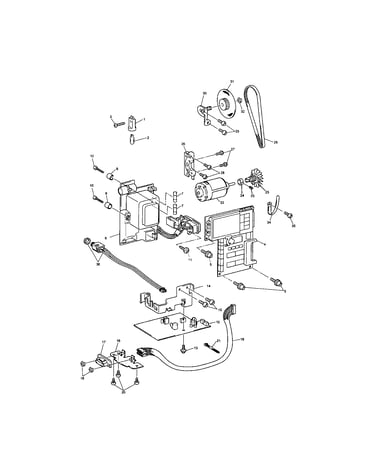

Lamp/main pc board/motor unit diagram

Brother motor holder

Part #XA5296151

The manufacturer no longer makes this part, and there's no substitute part

Stop Ring 048040346
Stop ring

Part #048040346

The manufacturer no longer makes this part, and there's no substitute part

Brother Sensor XC0419051
#38

Es unit cover/embroidery unit diagram

Brother sensor

Part #XC0419051

The manufacturer no longer makes this part, and there's no substitute part

Foot X56409001
#3

Accessory bag/packing materials diagram

Foot

Part #X56409001

The manufacturer no longer makes this part, and there's no substitute part

Brother Pulse Motor Z26551001
#38

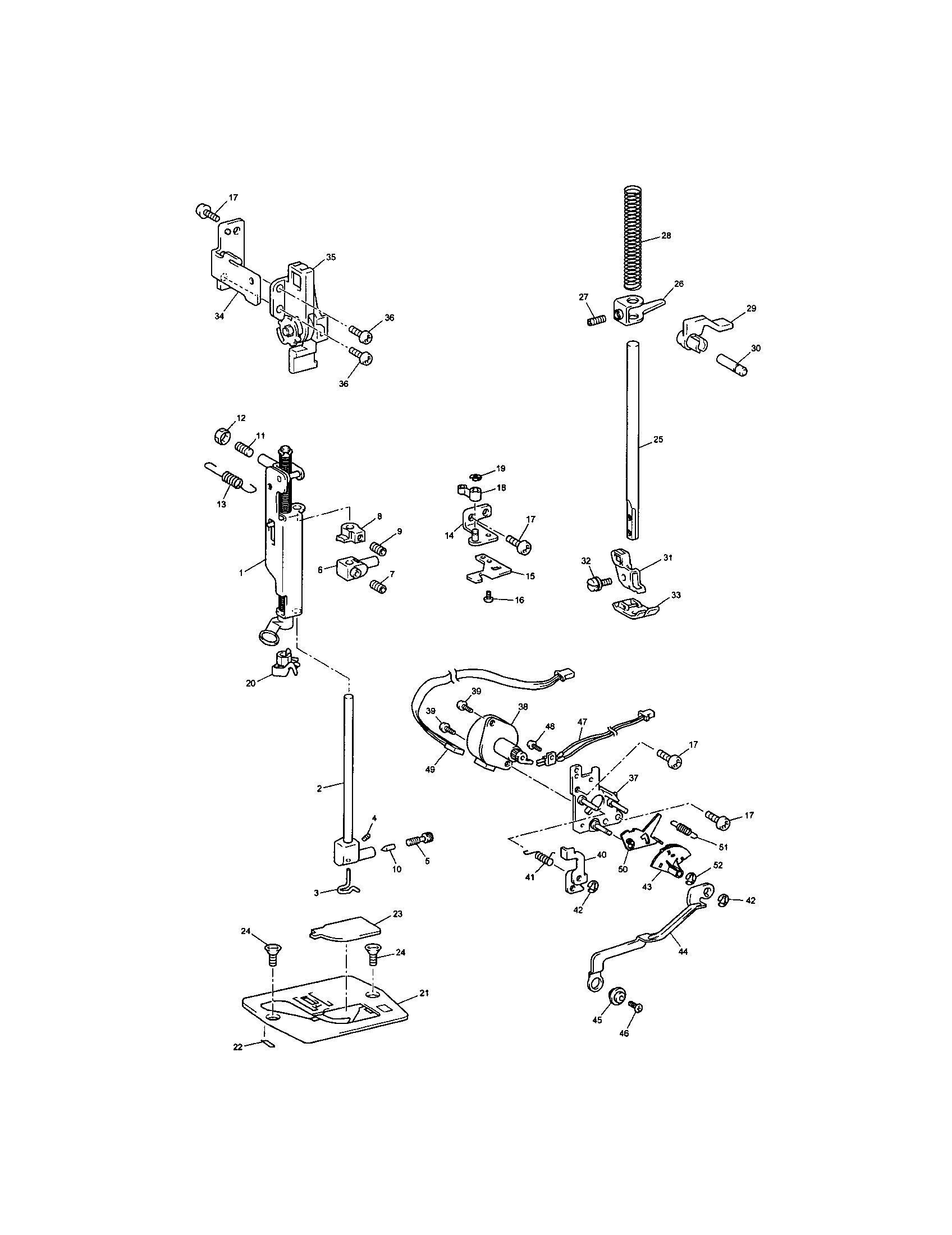

Presser bar, needle bar and zigzag diagram

Brother pulse motor

Part #Z26551001

The manufacturer no longer makes this part, and there's no substitute part
