Model # 917289254 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917289254 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

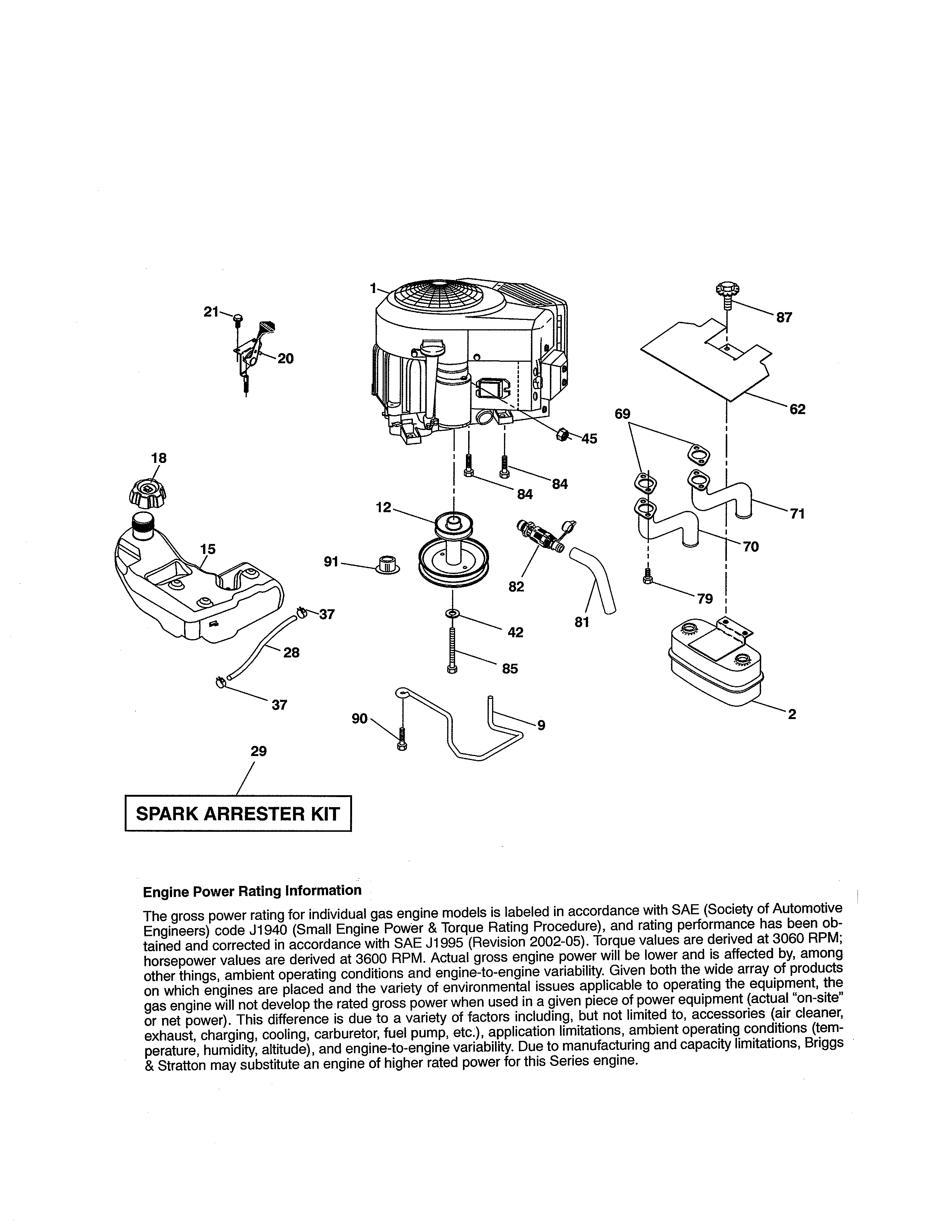

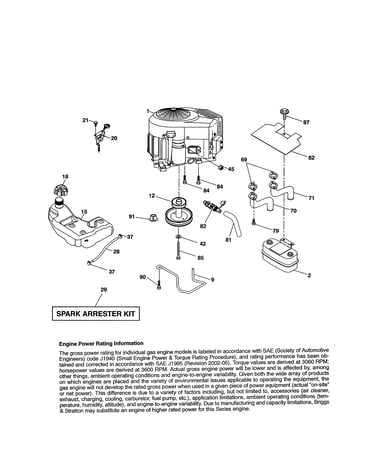

  View engine

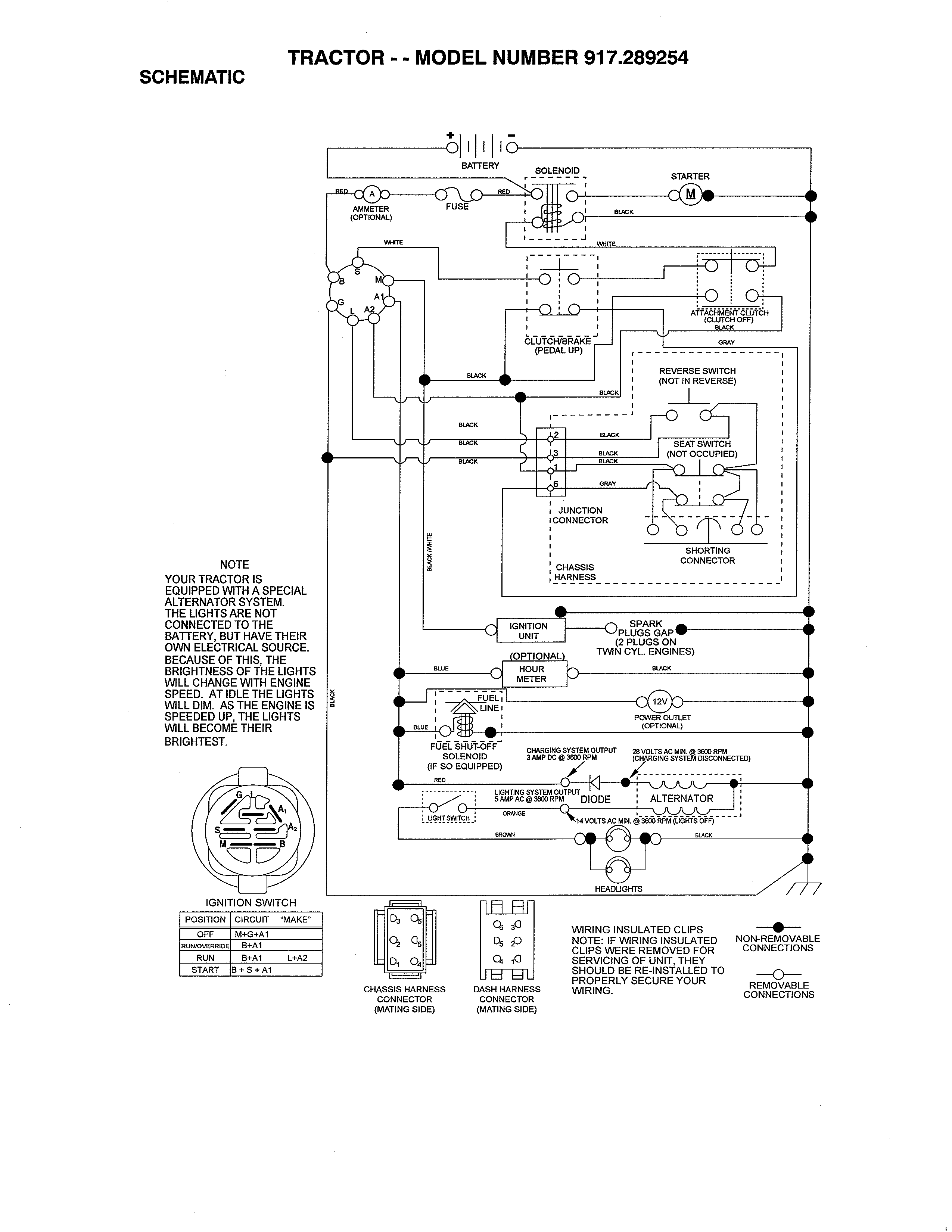

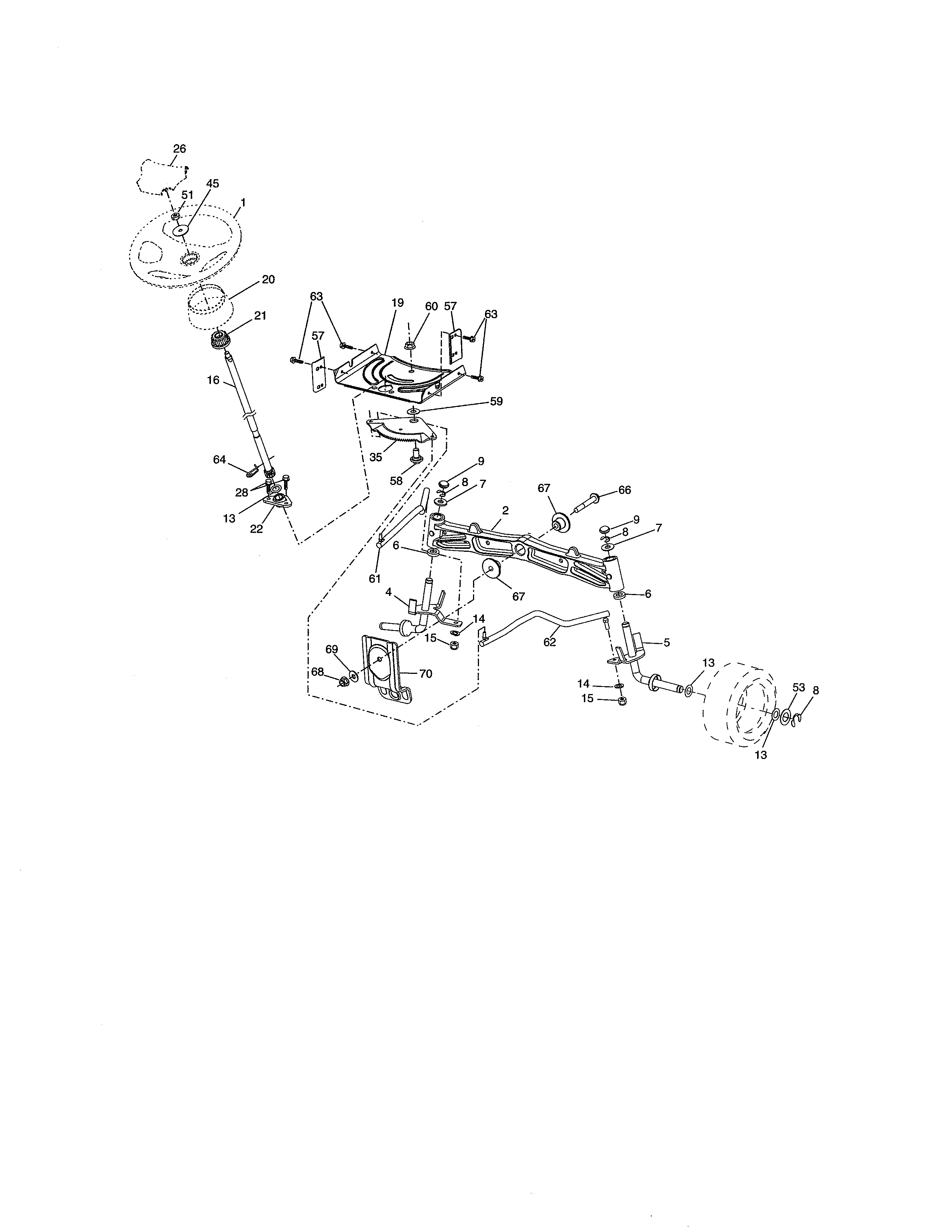

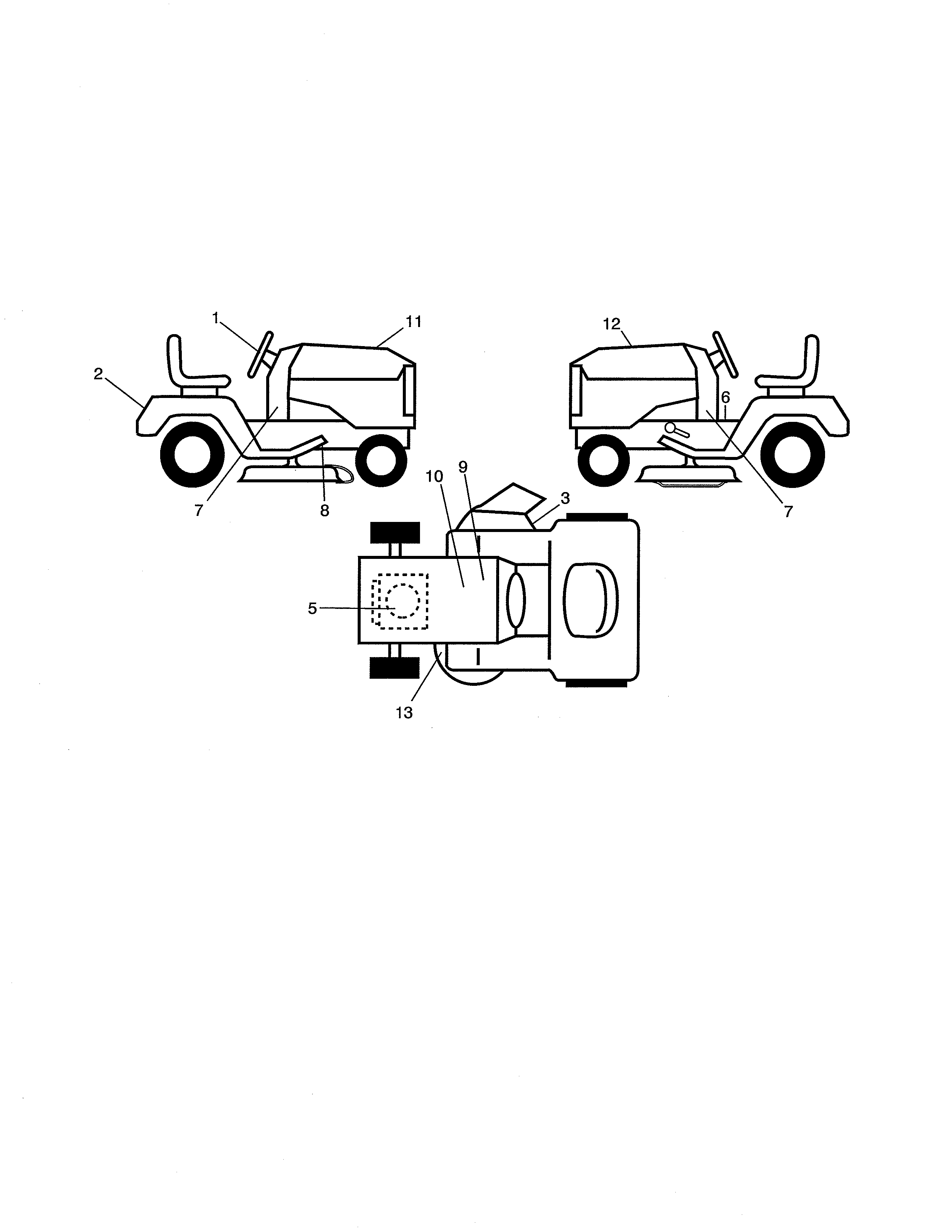

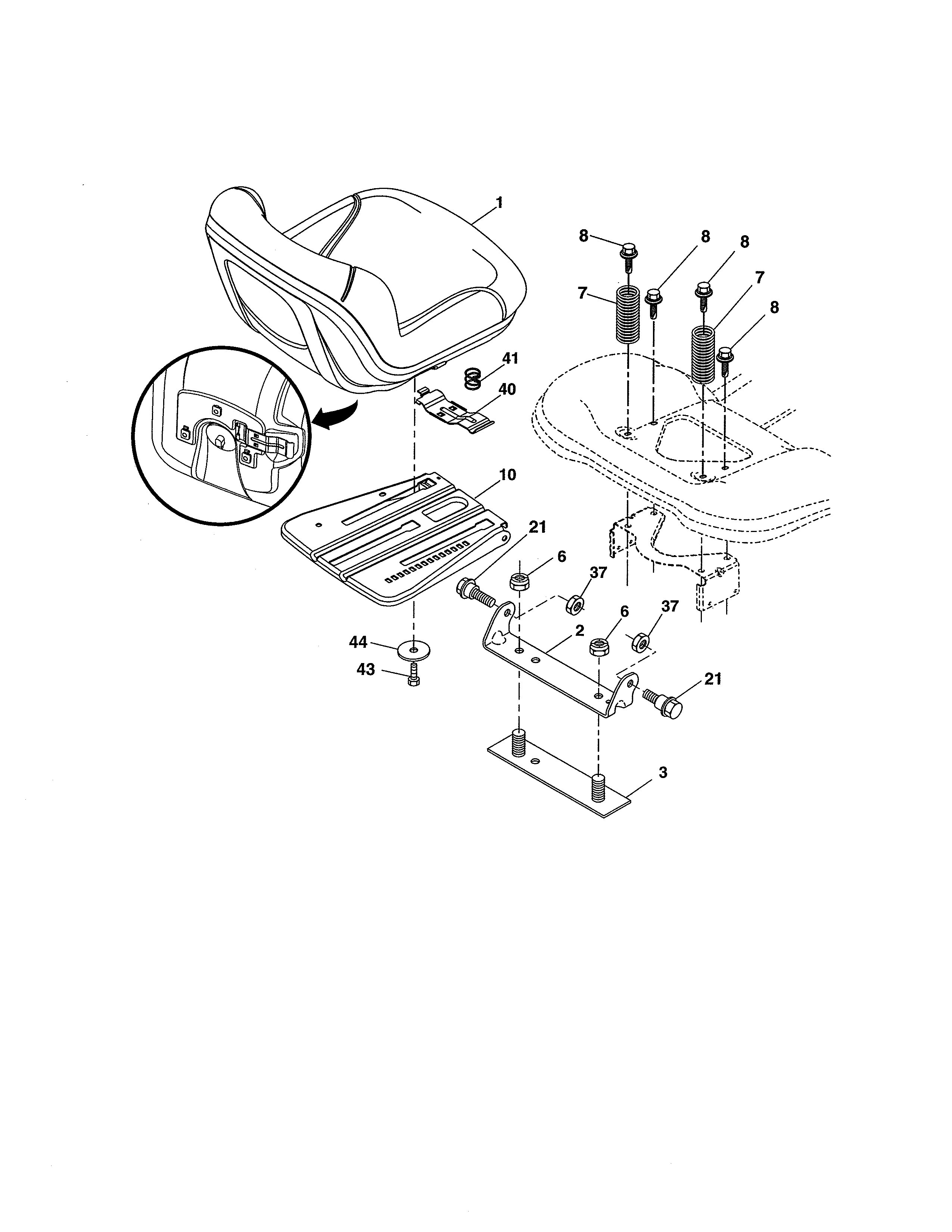

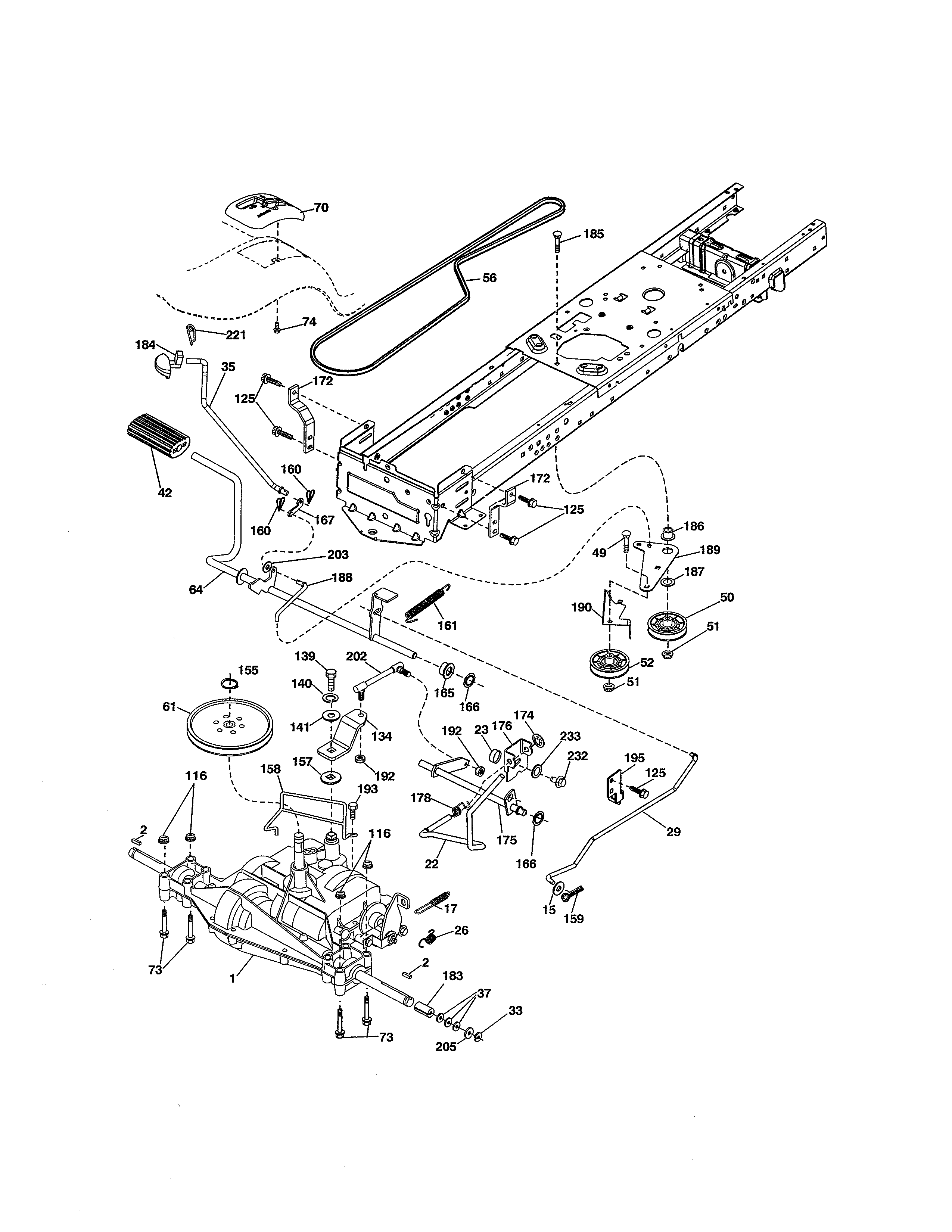

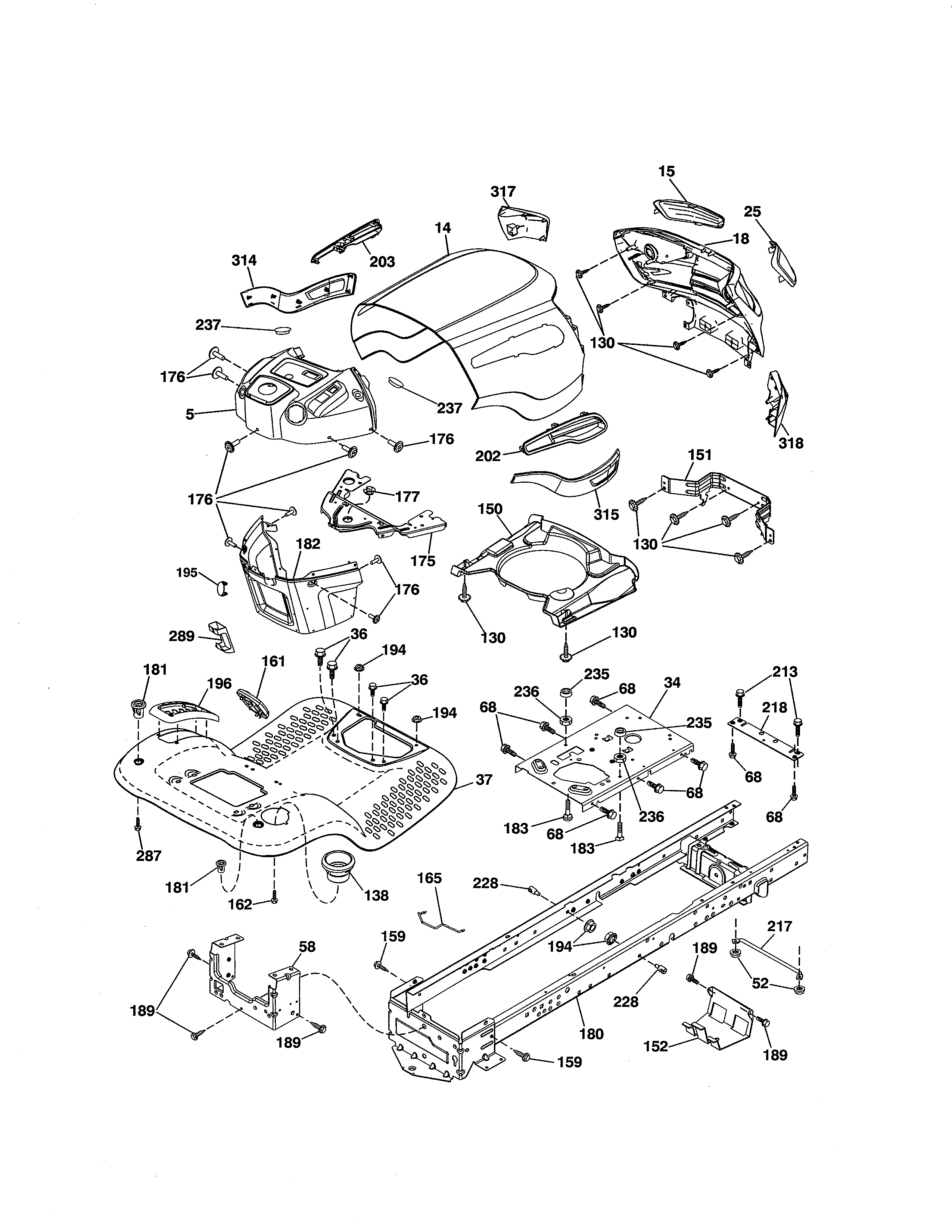

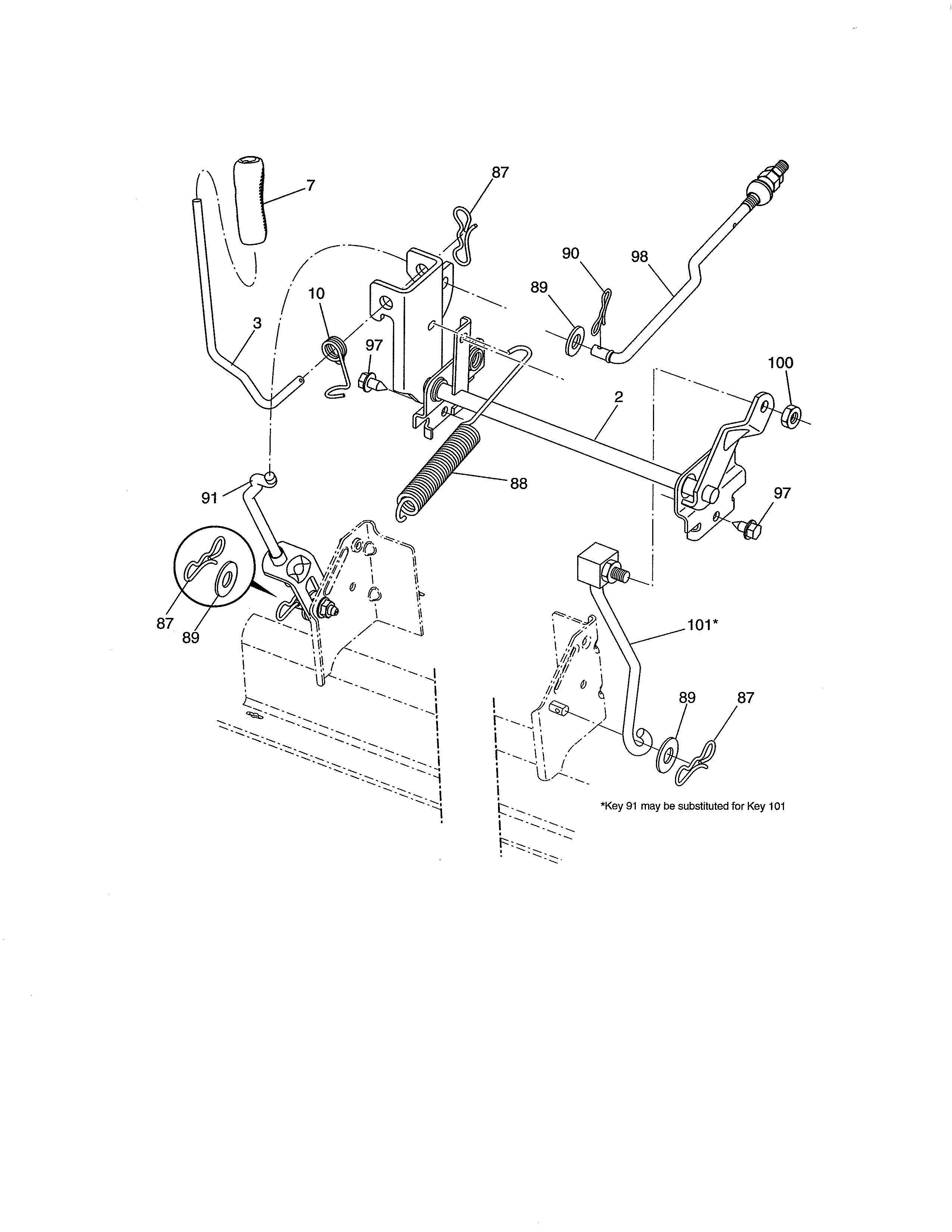

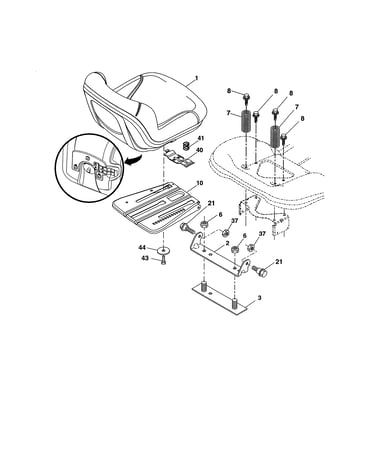

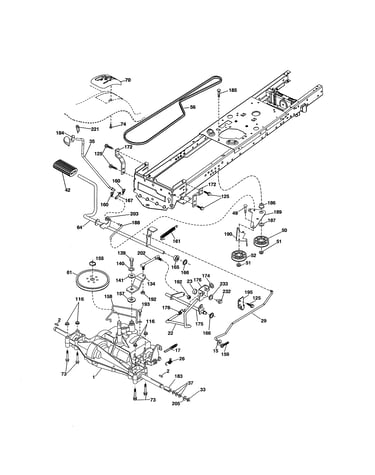

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 567 parts  |
Lawn Tractor Mandrel Housing 187281
#14

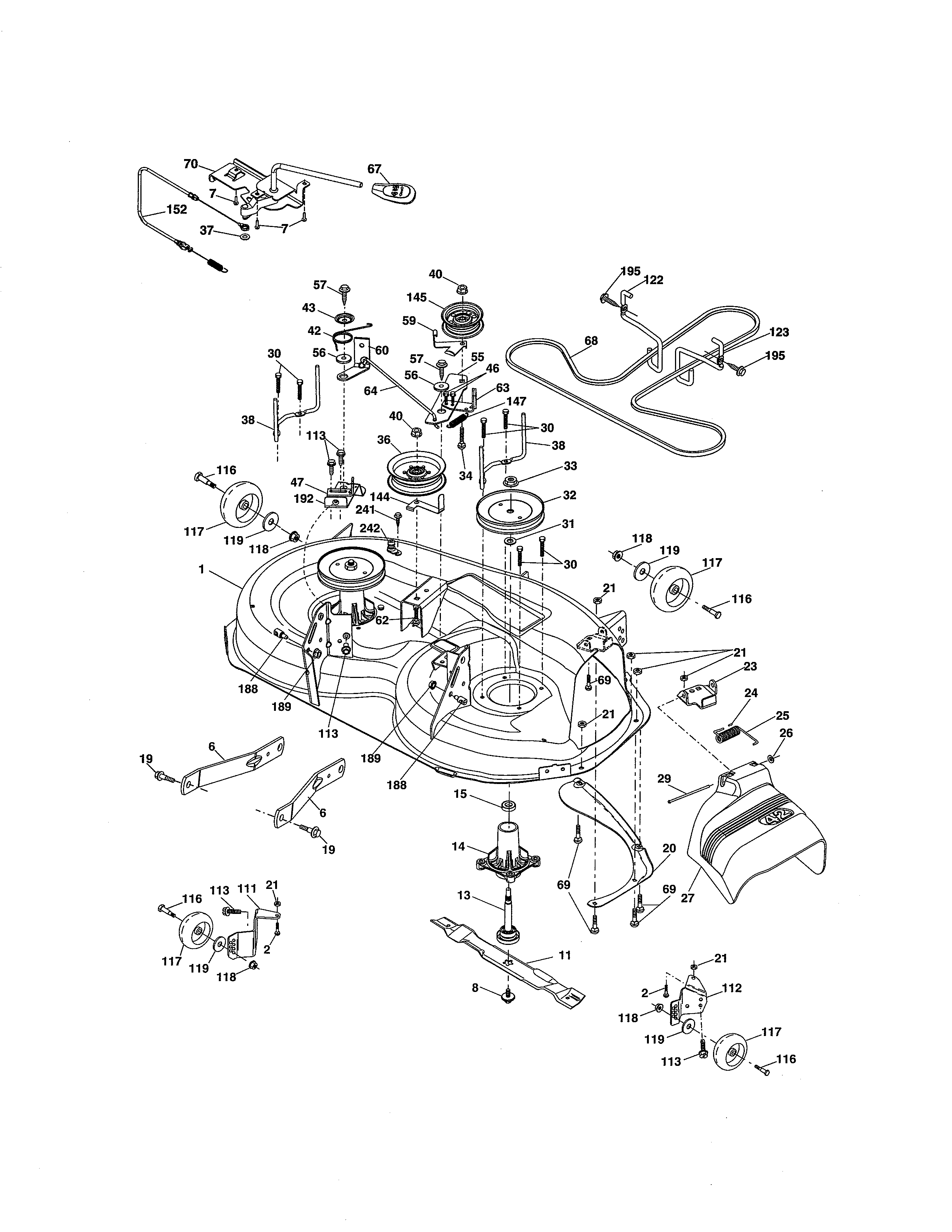

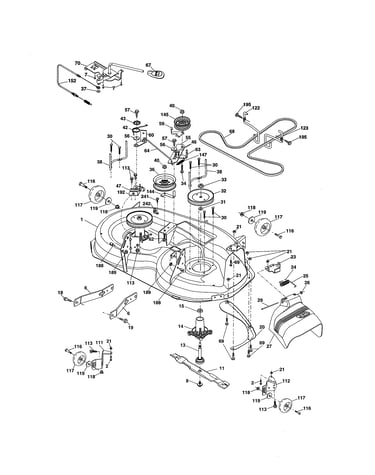

Mower deck diagram

Lawn tractor mandrel housing

Part #187281

Replaced by #587819701

?
Manufacturer substitution
This part replaces 187281. Substitute parts can look different from the original.
BEST SELLER
$48.44 |
11% OFF Phone Price : $54.44
In Stock
Lawn Tractor Mandrel Shaft Assembly 192872
#13

Mower deck diagram

Lawn tractor mandrel shaft assembly

Part #192872

Replaced by #587819701

?
Manufacturer substitution
This part replaces 192872. Substitute parts can look different from the original.
BEST SELLER
$48.44 |
11% OFF Phone Price : $54.44
In Stock
Lawn Tractor Mulching Blade 134149
#11-B

Mower deck diagram

Lawn tractor mulching blade

Part #134149

Replaced by #532134149

?
Manufacturer substitution
This part replaces 134149. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.14 |
21% OFF Phone Price : $28.14
In Stock
Lawn Tractor 42-in Deck High-lift Blade 138971
#11-C

Mower deck diagram

Lawn tractor 42-in deck high-lift blade

Part #138971

Replaced by #532138971

?
Manufacturer substitution
This part replaces 138971. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.14 |
21% OFF Phone Price : $28.14
In Stock
Lawn Tractor Axle Cap 104757X428
#8

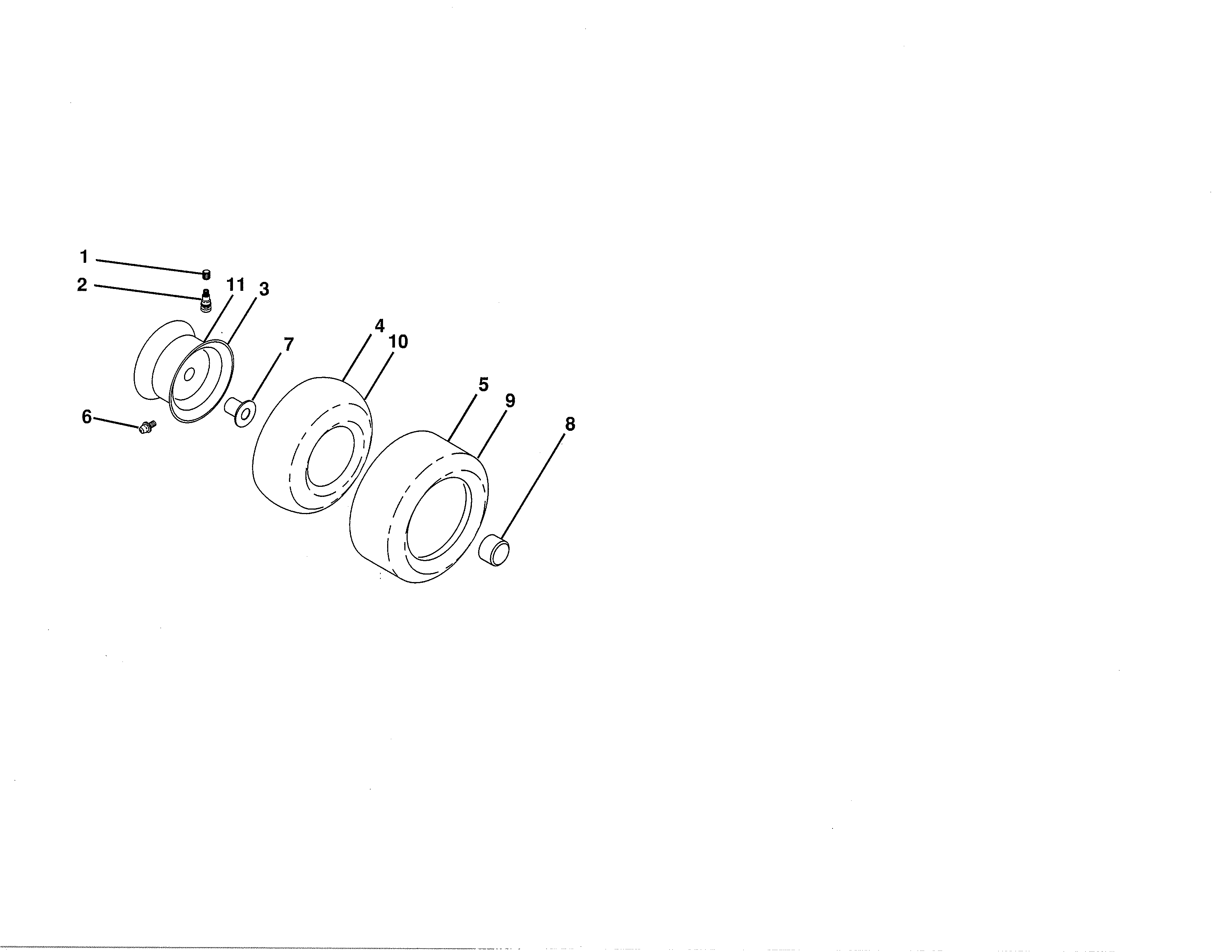

Wheels and tires diagram

Lawn tractor axle cap

Part #104757X428

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Blade Clutch Cable (replaces 408714, 532435111) 435111
#152

Mower deck diagram

Lawn tractor blade clutch cable (replaces 408714, 532435111)

Part #435111

BEST SELLER
$20.61 |
23% OFF Phone Price : $26.61
In Stock
Lock Nut 73900600
Lock nut

Part #73900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Starter Solenoid 192507
#43

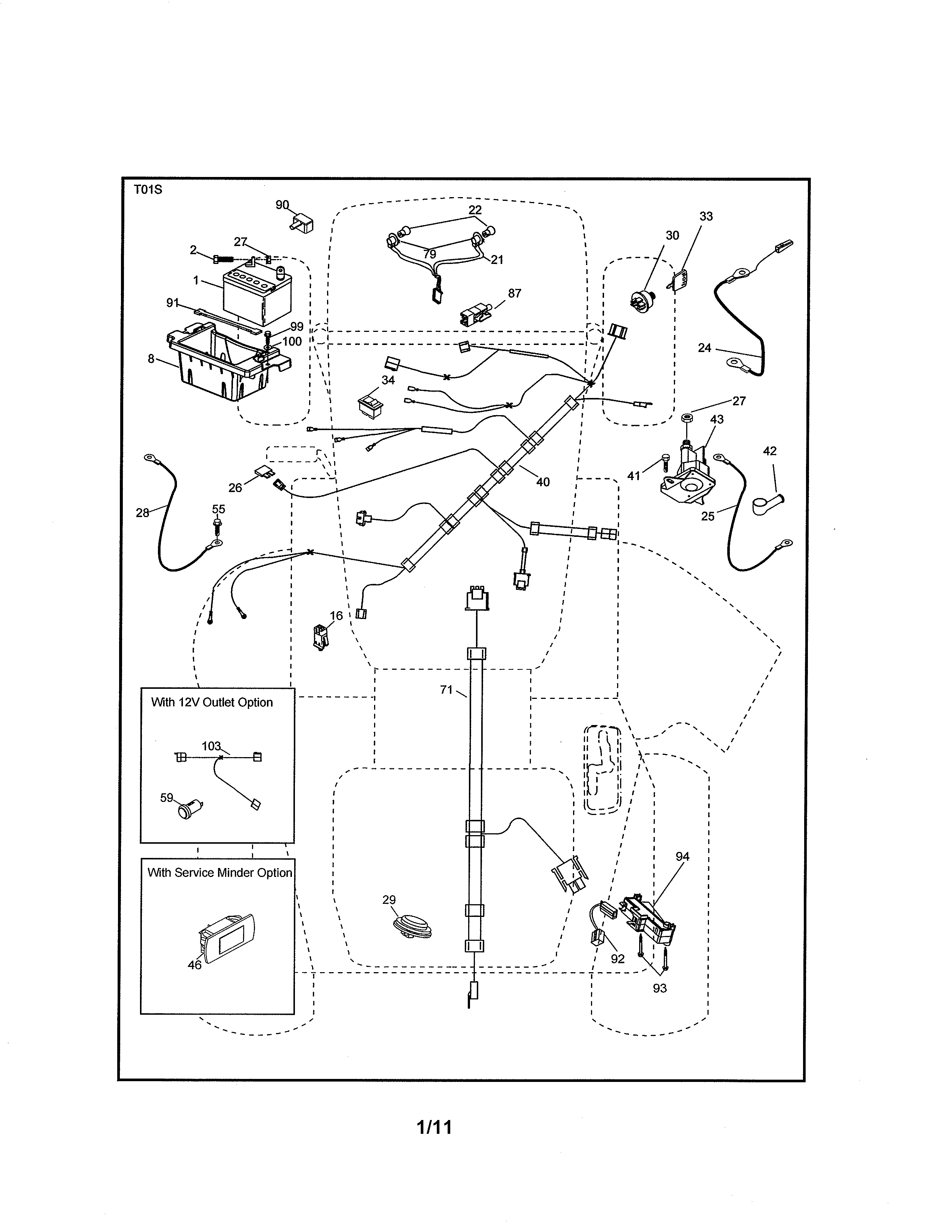

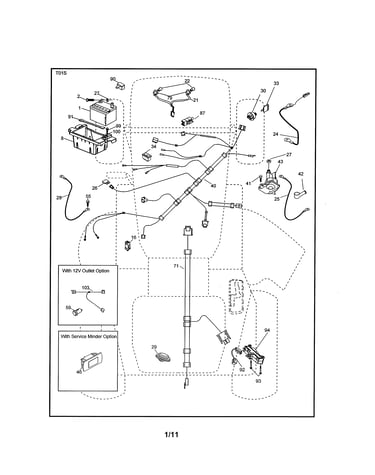

Electrical diagram

Lawn tractor starter solenoid

Part #192507

Replaced by #582042802

?
Manufacturer substitution
This part replaces 192507. Substitute parts can look different from the original.
BEST SELLER
$30.64 |
16% OFF Phone Price : $36.64
In Stock
Lawn Tractor Ignition Switch 193350
#30

Electrical diagram

Lawn tractor ignition switch

Part #193350

Replaced by #532193350

?
Manufacturer substitution
This part replaces 193350. Substitute parts can look different from the original.
BEST SELLER
$25.83 |
19% OFF Phone Price : $31.83
In Stock
Lawn Tractor Deflector Shield Hinge Rod 131491
#29

Mower deck diagram

Lawn tractor deflector shield hinge rod

Part #131491

Replaced by #595297001

?
Manufacturer substitution
This part replaces 131491. Substitute parts can look different from the original.
BEST SELLER
$7.05 |
12% OFF Phone Price : $8.05
In Stock
