Craftsman
Front-Engine Lawn Tractor

Model # 917273080 Official Craftsman tractor

Here are the diagrams and repair parts for Official Craftsman 917273080 tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

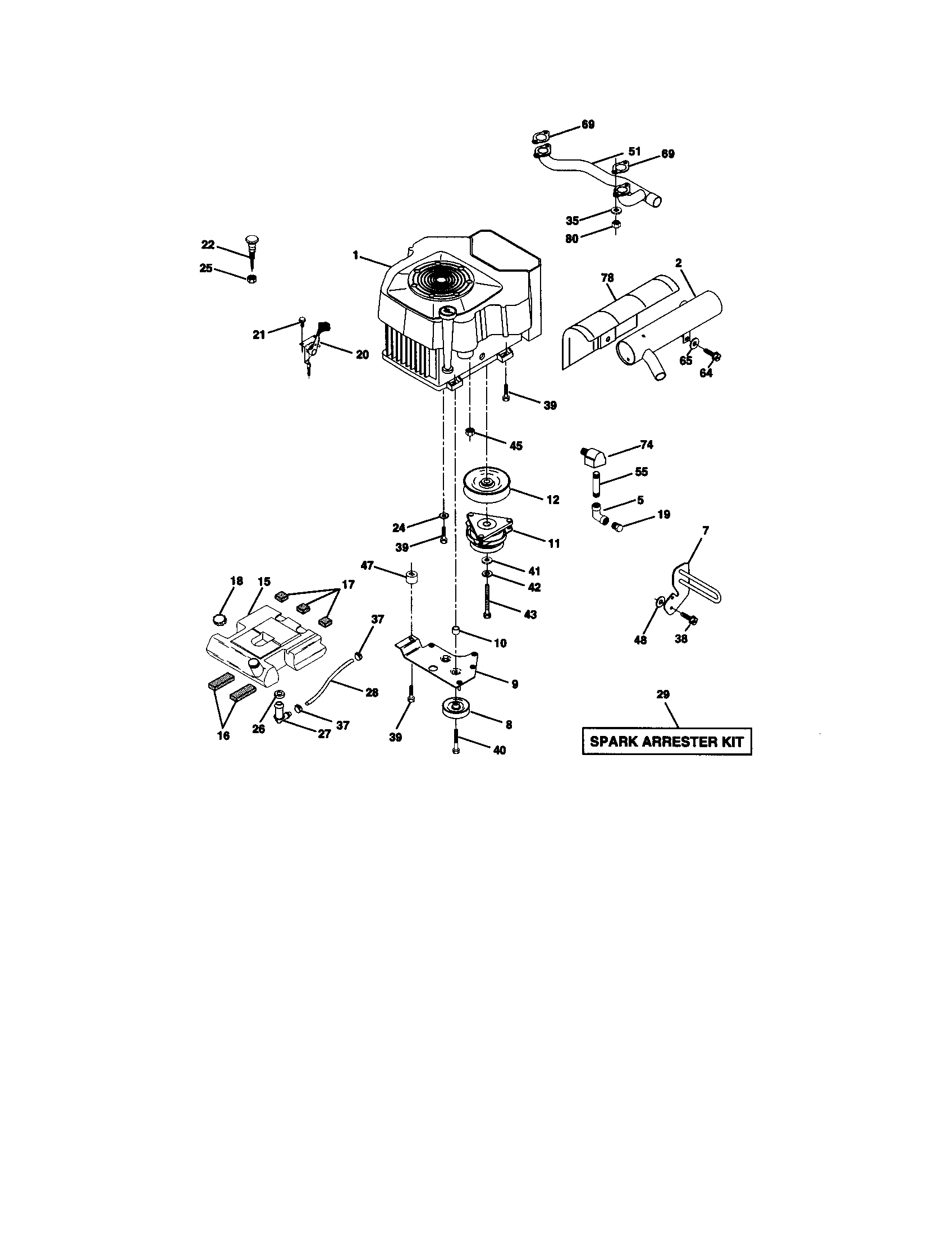

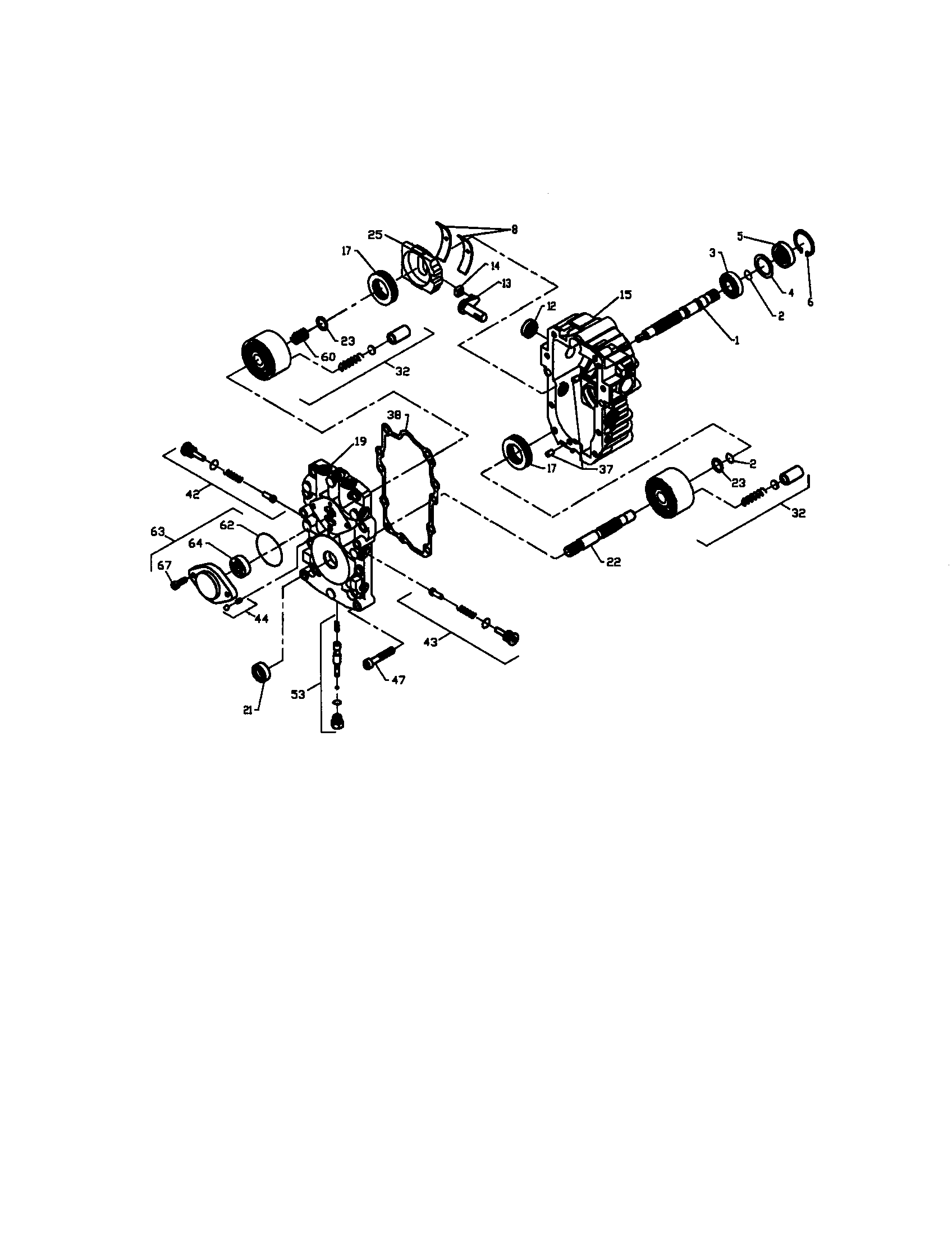

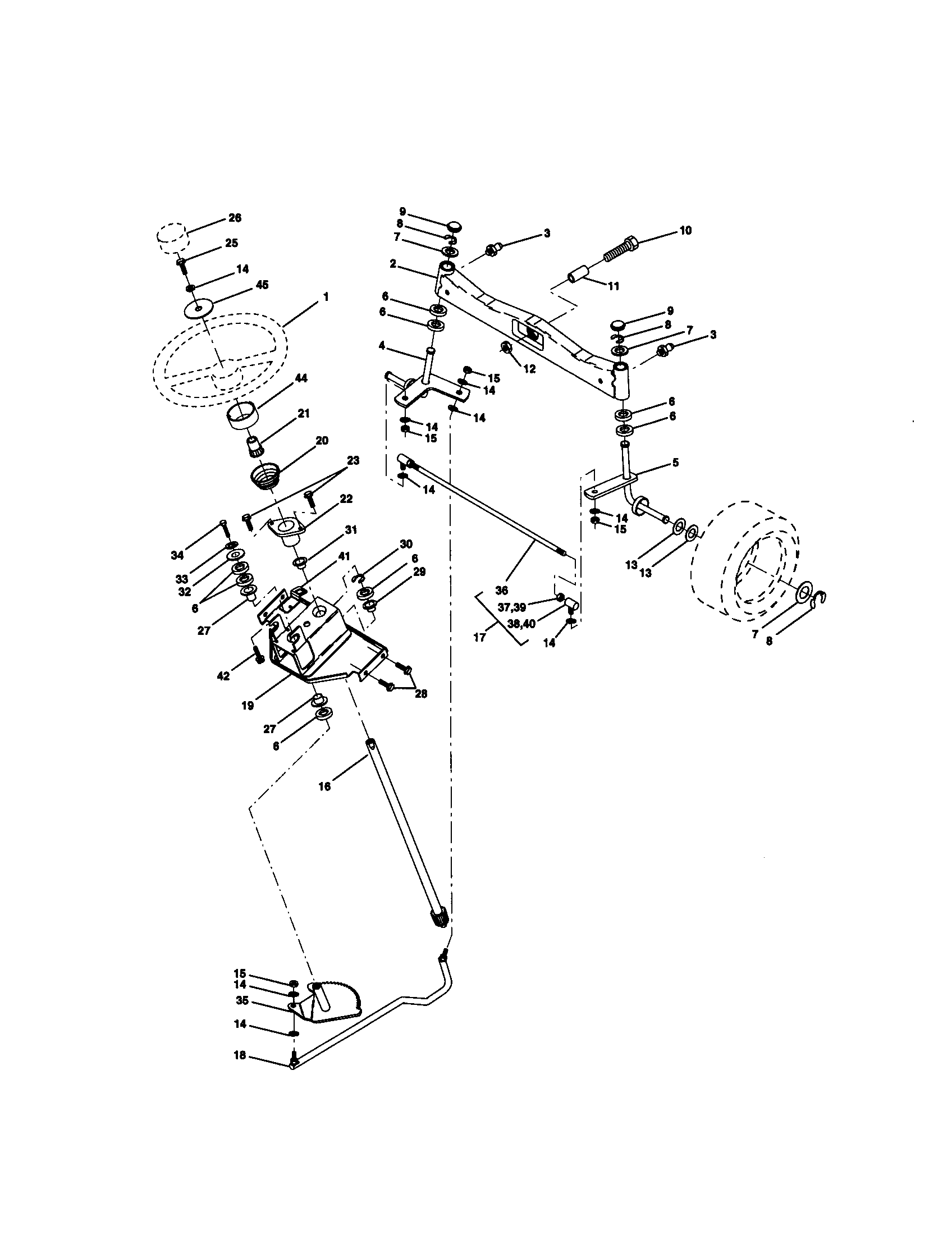

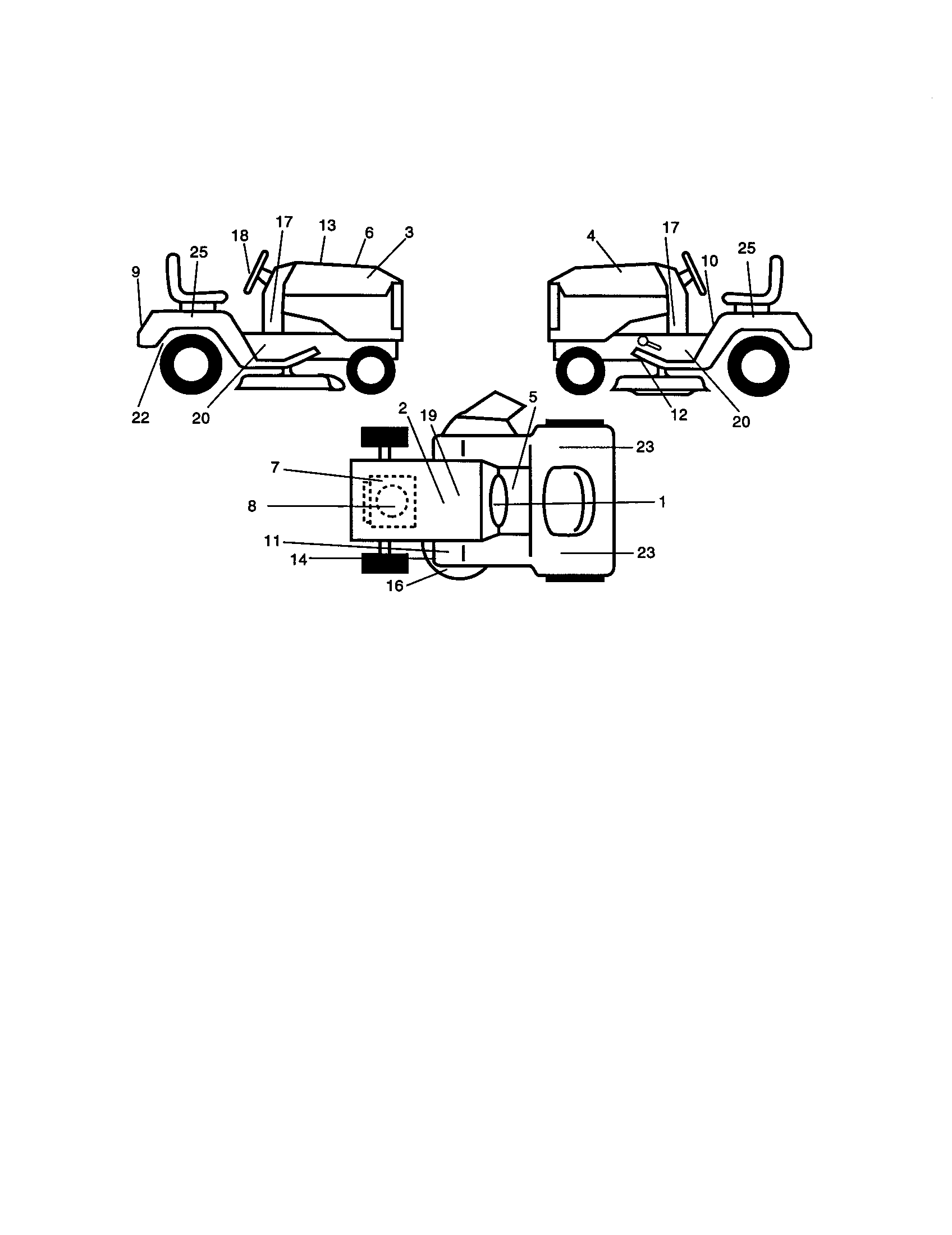

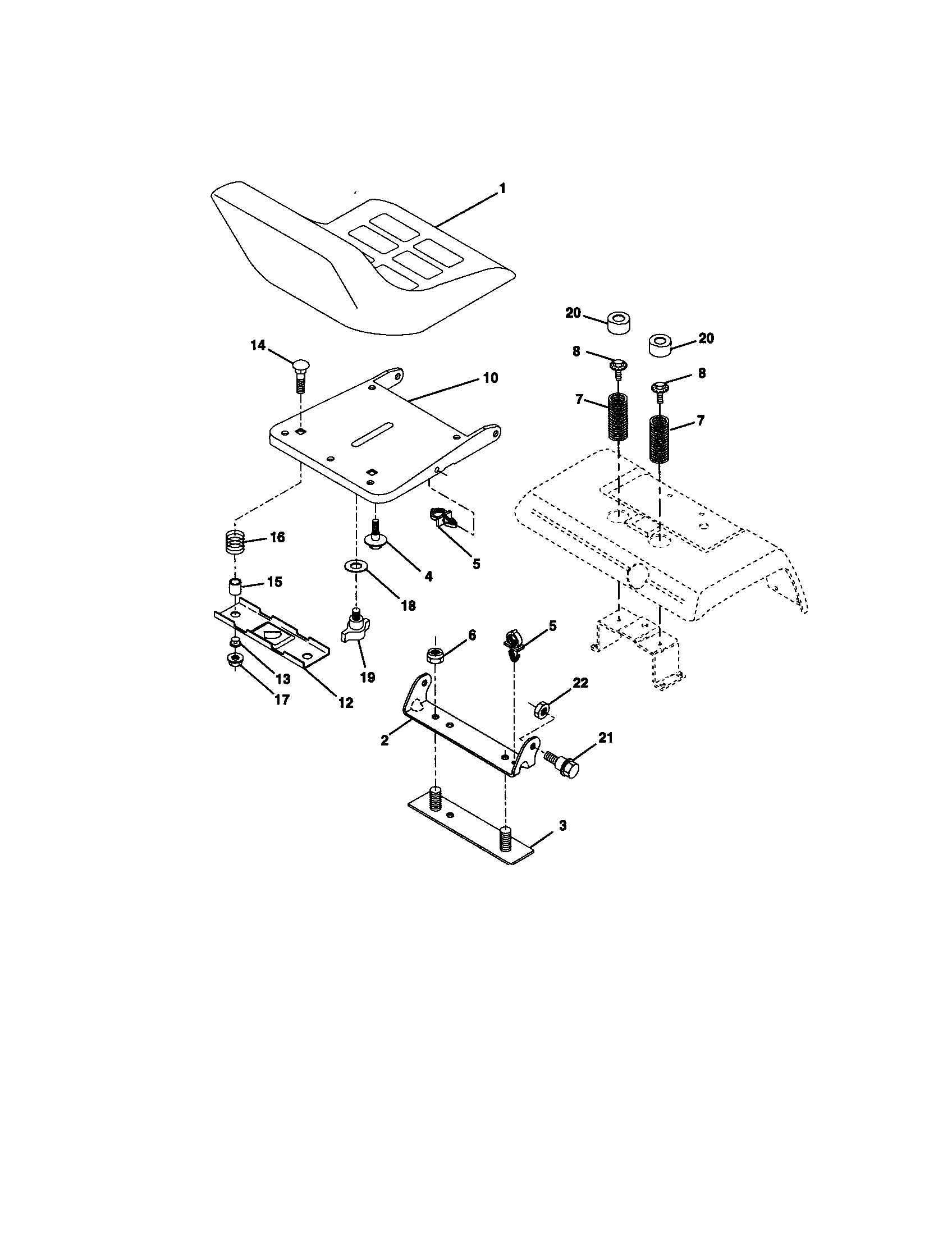

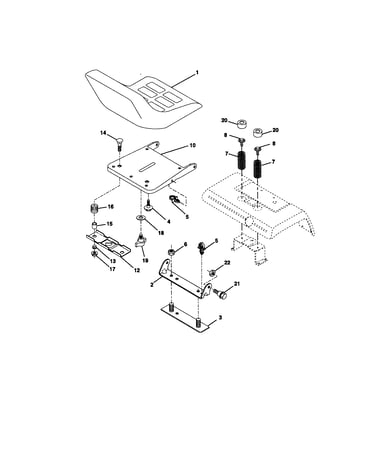

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 423 parts  |
Lawn Tractor V-belt 144959
#47

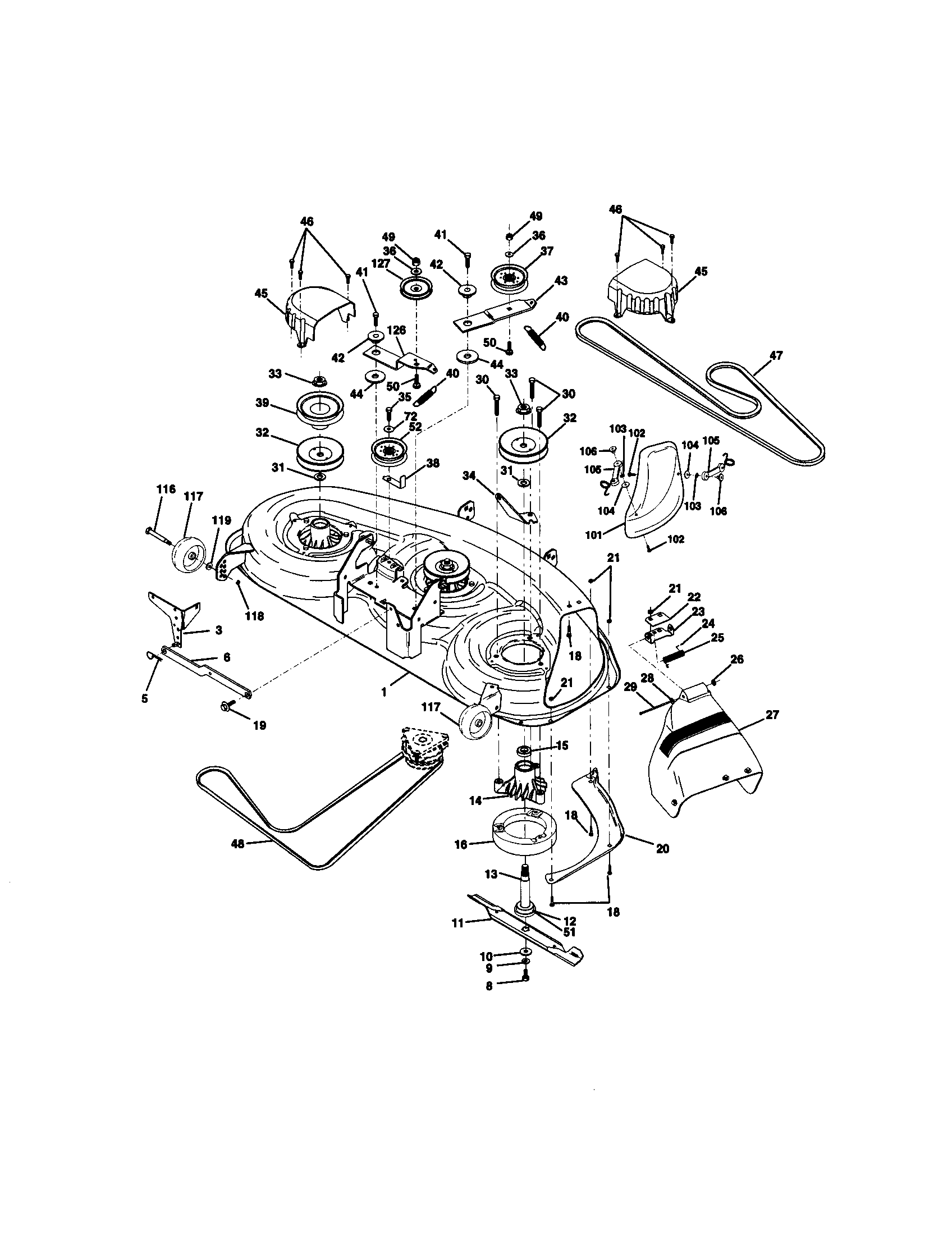

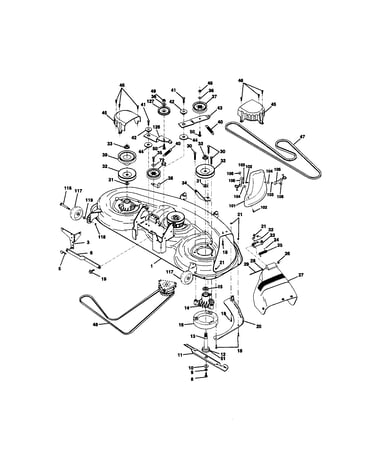

Mower deck diagram

Lawn tractor v-belt

Part #144959

Replaced by #532144959

?
Manufacturer substitution
This part replaces 144959. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$36.74 |
14% OFF Phone Price : $42.74
In Stock
Hub Cap 104757X
#8

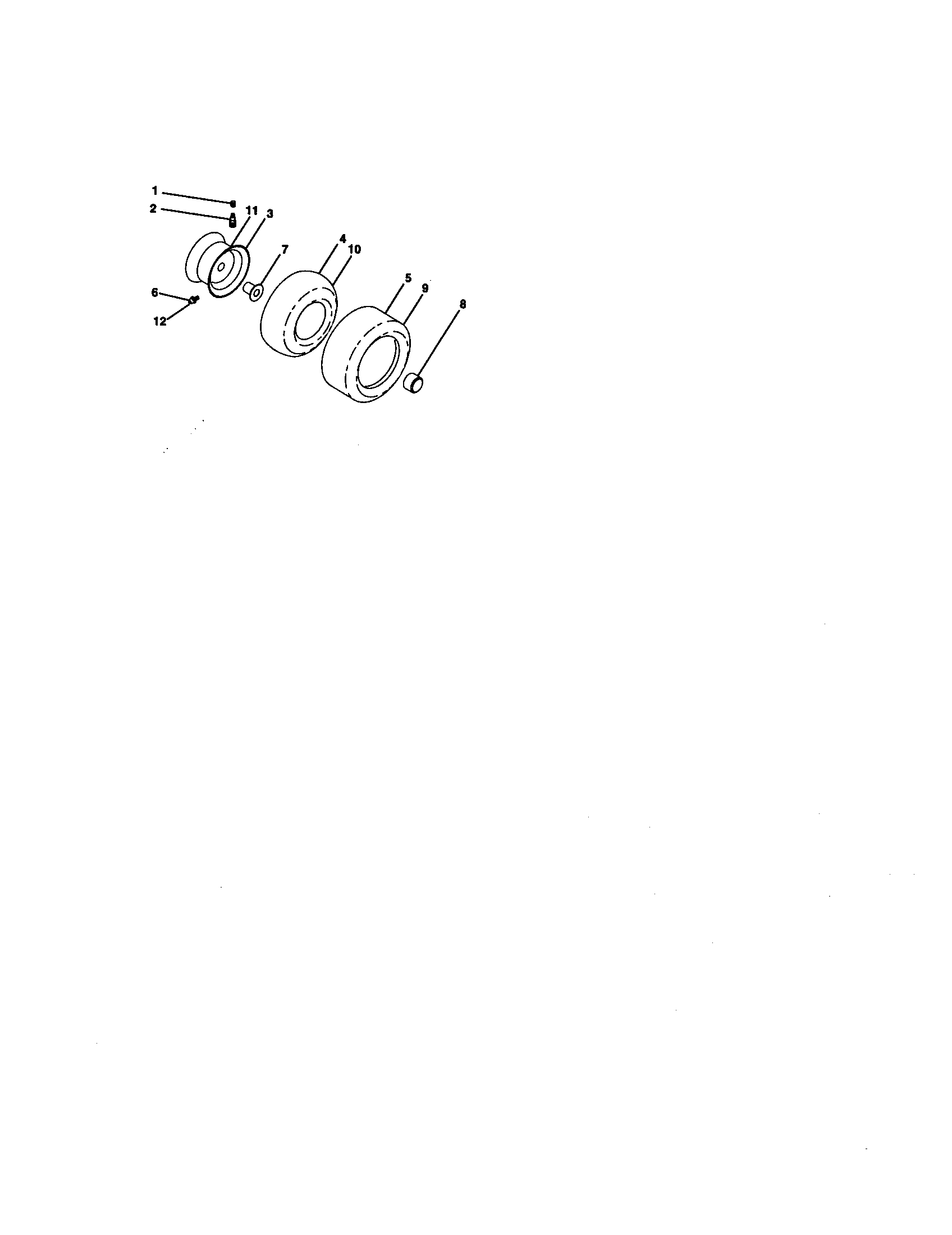

Wheels and tires diagram

Hub cap

Part #104757X

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 73900600
#117

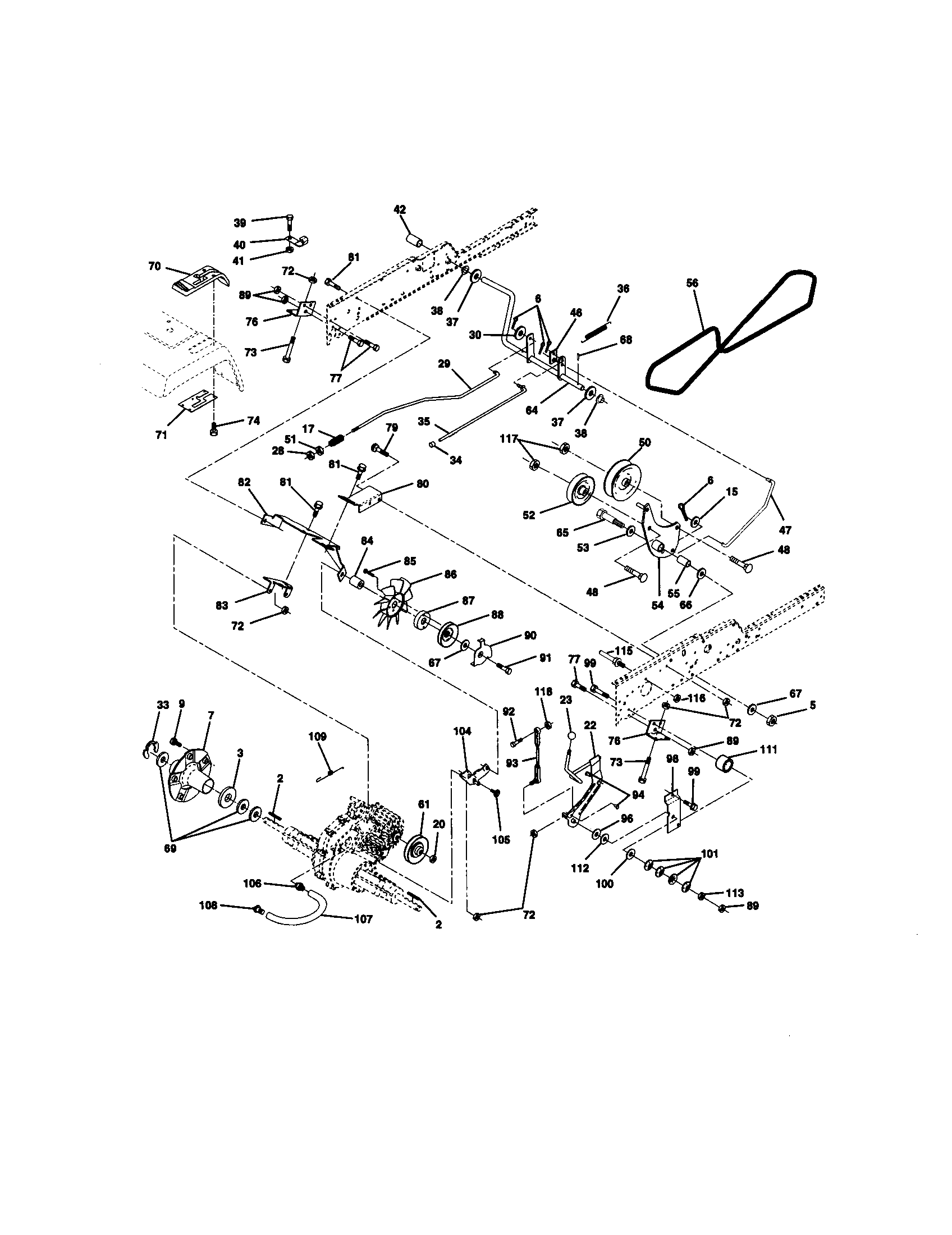

Ground drive diagram

Lock nut

Part #73900600

Replaced by #532409149

?
Manufacturer substitution
This part replaces 73900600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hex Flange Lock Nut 145212
#70

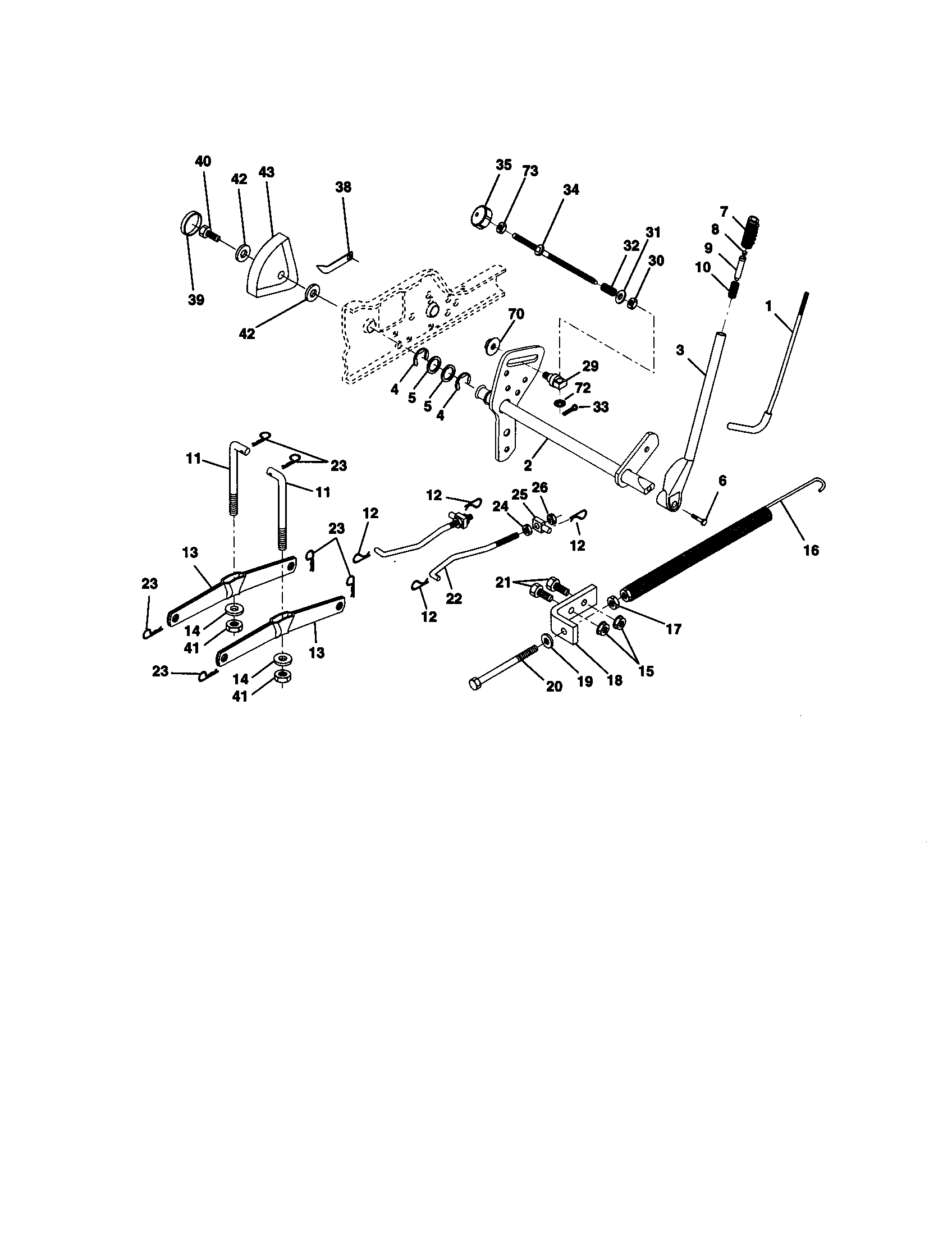

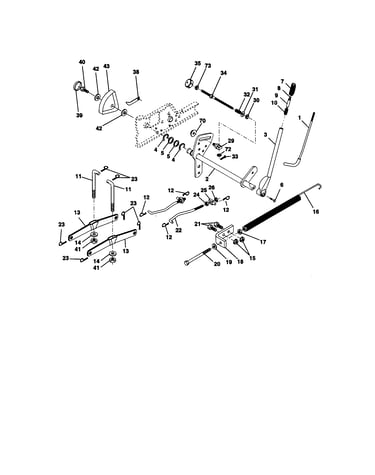

Lift assembly diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Screw 138776
#106

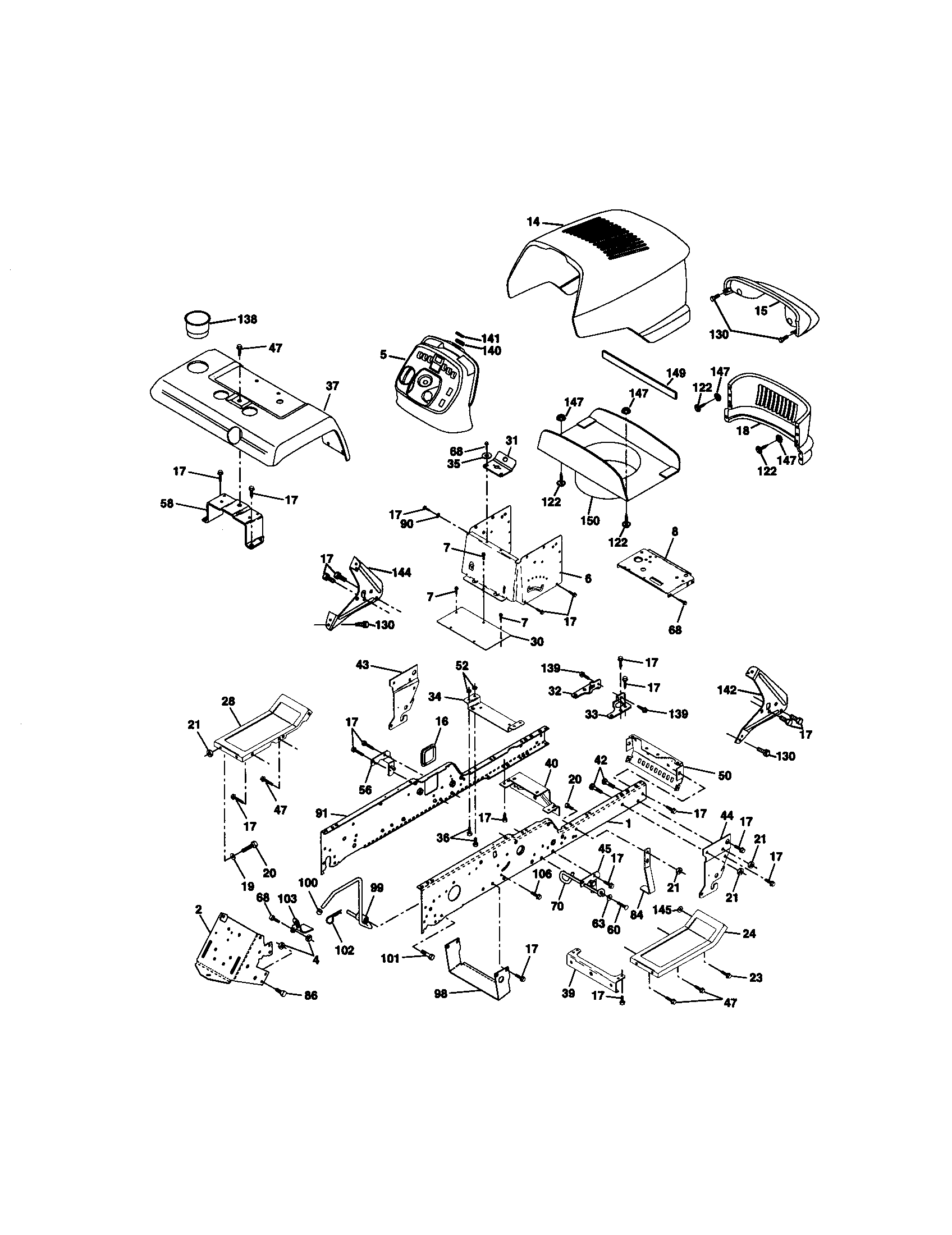

Chassis and enclosures diagram

Screw

Part #138776

Replaced by #584953901

?
Manufacturer substitution
This part replaces 138776. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Washer Head Thread Rolling Screw 157722
#30

Mower deck diagram

Washer head thread rolling screw

Part #157722

Replaced by #584953901

?
Manufacturer substitution
This part replaces 157722. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Solenoid 145673
#43

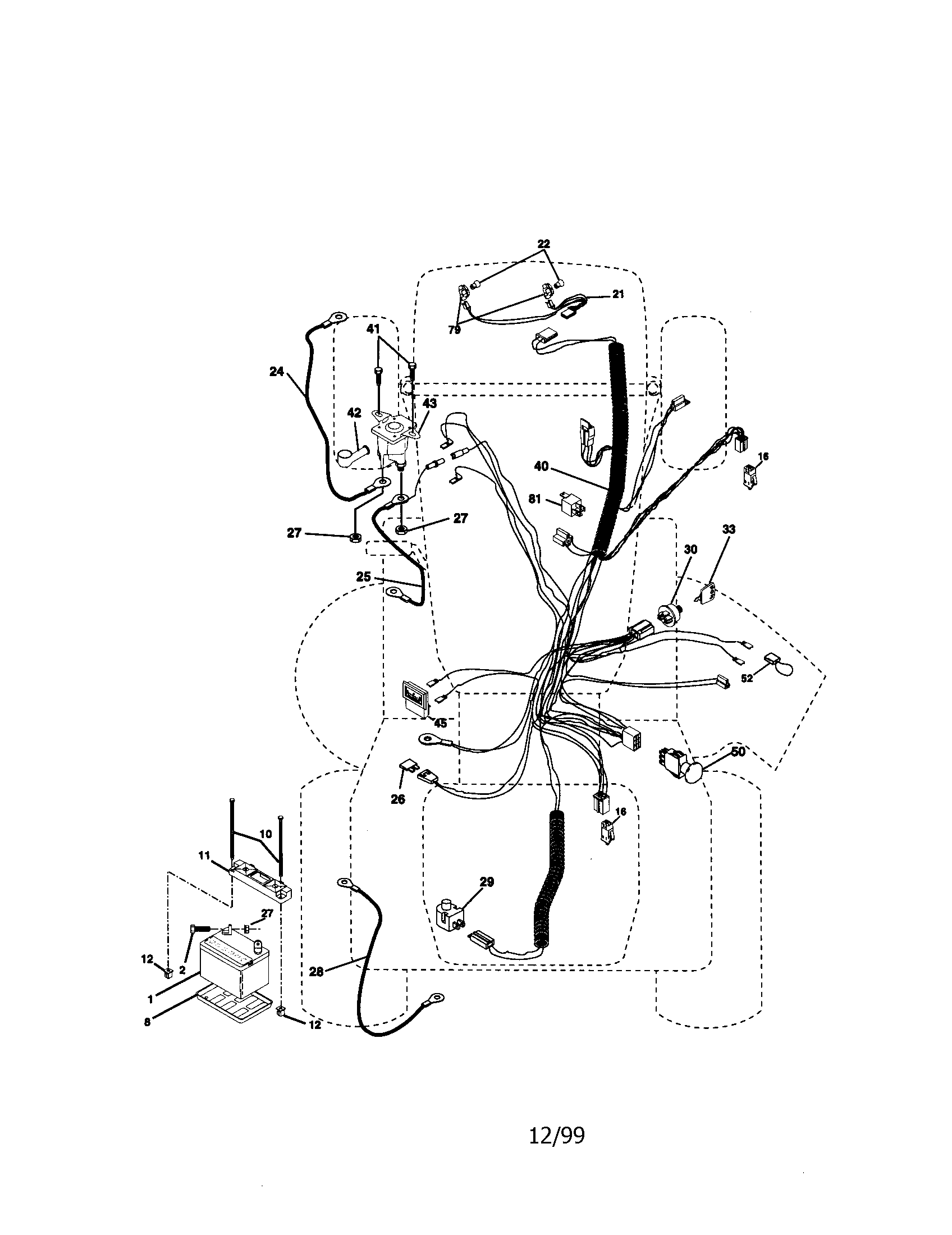

Electrical diagram

Solenoid

Part #145673

Replaced by #532146154

?
Manufacturer substitution
This part replaces 145673. Substitute parts can look different from the original.
BEST SELLER
$24.60 |
20% OFF Phone Price : $30.60
In Stock
Switch 169416
#50

Electrical diagram

Switch

Part #169416

Replaced by #582107601

?
Manufacturer substitution
This part replaces 169416. Substitute parts can look different from the original.
BEST SELLER
$30.76 |
16% OFF Phone Price : $36.76
In Stock
Lawn Tractor Deflector Shield Hinge Rod 131491
#29

Mower deck diagram

Lawn tractor deflector shield hinge rod

Part #131491

Replaced by #595297001

?
Manufacturer substitution
This part replaces 131491. Substitute parts can look different from the original.
BEST SELLER
$7.05 |
12% OFF Phone Price : $8.05
In Stock
Lawn Tractor Ground Drive Belt, 1/2 X 84-1/2-in 140218
#56

Ground drive diagram

Lawn tractor ground drive belt, 1/2 x 84-1/2-in

Part #140218

Replaced by #532140218

?
Manufacturer substitution
This part replaces 140218. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$49.99 |
11% OFF Phone Price : $55.99
In Stock
