Model # 139663853 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 139663853 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

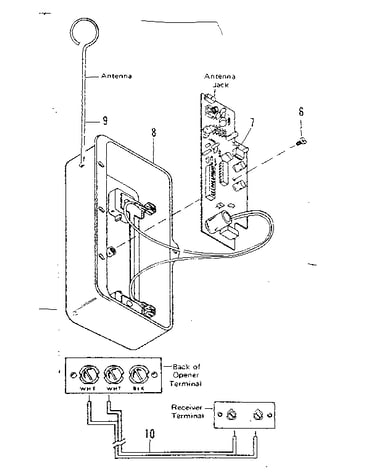

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 98 parts |

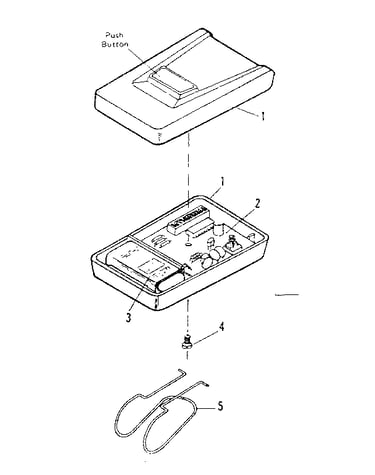

Transmitter diagram

Transmitter

Part #6634

The manufacturer no longer makes this part, and there's no substitute part

Relay

Part #160B43

The manufacturer no longer makes this part, and there's no substitute part

#30

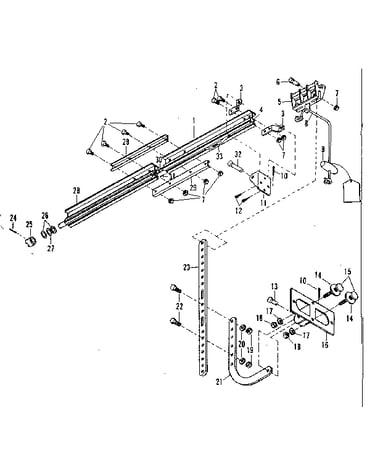

Rail assembly diagram

Rail assembly

Part #1C2277

The manufacturer no longer makes this part, and there's no substitute part

#11A

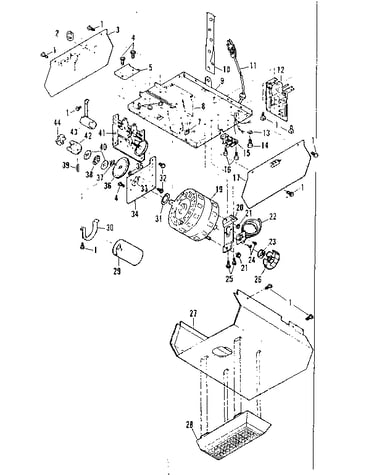

Chassis assembly diagram

Terminal kit

Part #STD364000

The manufacturer no longer makes this part, and there's no substitute part

#20

Rail assembly diagram

Lockwasher, 3/8"

Part #STD551137

The manufacturer no longer makes this part, and there's no substitute part

#24

Rail assembly diagram

Roll pin, 1/8"x7/8"

Part #STD571210

The manufacturer no longer makes this part, and there's no substitute part

#21

Rail assembly diagram

Door arm

Part #178B23

The manufacturer no longer makes this part, and there's no substitute part

#11

Chassis assembly diagram

Line cord assy.

Part #STD364939

The manufacturer no longer makes this part, and there's no substitute part

#16

Rail assembly diagram

Door bracket

Part #12B198

The manufacturer no longer makes this part, and there's no substitute part

#19

Chassis assembly diagram

Motor

Part #123D33

The manufacturer no longer makes this part, and there's no substitute part
