Model # 315174730 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315174730 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |

Red Lead 970793-008
#32

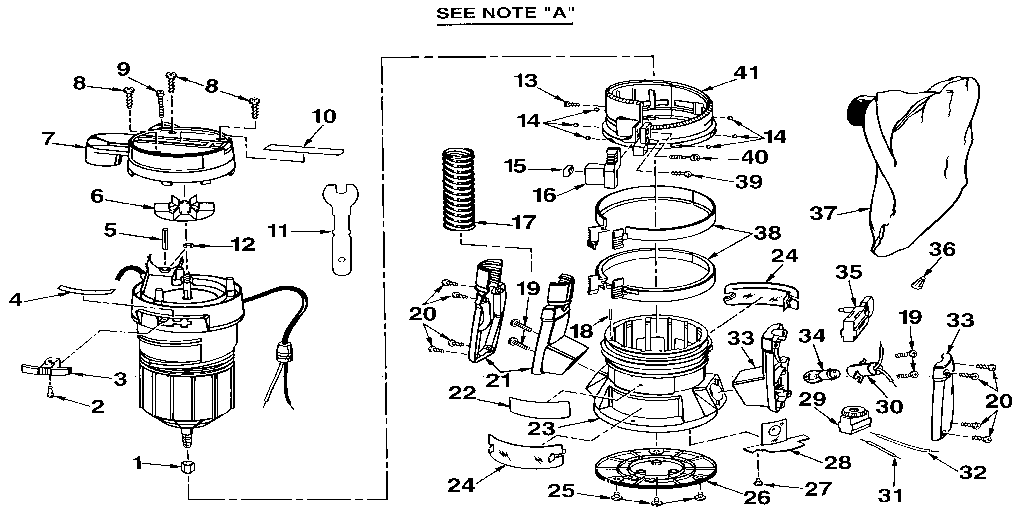

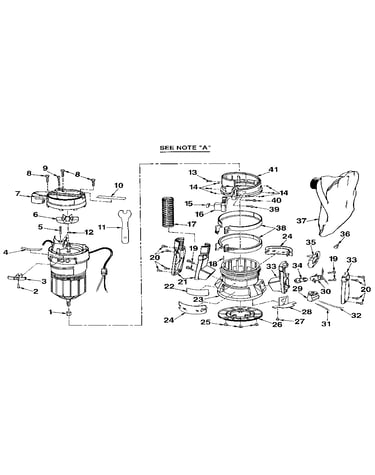

Base assembly diagram

Red lead

Part #970793-008

The manufacturer no longer makes this part, and there's no substitute part

Screw 989684-001
#27

Base assembly diagram

Screw

Part #989684-001

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly 970699-000
#21

Base assembly diagram

Handle assembly

Part #970699-000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose 610966-001
#17

Base assembly diagram

Vacuum hose

Part #610966-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Brg 621221-002
#21

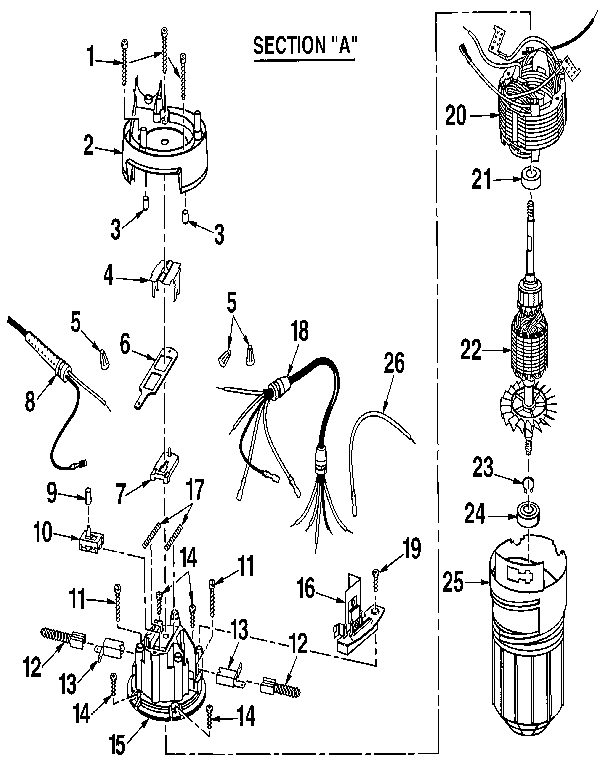

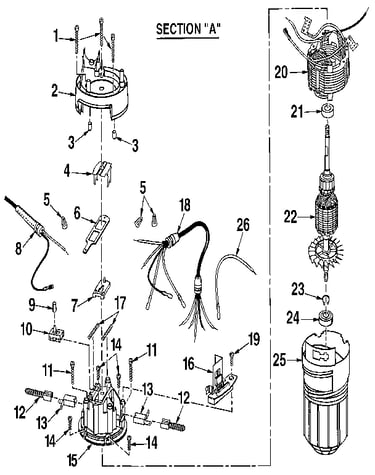

Motor assembly diagram

Ball brg

Part #621221-002

The manufacturer no longer makes this part, and there's no substitute part

Router Retainer Clip 989573-001
#4

Motor assembly diagram

Router retainer clip

Part #989573-001

The manufacturer no longer makes this part, and there's no substitute part

End Cap 970517-001
#7

Base assembly diagram

End cap

Part #970517-001

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 941401-835
#18

Base assembly diagram

Roll pin

Part #941401-835

The manufacturer no longer makes this part, and there's no substitute part

Stop Ring 970505-001
#38

Base assembly diagram

Stop ring

Part #970505-001

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 970702-001
#22

Base assembly diagram

Logo plate

Part #970702-001

The manufacturer no longer makes this part, and there's no substitute part
