Model # KFPW763OB0 Official KitchenAid architect food processor

Here are the diagrams and repair parts for Official KitchenAid KFPW763OB0 architect food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Food Processor Scraper 8211760
#1

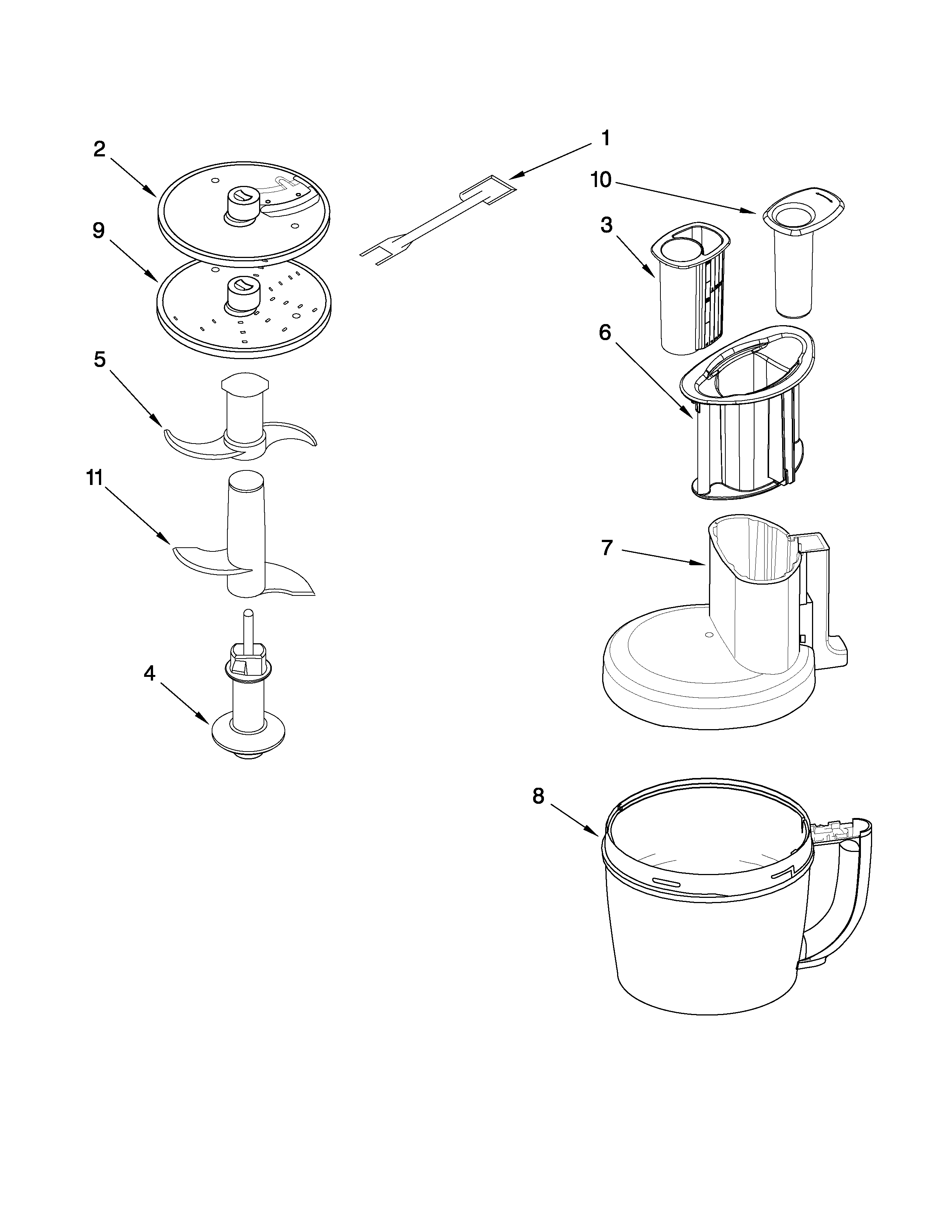

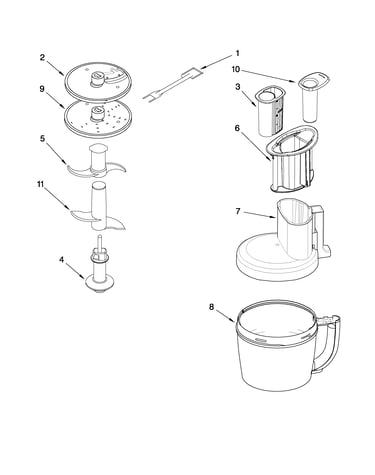

Attachment parts diagram

Food processor scraper

Part #8211760

$25.79 |
19% OFF Phone Price : $31.79
In Stock
Power Cord 8211855
#21

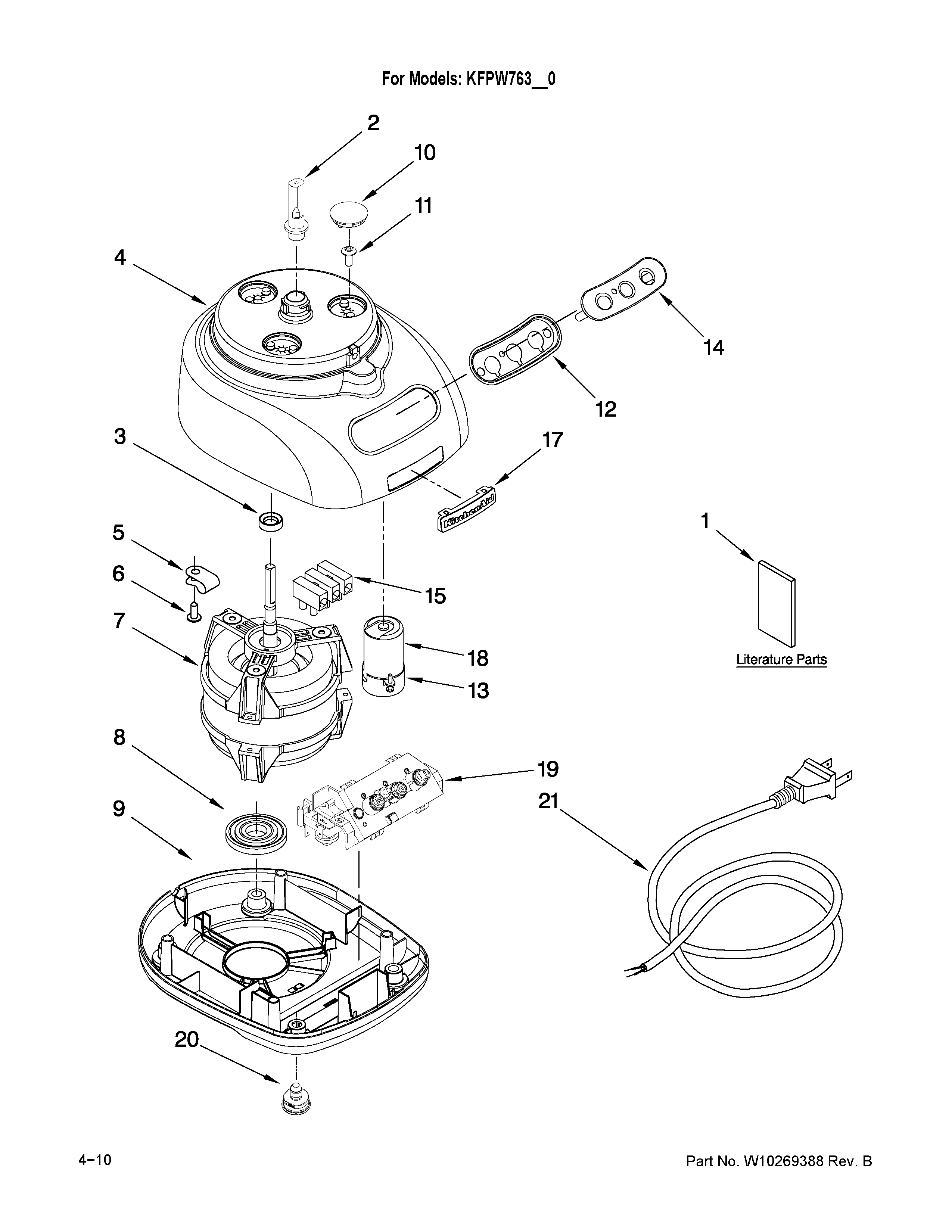

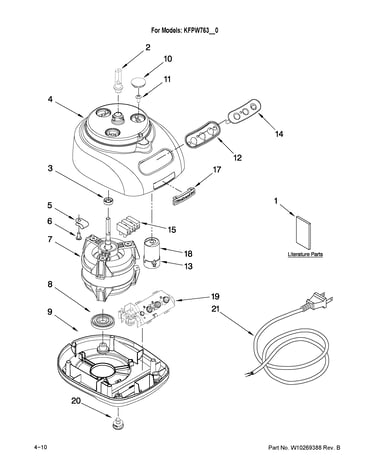

Motor and housing parts diagram

Power cord

Part #8211855

Replaced by #W10451329

?
Manufacturer substitution
This part replaces 8211855. Substitute parts can look different from the original.
$32.09
In Stock
Clamp 8211610
#5

Motor and housing parts diagram

Clamp

Part #8211610

Replaced by #2185825

?
Manufacturer substitution
This part replaces 8211610. Substitute parts can look different from the original.
$29.89
In Stock
Food Processor Storage Box W10186743
#NI

Attachment parts diagram

Food processor storage box

Part #W10186743

The manufacturer no longer makes this part, and there's no substitute part

Disc Grate W10280892
#NI

Attachment parts diagram

Disc grate

Part #W10280892

The manufacturer no longer makes this part, and there's no substitute part

Cover W10290865
#10

Motor and housing parts diagram

Cover

Part #W10290865

The manufacturer no longer makes this part, and there's no substitute part

Food Processor Bowl, Small 8211926
#NI

Attachment parts diagram

Food processor bowl, small

Part #8211926

The manufacturer no longer makes this part, and there's no substitute part

Mini Blade 8212012
#NI

Attachment parts diagram

Mini blade

Part #8212012

The manufacturer no longer makes this part, and there's no substitute part

Grommet 8212188
#8

Motor and housing parts diagram

Grommet

Part #8212188

The manufacturer no longer makes this part, and there's no substitute part

Blade W10187052
#11

Attachment parts diagram

Blade

Part #W10187052

The manufacturer no longer makes this part, and there's no substitute part
