Gas Walk-Behind Mower

Model # 917374541 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917374541 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 242 parts  |
Lawn & Garden Equipment Nut 409148
#33

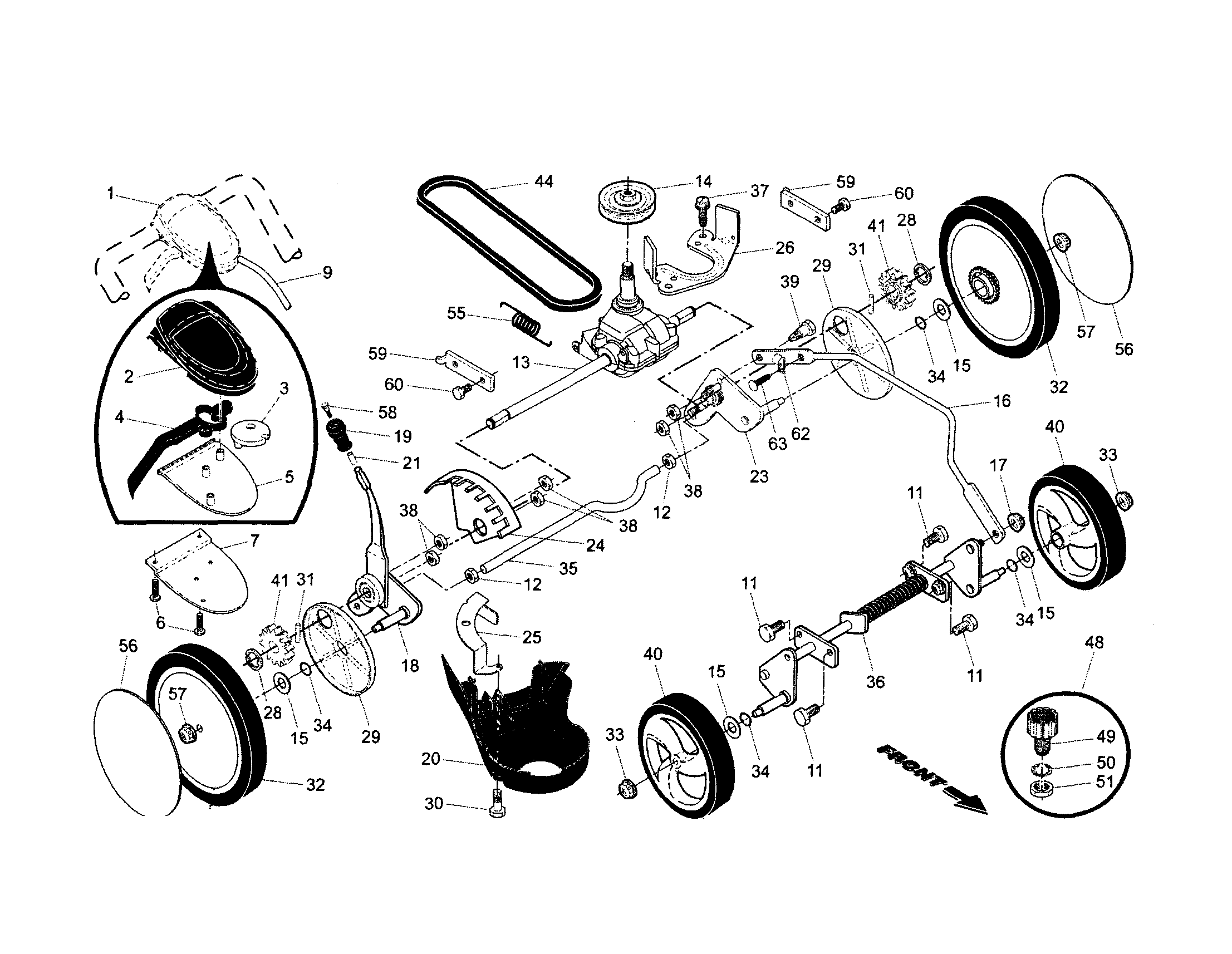

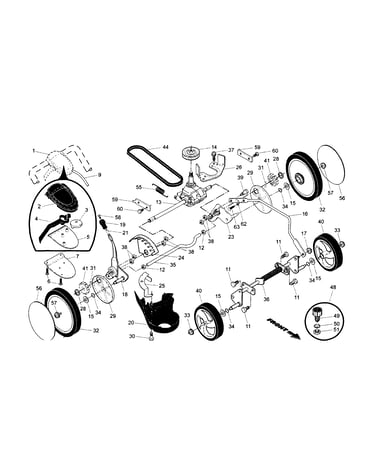

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Hex Flange Nut 409149
#57

Drive control/gear case/wheels diagram

Lawn mower hex flange nut

Part #409149

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409149. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Blade Adapter 421782
#46

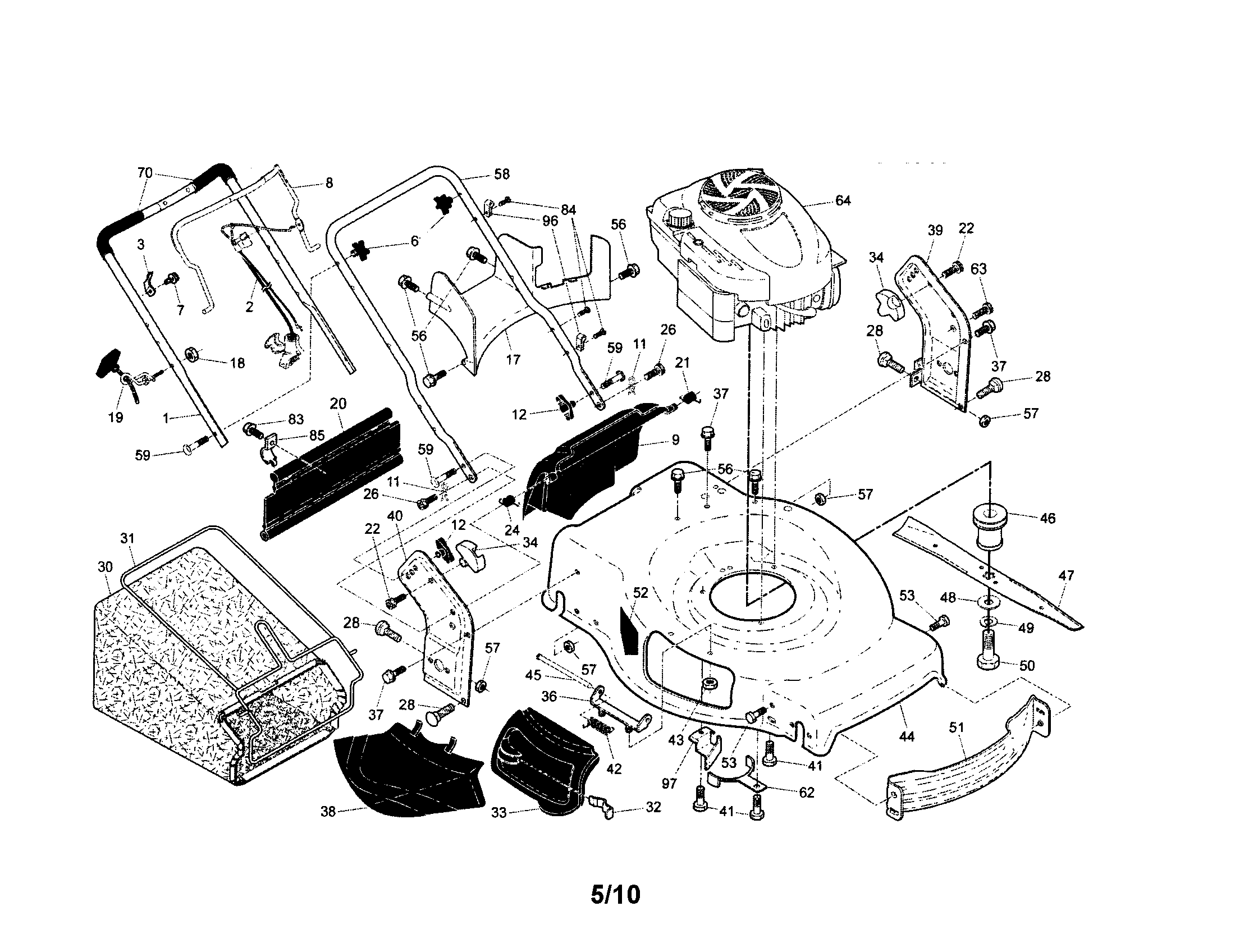

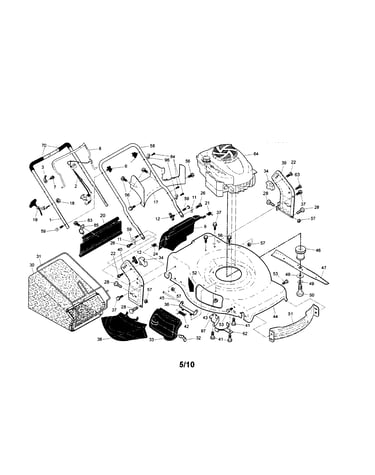

Engine/housing/handle diagram

Blade adapter

Part #421782

Replaced by #581473301

?
Manufacturer substitution
This part replaces 421782. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Hndl.knob.bl 189713X428
#12

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower Grass Bag Frame 419951
#31

Engine/housing/handle diagram

Lawn mower grass bag frame

Part #419951

Replaced by #585054702

?
Manufacturer substitution
This part replaces 419951. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$23.98 |
20% OFF Phone Price : $29.98
In Stock
Handle Bolt 191574
#59

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Drive Pawl 404845
#31

Drive control/gear case/wheels diagram

Drive pawl

Part #404845

Replaced by #532404845

?
Manufacturer substitution
This part replaces 404845. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Mulch Door Assembly 423358
#33

Engine/housing/handle diagram

Mulch door assembly

Part #423358

Replaced by #532420019

?
Manufacturer substitution
This part replaces 423358. Substitute parts can look different from the original.
BEST SELLER
$19.98 |
9% OFF Phone Price : $21.98
In Stock
Lawn Mower Drive Cable 427411
#9

Drive control/gear case/wheels diagram

Lawn mower drive cable

Part #427411

Replaced by #583441401

?
Manufacturer substitution
This part replaces 427411. Substitute parts can look different from the original.
BEST SELLER
$49.98 |
11% OFF Phone Price : $55.98
In Stock
Nut 132004
#18

Engine/housing/handle diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
