Model # 315269211 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315269211 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

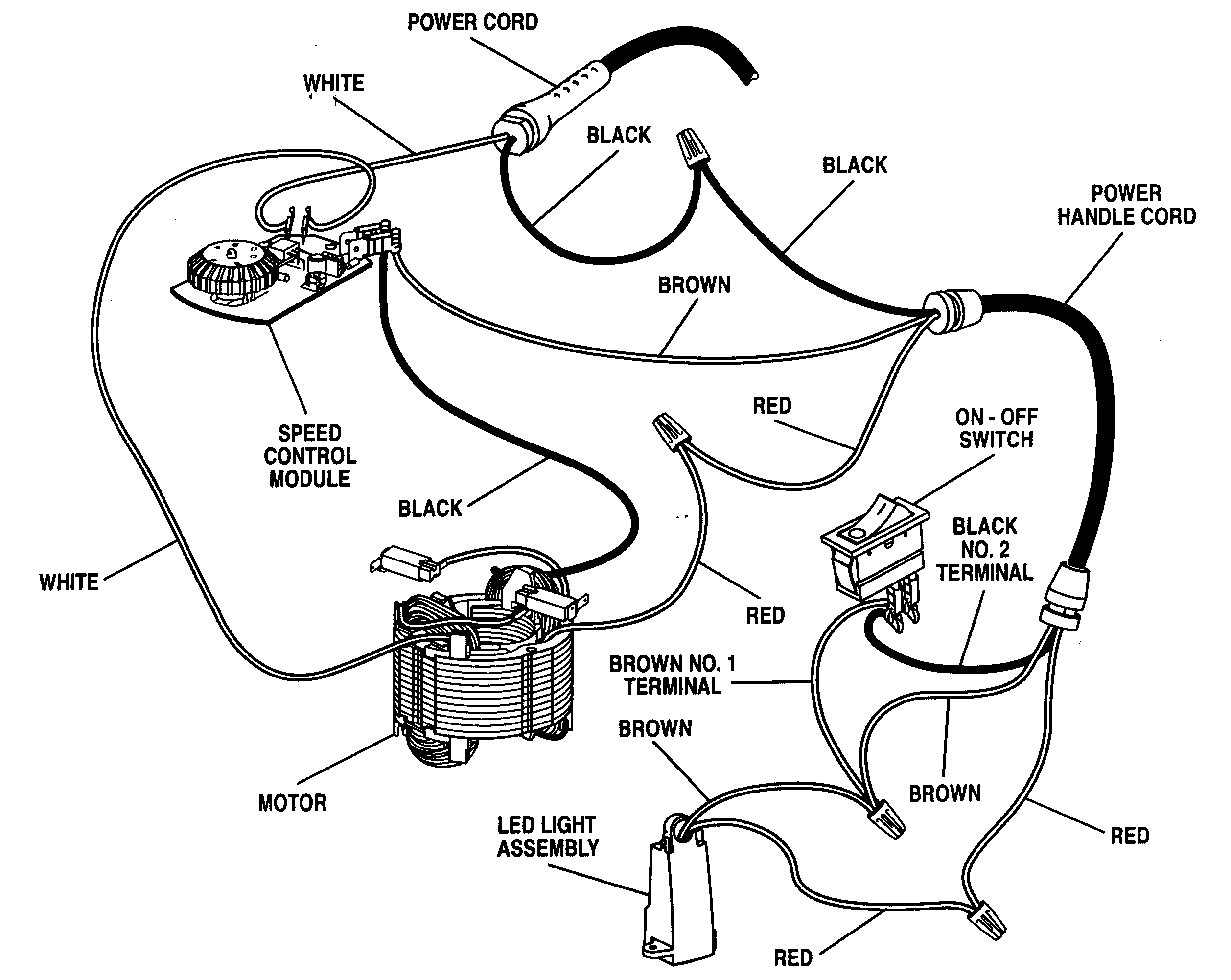

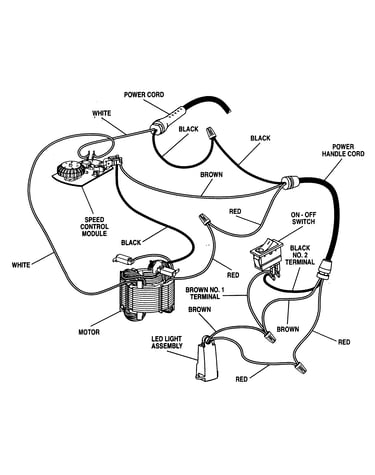

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 60 parts |

#15

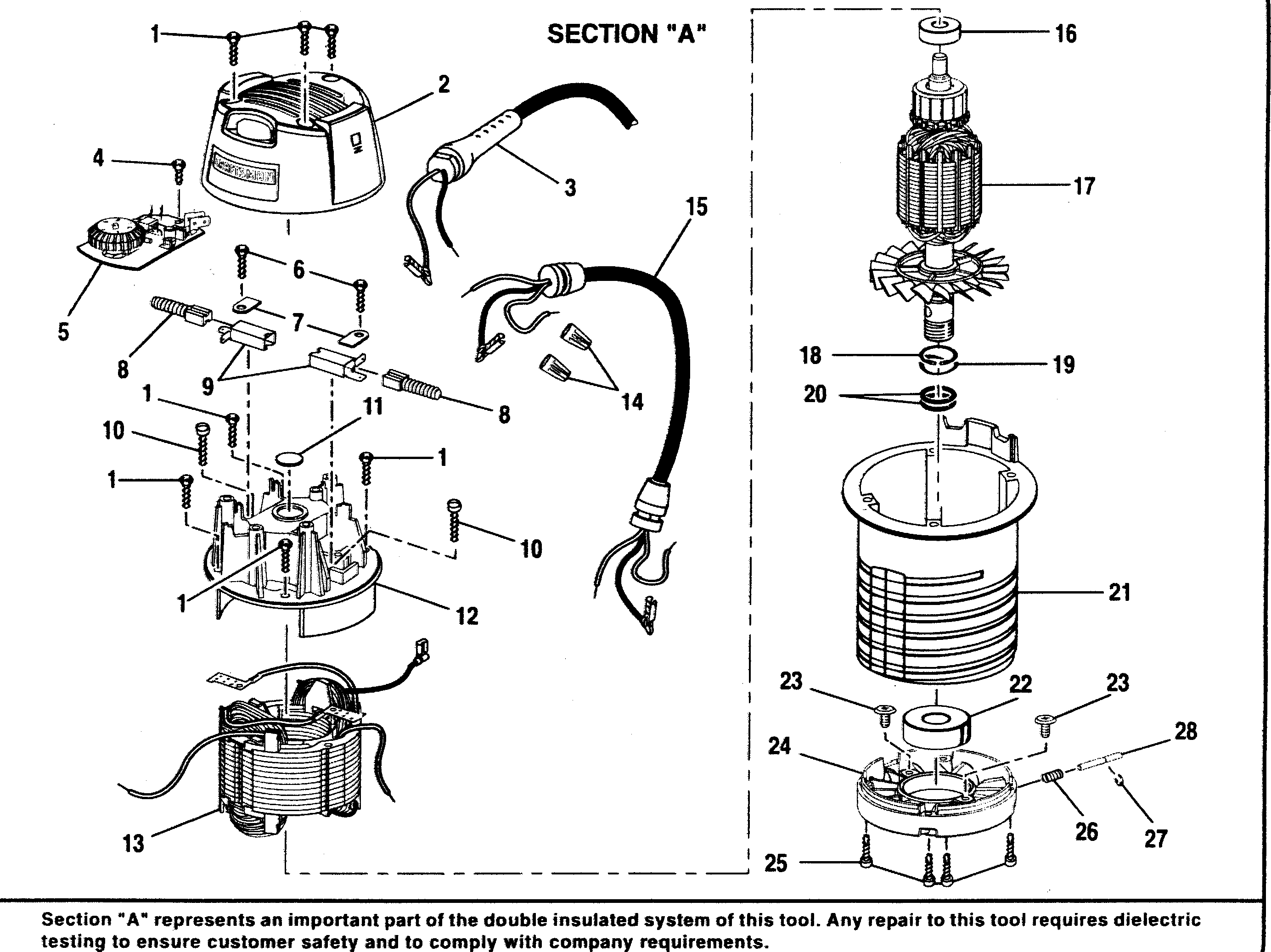

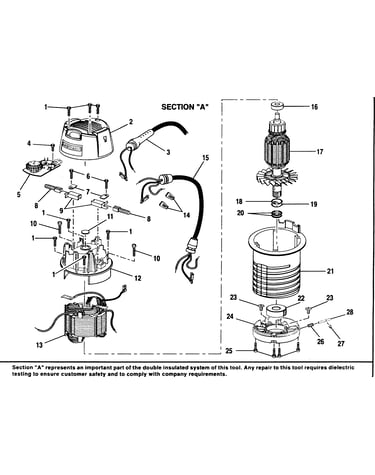

Router assy diagram

Cord/term

Part #290210002

The manufacturer no longer makes this part, and there's no substitute part

#18

Router assy diagram

Retaining ring

Part #680370001

The manufacturer no longer makes this part, and there's no substitute part

#23

Router assy diagram

Router screw, #10-32 x 3/8-in

Part #660324001

The manufacturer no longer makes this part, and there's no substitute part

#10

Router assy diagram

Screw

Part #660062004

The manufacturer no longer makes this part, and there's no substitute part

#25

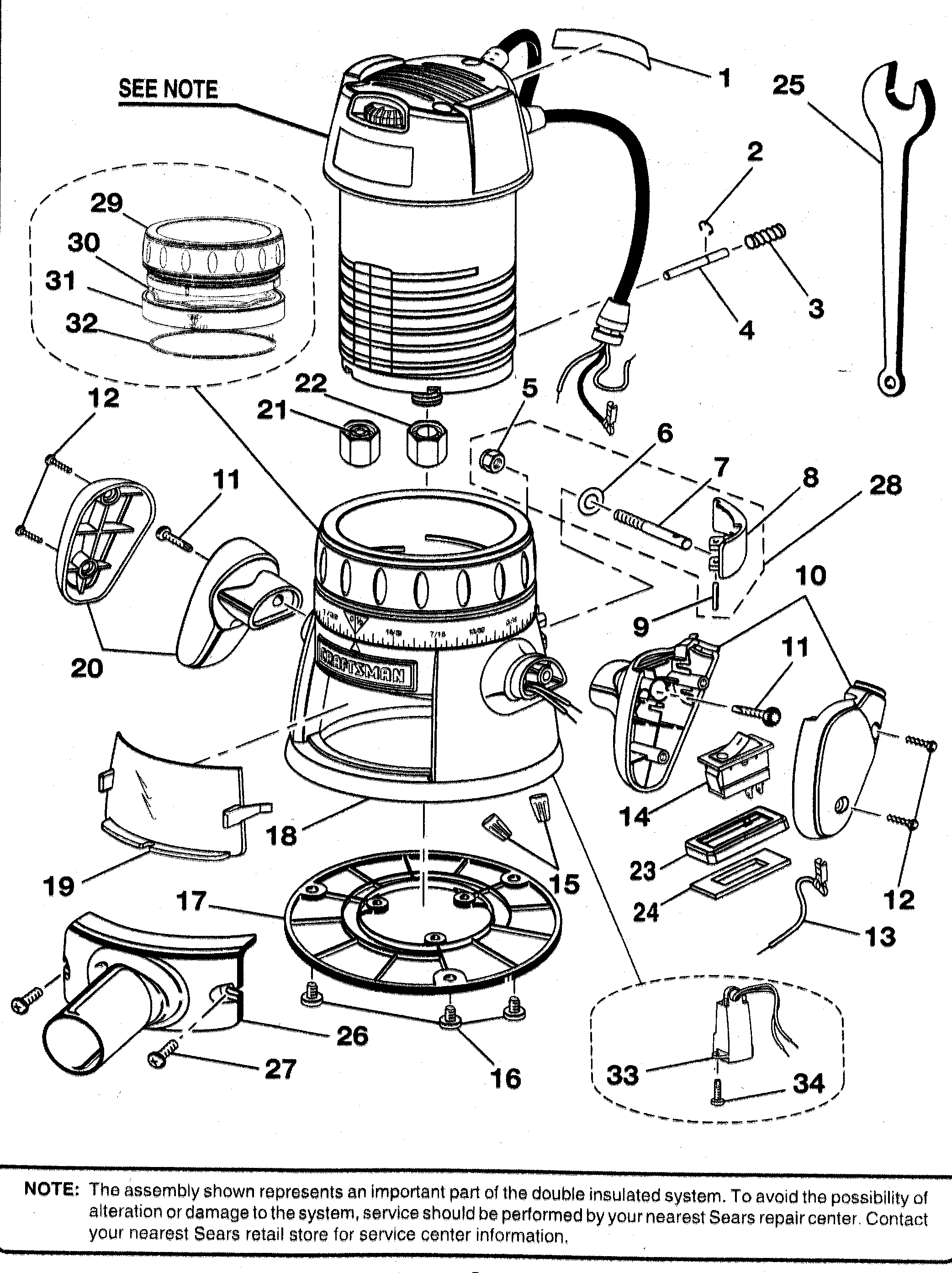

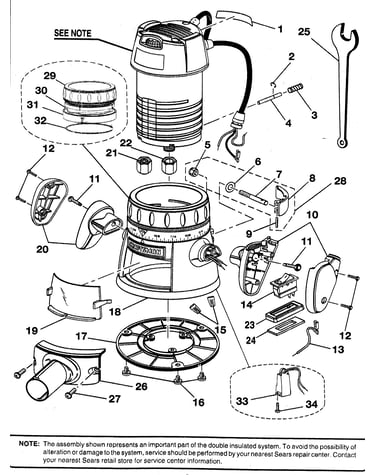

Motor assy diagram

Wrench

Part #670346001

The manufacturer no longer makes this part, and there's no substitute part

#14

Motor assy diagram

Switch

Part #760357001

The manufacturer no longer makes this part, and there's no substitute part

#30

Motor assy diagram

Spring

Part #511991001

The manufacturer no longer makes this part, and there's no substitute part

Lock pin

Part #671249001

The manufacturer no longer makes this part, and there's no substitute part

#11

Router assy diagram

Insulator

Part #900924001

The manufacturer no longer makes this part, and there's no substitute part

#17

Motor assy diagram

Router sub-base

Part #511983001

The manufacturer no longer makes this part, and there's no substitute part
