Model # KFC15M4AW0 Official Kelvinator chest freezer - 5995234522

Here are the diagrams and repair parts for Official Kelvinator KFC15M4AW0 chest freezer - 5995234522, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forKFC15M4AW0 Freestanding Freezers

  • Filter 5308000027
    #80

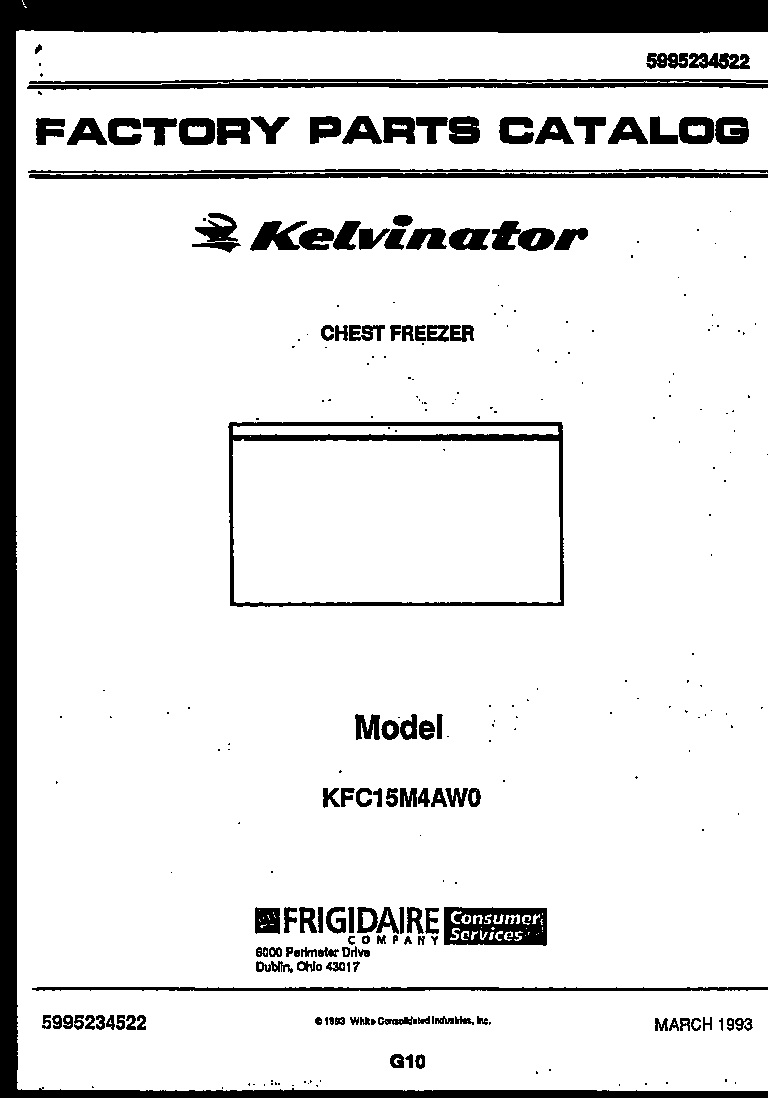

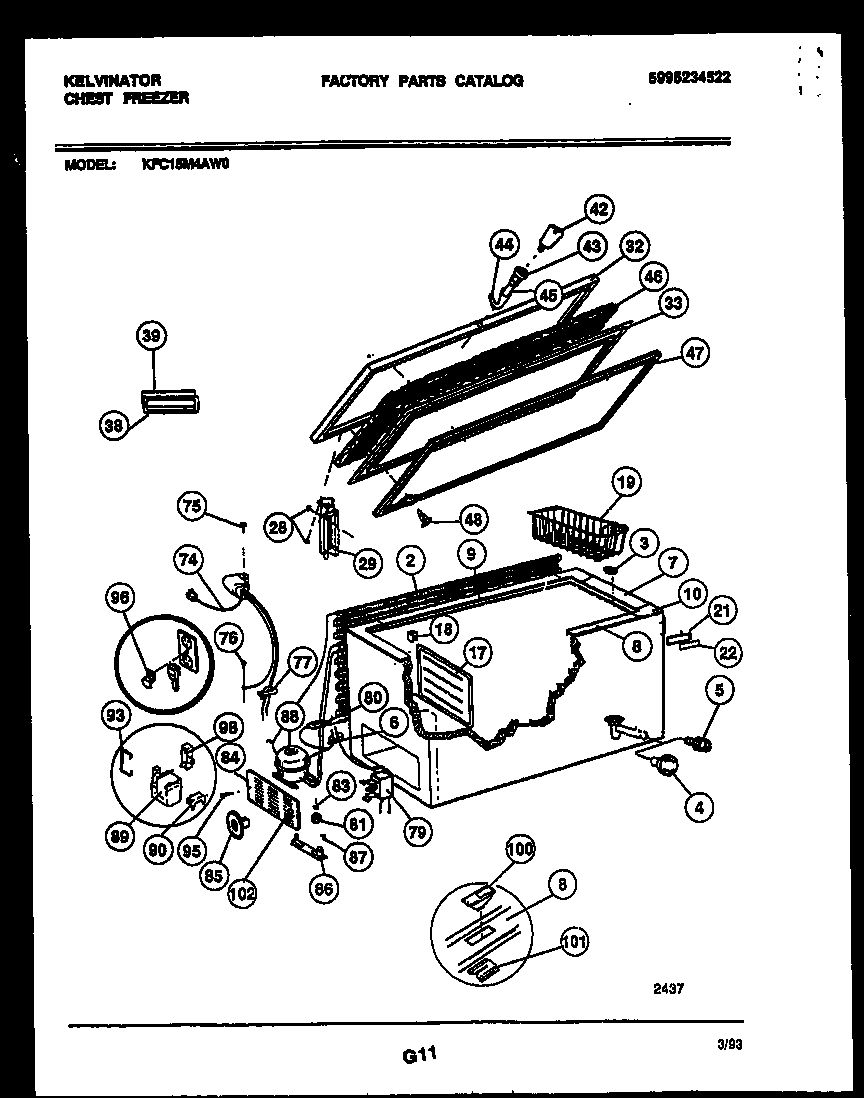

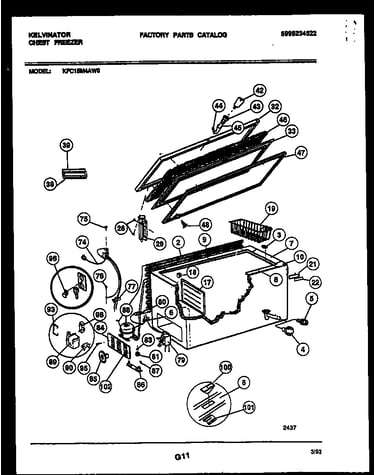

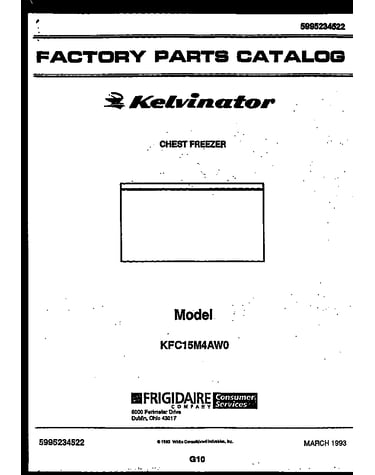

    Chest freezer parts diagram

    Filter

    Part #5308000027

    Replaced by #5303305677

    ?
    Manufacturer substitution
    This part replaces 5308000027. Substitute parts can look different from the original.
    BEST SELLER
    $12.47 |
    14% OFF Phone Price : $14.47
    In Stock
  • Key 5308037402
    #42

    Chest freezer parts diagram

    Key

    Part #5308037402

    Replaced by #297147700

    ?
    Manufacturer substitution
    This part replaces 5308037402. Substitute parts can look different from the original.
    3.82 (51)
    BEST SELLER
    $9.04 |
    10% OFF Phone Price : $10.04
    In Stock
  • Grommet 215175000
    #81

    Chest freezer parts diagram

    Grommet

    Part #215175000

    Replaced by #218513300

    ?
    Manufacturer substitution
    This part replaces 215175000. Substitute parts can look different from the original.
    $37.15 |
    14% OFF Phone Price : $43.15
    In Stock
  • Freezer Wire Harness Clamp 5303212614
    #77

    Chest freezer parts diagram

    Freezer wire harness clamp

    Part #5303212614

    This item is not returnable
    $3.37
    In Stock
  • Freezer Inner Door Panel Rivet 5303212828
    #48

    Chest freezer parts diagram

    Freezer inner door panel rivet

    Part #5303212828

    2 (3)
    $18.88 |
    10% OFF Phone Price : $20.88
    In Stock
  • Freezer Condenser Coil 5303280307
    #2

    Chest freezer parts diagram

    Freezer condenser coil

    Part #5303280307

    $556.75
    In Stock
  • Chest Freezer Temperature Control 5303212610
    #79

    Chest freezer parts diagram

    Chest freezer temperature control

    Part #5303212610

    Replaced by #5304496560

    ?
    Manufacturer substitution
    This part replaces 5303212610. Substitute parts can look different from the original.
    4 (3)
    $36.92 |
    14% OFF Phone Price : $42.92
    In Stock
  • Screw 08009412
    Screw

    Part #08009412

    Replaced by #216036601

    ?
    Manufacturer substitution
    This part replaces 08009412. Substitute parts can look different from the original.
    $14.74
    In Stock
  • Screw 5303161215
    #95

    Chest freezer parts diagram

    Screw

    Part #5303161215

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor 3017761
    #98

    Chest freezer parts diagram

    Capacitor

    Part #3017761

    Replaced by #5304464438

    ?
    Manufacturer substitution
    This part replaces 3017761. Substitute parts can look different from the original.
    5 (7)
    $29.53 |
    17% OFF Phone Price : $35.53
    In Stock
