Model # 196205070 Official Craftsman plasma cutter

Here are the diagrams and repair parts for Official Craftsman 196205070 plasma cutter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

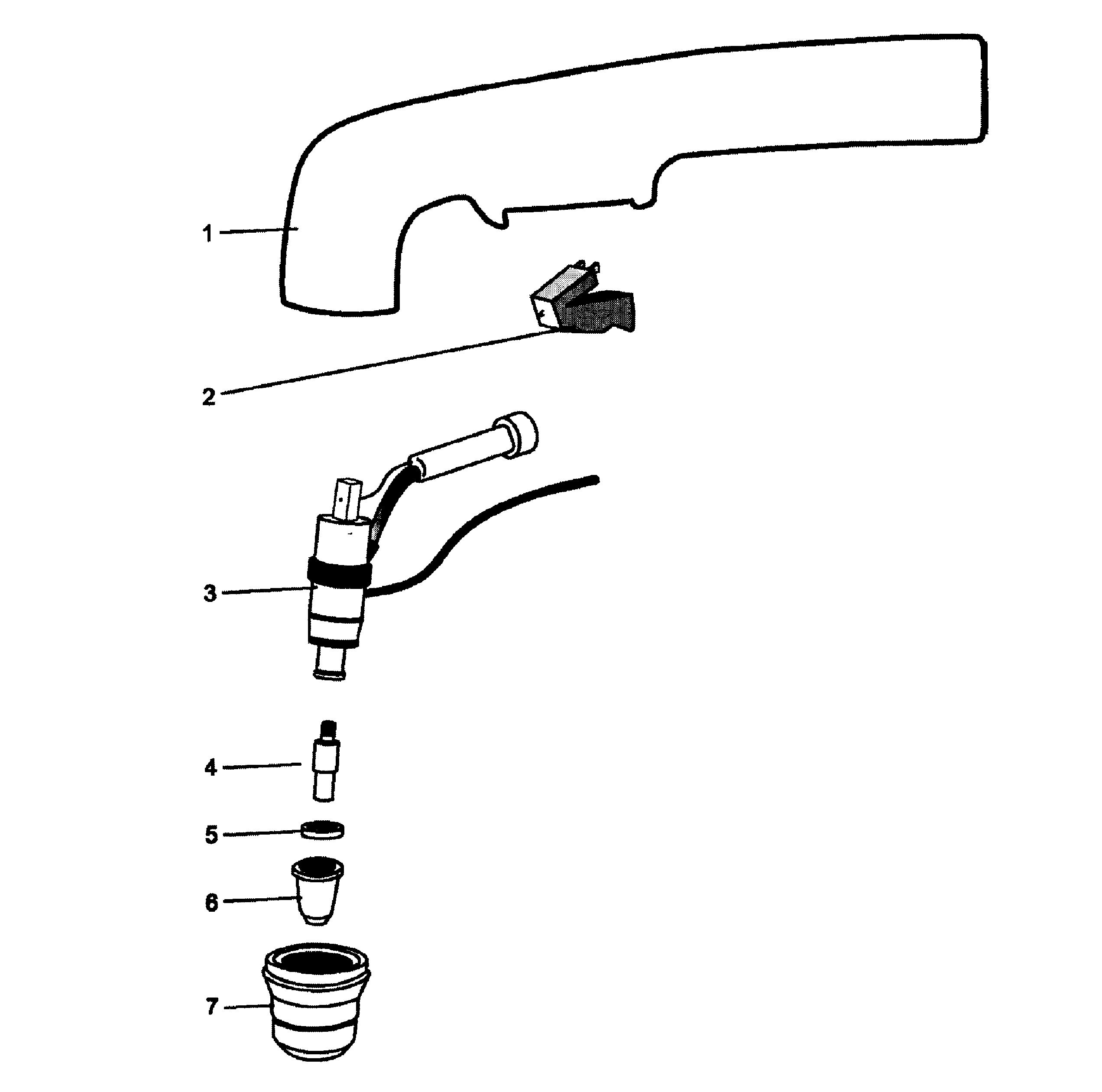

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Craftsman Grnd Cable WE20507-43210028
#59

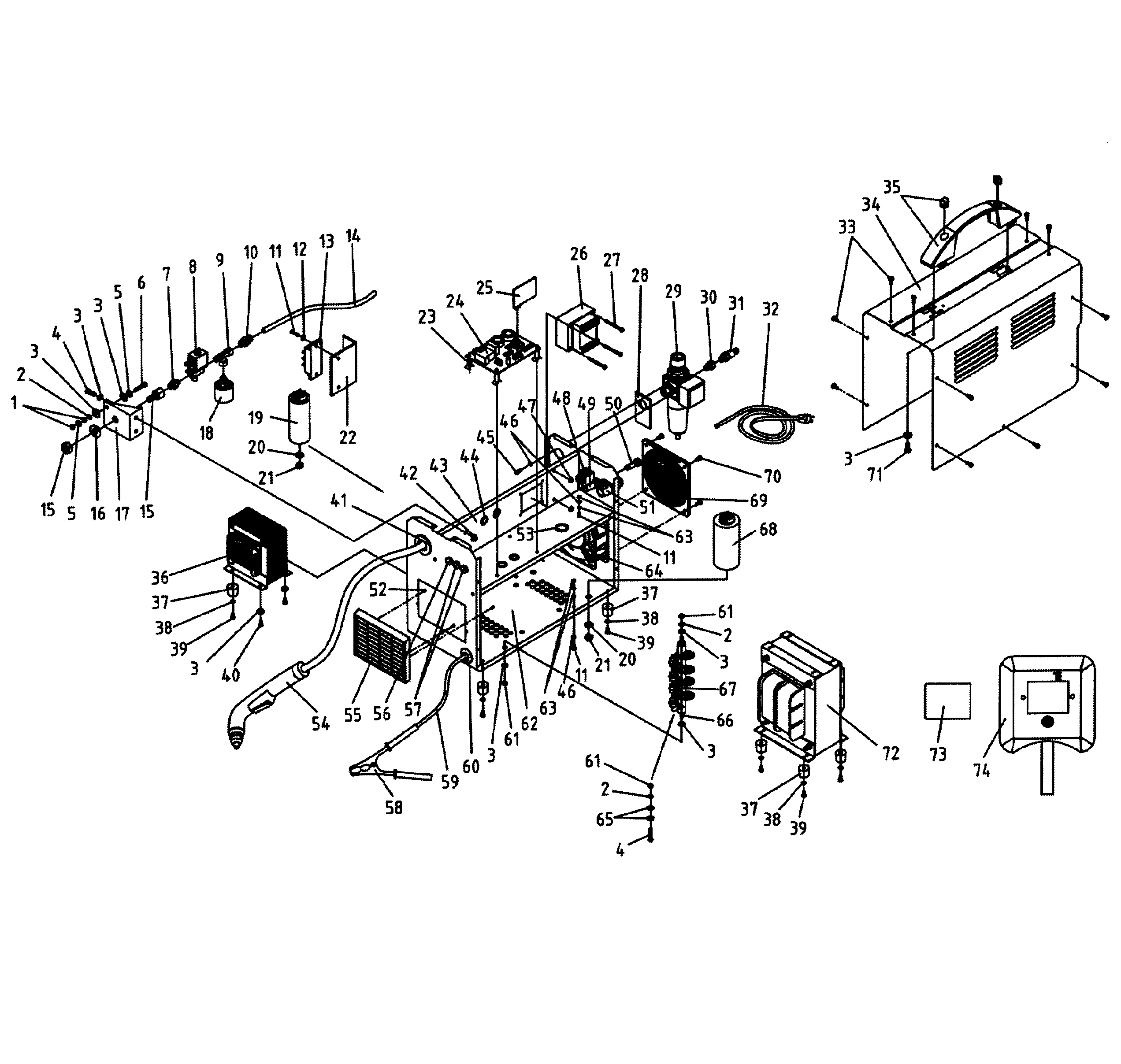

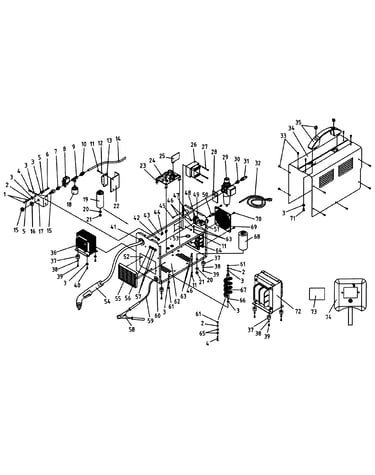

Plasma cutter diagram

Craftsman grnd cable

Part #WE20507-43210028

The manufacturer no longer makes this part, and there's no substitute part

Spacer WE20507-30490047
#28

Plasma cutter diagram

Spacer

Part #WE20507-30490047

The manufacturer no longer makes this part, and there's no substitute part

Screw-tapping WE20507-21020002
#52

Plasma cutter diagram

Screw-tapping

Part #WE20507-21020002

The manufacturer no longer makes this part, and there's no substitute part

Handle-plastic WE20507-21600030
#35

Plasma cutter diagram

Handle-plastic

Part #WE20507-21600030

The manufacturer no longer makes this part, and there's no substitute part

Resistor WE20507-22305003
#67

Plasma cutter diagram

Resistor

Part #WE20507-22305003

The manufacturer no longer makes this part, and there's no substitute part

Screw-tapping 4.8x13 WE20507-21020025
#40

Plasma cutter diagram

Screw-tapping 4.8x13

Part #WE20507-21020025

The manufacturer no longer makes this part, and there's no substitute part

Switch-voltage Selector WE20507-22200025
#48

Plasma cutter diagram

Switch-voltage selector

Part #WE20507-22200025

The manufacturer no longer makes this part, and there's no substitute part

Green Pilot Lamp WE20507-22610004
#56

Plasma cutter diagram

Green pilot lamp

Part #WE20507-22610004

The manufacturer no longer makes this part, and there's no substitute part

Reducer W/manometer WE20507-22905072
#29

Plasma cutter diagram

Reducer w/manometer

Part #WE20507-22905072

The manufacturer no longer makes this part, and there's no substitute part

Choke WE20507-44135009
#36

Plasma cutter diagram

Choke

Part #WE20507-44135009

The manufacturer no longer makes this part, and there's no substitute part
