Frigidaire
Room Air Conditioner

Model # FRA084KTA10 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FRA084KTA10 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

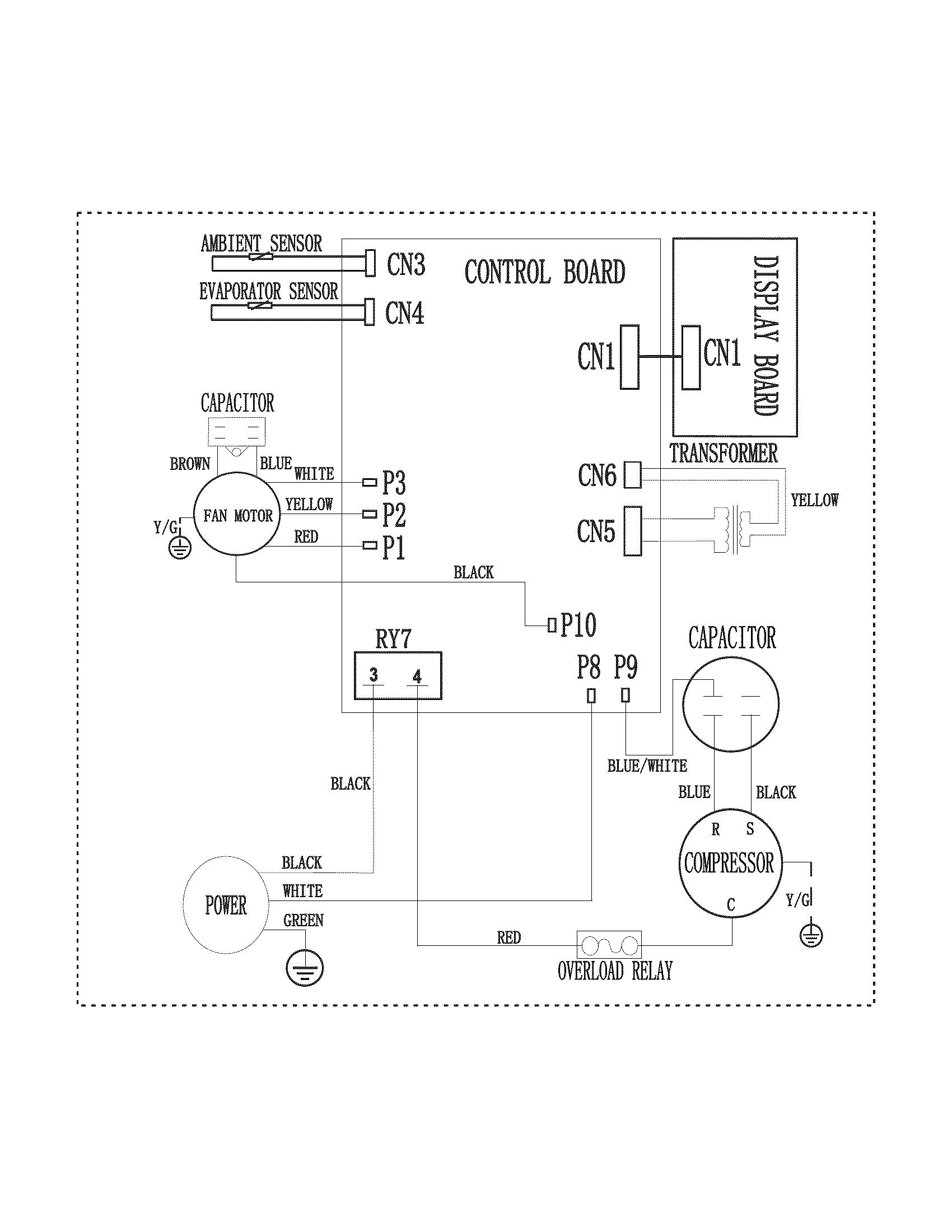

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |

Room Air Conditioner Air Filter 5304476464
#7

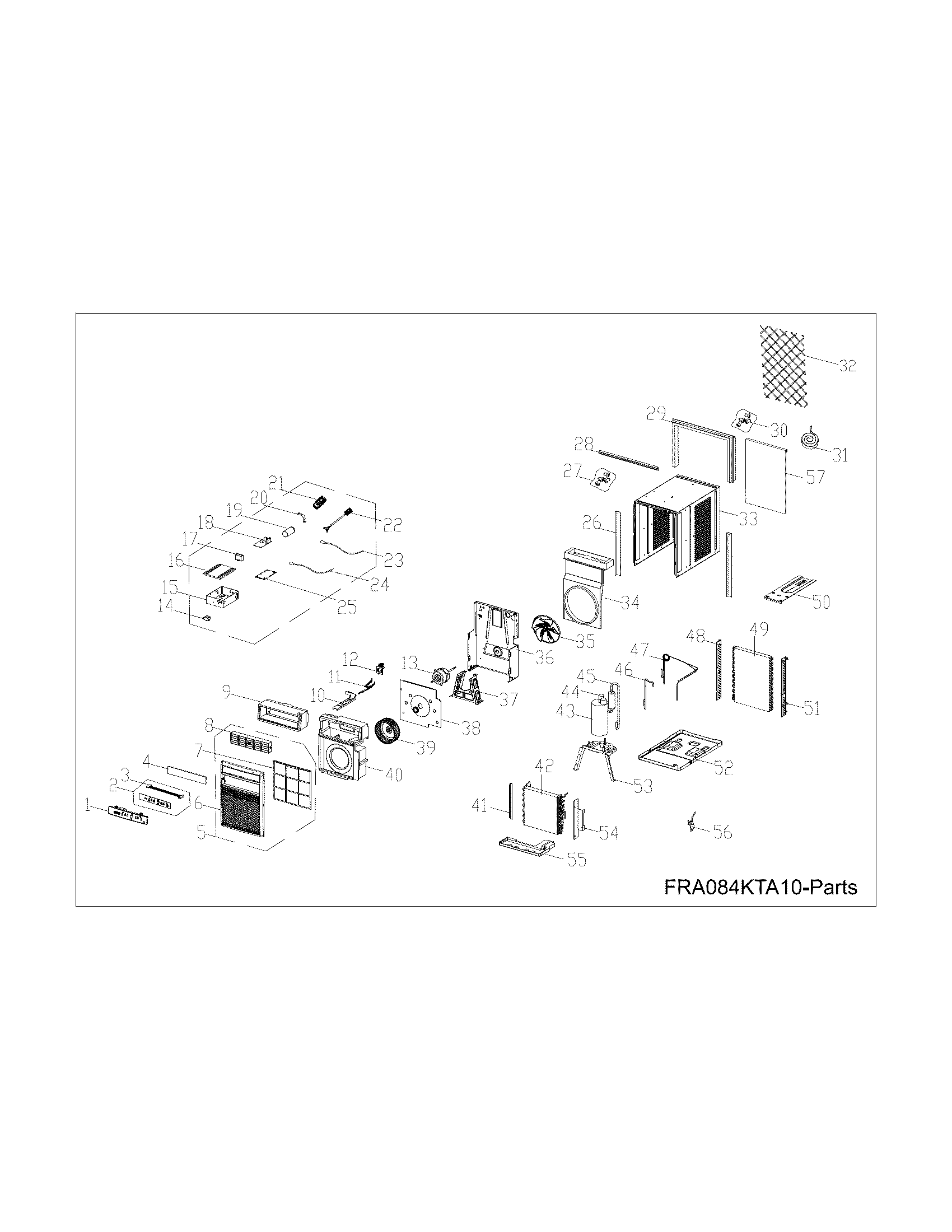

Recommended spare parts diagram

Room air conditioner air filter

Part #5304476464

Replaced by #5304525591

?
Manufacturer substitution
This part replaces 5304476464. Substitute parts can look different from the original.
This item is not returnable
$6.62
13% OFF Phone Price : $7.62
In Stock
Room Air Conditioner Accordion Filler 5304491890
#57

Recommended spare parts diagram

Room air conditioner accordion filler

Part #5304491890

In Stock
Room Air Conditioner Filter Dryer 5304476367
#56

Recommended spare parts diagram

Room air conditioner filter dryer

Part #5304476367

In Stock
Room Air Conditioner Installation Kit 5304471645
#30

Recommended spare parts diagram

Room air conditioner installation kit

Part #5304471645

Replaced by #5304524246

?
Manufacturer substitution
This part replaces 5304471645. Substitute parts can look different from the original.
In Stock
Lever 5304476467
#11

Recommended spare parts diagram

Lever

Part #5304476467

In Stock
Panel 5304487590
#38

Recommended spare parts diagram

Panel

Part #5304487590

In Stock
Overload Protector 5304476291
#44

Recommended spare parts diagram

Overload protector

Part #5304476291

In Stock
Room Air Conditioner Electronic Control Wiring Harness 5304480400
#3

Recommended spare parts diagram

Room air conditioner electronic control wiring harness

Part #5304480400

In Stock
Room Air Conditioner Transformer 5304470989
#14

Recommended spare parts diagram

Room air conditioner transformer

Part #5304470989

In Stock
Room Air Conditioner Display Board 5304476460
#2

Recommended spare parts diagram

Room air conditioner display board

Part #5304476460

This item is not returnable
$95.17
11% OFF Phone Price : $107.17
In Stock
