CONFIRM THE PART FITS
Part Information

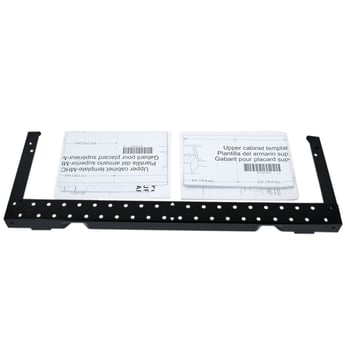

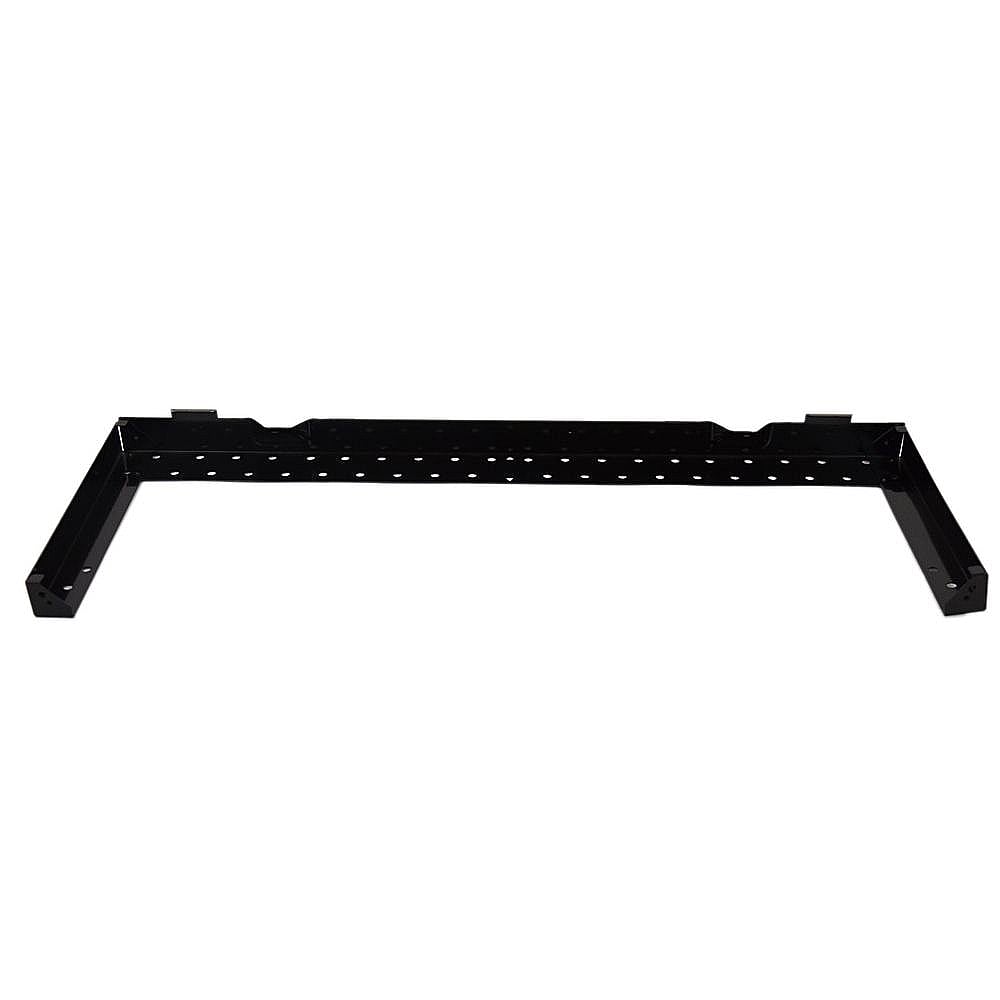

This bump-out mounting kit (part number W11185746) is for microwaves.
Bump-out mounting kit W11185746 lets you install the microwave under a cabinet deeper than 14 inches but less than 15 inches.
Follow the instructions in your installation guide or owner's manual when installing this part.
Frequently Used Together
- $6.29 |14% OFF Phone Price : $7.29
- $21.89 |22% OFF Phone Price : $27.89
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #MEW9527FZ20 Maytag electric wall oven | MEW9527FZ20 | Optional parts (not included) |
| Model #MMW9730FZ20 Maytag wall oven/microwave combo | MMW9730FZ20 | Optional parts (not included) |
| Model #MMW9730FZ22 Maytag wall oven/microwave combo | MMW9730FZ22 | Optional parts (not included) |
| Model #MEW9627FZ21 Maytag electric wall oven | MEW9627FZ21 | Optional parts (not included) |
| Model #MEW9527FZ21 Maytag electric wall oven | MEW9527FZ21 | Optional parts (not included) |
Reviews
No dimensions given of this item - returned
This is a 1.5" bump out. I had an Ikea cabinet that needed 3" bump out. This website needs to update it's information on this product
Rajo, San Diego, CA
1 person thought this review was helpful.
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
Yes, I would recommend this to a friend
It's Ok
Bump out kit helped a ton, but you still cannot open the microwave door fully!! Before about 15%, after bump out about 80%! Oy Vay!
Nada, Waldport Oregon
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Requirement for Deep Cabinets
The cabinet above our microwave extends about 2.5" further than a standard upper cabinet. The builder installed top venting microwave had a second intake vent that opened up from the face front so the top of the microwave was installed flush with this cabinet. The problem we faced in finding a replacement was that all of the current top venting microwaves have a second intake vent over the door, meaning that any new microwave must come forward so as not to cover that intake vent with the deeper cabinet. This bump out was the perfect solution. The hardware store had recommended adding a wood furring strip to the wall to bump out the microwave but this would have to be carefully attached to the wall and then stained so that it did not look so obviously home crafted. We were so happy to find that Whirlpool was smart enough to manufacture this much more elegant mounting kit and that Sears PartsDirect was stocking it! The installation guide is helpful and gives instructions no matter the stud location on your wall, using the hardware that comes with the new microwave. The mount also comes with new templates for two different size microwaves so you can align the vent location and screw holes to accommodate the added distance from the wall. We had a little trouble with the front left screw location on the template not matching to the microwave by ~1/8" but we had already lifted the microwave into place when this was discovered. In our case, one held the microwave from the bottom while the other expanded the hole size from the top, being especially careful not to drill into the new microwave. Long story short, check the hole location with the template before you lift it into place.
vhm2003, Peoria, AZ
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Perfect for IKEA 15' deep cabinets
This bracket let me mount a Whirlpool/Kitchen-Aid low profile microwave on 15' deep upper cabinets. It was easy to install and worked perfectly.
JStags, San Francisco, CA
1 person thought this review was helpful.
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Just what I needed
Worked perfectly since my cabinet above extends out further than the other cabinets. Received the part quickly too.
JohnS, New Mexico
1 person thought this review was helpful.
- Ease of Installation
- Difficult
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Easy install
Make sure to open the correct instruction packet. Give yourself an hour to install just in case.
Cody L, Atlanta
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
UNBELIEVABLY POOR SERVICE
WRONG PART FOR OUR MICROWAVE. Sears ordered the microwave and then ordered the wrong bump out kit! We have been fighting this battle for a microwave within our maintenance agreement for 2 months. We are extremely dissatisfied.
J. C, Virginia Beach, VA
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Worked perfectly for our Whirlpool microwave oven
It was relatively easy; we used the correct template for the back and followed the directions and shown. The mount went in without a hitch!
JessandJess, Phoenix, AZ
1 person thought this review was helpful.
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
