Model # 13918616SR Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 13918616SR garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 23 parts |

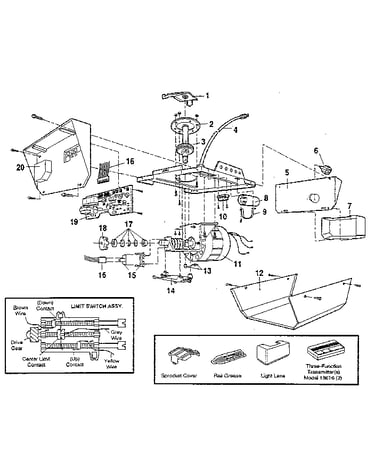

Chassis assembly diagram

Garage door opener drive and worm gear kit (replaces 3002375, 65409)

Part #41A2817

The manufacturer no longer makes this part, and there's no substitute part

#14

Chassis assembly diagram

Garage door opener limit switch

Part #41D3452

The manufacturer no longer makes this part, and there's no substitute part

#15

Chassis assembly diagram

Rpm assy

Part #41C3005

The manufacturer no longer makes this part, and there's no substitute part

#12

Chassis assembly diagram

Cover

Part #41A3474-1

The manufacturer no longer makes this part, and there's no substitute part

Chassis assembly diagram

Gear/sprk av

Part #41A2827

The manufacturer no longer makes this part, and there's no substitute part

Chassis assembly diagram

Sprocket cover

Part #31C290

The manufacturer no longer makes this part, and there's no substitute part

#13

Chassis assembly diagram

Garage door opener helical gear

Part #41A2818

The manufacturer no longer makes this part, and there's no substitute part

#18

Chassis assembly diagram

Cup

Part #41A2822

The manufacturer no longer makes this part, and there's no substitute part

#16

Chassis assembly diagram

Wire harness

Part #41C2726

The manufacturer no longer makes this part, and there's no substitute part

#12A

Chassis assembly diagram

Cover

Part #41A3474-2

The manufacturer no longer makes this part, and there's no substitute part
