Model # 735-21 Official Craftsman 1/2-hp router

Here are the diagrams and repair parts for Official Craftsman 735-21 1/2-hp router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Wrench 1-623813-03
#13

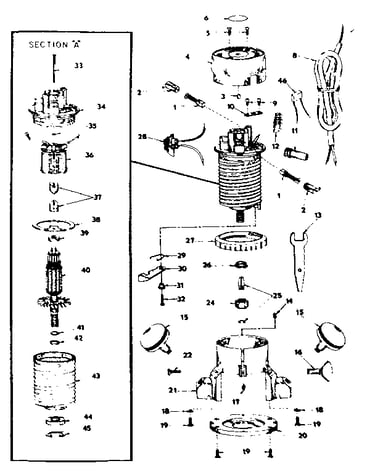

Unit parts diagram

Wrench

Part #1-623813-03

The manufacturer no longer makes this part, and there's no substitute part

Knob Assembly 6-606179-00
#15

Unit parts diagram

Knob assembly

Part #6-606179-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-931744-815
#18

Unit parts diagram

Washer

Part #1-931744-815

The manufacturer no longer makes this part, and there's no substitute part

Brush Tube 2-611967-01
#2

Unit parts diagram

Brush tube

Part #2-611967-01

The manufacturer no longer makes this part, and there's no substitute part

Field Mount 3-617753-02
#34

Unit parts diagram

Field mount

Part #3-617753-02

The manufacturer no longer makes this part, and there's no substitute part

Retain Ring 1-623880-02
#41

Unit parts diagram

Retain ring

Part #1-623880-02

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 4-611992-03
#43

Unit parts diagram

Motor housing

Part #4-611992-03

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 1-622167-11
#45

Unit parts diagram

Retaining ring

Part #1-622167-11

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 1-610784-16
#1

Unit parts diagram

Brush assembly

Part #1-610784-16

The manufacturer no longer makes this part, and there's no substitute part

Collet Nut 1-617763-04
#24

Unit parts diagram

Collet nut

Part #1-617763-04

The manufacturer no longer makes this part, and there's no substitute part
