Model # 2538192381 Official Kenmore chest freezer
Here are the diagrams and repair parts for Official Kenmore 2538192381 chest freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
2538192381 Freestanding Freezers
#1

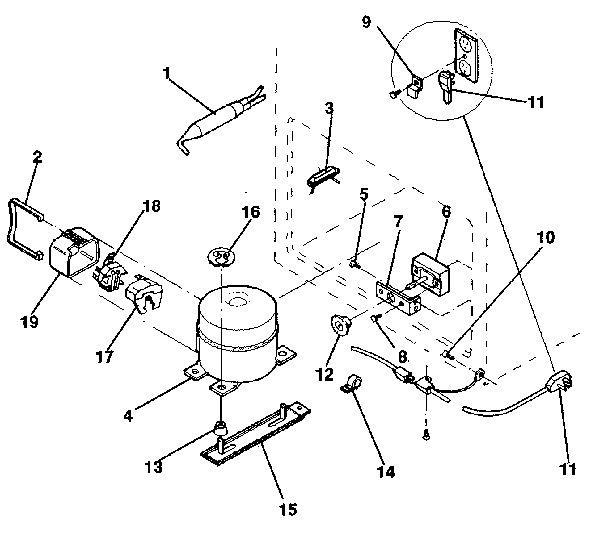

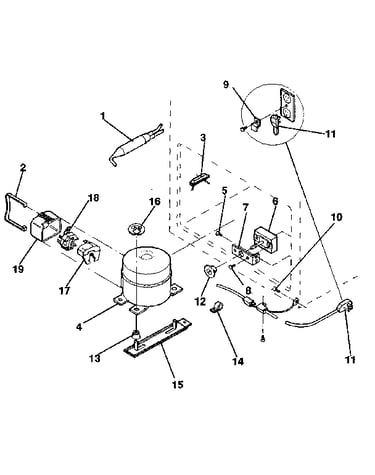

Unit diagram
Drier
Part #152474
Replaced by #5303305677
?
Manufacturer substitution
This part replaces 152474. Substitute parts can look different from the original.
$12.71 |
14% OFF Phone Price : $14.71
In Stock
#4

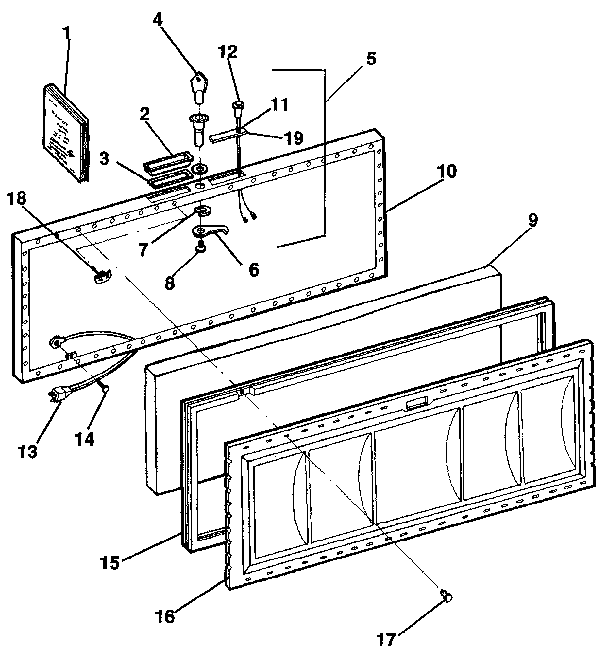

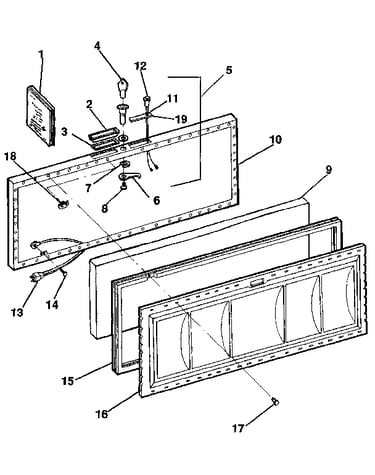

Lid diagram
Key
Part #08037402
Replaced by #297147700
?
Manufacturer substitution
This part replaces 08037402. Substitute parts can look different from the original.
$9.77 |
9% OFF Phone Price : $10.77
In Stock
#17
Lid diagram
Clip
Part #300792
Replaced by #5304406520
?
Manufacturer substitution
This part replaces 300792. Substitute parts can look different from the original.
$45.64 |
12% OFF Phone Price : $51.64
In Stock
#NI
All parts diagram
Touch up
Part #105638-836
Replaced by #WB32X106
?
Manufacturer substitution
This part replaces 105638-836. Substitute parts can look different from the original.
$19.42 |
9% OFF Phone Price : $21.42
In Stock
#14
Lid diagram
Screw
Part #08037935
The manufacturer no longer makes this part, and there's no substitute part
Screw
Part #08009412
Replaced by #216036601
?
Manufacturer substitution
This part replaces 08009412. Substitute parts can look different from the original.
$14.74
In Stock
#13
Lid diagram
Harness
Part #3201260
$25.76
In Stock
#5

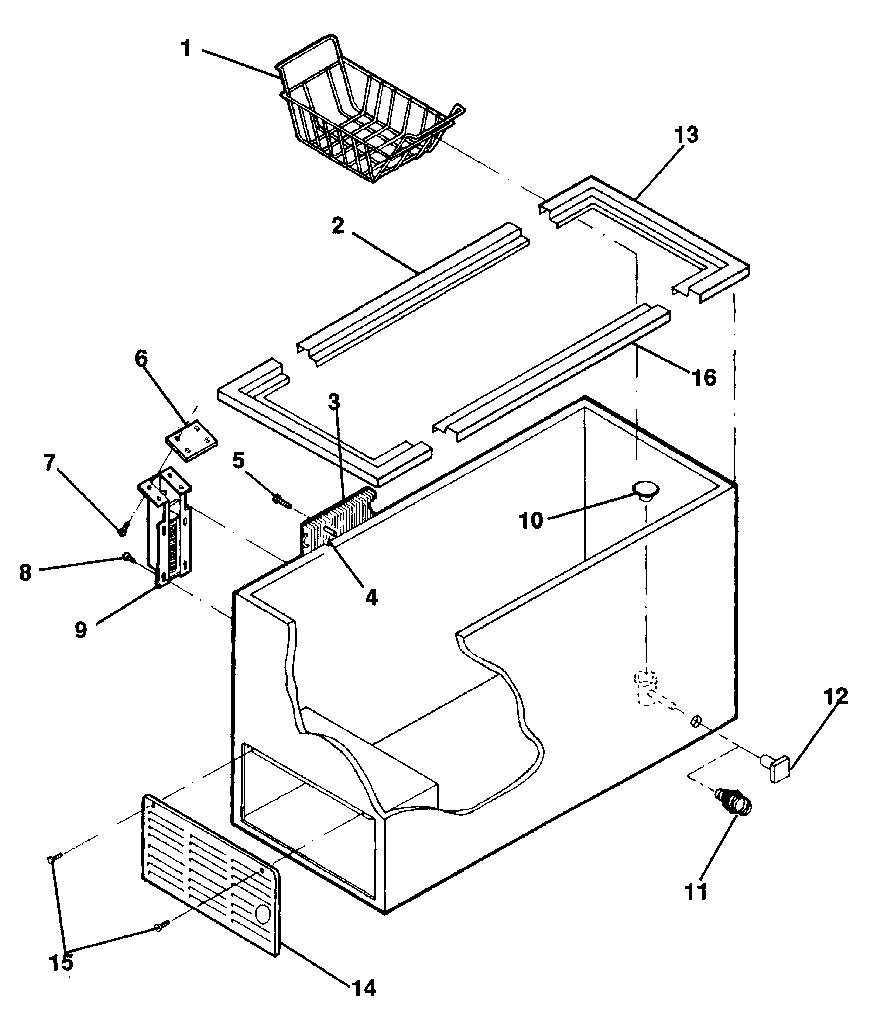

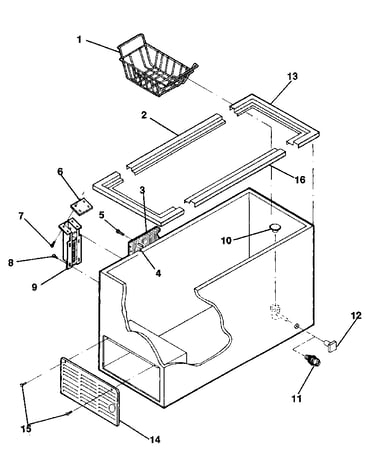

Cabinet diagram
Screw
Part #53318
Replaced by #5300053318
?
Manufacturer substitution
This part replaces 53318. Substitute parts can look different from the original.
$14.74
In Stock
#14
Unit diagram
Clip
Part #08016762
Replaced by #5303212614
?
Manufacturer substitution
This part replaces 08016762. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
#19
Lid diagram
Nameplate
Part #3201262
Replaced by #5303925222
?
Manufacturer substitution
This part replaces 3201262. Substitute parts can look different from the original.
$23.89
In Stock
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Repair guides for chest freezers
How to replace a freezer compressor start relay
The compressor start relay starts the compressor. If the compressor won’t start, follow these steps to replace a defect…
Repair difficulty
Time required
15 minutes or less
How to replace a freezer temperature control thermostat
The cold control thermostat regulates the freezer temperature. A defective cold control thermostat can prevent the compr…
Repair difficulty
Time required
15 minutes or less
How to replace a freezer lid gasket
The lid gasket prevents air and moisture from entering the freezer when the lid is closed. Follow these steps to replace…
Repair difficulty
Time required
30 minutes or less
Effective articles & videos to help repair your freestanding freezers
Use the advice and tips in these articles and videos to get the most out of your freezer.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn how to repair broken, frayed or damaged wires in your appliances.…
