Kenmore
Mechanical Sewing Machine

Model # 15813512 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 15813512 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

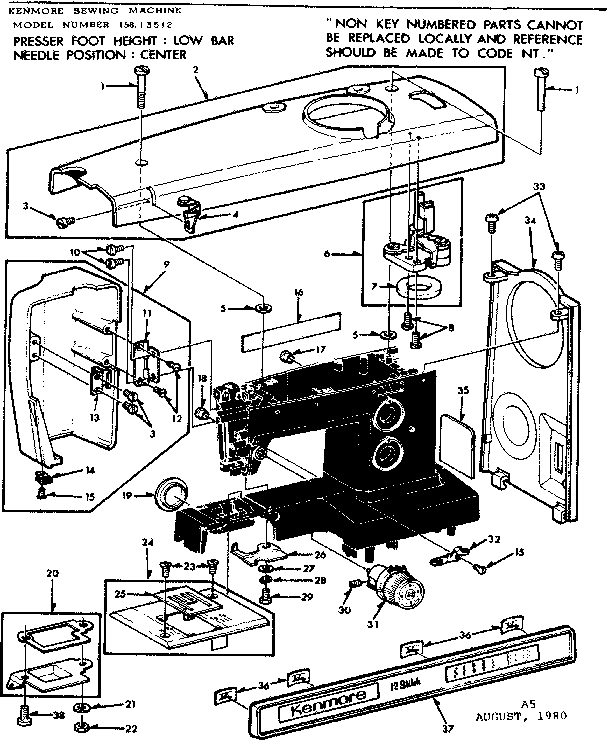

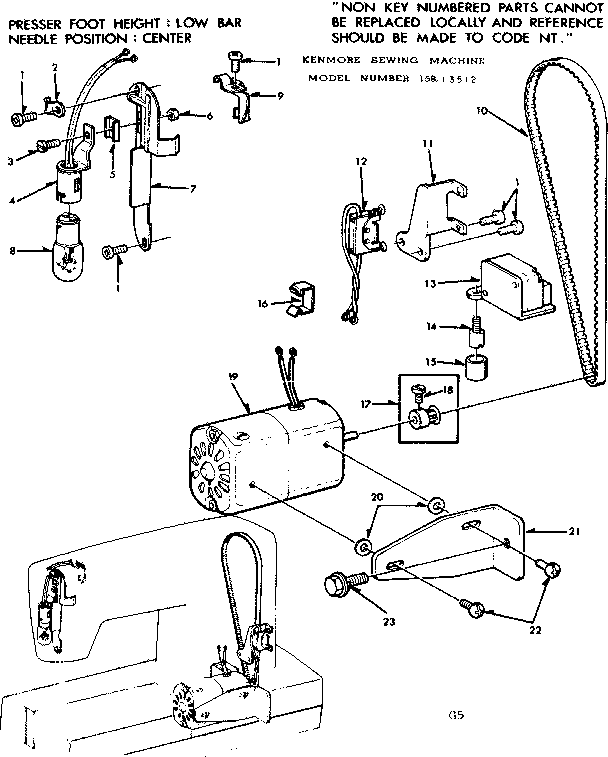

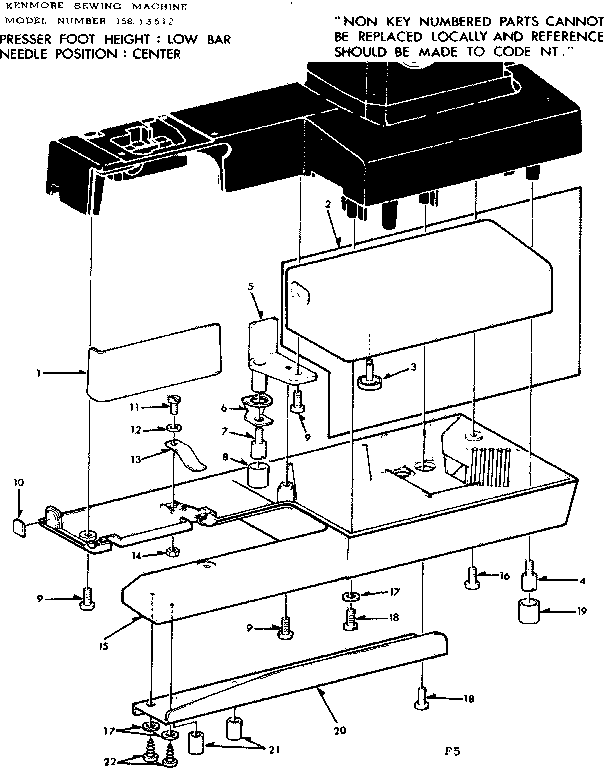

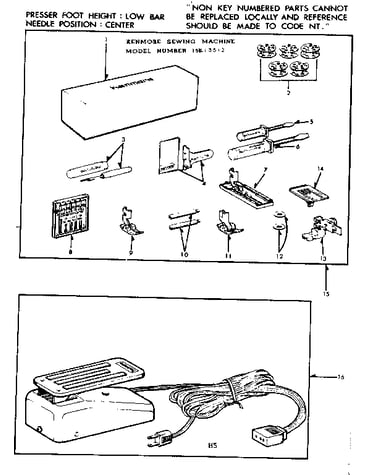

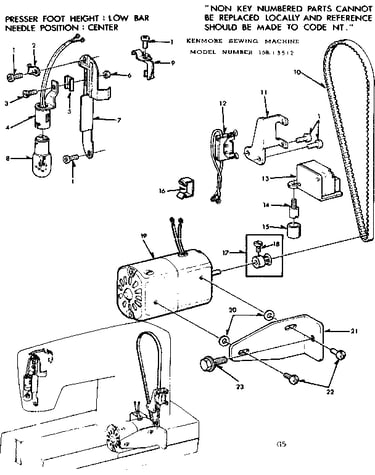

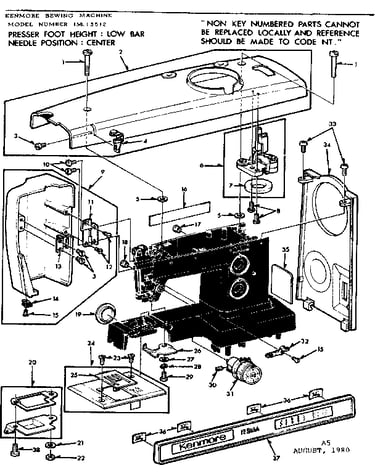

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 239 parts  |
Spring 8576
#14

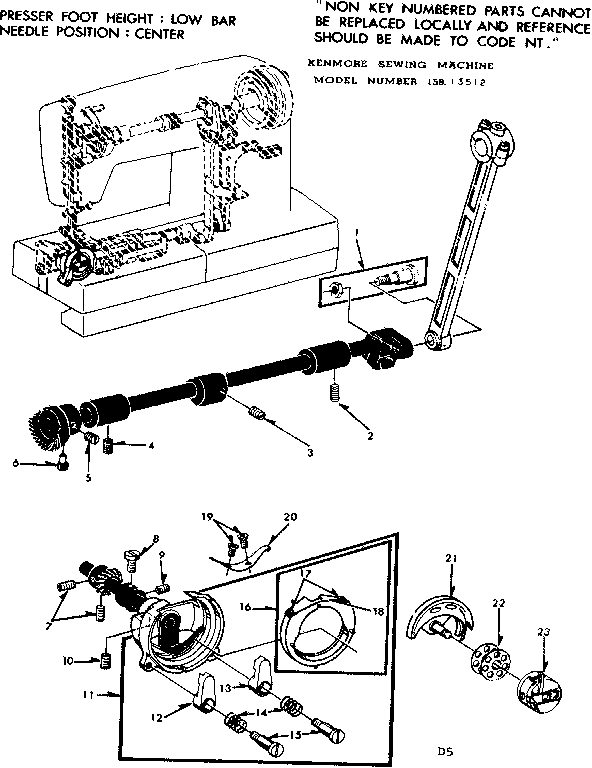

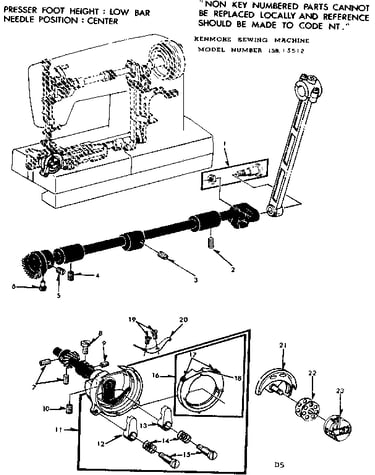

Shuttle assembly diagram

Spring

Part #8576

The manufacturer no longer makes this part, and there's no substitute part

Conect Plate 46512
#39

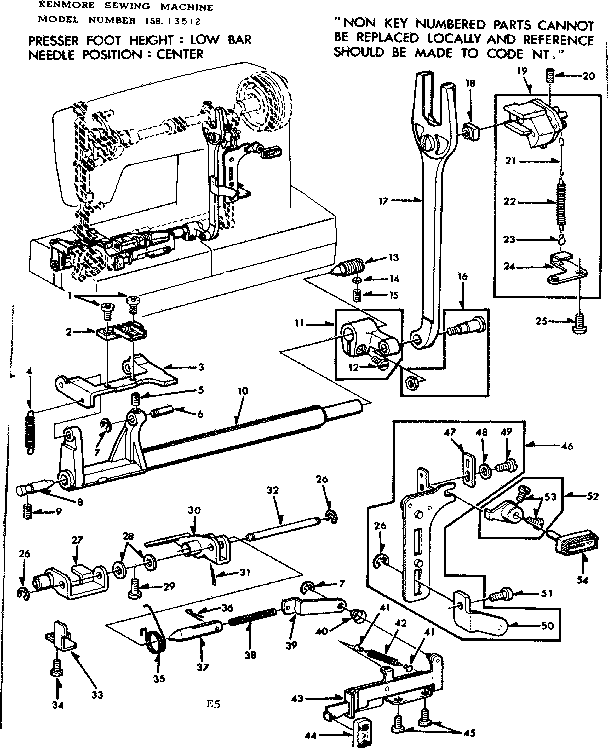

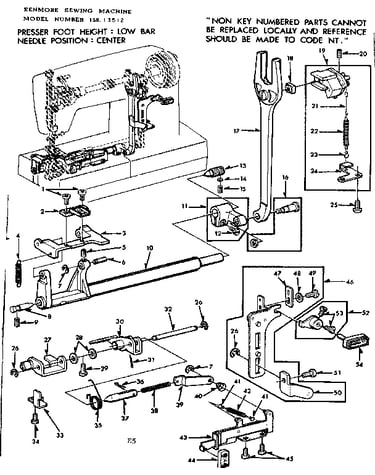

Feed regulator assembly diagram

Conect plate

Part #46512

The manufacturer no longer makes this part, and there's no substitute part

Collar 48891
#40

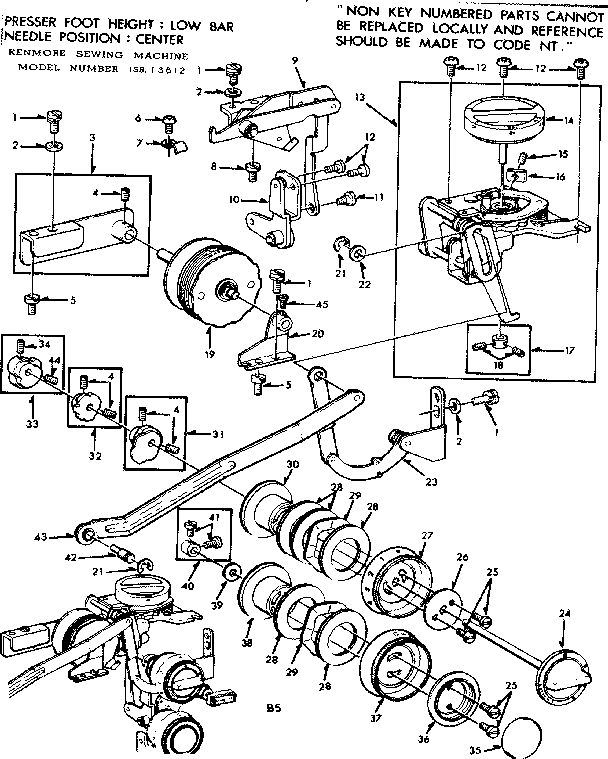

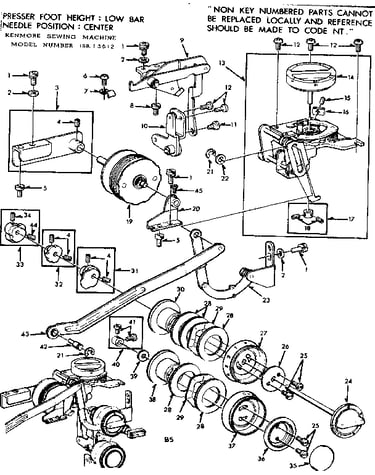

Geared cam assembly diagram

Collar

Part #48891

The manufacturer no longer makes this part, and there's no substitute part

Link 47618
#10

Geared cam assembly diagram

Link

Part #47618

The manufacturer no longer makes this part, and there's no substitute part

Hanger 32305
#21

Feed regulator assembly diagram

Hanger

Part #32305

The manufacturer no longer makes this part, and there's no substitute part

Lever 48880
#52

Feed regulator assembly diagram

Lever

Part #48880

The manufacturer no longer makes this part, and there's no substitute part

Pivot Stud 32881
#2

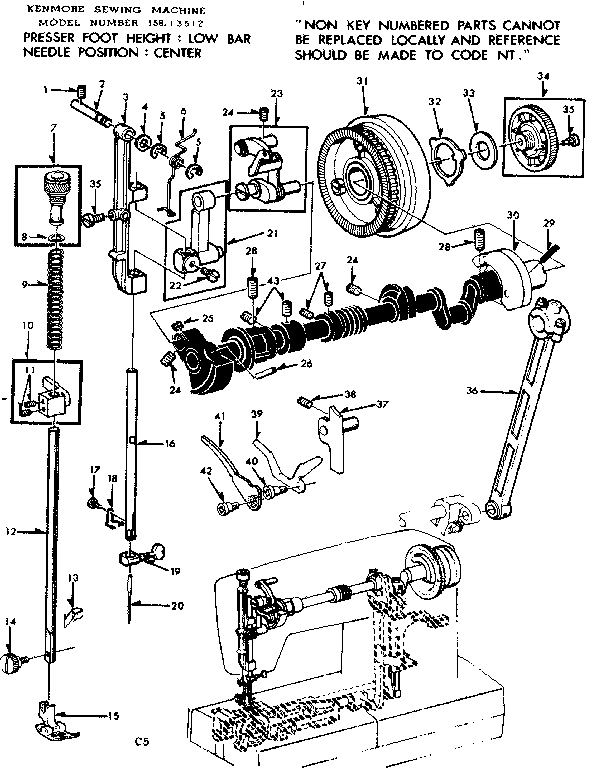

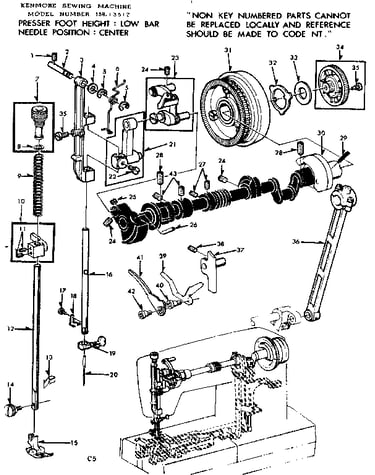

Presser bar assembly diagram

Pivot stud

Part #32881

The manufacturer no longer makes this part, and there's no substitute part

Slider Guide 47389
#50

Feed regulator assembly diagram

Slider guide

Part #47389

The manufacturer no longer makes this part, and there's no substitute part

Needle Position Cam 49175
#31

Geared cam assembly diagram

Needle position cam

Part #49175

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 53733
#11

Geared cam assembly diagram

Set screw

Part #53733

The manufacturer no longer makes this part, and there's no substitute part
