G.E. Kenmore Range Oven Burner Igniter (replace...
Part #WB2X9154

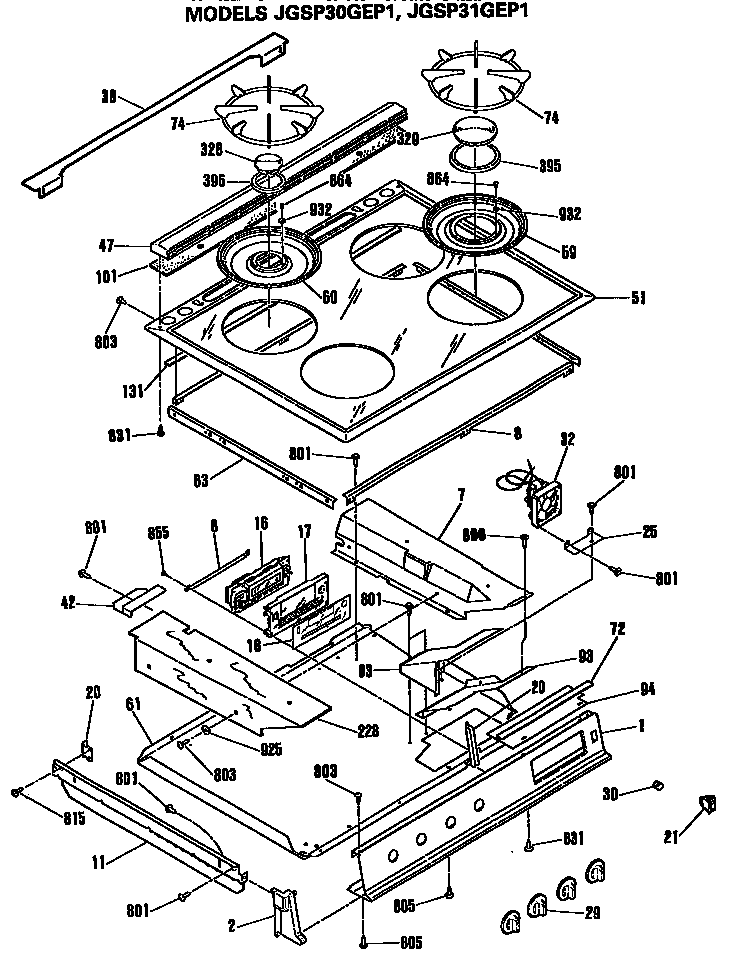

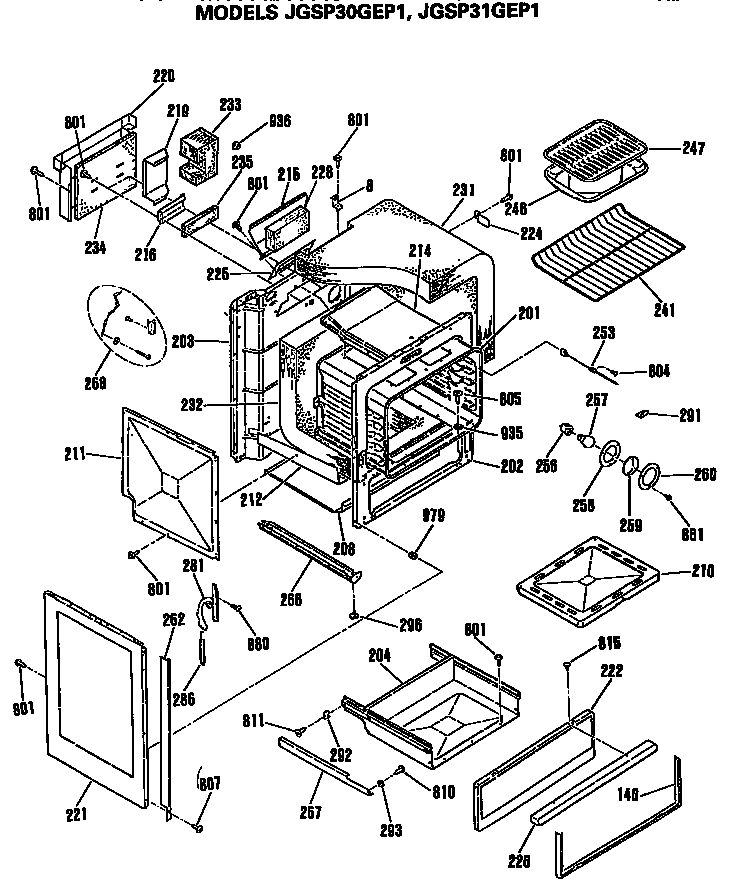

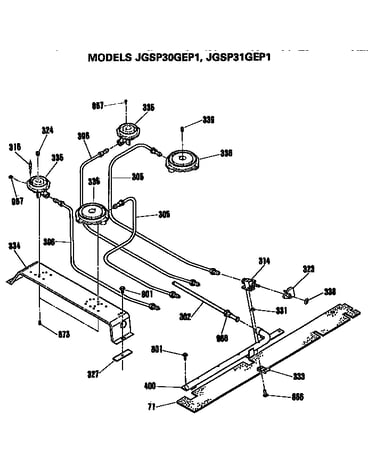

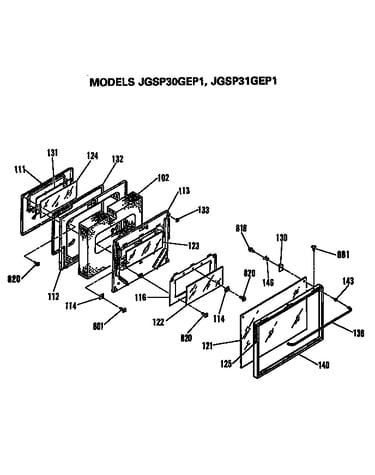

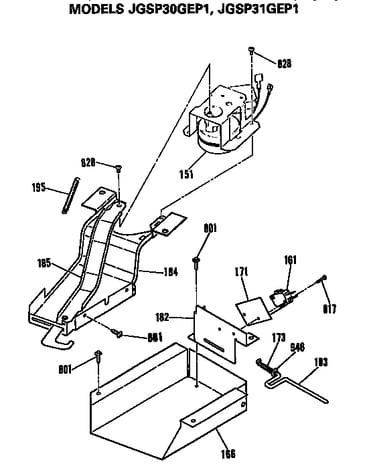

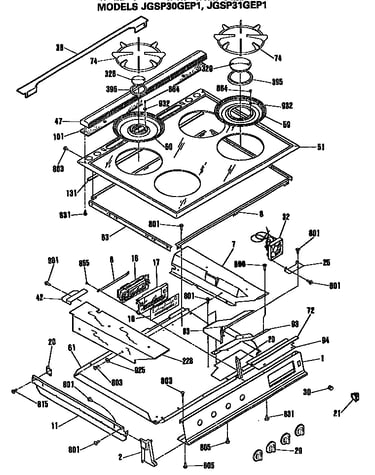

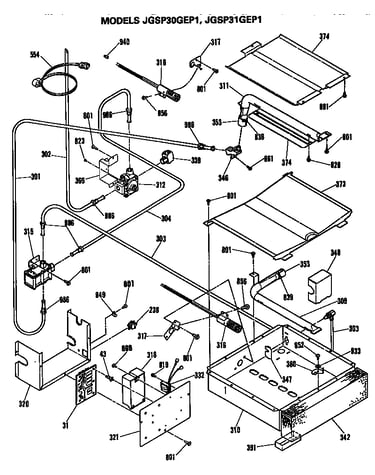

Here are the diagrams and repair parts for Official GE JGSP30GEP1 gas slide-in range, as well as links to manuals and error code tables, if available.
#316

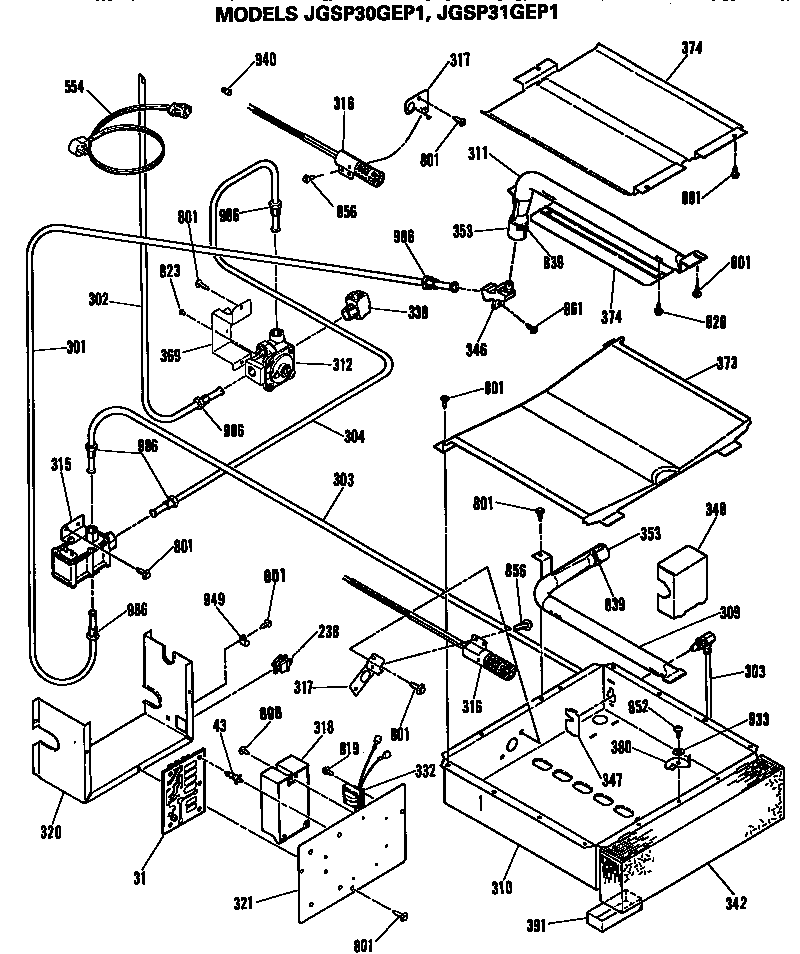

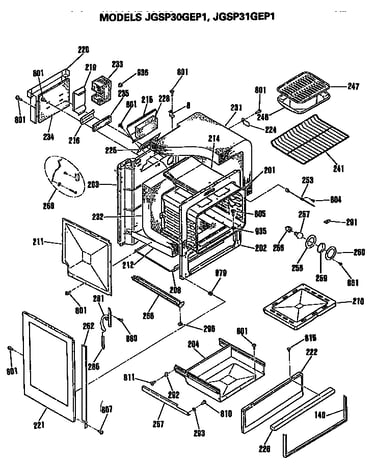

All parts diagram
Part #WB2X9154
#281
All parts diagram
Part #WB14X104
#247
All parts diagram
Part #WB49X627
Replaced by #WB48X10056
#132
All parts diagram
Part #WB2X9373
#21
All parts diagram
Part #WB24K5022
#317
All parts diagram
Part #WB2X9162
Replaced by #311689
#812
All parts diagram
Part #WB1X1133
Replaced by #WB1K5191
#880
All parts diagram
Part #WB1M19
Replaced by #WB1K5191
#310
All parts diagram
Part #WB53X277
#852
All parts diagram
Part #WB1X1179
