Model # H30HQS Official Thermador range hood

Here are the diagrams and repair parts for Official Thermador H30HQS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Range Hood Light Socket 14-09-941
#7

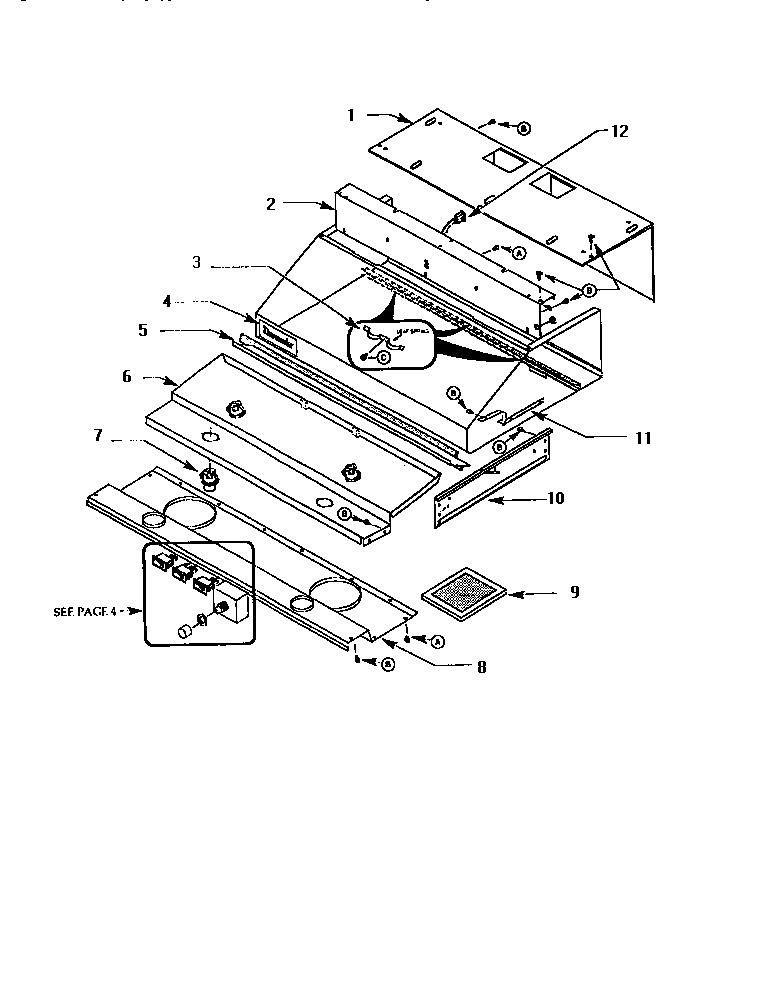

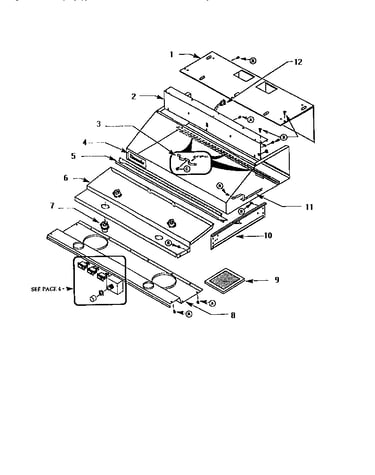

Canopy diagram

Range hood light socket

Part #14-09-941

This item is not returnable
$6.99
In Stock
Range Hood Nameplate 19-11-910-01
#4

Canopy diagram

Range hood nameplate

Part #19-11-910-01

The manufacturer no longer makes this part, and there's no substitute part

Nameplate, Switch, S.s. 19-11-914-01
#7

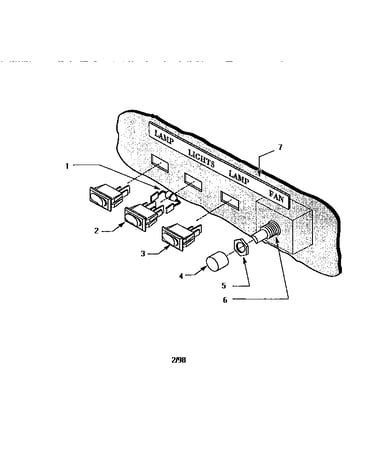

Switch assembly diagram

Nameplate, switch, s.s.

Part #19-11-914-01

The manufacturer no longer makes this part, and there's no substitute part

Nut 14-93-010
#5

Switch assembly diagram

Nut

Part #14-93-010

The manufacturer no longer makes this part, and there's no substitute part

Wire Assembly 19-11-941

#NI

All parts diagram

Wire assembly

Part #19-11-941

The manufacturer no longer makes this part, and there's no substitute part

Trim, Inside Wall (left) 19-11-903-01
#10A

Canopy diagram

Trim, inside wall (left)

Part #19-11-903-01

The manufacturer no longer makes this part, and there's no substitute part

Backsplash 30" 19-11-922-01
#1

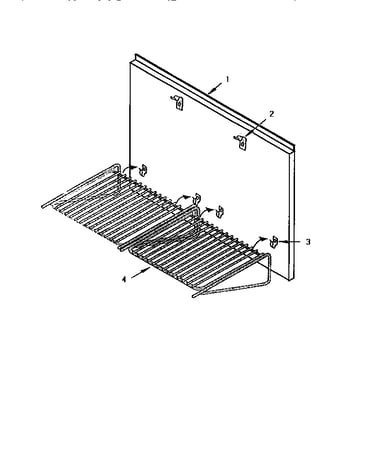

Keep hot shelf accessory diagram

Backsplash 30"

Part #19-11-922-01

The manufacturer no longer makes this part, and there's no substitute part

Control Switch 19-11-915-01
#6

Switch assembly diagram

Control switch

Part #19-11-915-01

The manufacturer no longer makes this part, and there's no substitute part

4" Cable Tie 20-02-160

#NI

All parts diagram

4" cable tie

Part #20-02-160

The manufacturer no longer makes this part, and there's no substitute part

U&c-guide 19-11-956

#NI

All parts diagram

U&c-guide

Part #19-11-956

The manufacturer no longer makes this part, and there's no substitute part
