Upright Freezer

Model # EV040FXHW00 Official Whirlpool vertical freezer

Here are the diagrams and repair parts for Official Whirlpool EV040FXHW00 vertical freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

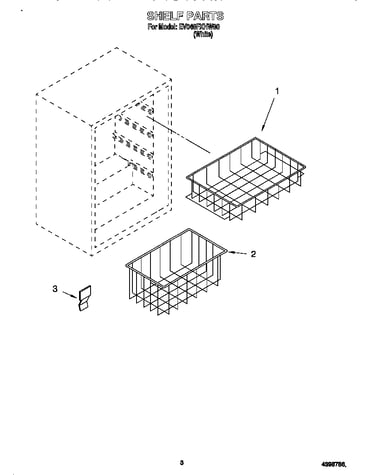

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Drier Tube 4312496
#5

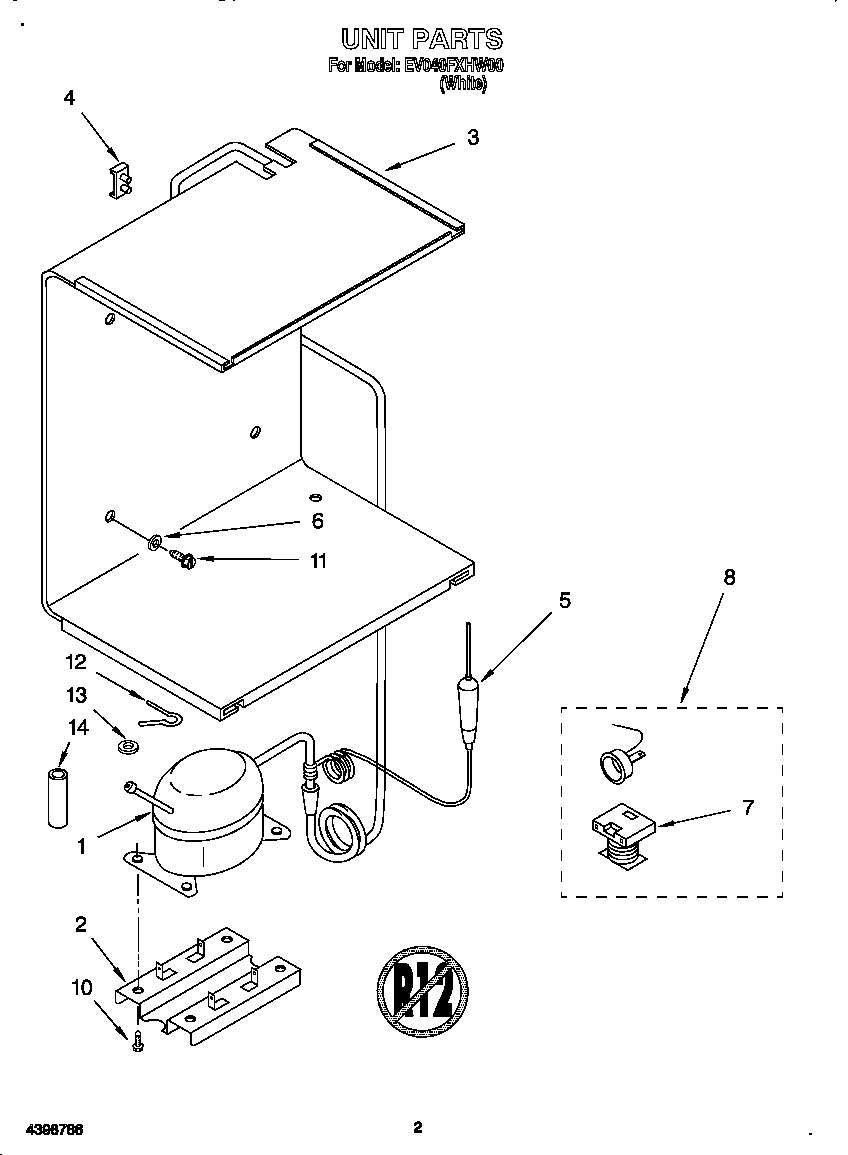

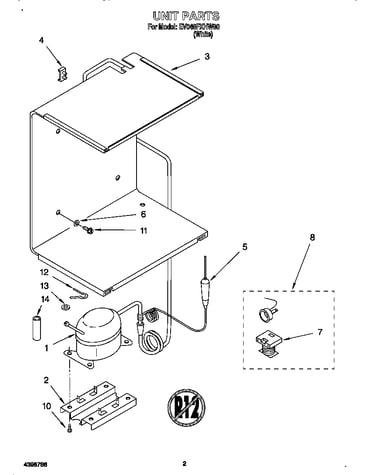

Unit diagram

Drier tube

Part #4312496

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4312496. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Screw 4312450
#11

Unit diagram

Screw

Part #4312450

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 4312450. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Cup 4312534
#28

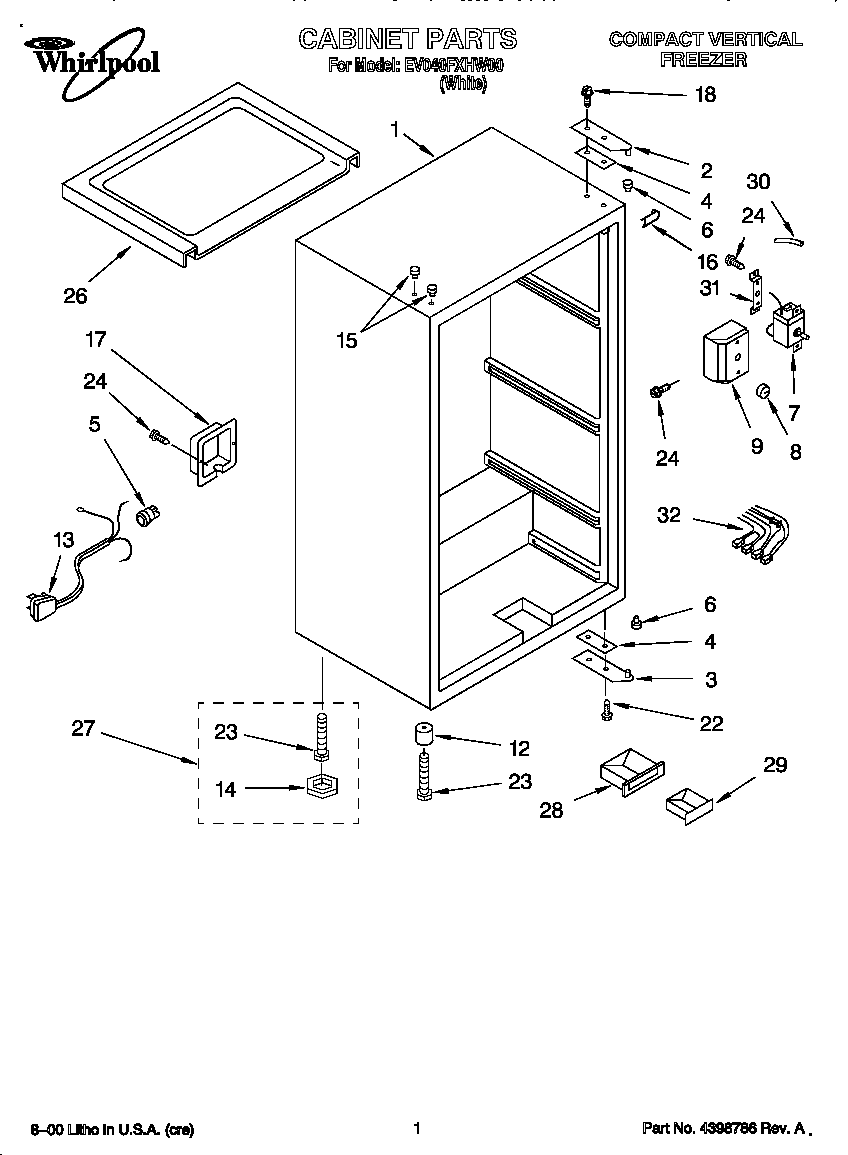

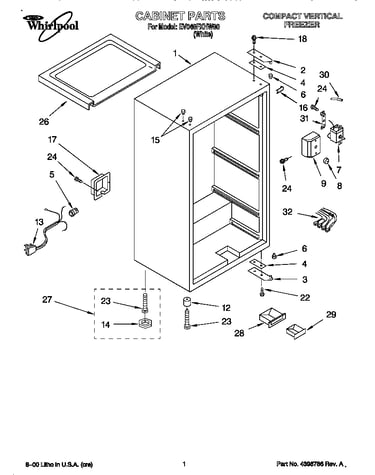

Cabinet diagram

Cup

Part #4312534

$9.36
In Stock
Door Hinge 4312436
#2

Cabinet diagram

Door hinge

Part #4312436

$33.18
In Stock
Leveler 4312445
#12

Cabinet diagram

Leveler

Part #4312445

$27.64
In Stock
Screw 4312464
#10

Unit diagram

Screw

Part #4312464

Replaced by #WP4312464

?
Manufacturer substitution
This part replaces 4312464. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Door Hinge 4312437
#3

Cabinet diagram

Door hinge

Part #4312437

Replaced by #4312505

?
Manufacturer substitution
This part replaces 4312437. Substitute parts can look different from the original.
$29.89
In Stock
Power Cord 4312540
#13

Cabinet diagram

Power cord

Part #4312540

Replaced by #W10080120

?
Manufacturer substitution
This part replaces 4312540. Substitute parts can look different from the original.
$62.00
In Stock
Gasket 4312547
#14

Unit diagram

Gasket

Part #4312547

The manufacturer no longer makes this part, and there's no substitute part

Barrier 4312538
#30

Cabinet diagram

Barrier

Part #4312538

The manufacturer no longer makes this part, and there's no substitute part
