Whirlpool
Bottom-Mount Refrigerator

Model # GI0FSAXVY07 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool GI0FSAXVY07 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

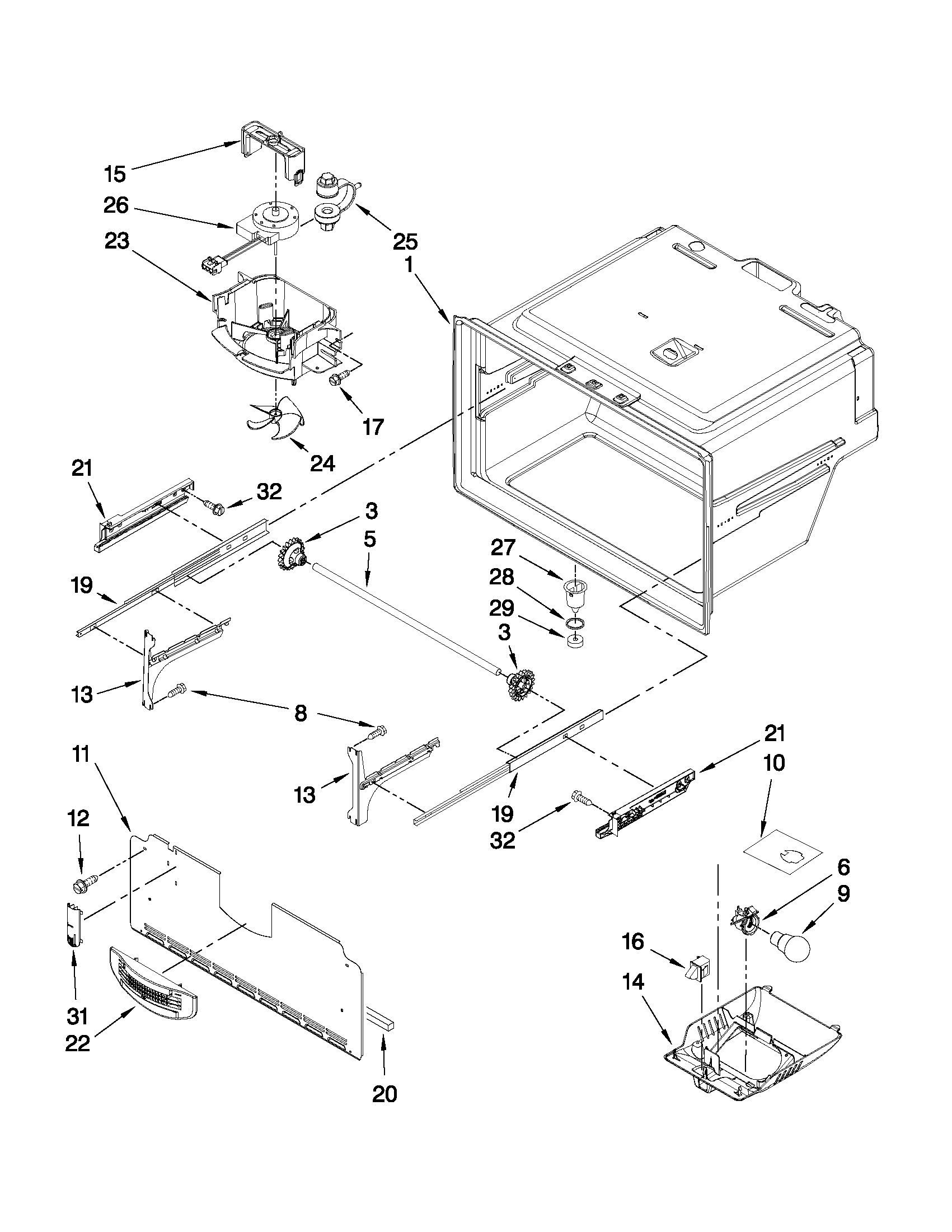

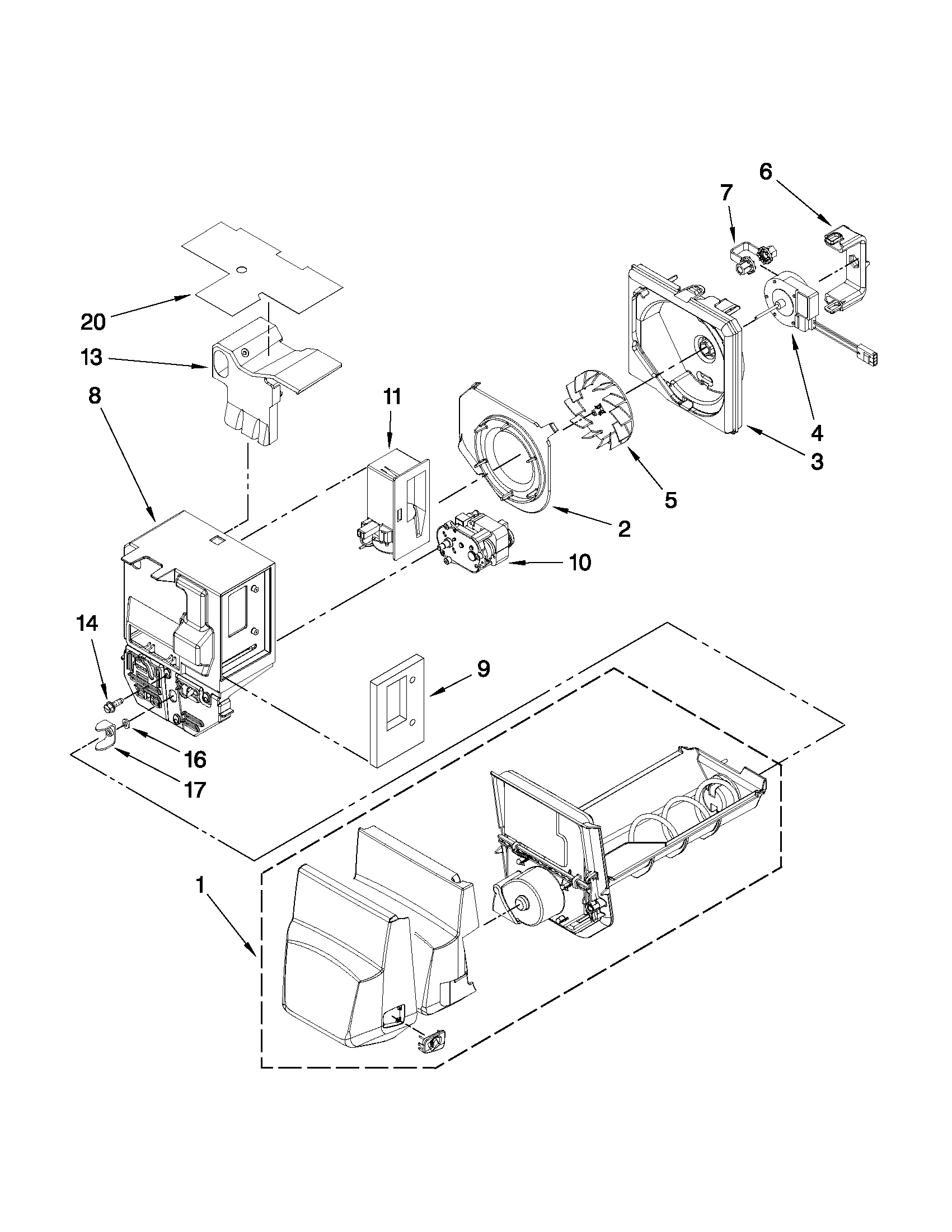

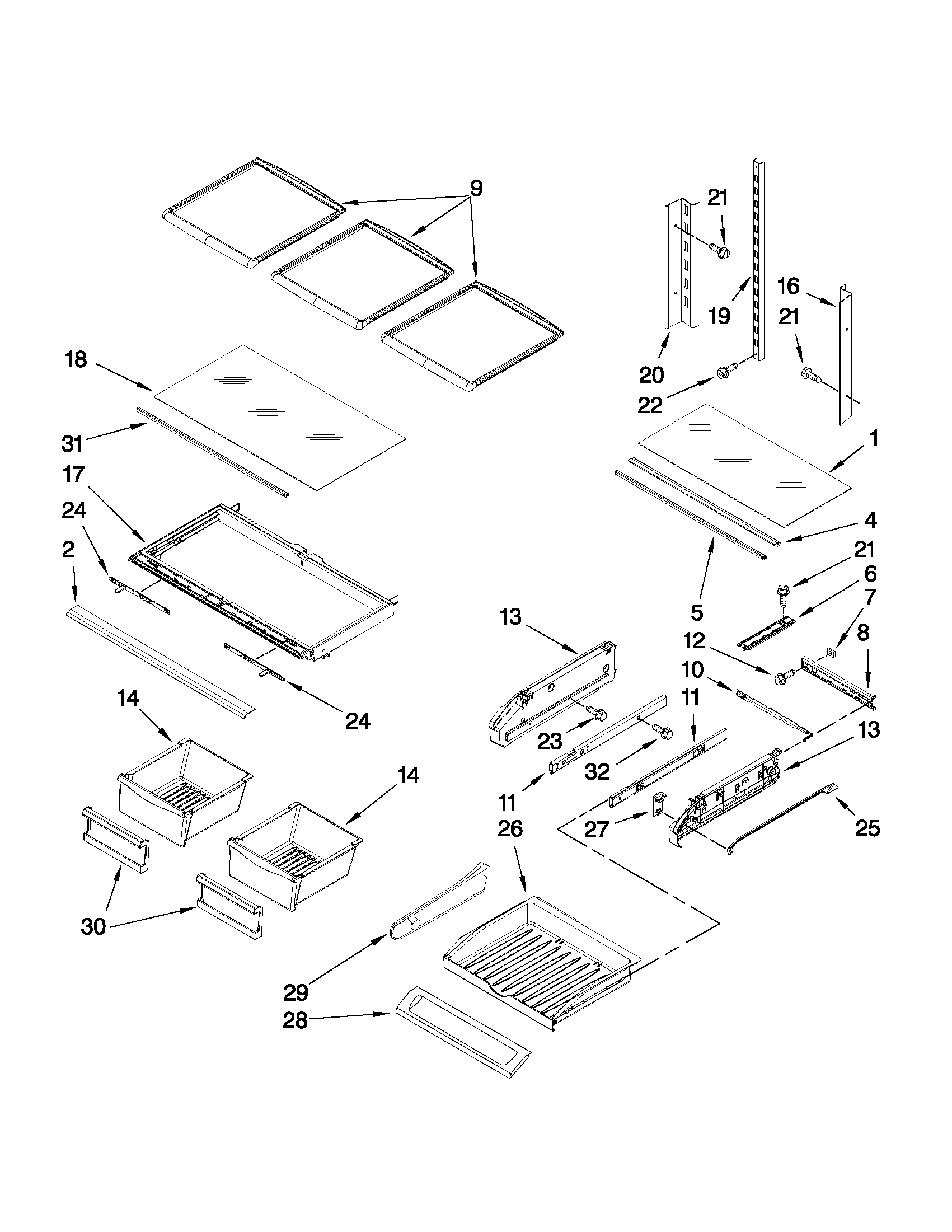

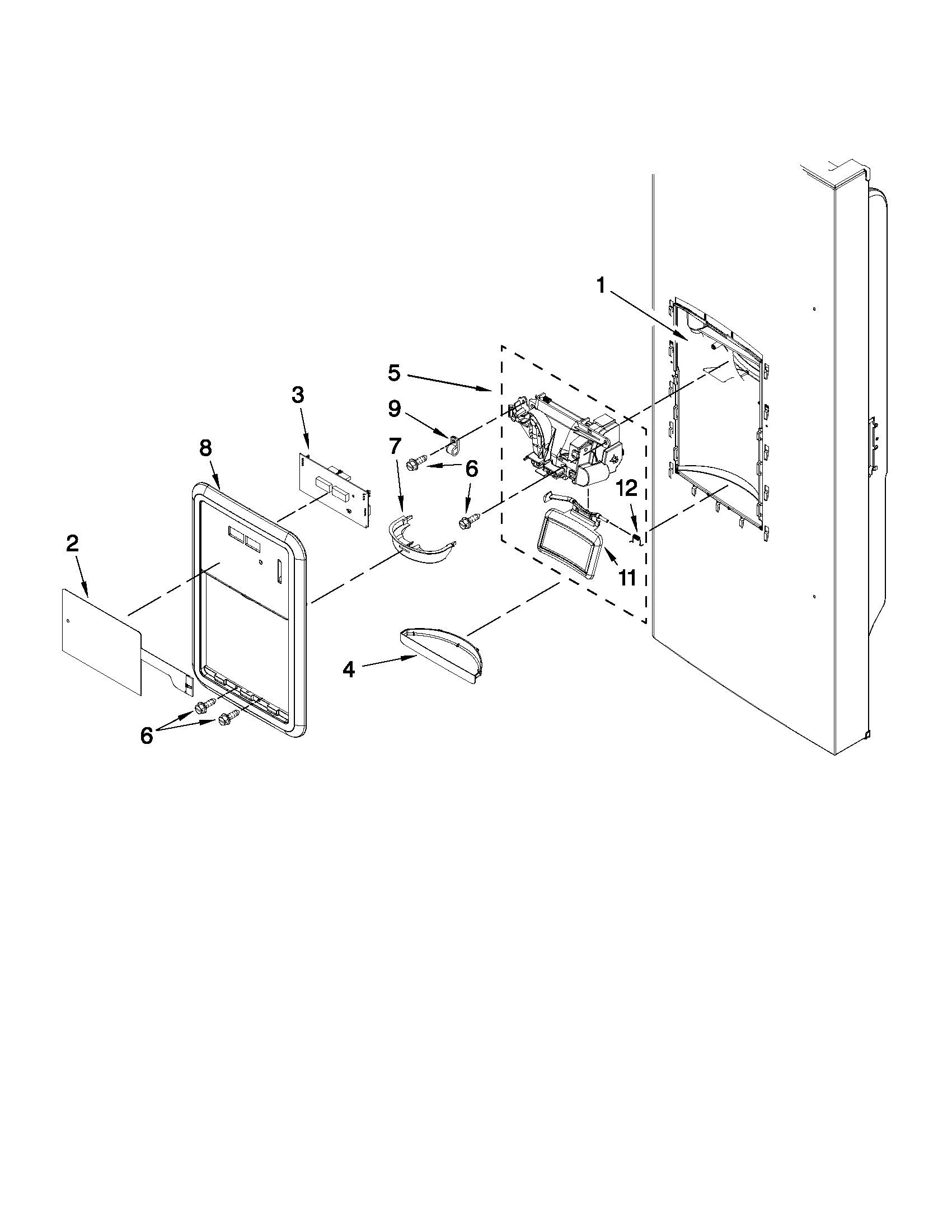

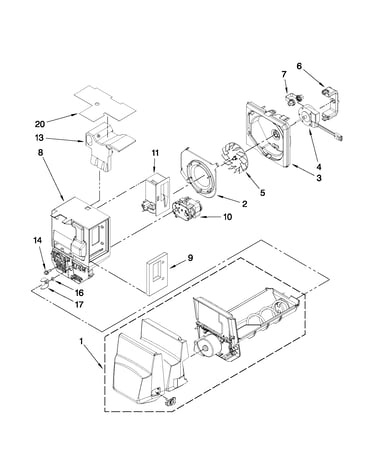

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 249 parts  |
Refrigerator Water Filter UKF8001AXX
#14

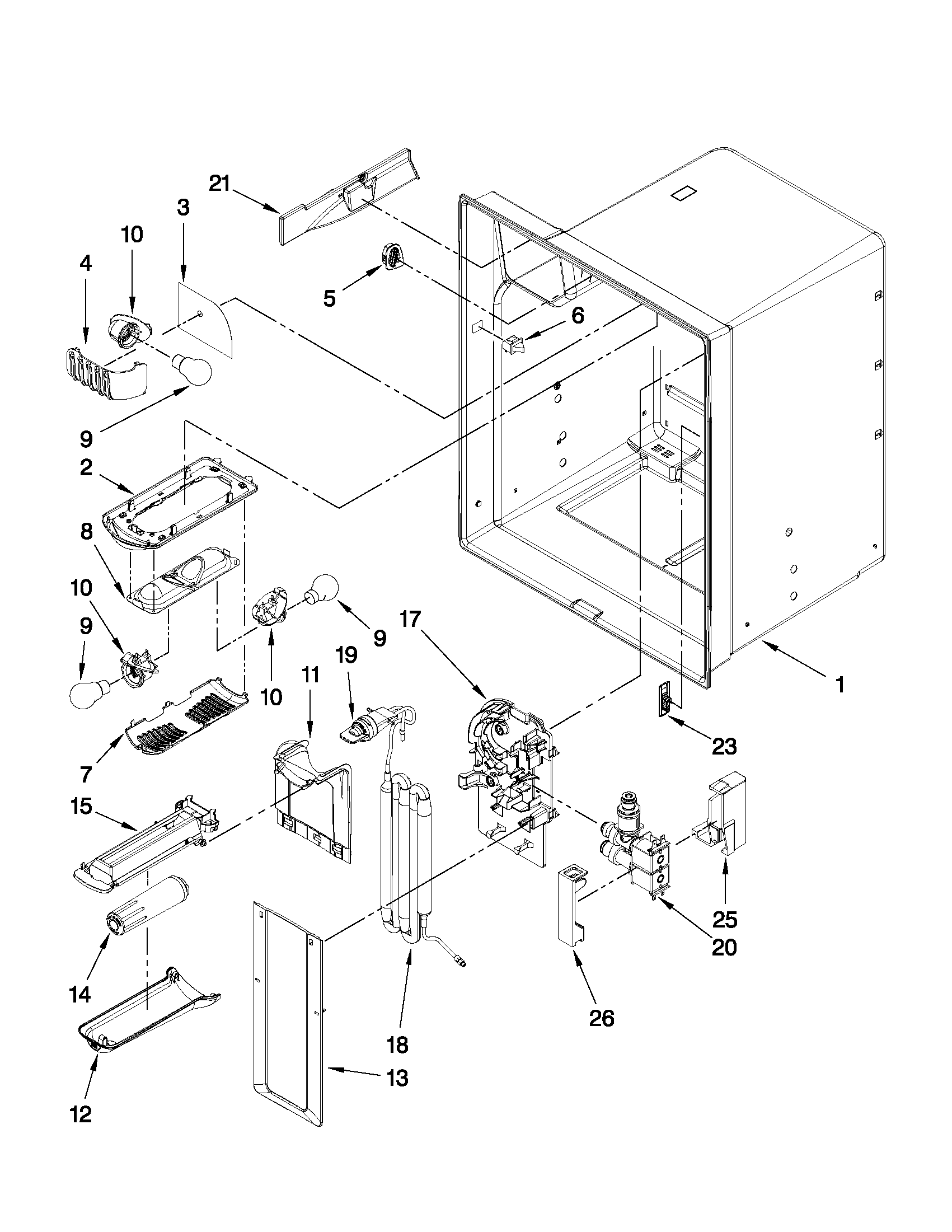

Refrigerator liner parts diagram

Refrigerator water filter

Part #UKF8001AXX

The manufacturer no longer makes this part, and there's no substitute part

Drier Tube W10177049
#27

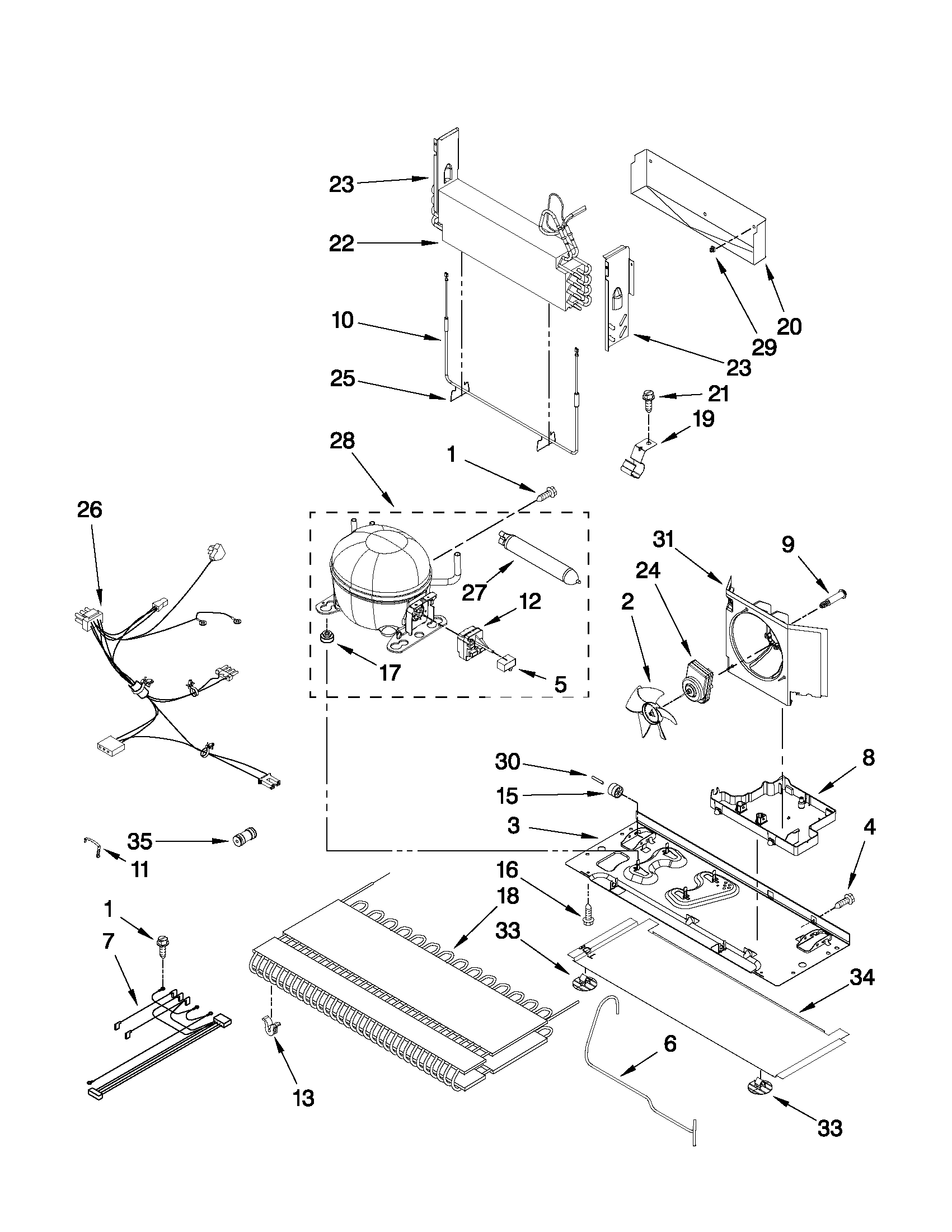

Unit parts diagram

Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Bulb-light 2255743N
Bulb-light

Part #2255743N

Replaced by #40A15

?
Manufacturer substitution
This part replaces 2255743N. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Ice Maker Assembly W10300024
#100

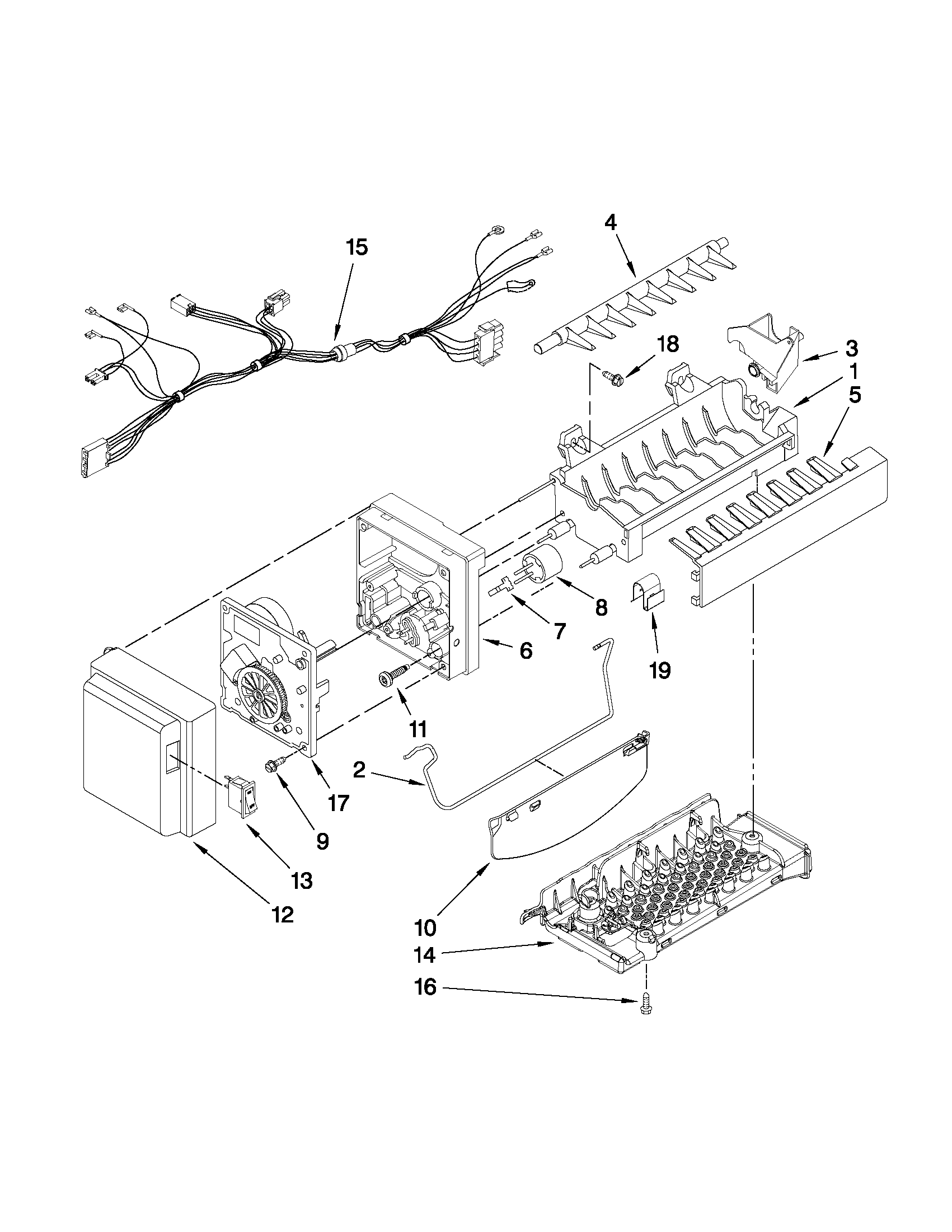

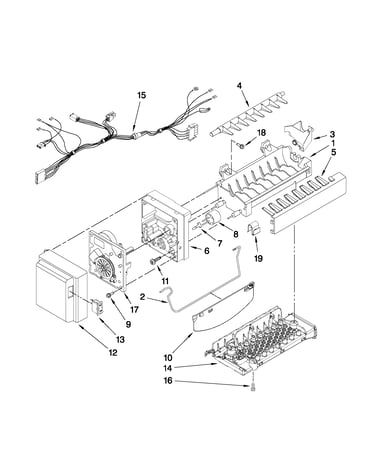

Icemaker parts diagram

Refrigerator ice maker assembly

Part #W10300024

Replaced by #WPW10300024

?
Manufacturer substitution
This part replaces W10300024. Substitute parts can look different from the original.
BEST SELLER
$177.45 |
6% OFF Phone Price : $189.45
In Stock
Refrigerator Light Switch 12466103
#6

Refrigerator liner parts diagram

Refrigerator light switch

Part #12466103

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466103. Substitute parts can look different from the original.
BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Refrigerator Gasket Panel (gray) W10163991
#7

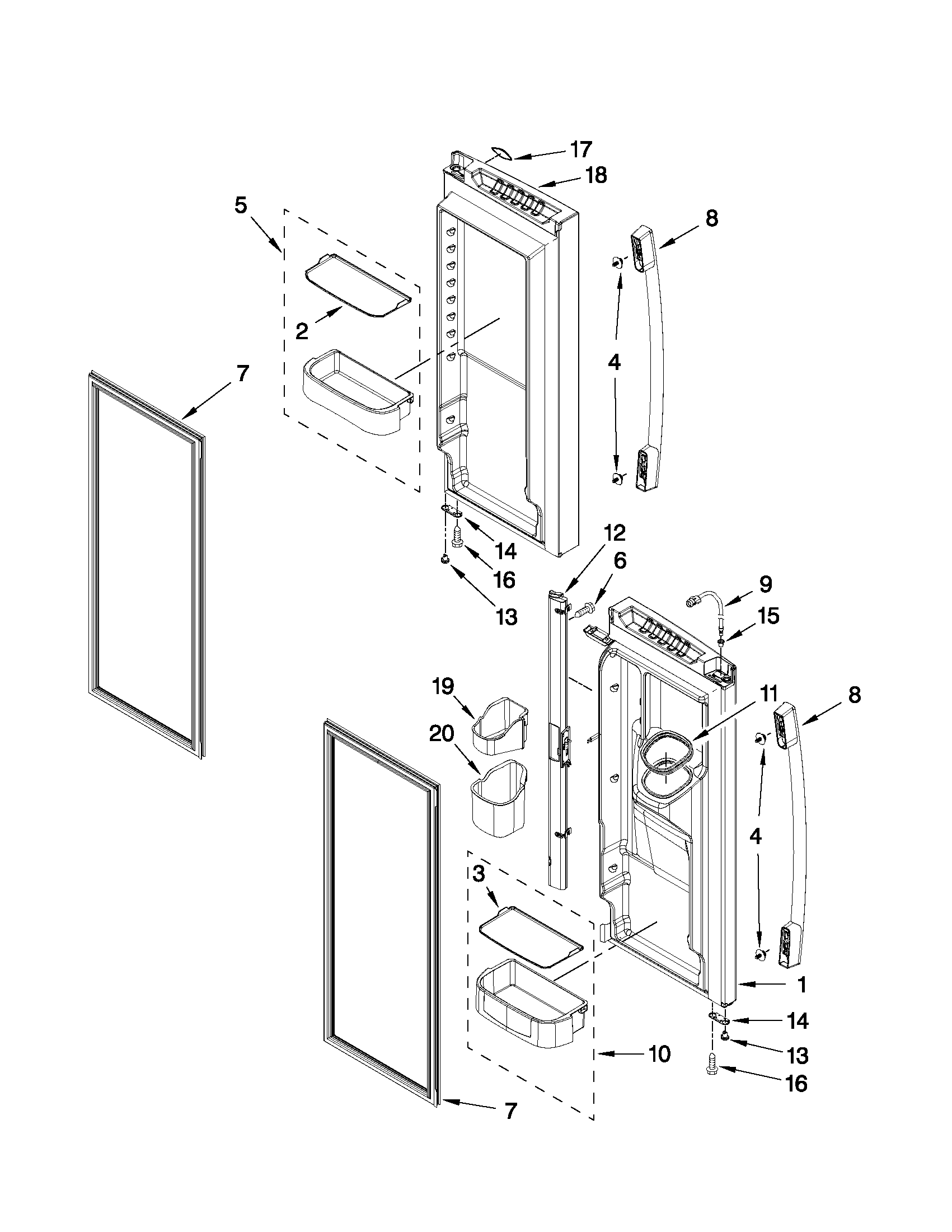

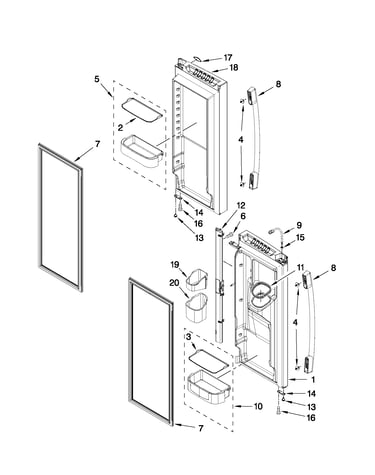

Refrigerator door parts diagram

Refrigerator gasket panel (gray)

Part #W10163991

Replaced by #W10830055

?
Manufacturer substitution
This part replaces W10163991. Substitute parts can look different from the original.
BEST SELLER
$118.71 |
9% OFF Phone Price : $130.71
In Stock
Refrigerator Water Tube 12961401
#2

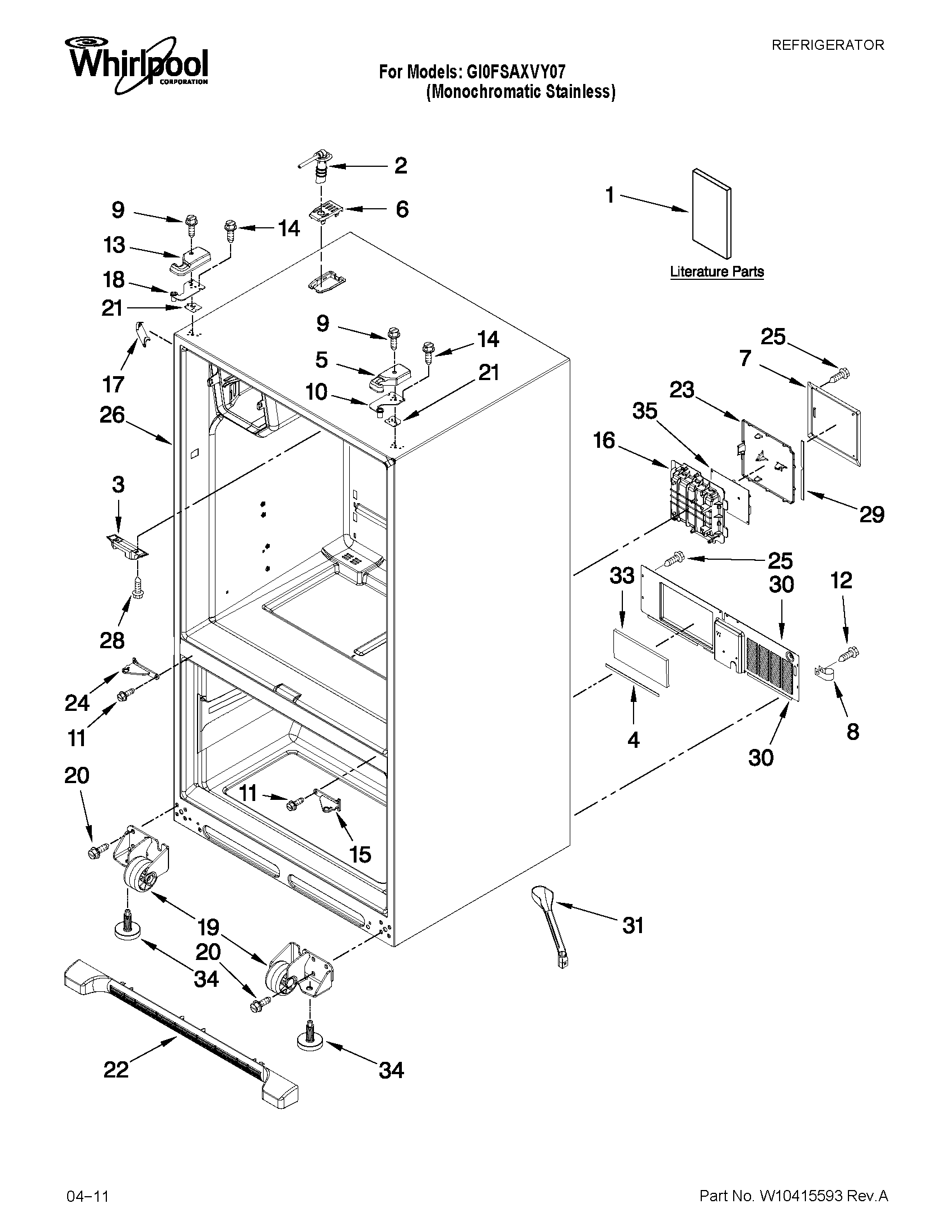

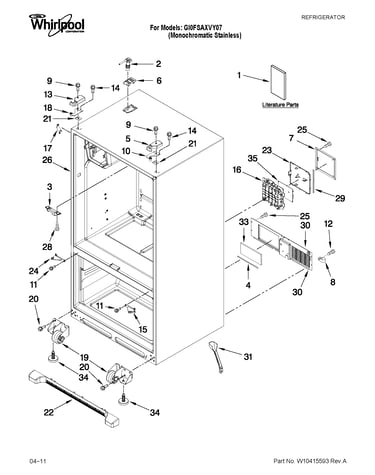

Cabinet parts diagram

Refrigerator water tube

Part #12961401

Replaced by #W11415785

?
Manufacturer substitution
This part replaces 12961401. Substitute parts can look different from the original.
BEST SELLER
$36.68 |
14% OFF Phone Price : $42.68
In Stock
Refrigerator Gasket Panel W10164045
#4

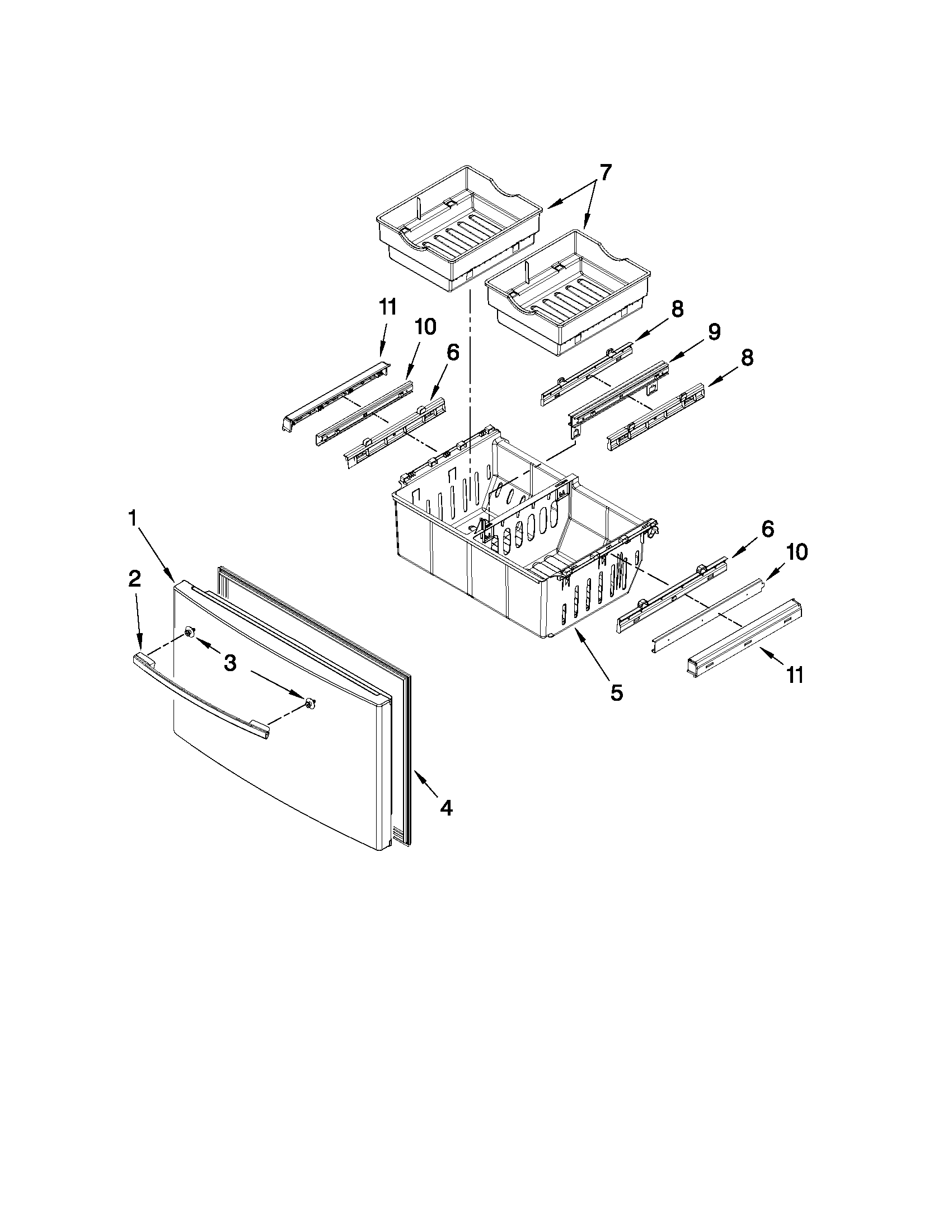

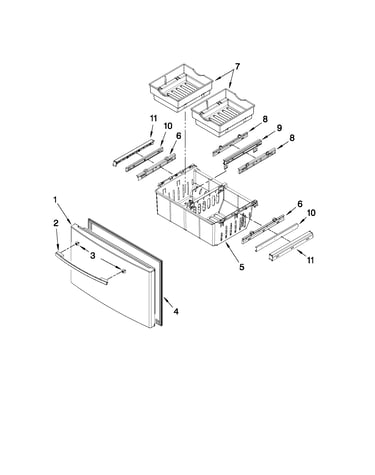

Freezer door parts diagram

Refrigerator gasket panel

Part #W10164045

Replaced by #WPW10714545

?
Manufacturer substitution
This part replaces W10164045. Substitute parts can look different from the original.
BEST SELLER
$133.62 |
8% OFF Phone Price : $145.62
In Stock
Refrigerator Water Inlet Valve W10312696
#20

Refrigerator liner parts diagram

Refrigerator water inlet valve

Part #W10312696

Replaced by #WPW10312696

?
Manufacturer substitution
This part replaces W10312696. Substitute parts can look different from the original.
BEST SELLER
$102.85 |
10% OFF Phone Price : $114.85
In Stock
Refrigerator Electronic Control Board W10312695
#35

Cabinet parts diagram

Refrigerator electronic control board

Part #W10312695

Replaced by #WPW10312695

?
Manufacturer substitution
This part replaces W10312695. Substitute parts can look different from the original.
BEST SELLER
$136.44 |
8% OFF Phone Price : $148.44
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your refrigerators
