Model # 14SH754 Official Singer overlock sewing machine

Here are the diagrams and repair parts for Official Singer 14SH754 overlock sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Sewing Machine Thread Guide 412531
#8

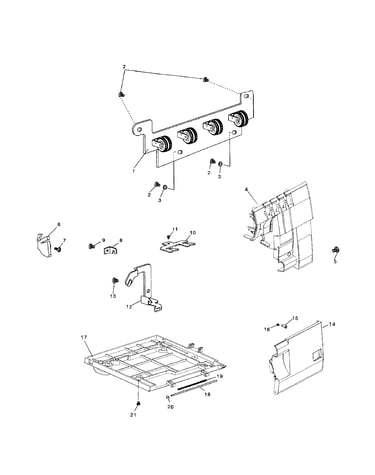

Tension assy diagram

Sewing machine thread guide

Part #412531

The manufacturer no longer makes this part, and there's no substitute part

Washer Holder Stud 541217
#16

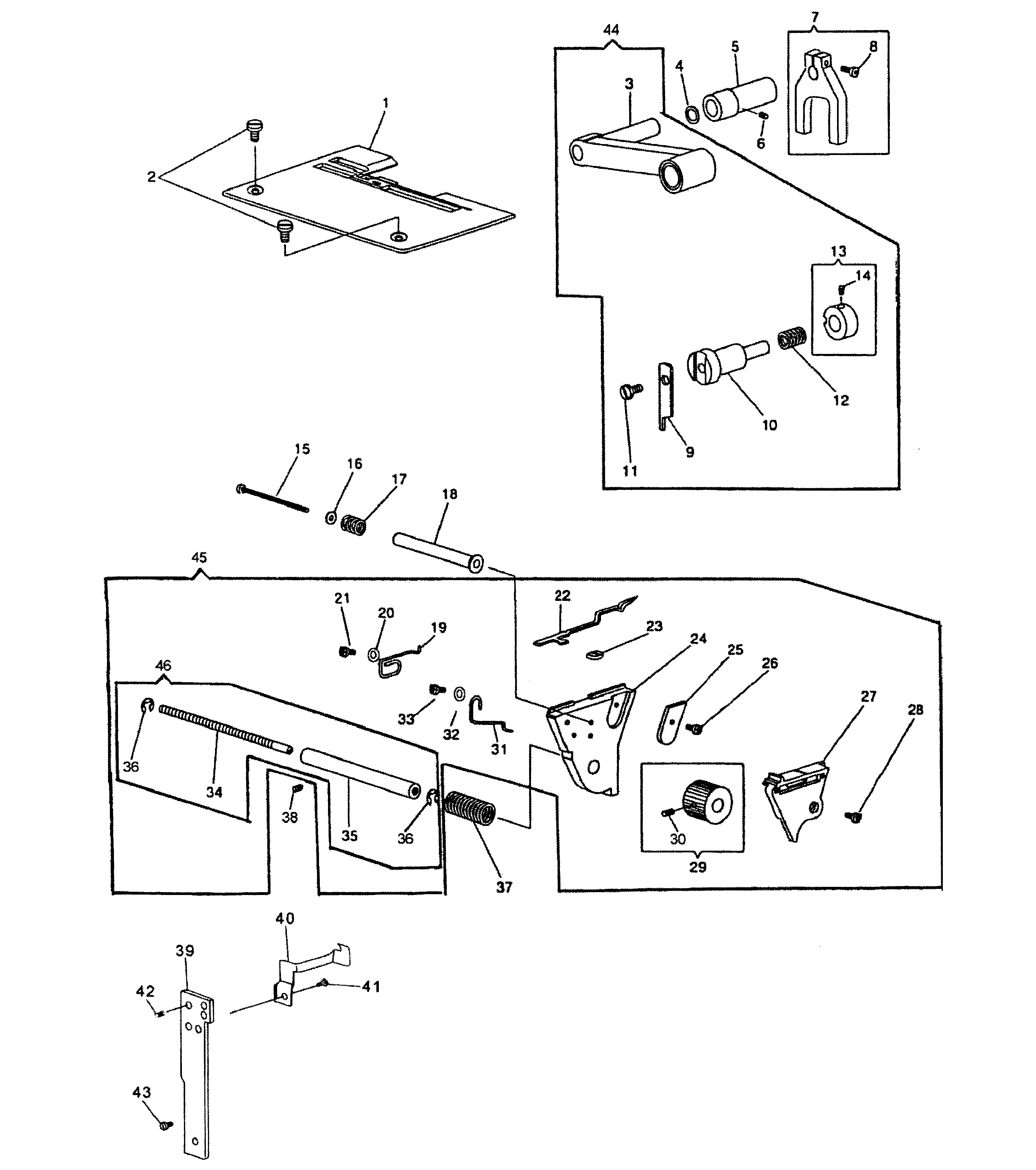

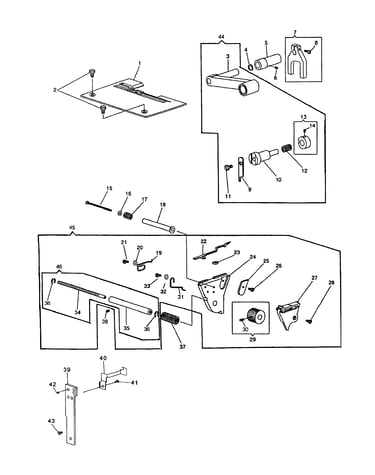

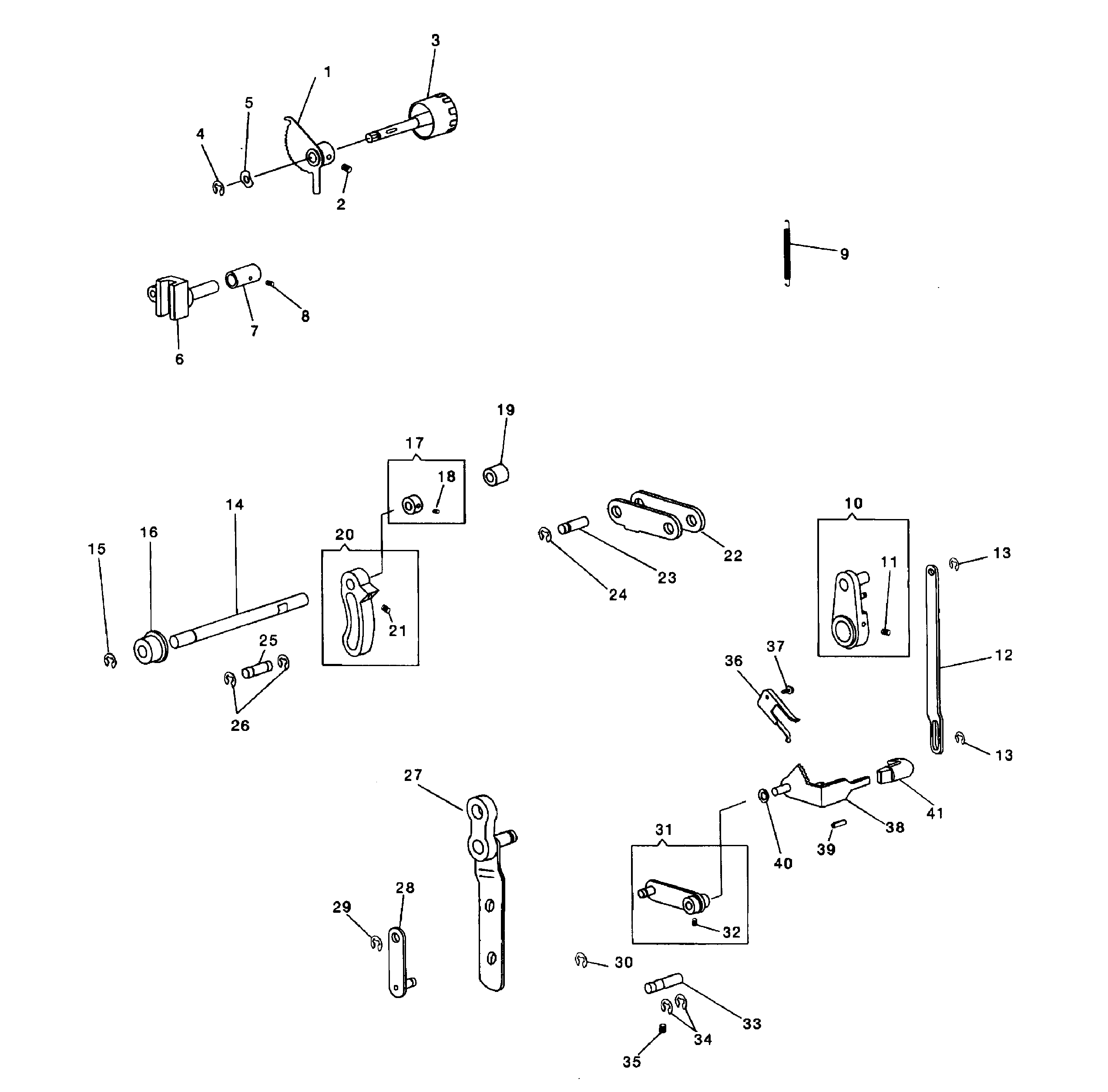

Knife assy diagram

Washer holder stud

Part #541217

The manufacturer no longer makes this part, and there's no substitute part

Support Plate 550451-391
#27

Knife assy diagram

Support plate

Part #550451-391

The manufacturer no longer makes this part, and there's no substitute part

Sspring 550359
#37

Knife assy diagram

Sspring

Part #550359

The manufacturer no longer makes this part, and there's no substitute part

Stud Screw 544044
#12

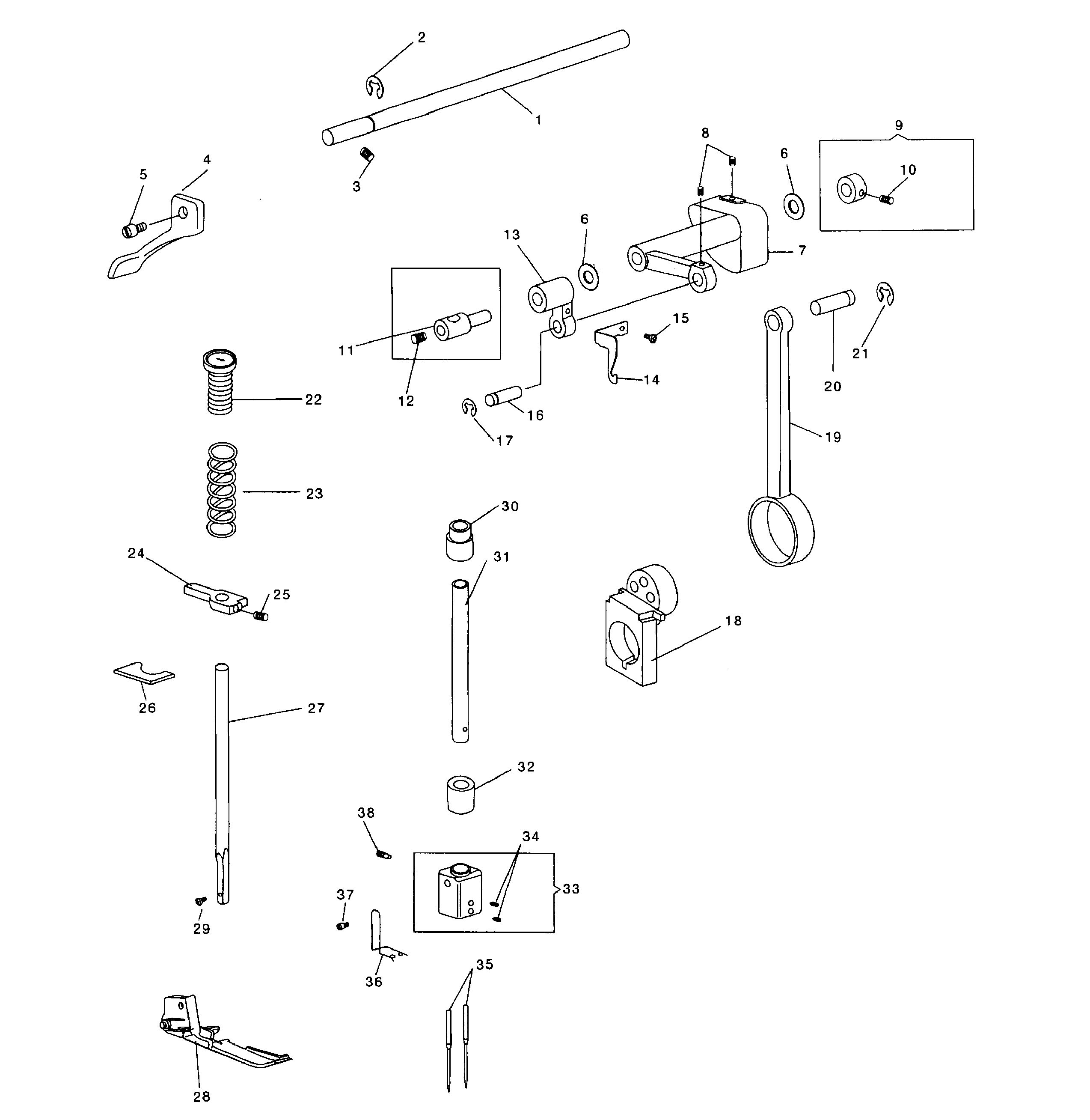

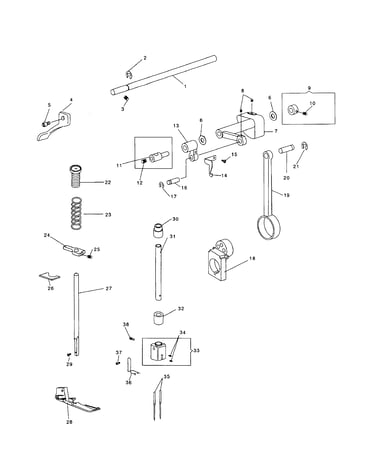

Shaft assy diagram

Stud screw

Part #544044

The manufacturer no longer makes this part, and there's no substitute part

Block 556139
#18

Shaft assy diagram

Block

Part #556139

The manufacturer no longer makes this part, and there's no substitute part

Pulley Cover 364282-002
#21

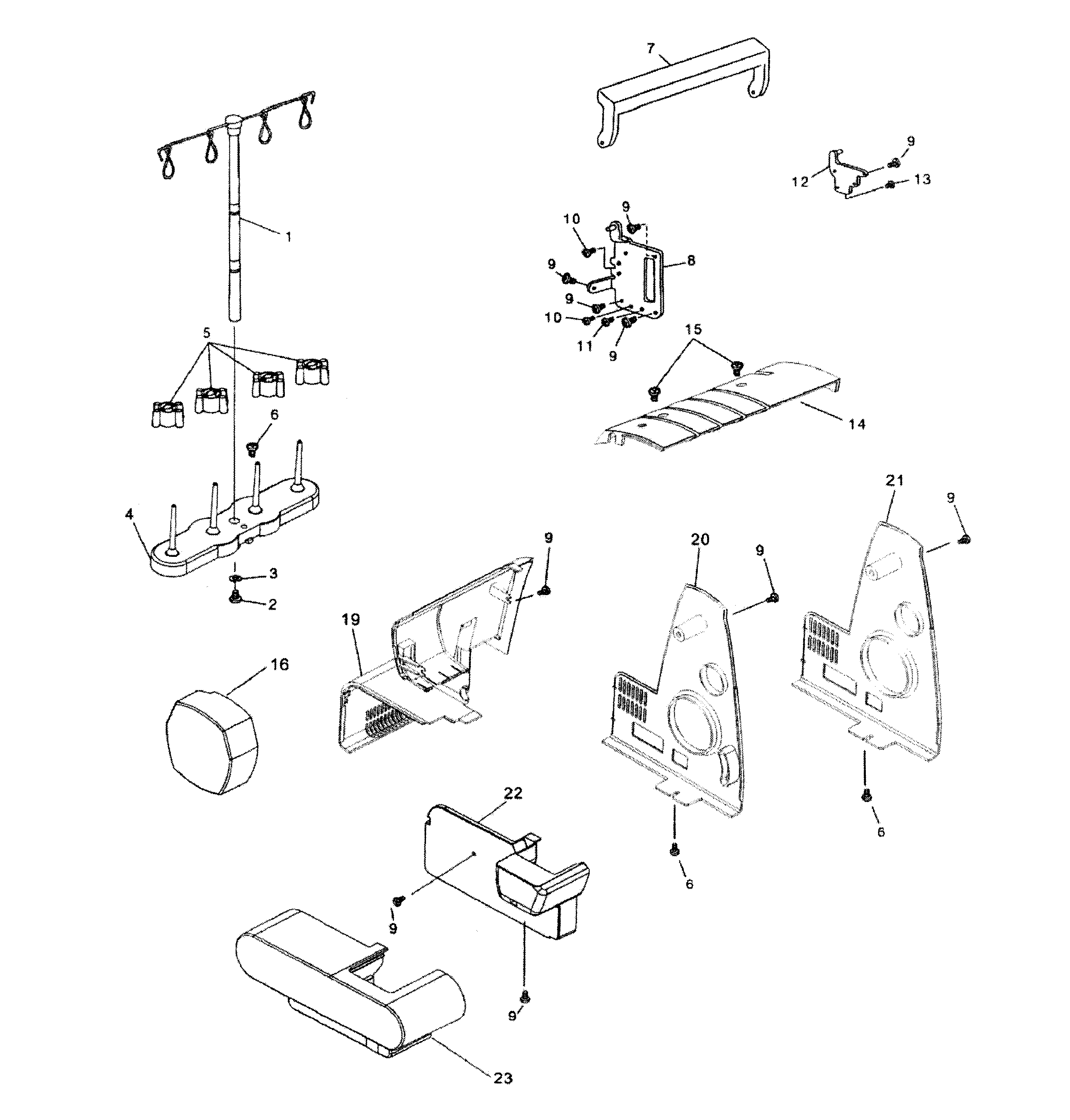

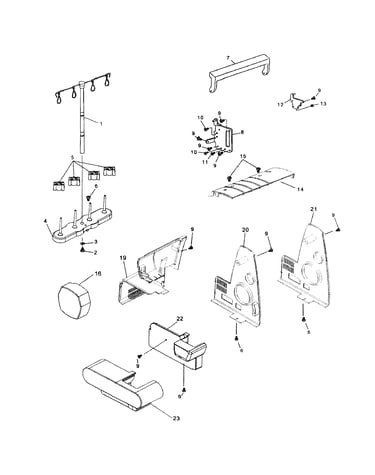

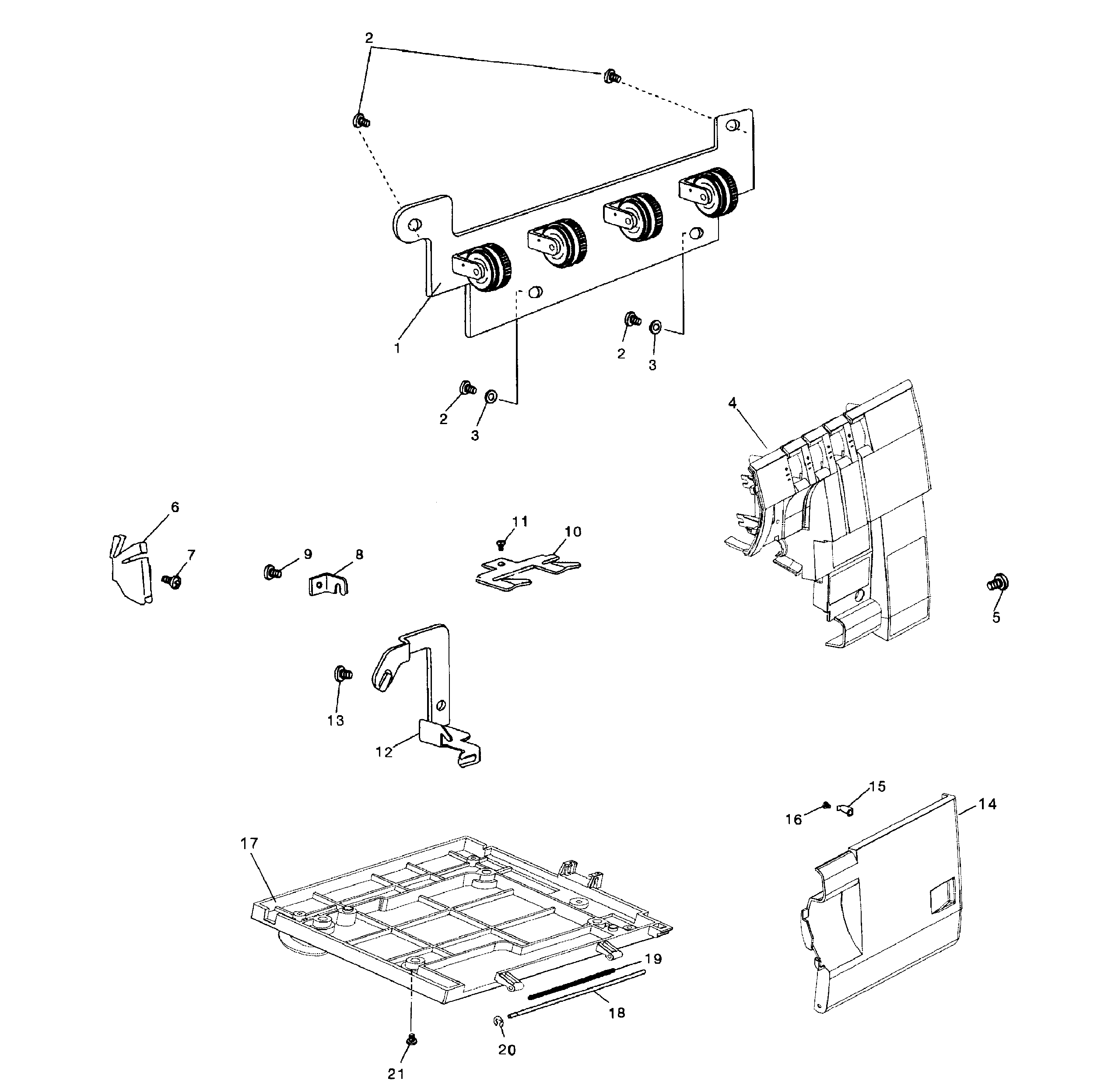

Cabinet assy diagram

Pulley cover

Part #364282-002

The manufacturer no longer makes this part, and there's no substitute part

R Lpr Shaft 412796
#22

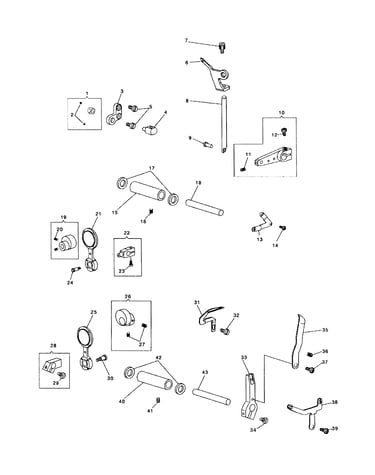

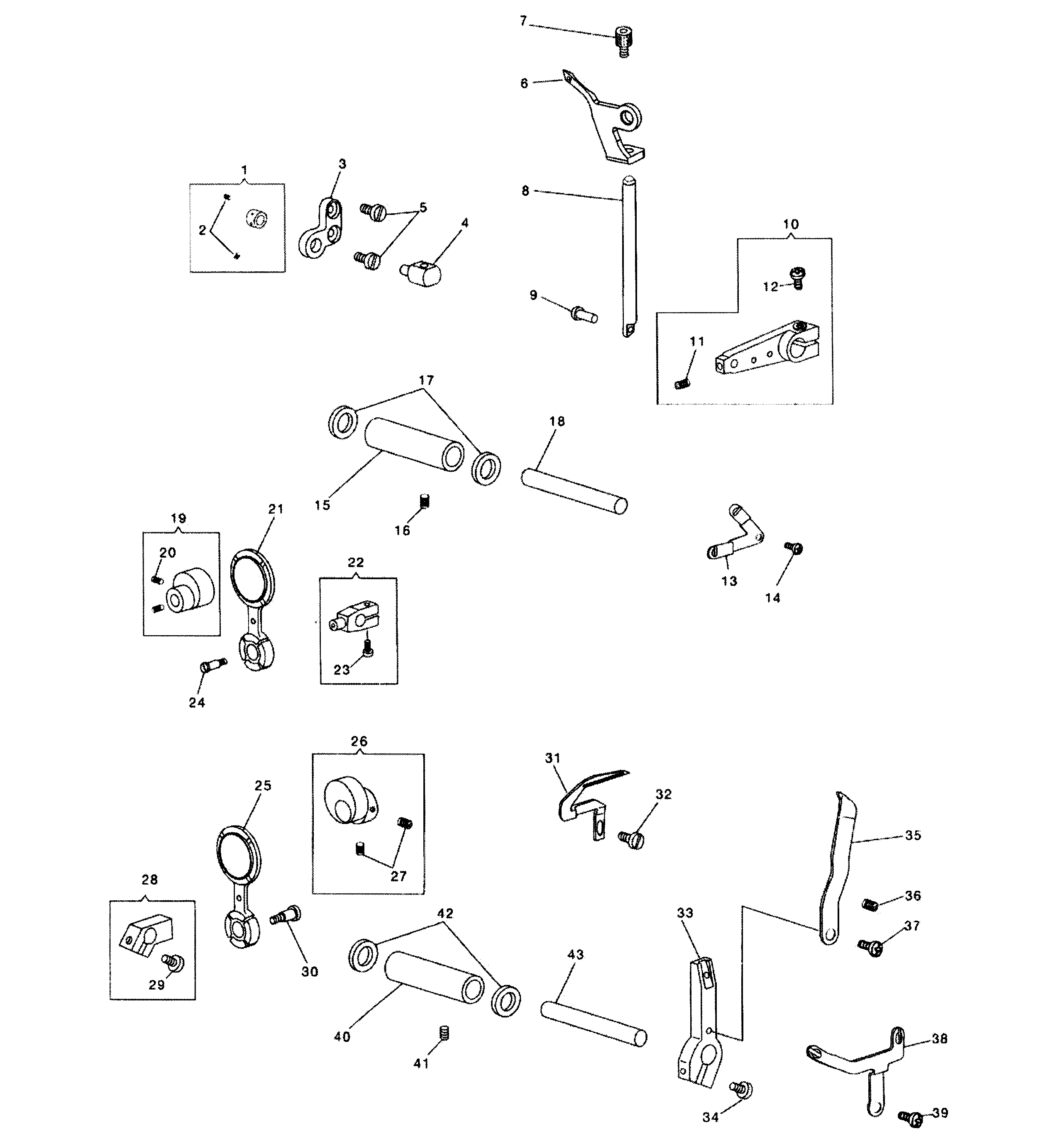

Looper diagram

R lpr shaft

Part #412796

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 543805-005
#10

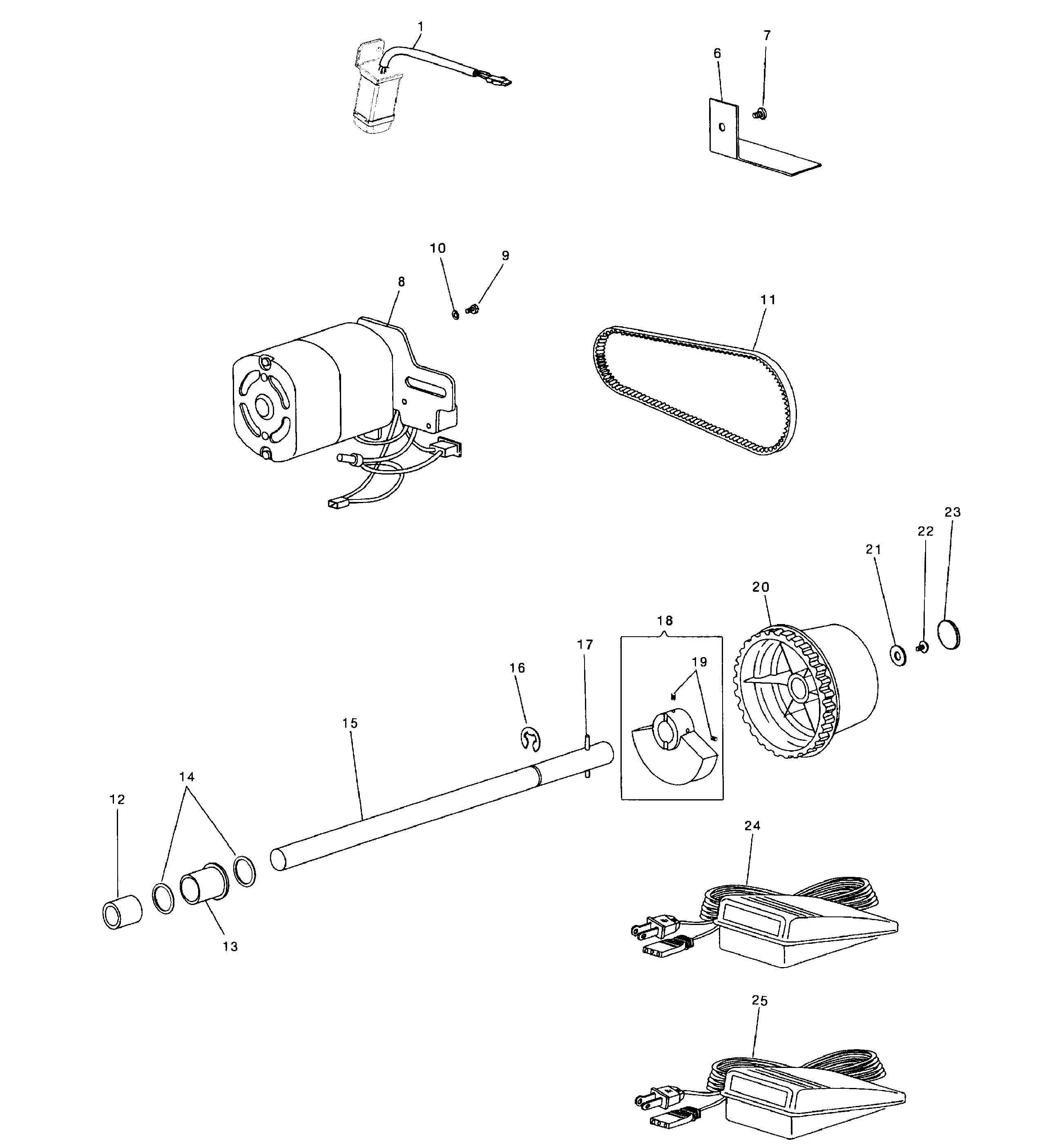

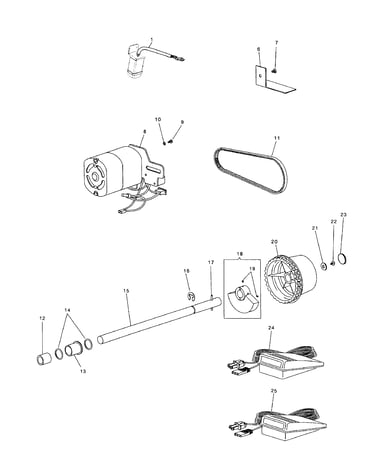

Motor diagram

Spring washer

Part #543805-005

The manufacturer no longer makes this part, and there's no substitute part

Stud Screw 374136
Stud screw

Part #374136

The manufacturer no longer makes this part, and there's no substitute part
