Kenmore
Electric Cooktop

Model # 79045409410 Official Kenmore cooktop

Here are the diagrams and repair parts for Official Kenmore 79045409410 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

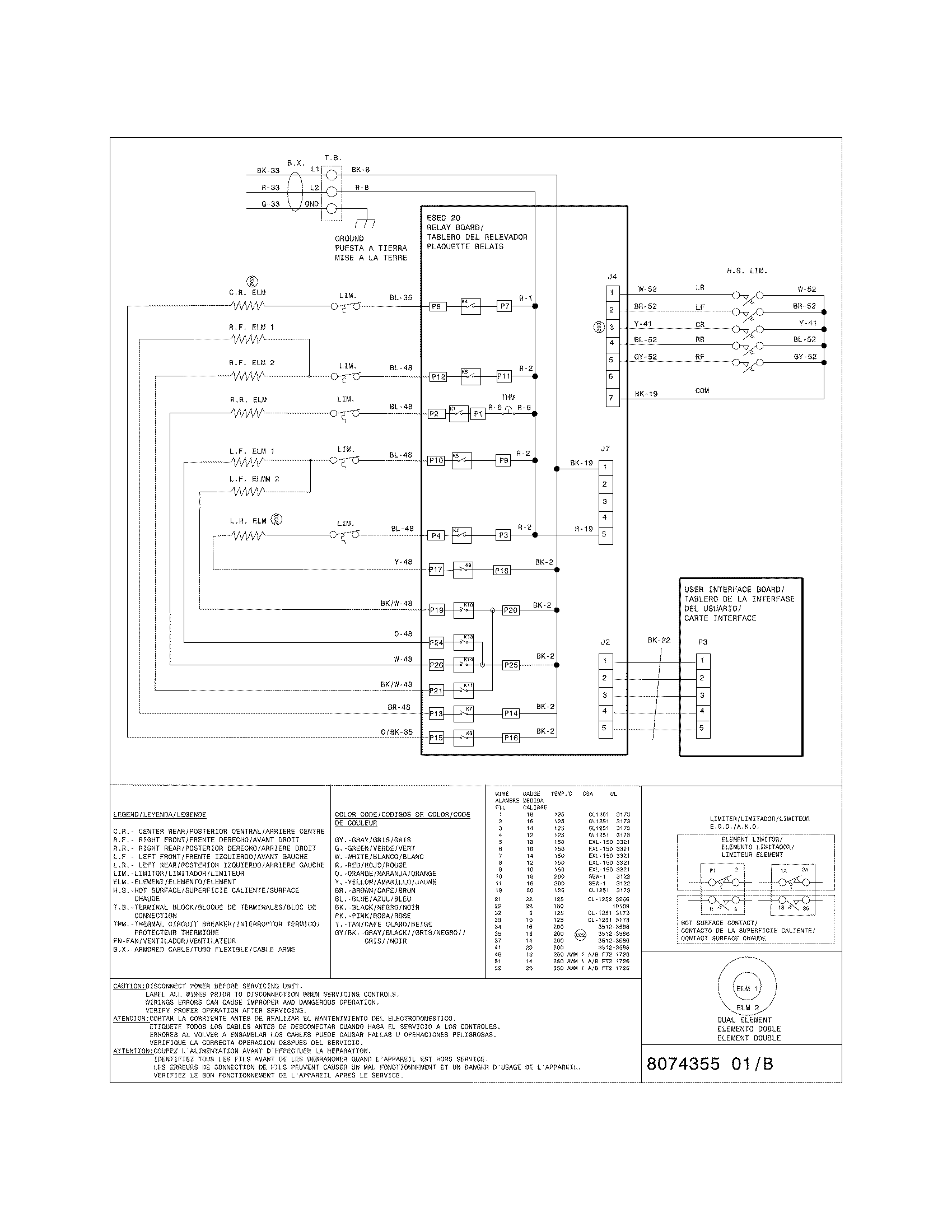

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Frigidaire Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

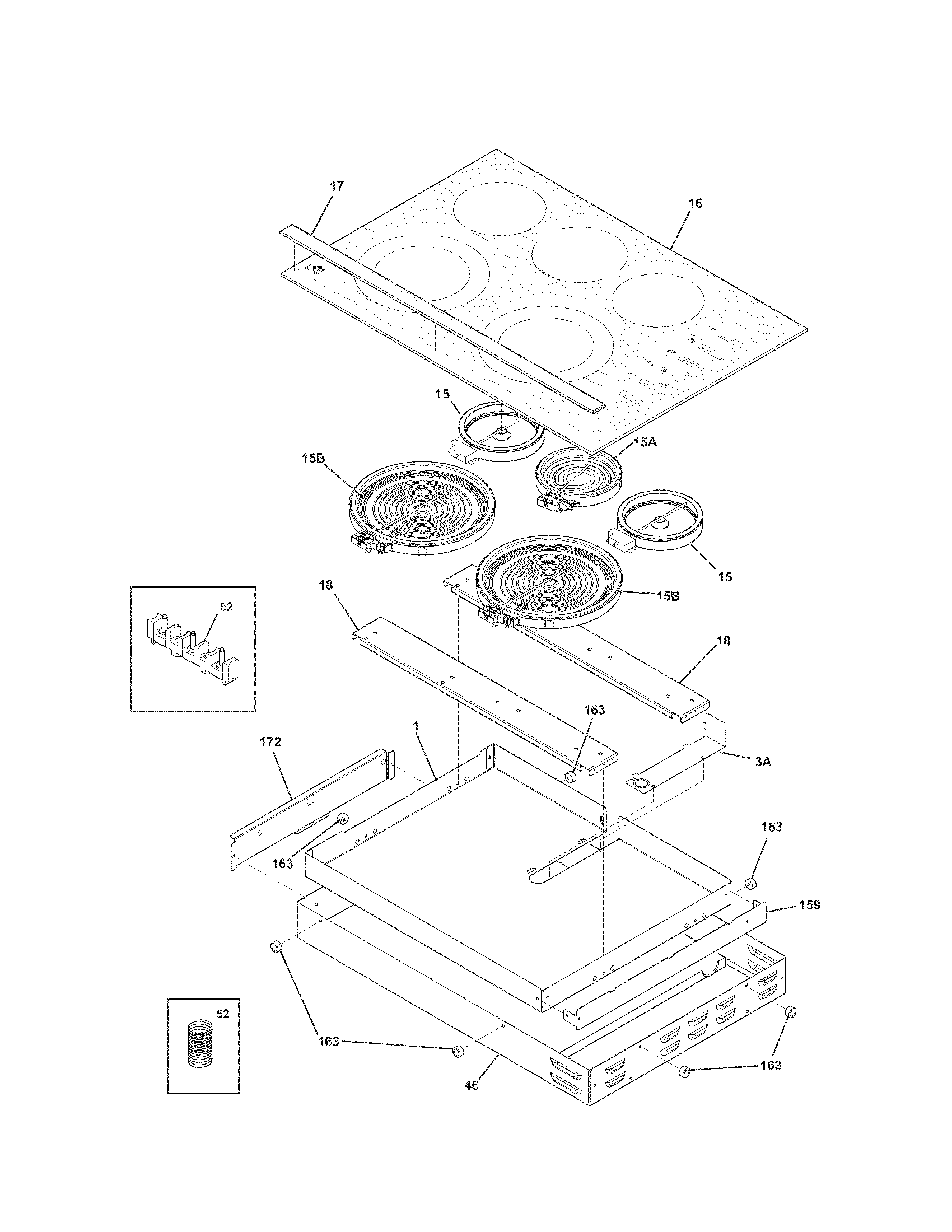

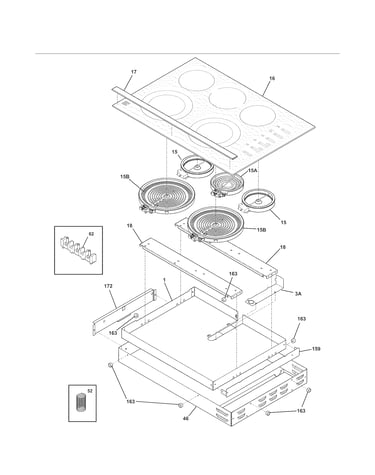

Main top/surface units diagram

Frigidaire range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

BEST SELLER
$149.34 |
7% OFF Phone Price : $161.34
In Stock
Frigidaire Range Dual Radiant Surface Element (replaces 316418400, 316418401) 316555800
#15B

Main top/surface units diagram

Frigidaire range dual radiant surface element (replaces 316418400, 316418401)

Part #316555800

BEST SELLER
$162.16 |
7% OFF Phone Price : $174.16
In Stock
Range Screw 5303323140
Range screw

Part #5303323140

$11.17
In Stock
Installation 318205431
#NI

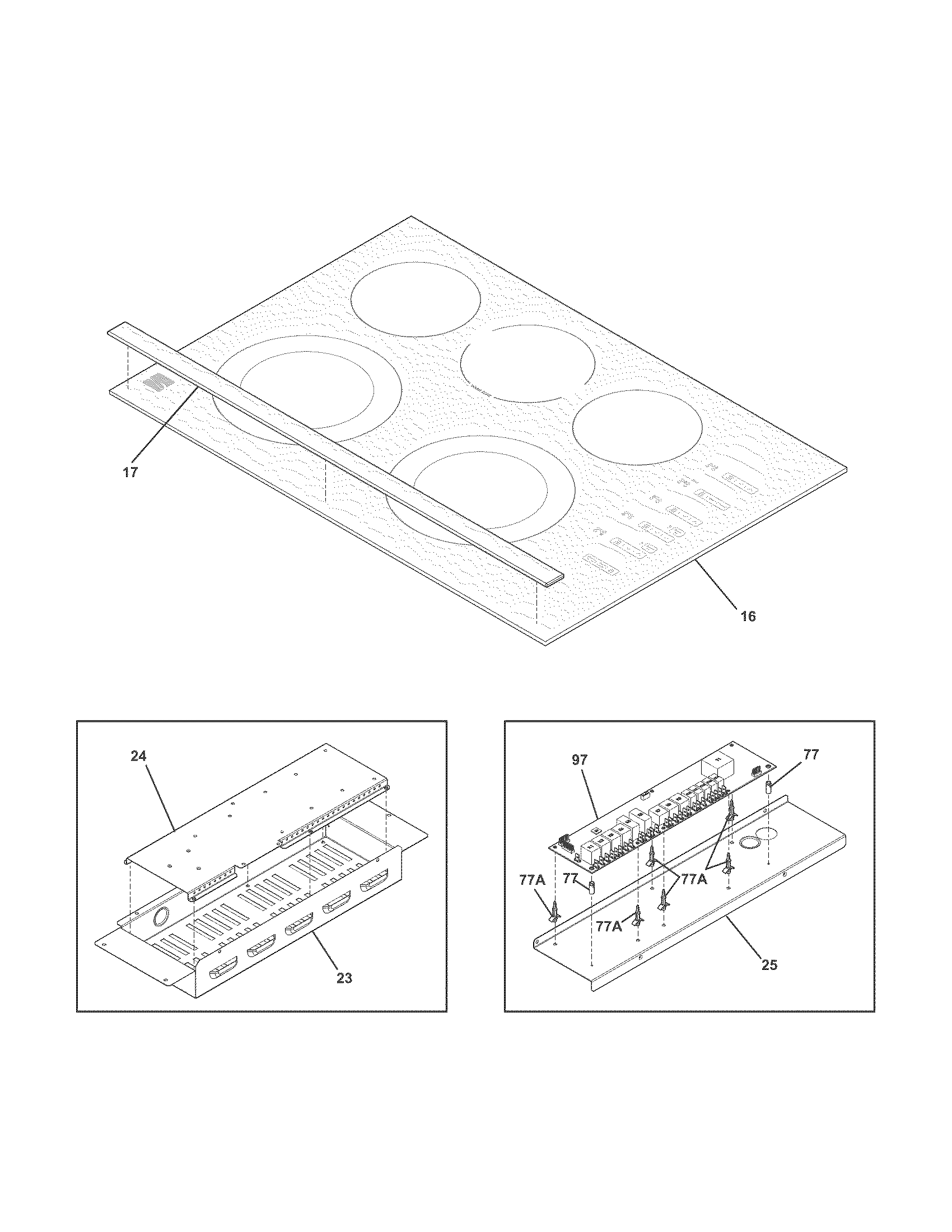

Control panel diagram

Installation

Part #318205431

This item is not returnable
$4.14
In Stock
Cooking Appliance Spacer 318531702
#163

Main top/surface units diagram

Cooking appliance spacer

Part #318531702

$9.77
In Stock
Range Screw, 8 X 5/8-in 3131048
#163

Main top/surface units diagram

Range screw, 8 x 5/8-in

Part #3131048

$21.71
In Stock
Range Screw, 10-24 X 0.906-in 5303323139
#NI

Main top/surface units diagram

Range screw, 10-24 x 0.906-in

Part #5303323139

$13.26
In Stock
Wire Box 318394497
#NI

Main top/surface units diagram

Wire box

Part #318394497

$95.80
In Stock
Element 305440414
#15A

Main top/surface units diagram

Element

Part #305440414

$133.28
In Stock
Cooktop Relay Control Board 318939702
#97

Control panel diagram

Cooktop relay control board

Part #318939702

$280.55 |
$12.00 OFF Phone Price : $292.55
In Stock
